Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.

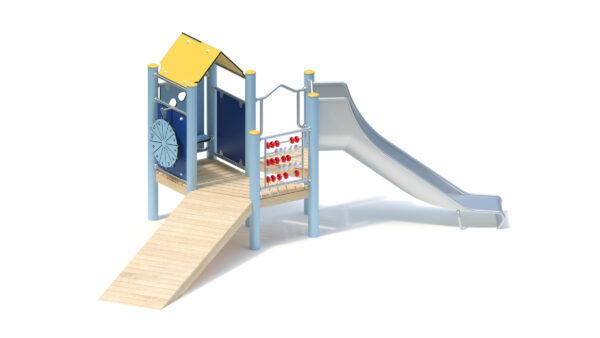

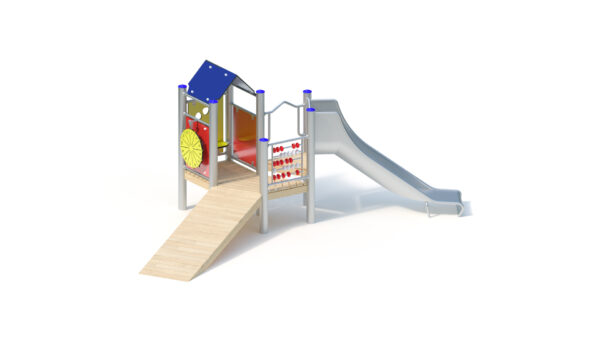

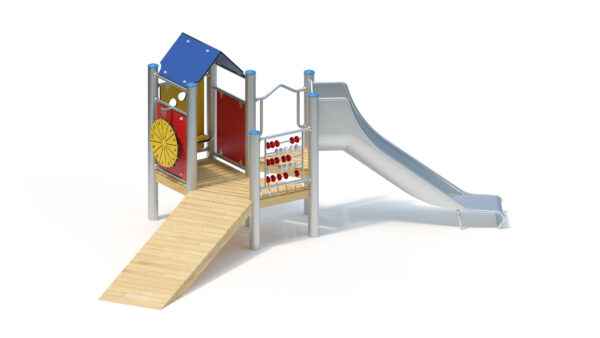

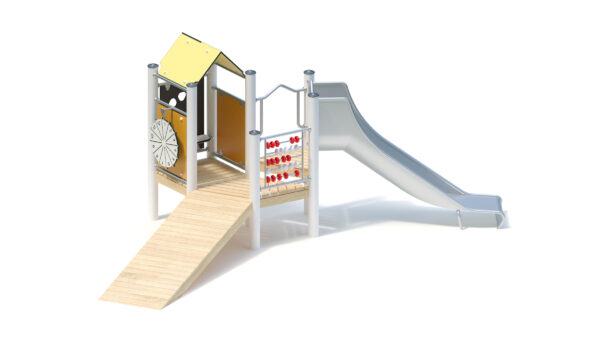

Play structure

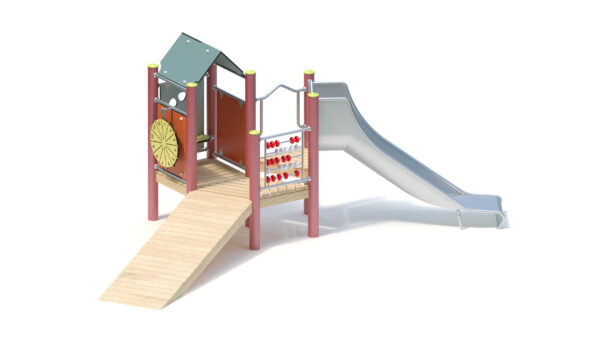

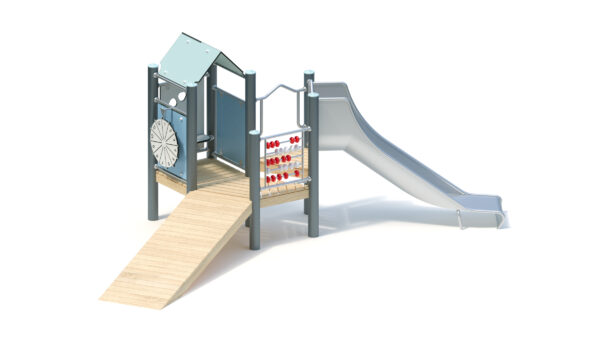

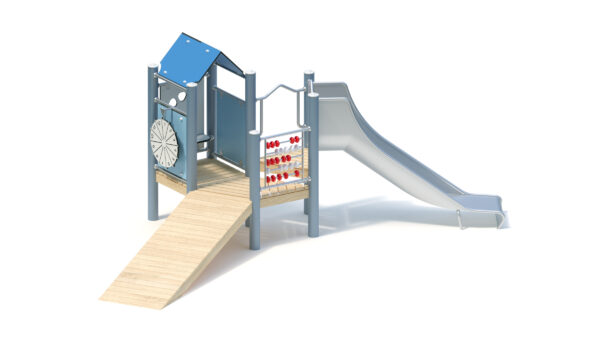

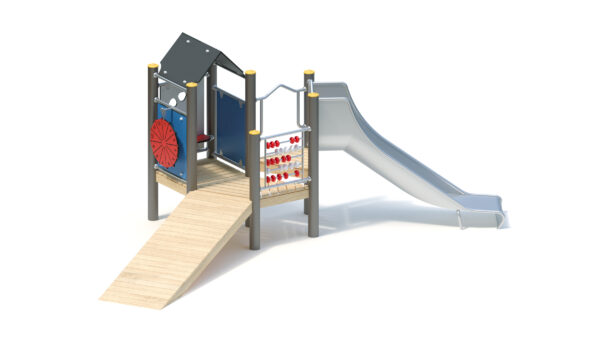

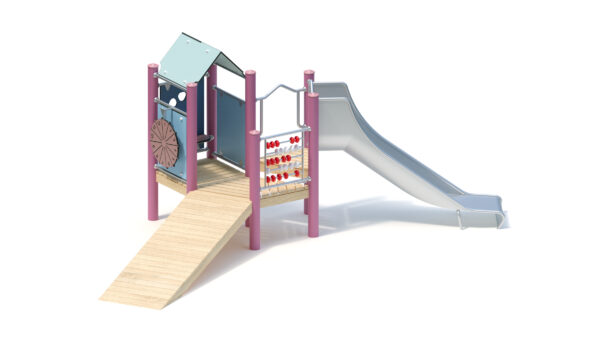

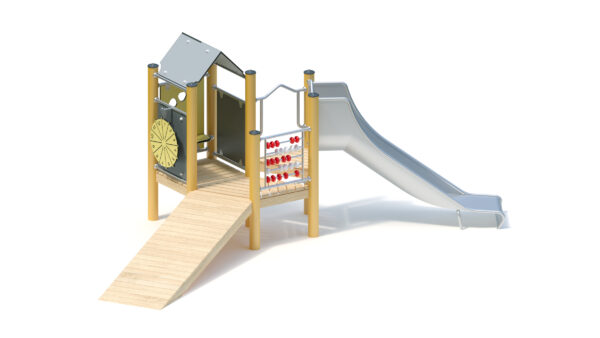

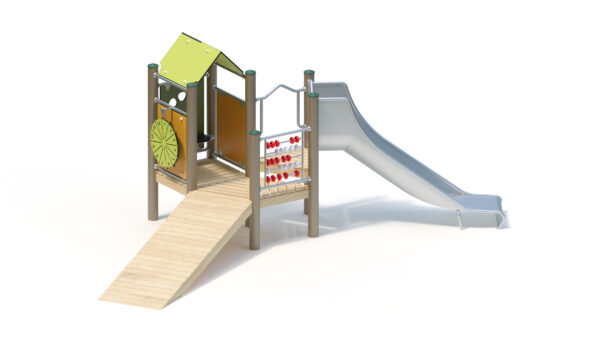

Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 11 Personen |
| Aktivitäten ? | Physical activity, Slide, Social activity |
Technical data
| Mindestraumlänge ? | 7,82 m |
|---|---|
| Mindestraumbreite ? | 7,17 m |
| Mindestraumhöhe ? | 2,17 m |
| Gerätelänge ? | 4,82 m |
| Gerätebreite ? | 3,80 m |
| Gerätehöhe ? | 2,17 m |
| Freie Fallhöhe ? | 1,32 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 480.00 kg |
| Schwerstes Einzelteil ? | 75.00 kg |
Assembly & Foundations
| Montagezeit ? | 4,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 2 (0.3m x 0.3m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) Quantity: 7 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

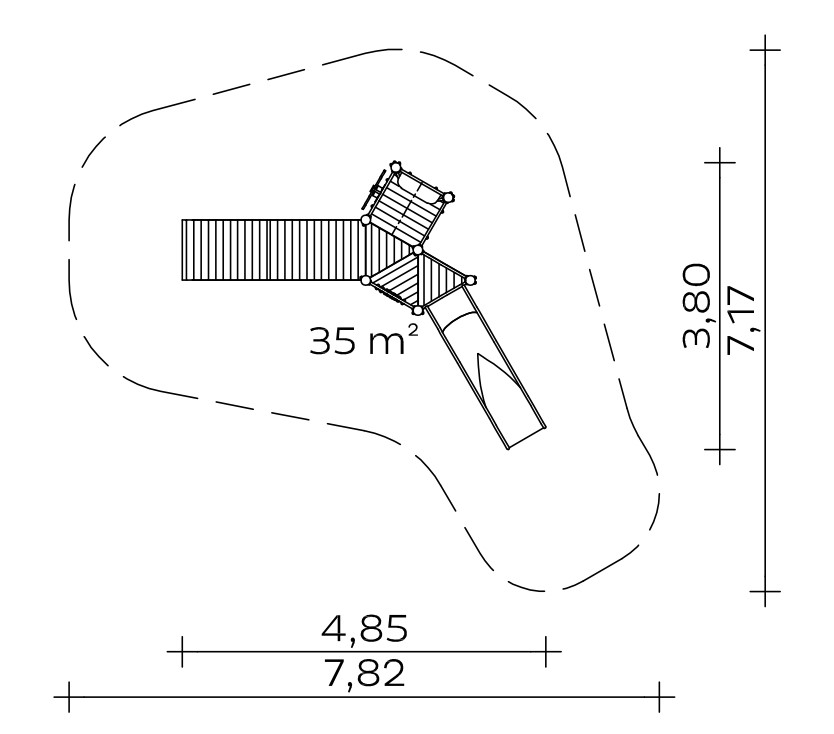

Total height: 2.17 m
Floor area: 3.80 x 4.85 m
Impact area: 7.17 x 7.82 m
Platform heights: 0.60 m/0.80 m
Slide attachment height: 0.80 m
Seat height: 0.90 m
Free fall height: 1.32 m
Impact area: 35 m²
Weight: 70 kg heaviest individual part
720 kg in total
Support post
Stainless steel posts Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Panelled balustrade made of highly weather-resistant HPL laminate, 15 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Access railing, roll-preventing, welded construction made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube with bent, vertically arranged support tubes
- Climbing rung made of stainless steel tube, Ø 38 mm, torsion-resistant
- Seat plate made of highly weather-resistant HPL laminate, 20 mm
- Slide rule with polyamide elements, Ø 80 mm, on axles made of welded stainless steel tube, Ø 20 mm
- Wheel of fortune wall made of HPL laminate, 20 mm
- Ramp 14°, tread made of profiled boards, 95 x 30 mm
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by the use of screws with a central pin.
Foundations (client-provided)
7 units 0.40 x 0.40 x 0.40 m
2 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.64 m³
Assembly time
2 fitters 4 hours each
(without foundation)
Suitable for
Children from 2 years,
public playgrounds etc.
Physical activities
Item number: 021160500
Dieses Kaiser & Kühne-Produkt ermöglicht:
