Technical data
Total height: 3.00 m

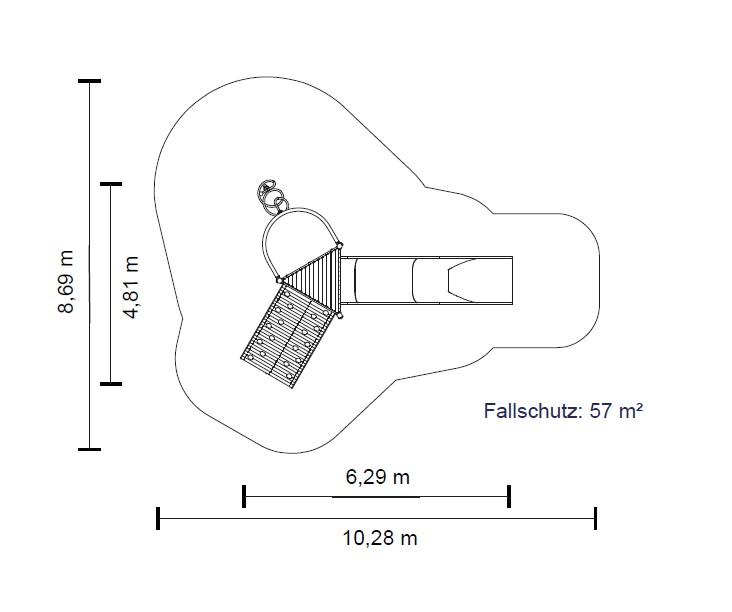

Floor area: 4.81 x 6.29 m
Minimum space: 8.69 x 10.28 m
Platform heights: 2.00 m
Slide attachment height: 2.00 m
Seat height: 2.10 m
Slide inclination: 36°
Slide width: 1.10 m
Sliding plate thickness: 2.5 mm

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Tubular base made of stainless steel for the foundation and elevation of robinia roundwood posts, Ø 120 mm, below the play level.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.

Attachments
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Big Tornado with stainless steel pipe bend, Ø 60.3 x 3 mm, and spiral-shaped construction made of stainless steel pipe with knurled base; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
3 pcs. 0.40 x 0.40 x 0.40 m
3 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.60 x 0.60 x 0.50 m
1 piece 0.40 x 1.25 x 0.40 m

Assembly time
2 fitters 5 hours each,
(without foundation)

Free fall height
2,80 m

Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities

Each of our units is manufactured in accordance with the highest quality standards and the current EN 1176 standard, and this model serves as an inspirational suggestion and can be supplied with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.

Item number: L722000447
