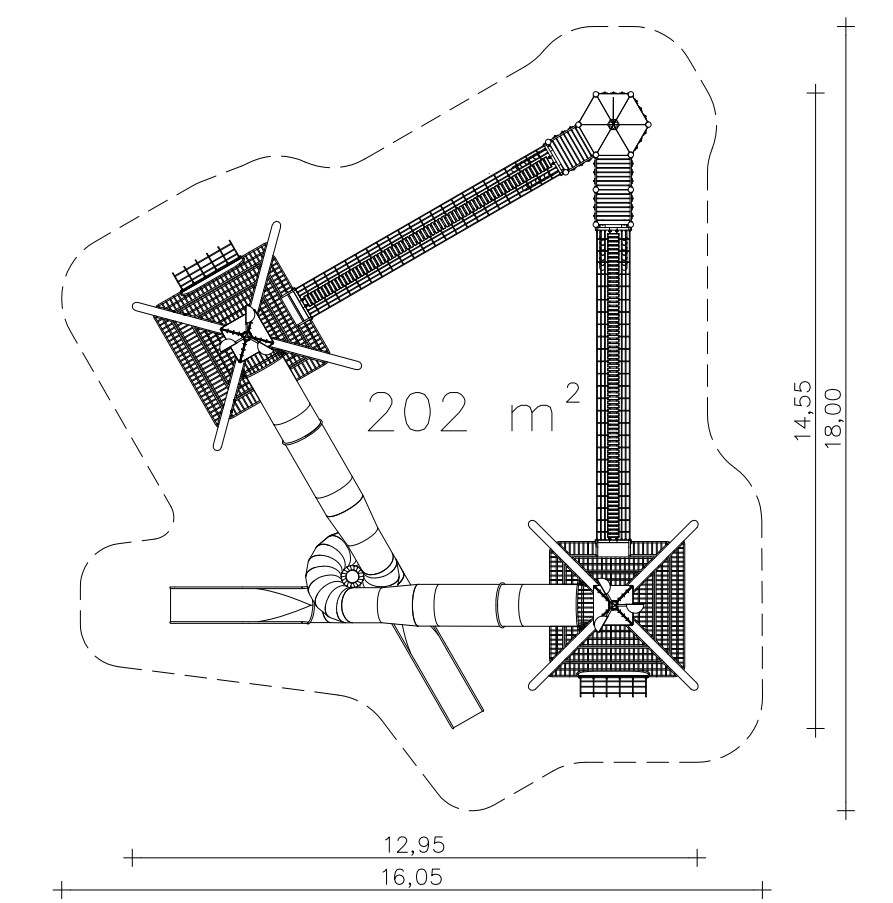

• Technical drawing
• Technical drawing (2D DWG)
• Technical drawing (3D DWG)

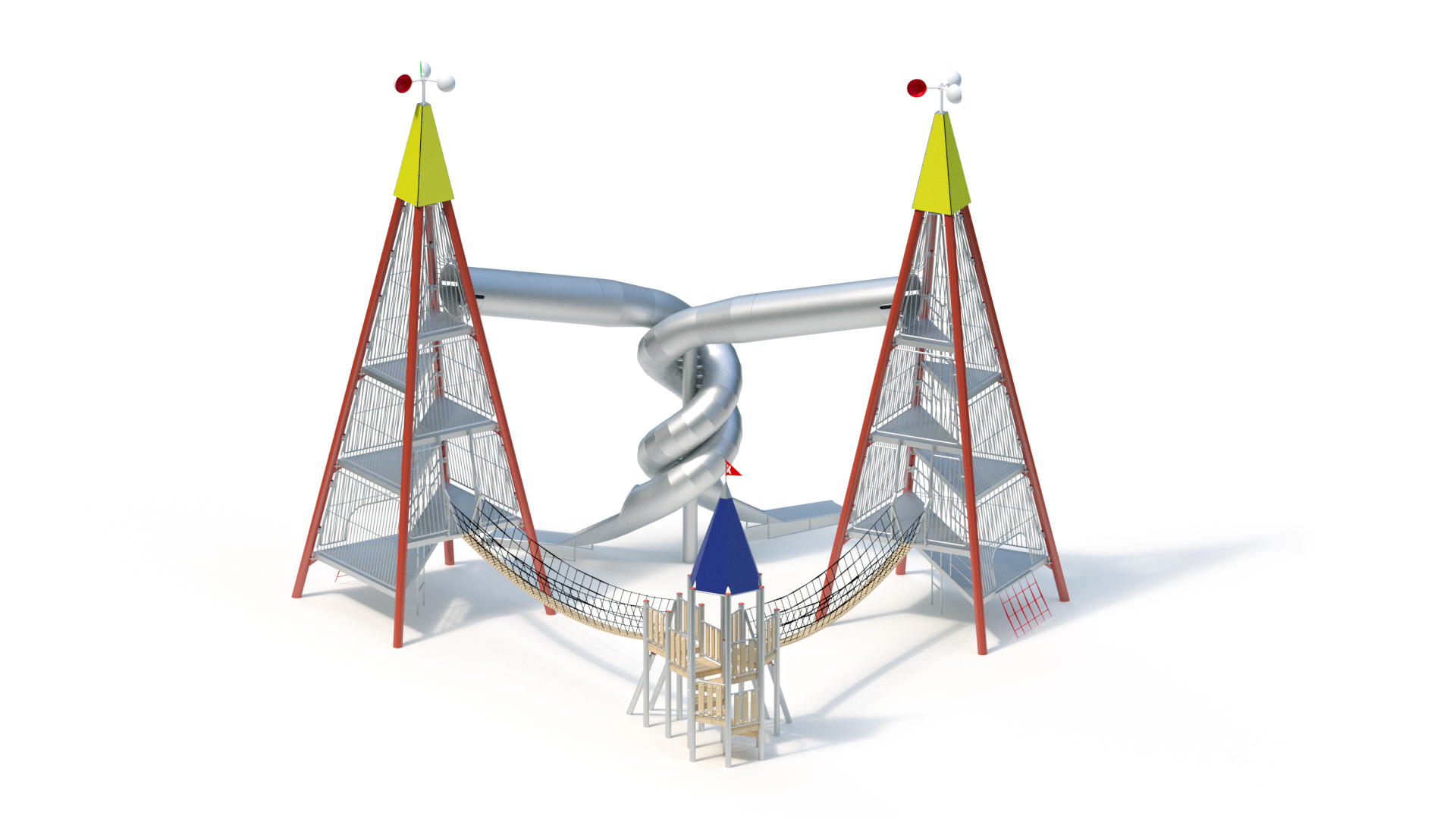

Dalben tower combination consisting of:
Two dolphin towers (10.50) with net ascent (1.00) and wind rotor, connected by a roller conveyor-tunnel slide combination (6.00).
Transition to equipment combination via footbridge (6.83 m and 7.35 m).

Technical data
Floor area: approx. 12.95 x 14.55 m
Minimum space: approx. 16.05 x 18.00 m
Height: approx. 10.50 m + tower top
Platform heights: 1.00/2.00/3.00/4.00/5.00/6.00 m

Support post
Steel Ø 193.7 x 4 mm, hot-dip galvanised

Platform floors
Triangular stainless steel pedestals, welded construction with tear plate covering, glass bead blasted, screw-on flange connections on the uprights.
Ladder steps made of stainless steel tube, rung height 500 mm, including fall protection, between the landings, glass bead blasted.

Safety gate (from 1.00 m platform height)
Welded construction made of stainless steel tube Ø 21 / 33.7 mm, glass bead blasted, from 1.00 m platform height, screw-on flange connections on the uprights

Tower bonnets
High pressure laminate 15 mm

Tower ends
Wind rotor 3-fold

Ascent to platforms 1.00 m
- Net access made of Hercules rope Ø 16 mm, mesh size 300 m x 300 mm (centre-to-centre dimension)

Roller conveyor-tunnel slide combination
Mounting height: 6.00 m
Seat height: 6.10 m
Roller conveyor inclination: 15°
Roller conveyor diameter: 0.96 m
Slide inclination: 30°/38°
Tunnel diameter: 0.80 m
Sheet thickness: 2.5 mm
Roller conveyor segments with internal stainless steel web guide, welded to form a one-piece roller conveyor.
Handle openings on both sides in the single-seat section. Light openings made of shatterproof polycarbonate.
Stainless steel rollers with roller bearings.
Roller diameter: 50 mm
Centre pylon: steel tube Ø 298.5 x 7.1 mm, hot-dip galvanised/sheathing plate stainless steel tube Ø 313 x 2.5 mm
Slide segments made of stainless steel, particularly quiet due to tubular shape, five-part roller conveyor/slide, including connecting flanges for on-site assembly.

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Footbridge length 6.83 m / 7.35 m
V-shaped net construction made of Hercules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing. Attached to steel frame construction. Parapet height approx. 0.75 m.
Support post made of stainless steel Ø 120 mm.

Play structure
- Support posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps
- Platform floor made of 30 mm thick boards and 45 x 100 mm squared timber joists all round. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets and a continuous bolt connection.
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Tower roof, inclination 72°, made of highly weather-resistant HPL laminate, 13 mm, with tower flag, rotatable

Anchoring
Dowelling of the pedestal base with 2 injection anchor rods made of A4 stainless steel.
The tower is equipped with a lightning conductor to protect it from damage.

Foundations (client-provided)
8 pcs. 1.00 x 1.00 x 0.50 m
6 pcs. 1.00 x 0.40 x 0.40 m
1 piece 0.80 x 0.80 x 1.00 m
5 pcs. 0.40 x 0.40 x 0.60 m
2 pcs. 1.20 x 1.20 x 0.40 m
2 units 0.70 x 1.20 x 0.60 m

Assembly time
4 fitters 60 hours each, plus lifting gear
(without foundation)

Free fall height
2,00 m

Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities

The foundation sizes specified in this offer correspond to the static requirements for medium-dissolvable soil types with a permissible soil pressure of at least σR,d = 150 kN/m². In the case of deviating soil conditions and installation in areas with high wind loads (deviating from German wind zone 2, corresponds to vref = 25.0 m/s) or high snow loads (deviating from German snow load zone 2, corresponds to sk ≥0.85 kN/m²), technical modifications to the product design may be necessary (e.g. insertion of cross bracing). This will result in additional costs and an extension of the specified delivery time.
At the Client's request, Kaiser & Kühne may commission a recognised engineering firm to carry out the necessary structural calculations. The resulting costs shall be borne by the Client. The required evidence of the local conditions shall be provided by the Client.

Item number: 910105031
