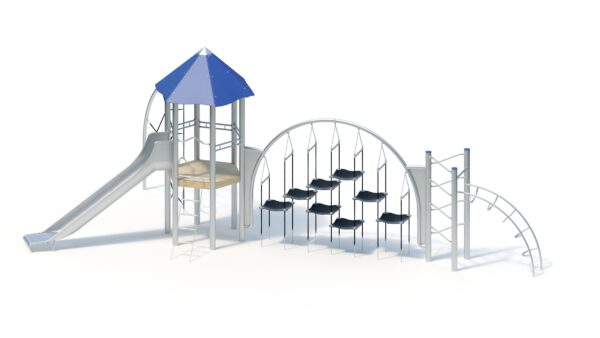

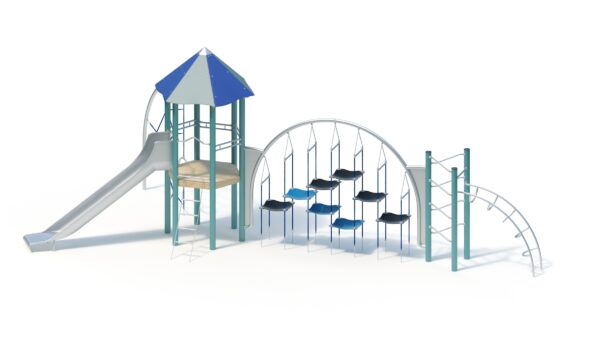

Technical data
Total height: 4.08 m
Floor area: 4.54 x 10.52 m

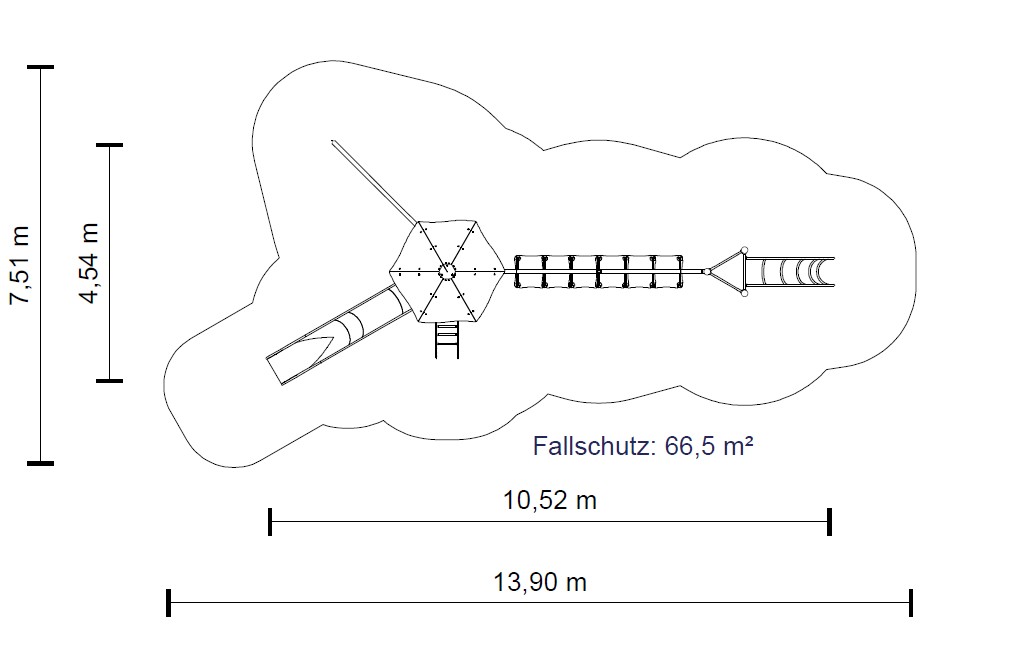

Impact area: 7.51 x 13.90 m (66.5 m²)
Platform height: 1.40 m
Slide attachment height: 1.40 m
Seat height: 1.50 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm

Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.

Platforms
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.

Attachments
- Flying Carpet: stainless steel pipe bend, Ø 76.1 x 3.6 mm, stainless steel chain connection Ø 34 x 37 mm; polypropylene rope (Ø 16 mm), 6 strands, with galvanised steel insert; elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Chain ladder with stainless steel rungs
- Curved ladder made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rung made of stainless steel tube, Ø 38 mm, torsion-resistant
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
- Spider Net with stainless steel tube bend element Ø 76.1 x 3.6 mm, polypropylene rope net with galvanised steel insert Ø 16 mm, aluminium connecting elements and stainless steel tube ring Ø 450 mm made of tube Ø 38 x 2 mm.

Slide information
When planning, please bear in mind that stainless steel slides should be orientated accordingly due to possible heating of the slide surface: north-east in the northern hemisphere and south-east in the southern hemisphere. Alternatively, they should be placed in the partial shade of trees.

General note
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.

Foundations
9 pcs 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 1.25 x 0.40 m
1 piece 0.50 x 0.50 x 0.40 m
2 pcs 0.30 x 0.30 x 0.40 m

Assembly time
2 fitters 8 hours each, plus lifting gear
(without foundation)

Free fall height
2.84m

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

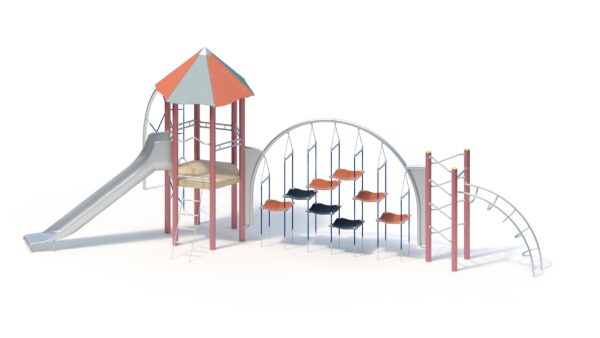

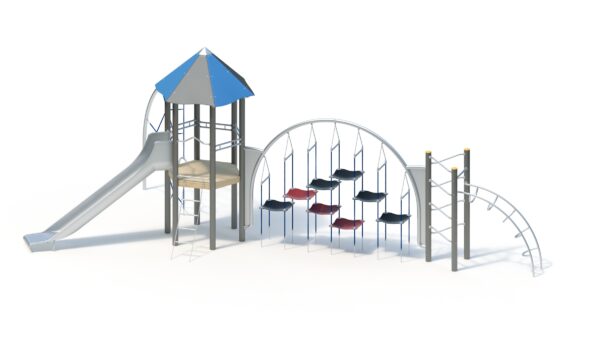

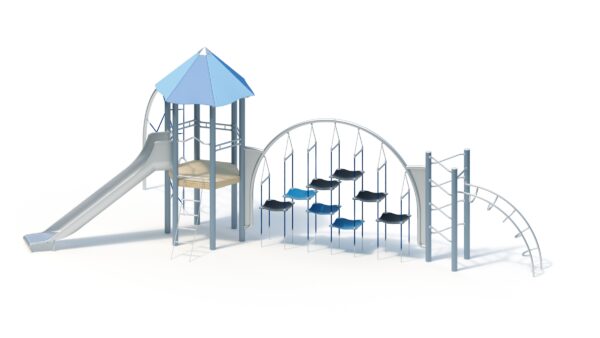

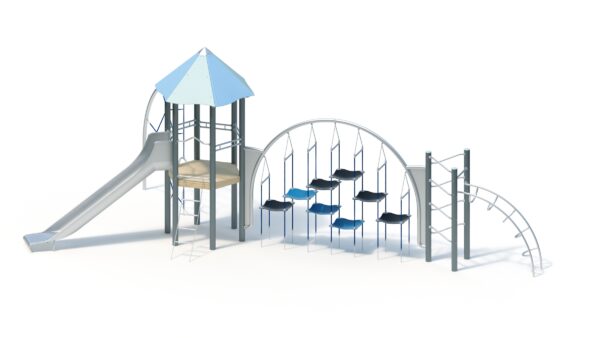

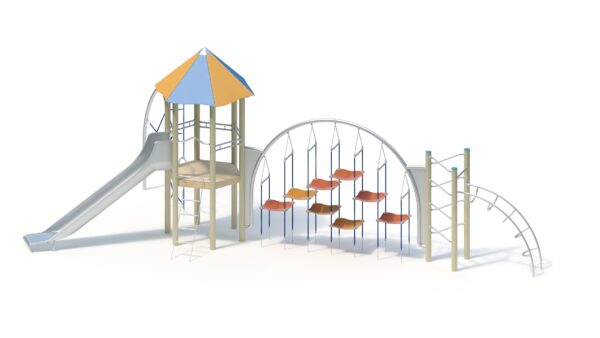

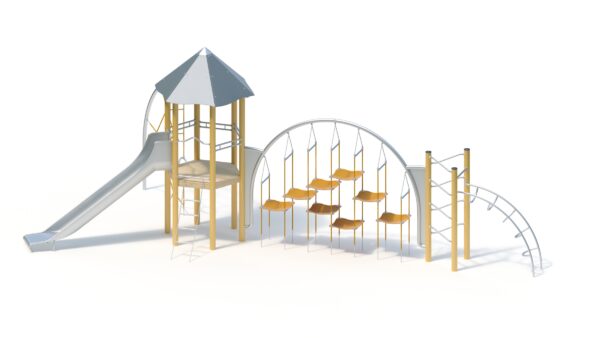

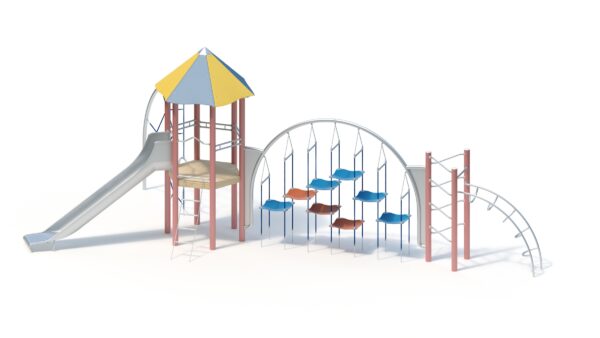

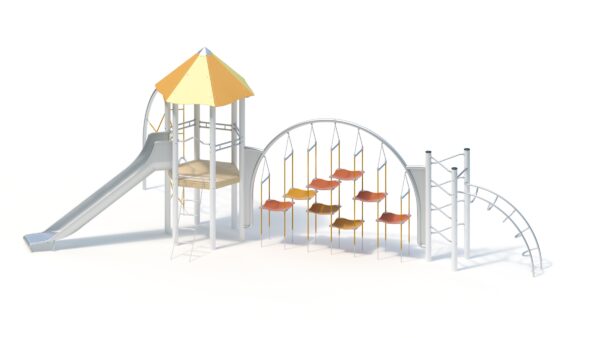

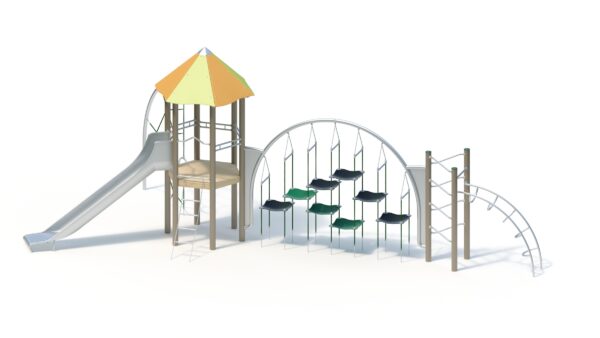

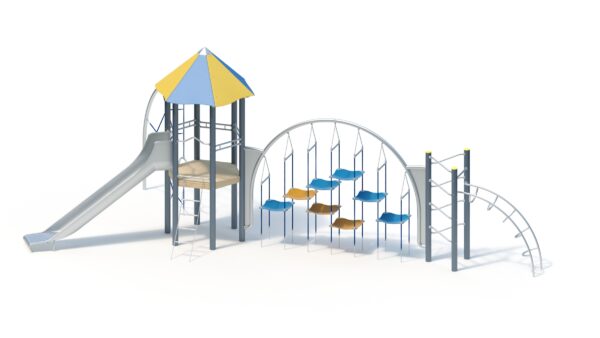

Each of our units is manufactured in accordance with the highest quality standards and the current EN 1176 standard, and this model serves as an inspirational suggestion and can be supplied with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.

Item number: 821775029
