Technical data
Total height: 2.88 m

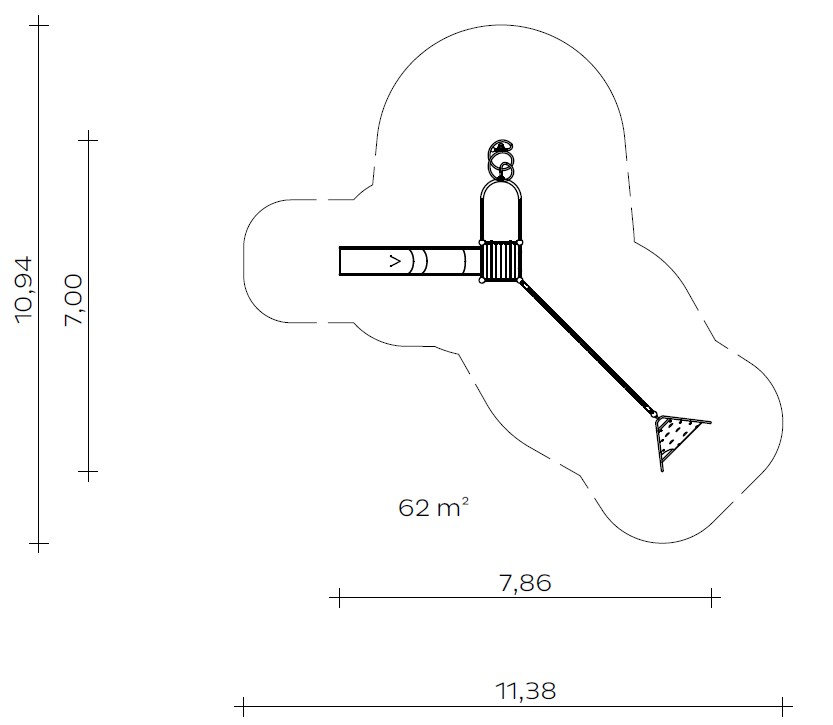

Floor area: 7.00 x 7.87 m
Impact area: 10.94 x 11.38 m (62 m²)
Platform height: 1.40 m
Slide attachment height: 1.40 m
Seat height: 1.50 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm

Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps, connection of the modular add-on parts to the posts using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements

Platforms
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.

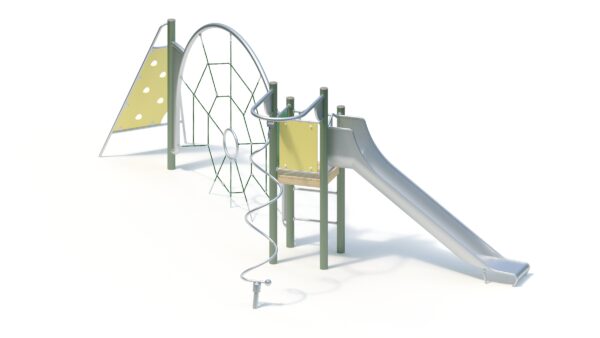

Attachments
- Big Tornado with stainless steel pipe bend, Ø 60.3 x 3 mm, and spiral-shaped construction made of stainless steel pipe with knurled base; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, 5 climbing openings
- Climbing rung made of stainless steel tube, Ø 38 mm, torsion-resistant
- Panel balustrade made of coloured, highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Access railing, roll-preventing, welded construction made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube with bent, vertically arranged support tubes
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
- Spider Net with 90° stainless steel pipe bend element, Ø 76.1 x 3.6 mm, 2-piece screwed to 180° pipe bend, chain connection Ø 34 x 37 mm made of stainless steel, bend connection Ø 76.1 x 64 mm made of stainless steel;
Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel insert, cross connections and T-connection elements in the rope mesh made of aluminium, tubular ring made of stainless steel (Ø 450 x Ø 38 x 2 mm) welded with 6 x rope connection (Ø 48.3 mm)

Sliding hint
When planning, please bear in mind that stainless steel slides should be orientated accordingly due to possible heating of the slide surface: north-east in the northern hemisphere and south-east in the southern hemisphere. Alternatively, they should be placed in the partial shade of trees.

General note
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.

Foundations
5 pcs. 0.40 x 0.40 x 0.40 m
2 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.60 x 0.60 x 0.50 m
1 piece 0.40 x 1.25 x 0.40 m
Assembly time
2 fitters 5 hours each, plus lifting gear
(without foundation)

Free fall height
2.84m
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

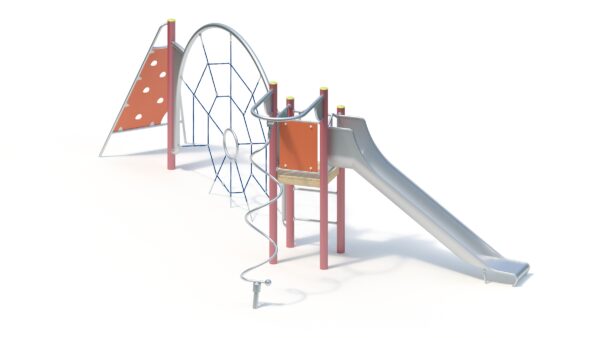

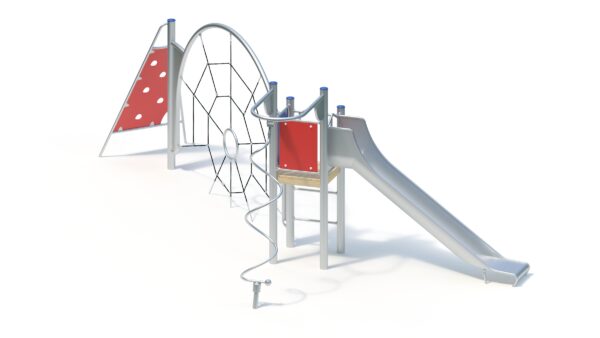

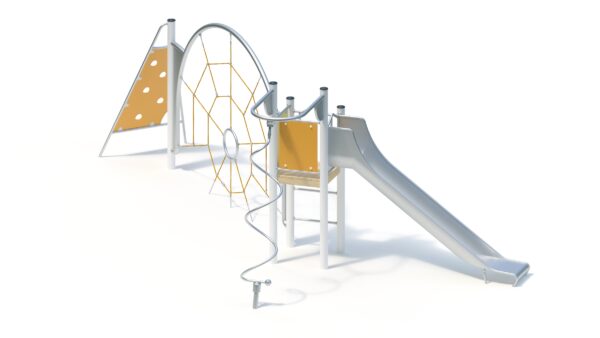

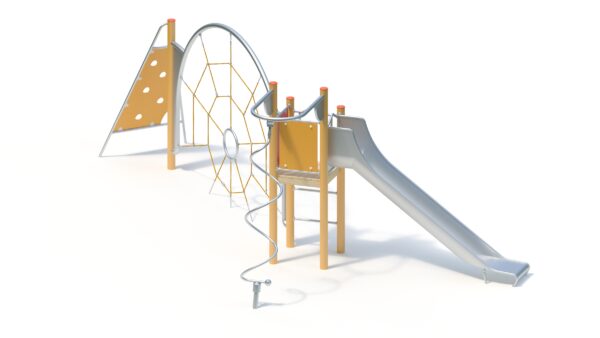

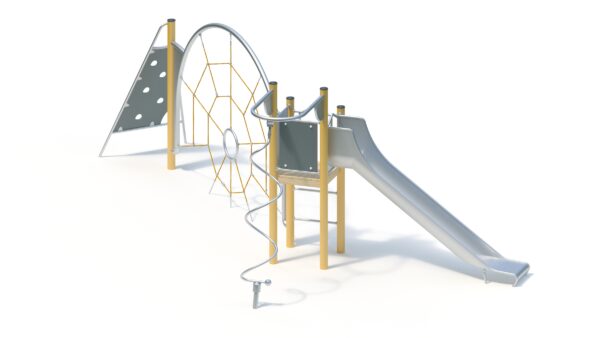

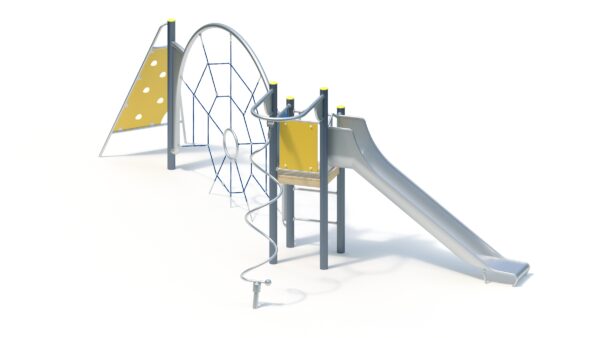

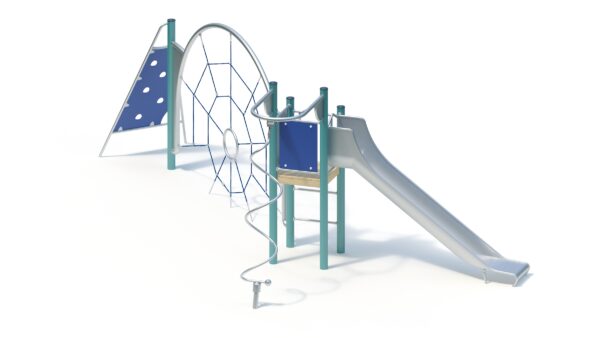

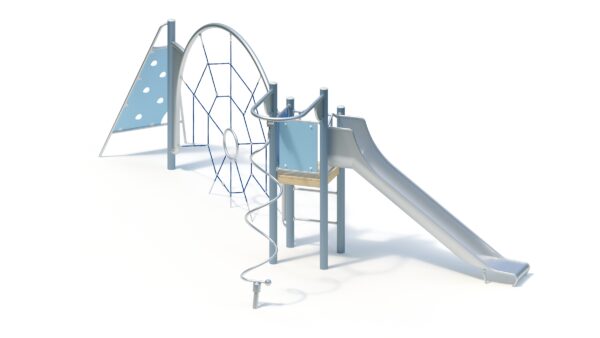

Each of our units is manufactured in accordance with the highest quality standards and the current EN 1176 standard, and this model serves as an inspirational suggestion and can be supplied with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.

Item number: 821756035
