Play clock

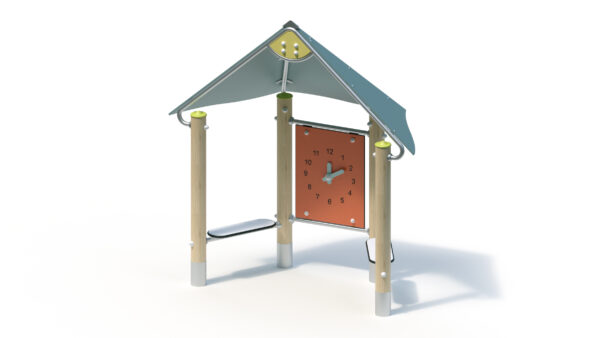

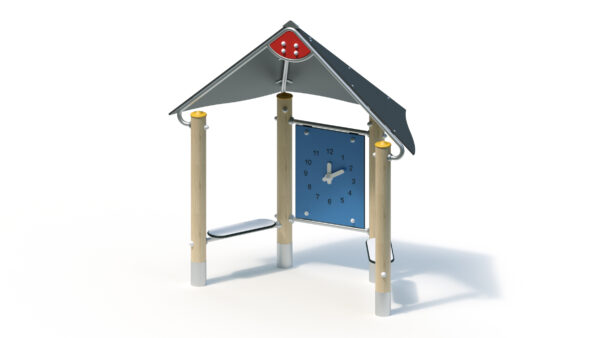

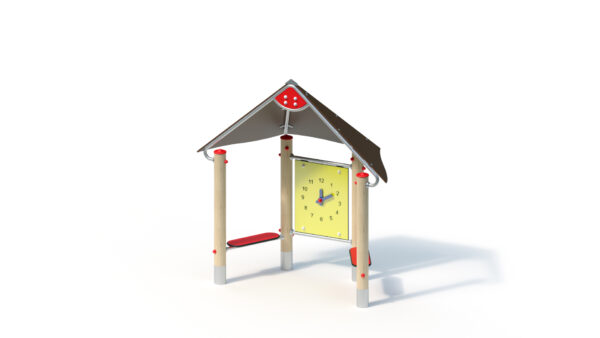

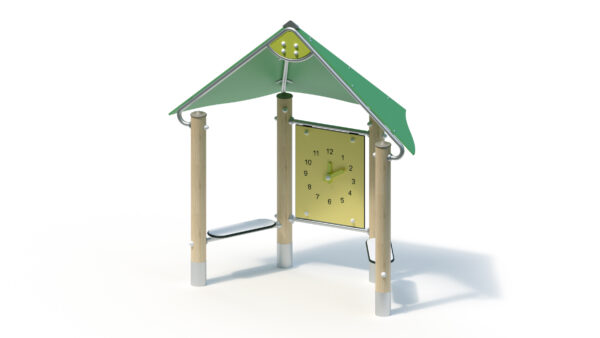

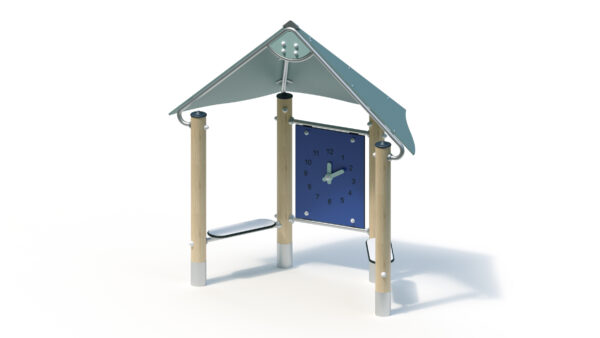

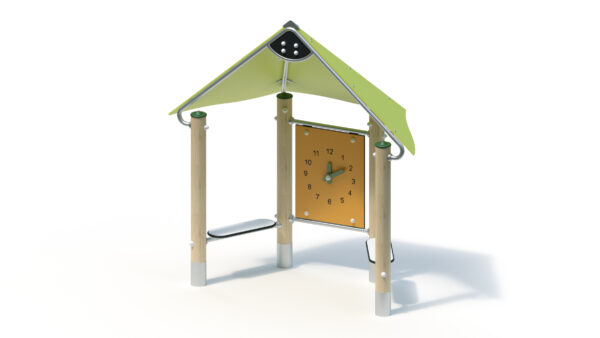

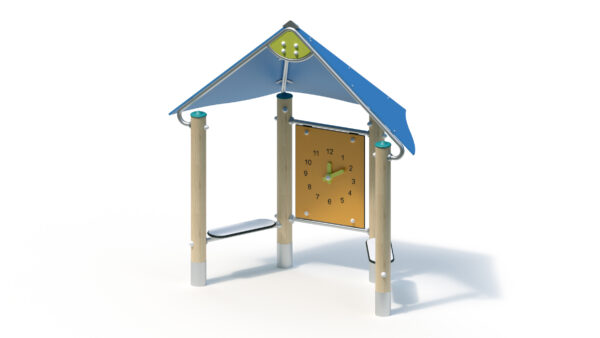

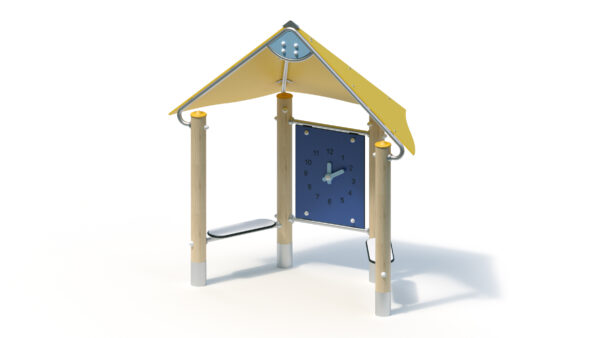

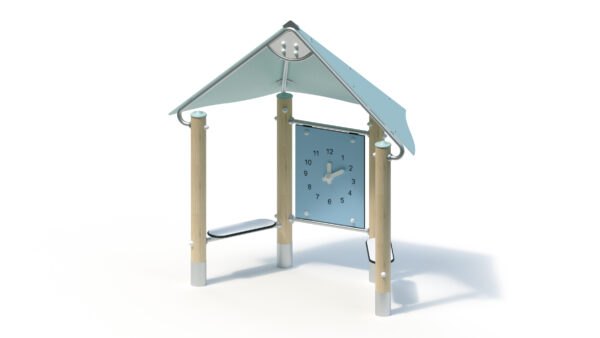

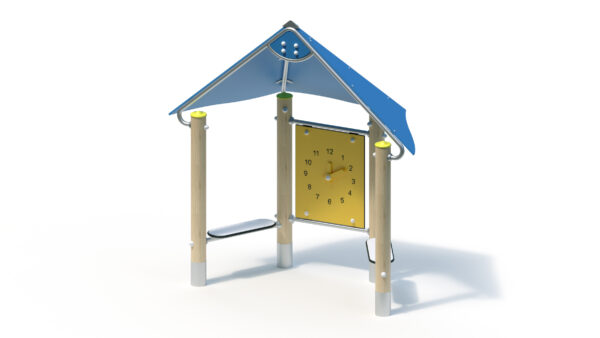

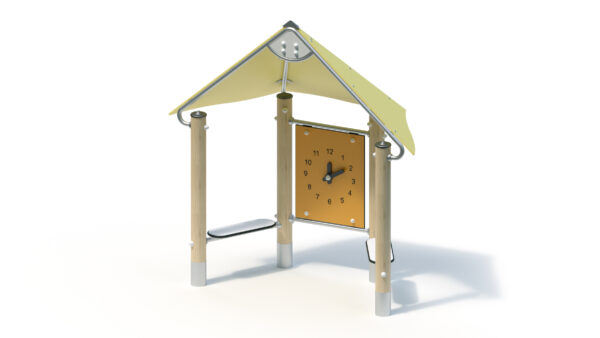

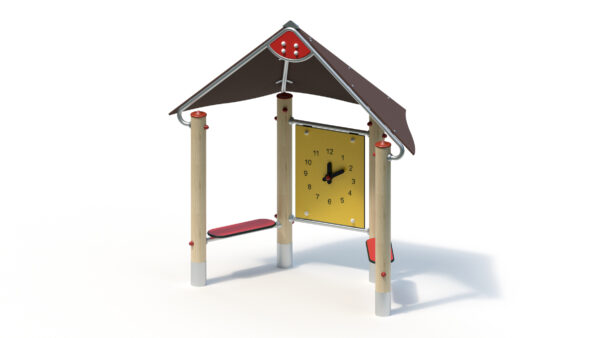

Variante wählen:
The most important information
| Altersgruppe ? | 1+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 7 Personen |
| Aktivitäten ? | Social activity |
Technical data
| Mindestraumlänge ? | 5,30 m |
|---|---|
| Mindestraumbreite ? | 4,05 m |
| Mindestraumhöhe ? | 2,30 m |
| Gerätelänge ? | 2,15 m |
| Gerätebreite ? | 1,05 m |
| Gerätehöhe ? | 2,30 m |
| Freie Fallhöhe ? | 0,40 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 155.00 kg |
| Schwerstes Einzelteil ? | 15.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 4 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

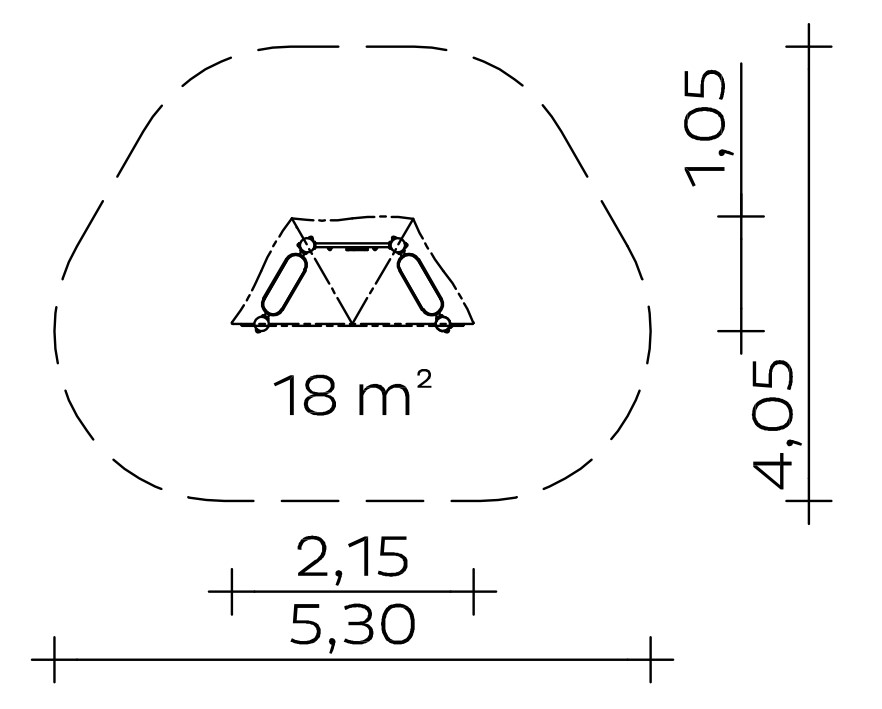

Base area: 1.05 x 2.15 m
Minimum space: 4.05 x 5.30 m (18 m²)
Total height: 2.30 m
Seat height: 0.40 m
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Tent roof, pitch 45°, made of highly weather-resistant HPl laminate, 13 mm. Attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Seat made of coloured, highly weather-resistant HPL laminate, 20 mm
- Panel balustrade made of coloured, highly weather-resistant HPL laminate (red and yellow). Fastened between stainless steel tubes Ø 33.7 x 2 mm. Front panel with clock, hands made of HPL laminate, blue, for manually setting the time.
Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.26 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Suitable for
All age groups,
public playgrounds etc.
social activities.
Item number: 062158701
