Effect disc (for wall installation)
The most important information
:
;
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 2 Personen |
| Aktivitäten ? | - |
Technical data
:
;

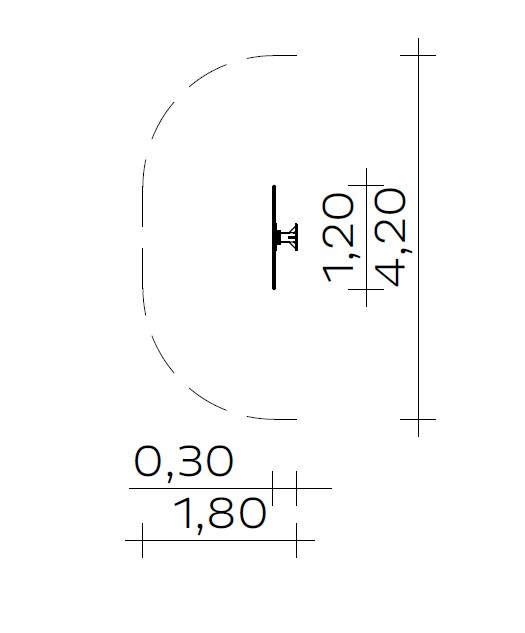

| Mindestraumlänge ? | 4,20 m |
|---|---|
| Mindestraumbreite ? | 1,80 m |
| Mindestraumhöhe ? | 1,20 m |
| Gerätelänge ? | 1,20 m |
| Gerätebreite ? | 0,30 m |
| Gerätehöhe ? | 1,20 m |
| Freie Fallhöhe ? | 0,00 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 75.00 kg |
| Schwerstes Einzelteil ? | 0.00 kg |
Assembly & Foundations
:
;
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | - |
Product Downloads
:
;
Product description
:
;
Base area: 0.30 x 1.20 m
Discs Ø: 1.20 m
Weight: 75 kg in total
Mounting flange: hot-dip galvanised steel
Effect disc: High-pressure laminate 25 mm, milled ellipse motif creates optically different rotational speeds of the ellipses despite common rotation.
Anti-friction bearing: and non-engaging.
Assembly time
2 fitters 1 hour each
Suitable for
All age groups,
public playgrounds etc.
Item number: 037193000
