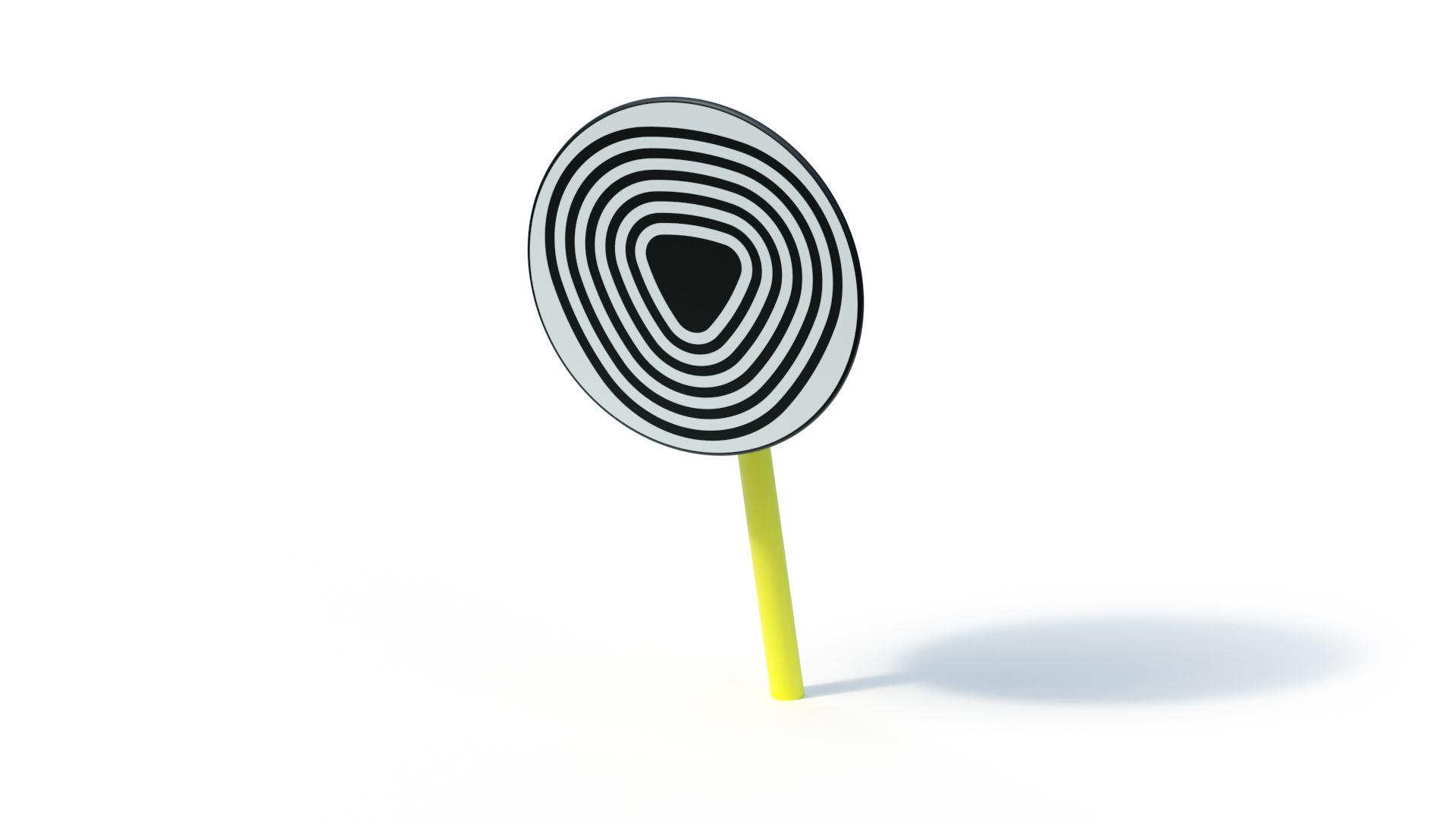

Effect disc
The most important information
:
;
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 2 people |
| Activities ? | - |
Technical data
:
;

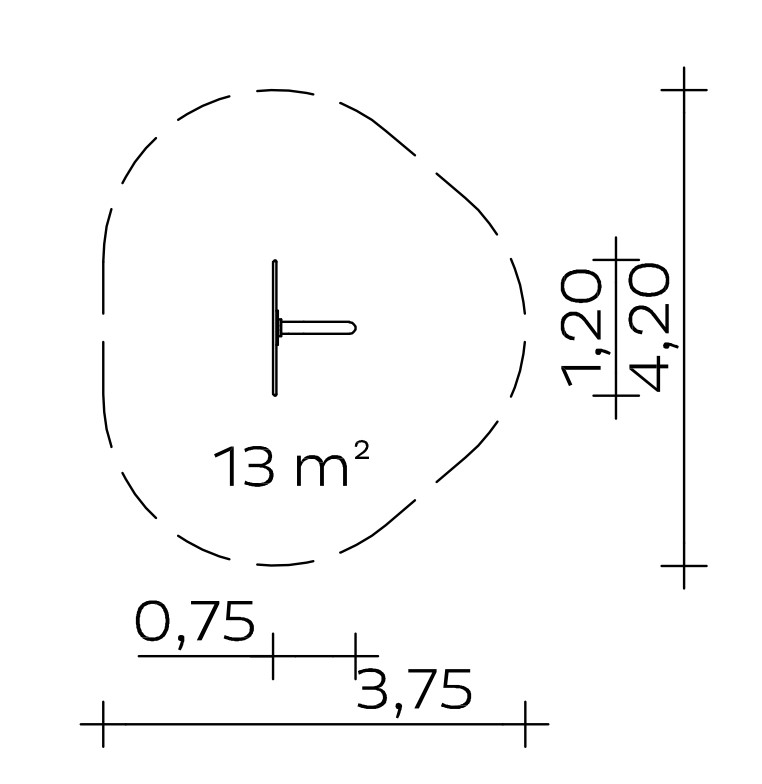

| Minimum space length ? | 4,20 m |
|---|---|
| Minimum space width ? | 3,75 m |
| Minimum space height ? | 2,20 m |
| Equipment length ? | 1,20 m |
| Equipment width ? | 0,75 m |
| Equipment height ? | 2,20 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 130.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (0.9m x 0.7m x 0.6m) |
Product Downloads
:
;
Product description
:
;
Technical data
Base area: 0.75 x 1.20 m
Total height: 2.20 m
Discs Ø: 1.20 m
Weight: 130 kg in total
Support post: Hot-dip galvanised steel structure with additional powder coating (rapeseed yellow/RAL 1021).
Effect disc: High-pressure laminate 20 mm (snow white), milled band motif creates a wave-like swelling and diminishing around the centre.
Roller bearing: non-engaging
Foundation (on site)
1 piece 0.90 x 0.70 x 0.60 m
Assembly time
2 fitters 1 hour each
(without foundation)
Suitable for
All age groups,
public playgrounds etc.
Item number: 037186000
