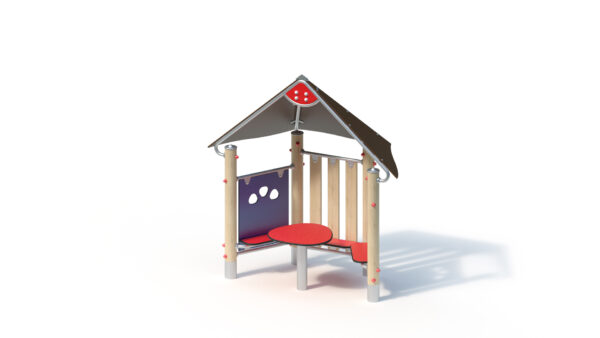

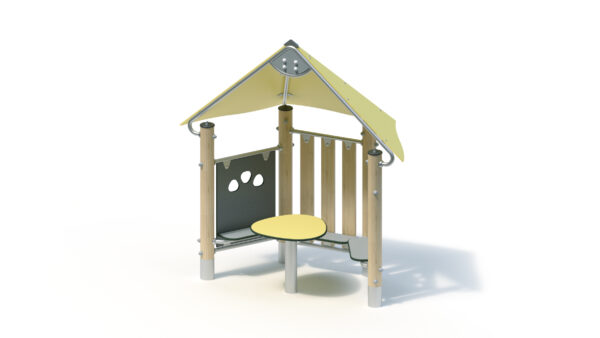

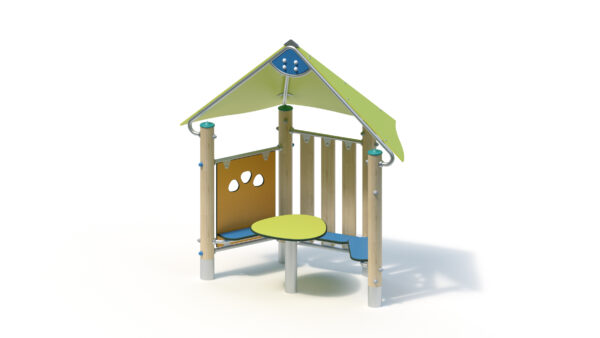

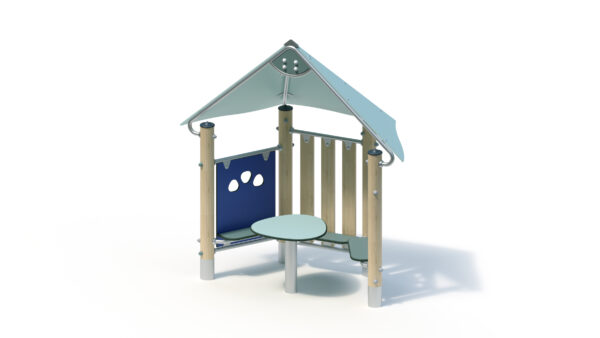

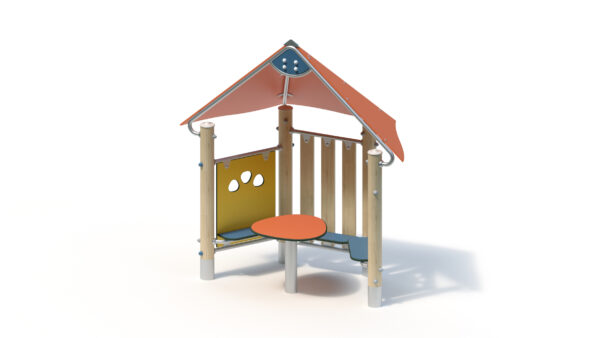

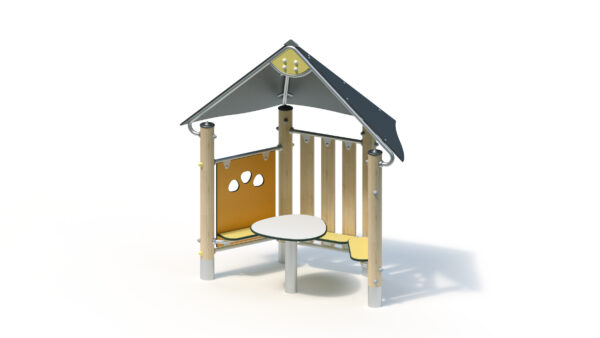

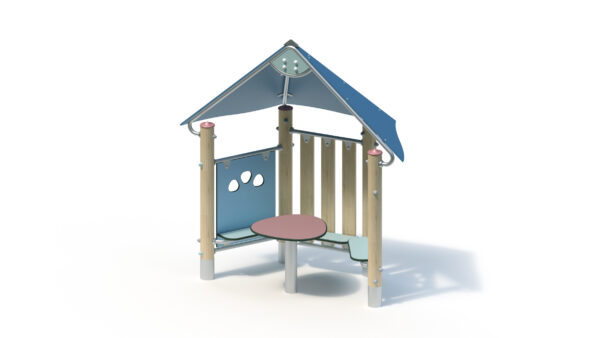

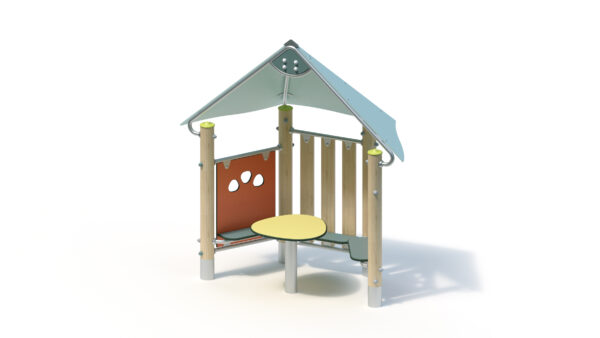

Meeting arbour

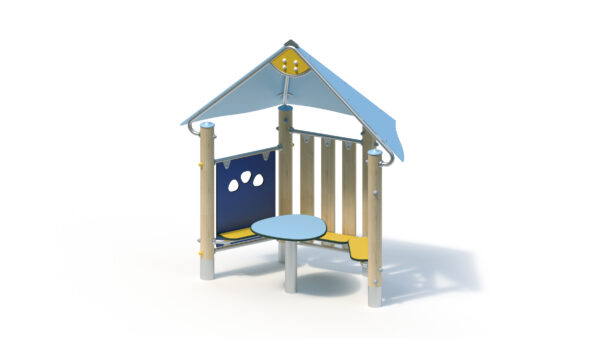

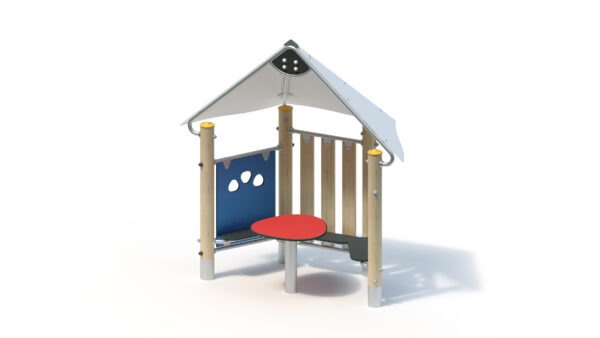

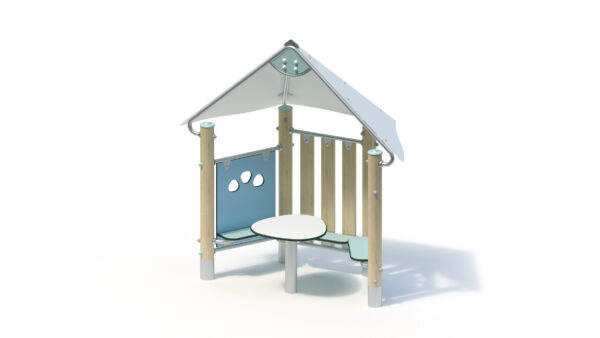

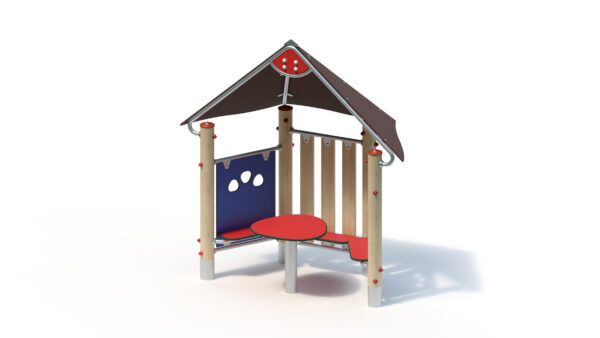

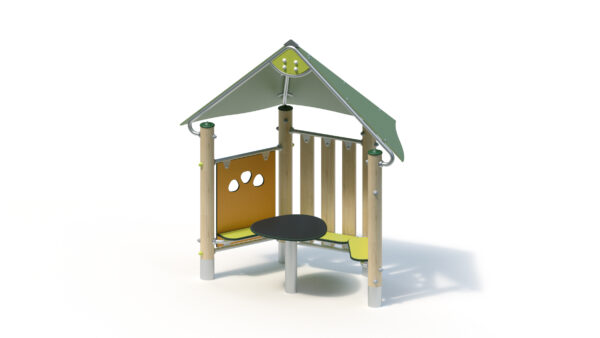

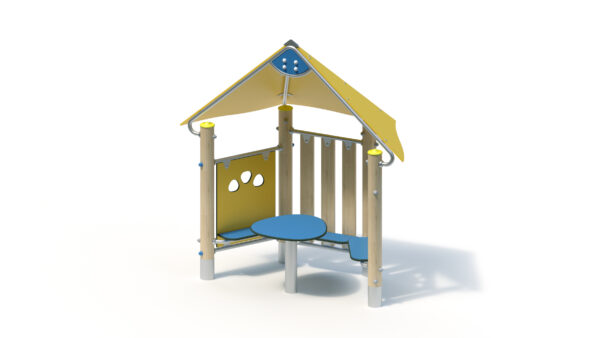

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 7 People |
| Activities ? | Social activity |
Technical data
| Minimum space length ? | 5,30 m |
|---|---|
| Minimum space width ? | 4,25 m |
| Minimum space height ? | 2,30 m |
| Equipment length ? | 2,15 m |
| Equipment width ? | 1,25 m |
| Equipment height ? | 2,30 m |
| Free-fall height ? | 0,60 m |
| Platform heights | - |
| Total weight ? | 260.00 kg |
| Heaviest single part ? | 55.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 5 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

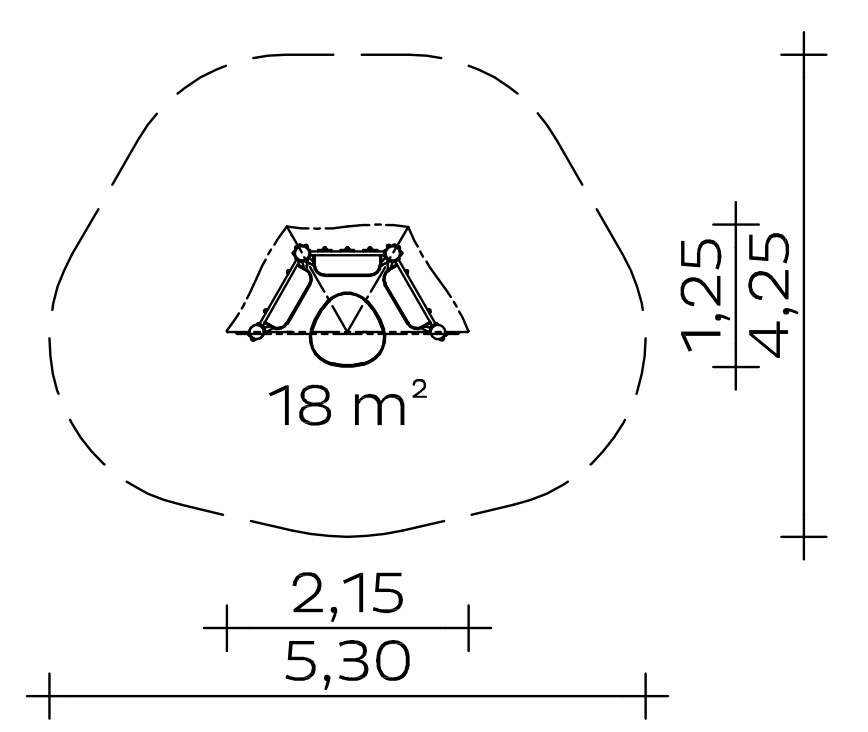

Base area: 1.25 x 2.15 m
Minimum space: 4.25 x 5.30 m (18 m²)
Total height: 2.30 m
Seat height: 0.35 / 0.40 m
Table height: 0.60 m
Weight: 55 kg heaviest individual part
260 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Panel balustrade made of coloured, highly weather-resistant HPL laminate with 3 cut-outs in the shape of the K&K logo. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm. Attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Seat and table: made of coloured, highly weather-resistant HPL laminate, 20 mm
- Tubular stainless steel table base
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
5 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.32 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Suitable for
All age groups,
public playgrounds etc.
social activities.
Item number: 062155700
