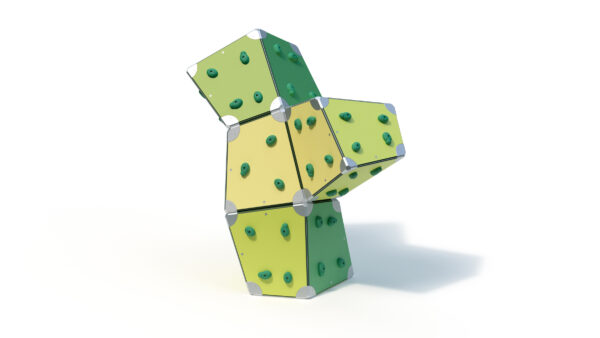

Climbing Rock midi
Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 8 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 5,67 m |
|---|---|
| Minimum space width ? | 5,13 m |
| Minimum space height ? | 2,40 m |
| Equipment length ? | 2,39 m |
| Equipment width ? | 1,77 m |
| Equipment height ? | 2,40 m |
| Free-fall height ? | 2,40 m |
| Platform heights | - |
| Total weight ? | 479.00 kg |
| Heaviest single part ? | 433.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | Yes |
| Foundations | Quantity: 1 (0.95m x 0.83m x 0.45m) Quantity: 1x (1.46m x 1.33m x 0.35m) |
Product Downloads
Product description
Technical data
Floor area: 2.39 x 1.77 m
Minimum space: 5.67 x 5.13 m
Impact area: 21 m²
Total height: 2.40 m
Free fall height: 2.40 m
Weight: 476 kg heaviest individual part
523 kg in total
4 x Climbing Rock
- Climbing cube consisting of
highly weather-resistant HPL laminate panels, 20 mm
- Stainless steel corners
- Attached free climbing elements
- Clamping through in-situ foundations
Foundations (client-provided)
1 unit 0.95 x 0.83 x 0.45 m
1 piece 1.46 x 1.33 x 0.35 m
Concrete volume: 1.04 m³
Assembly time
2 fitters 1 hour each.
(without foundation)
Lifting gear required
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 056663000
This Kaiser & Kühne product enables:
