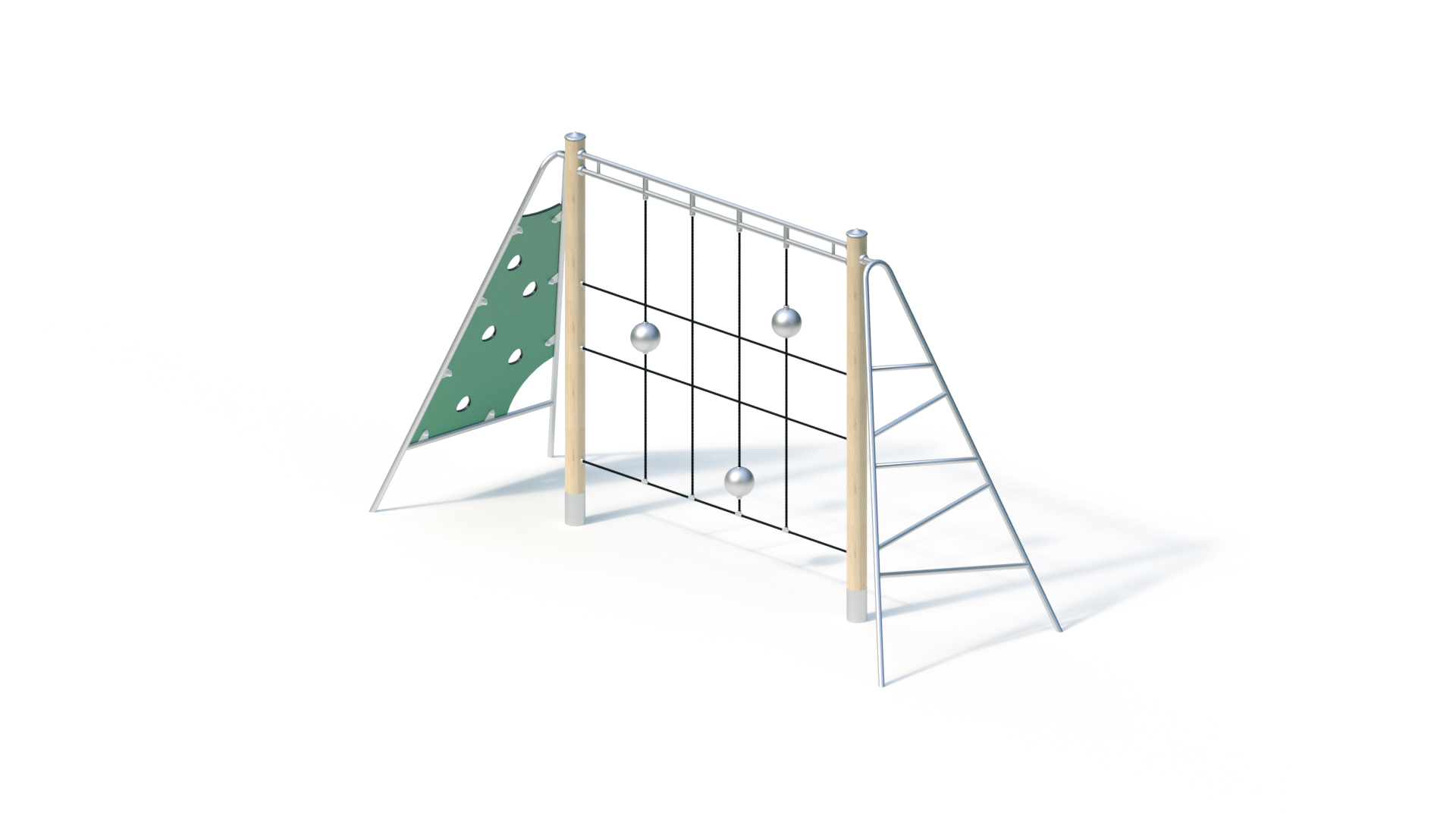

Climbing combination

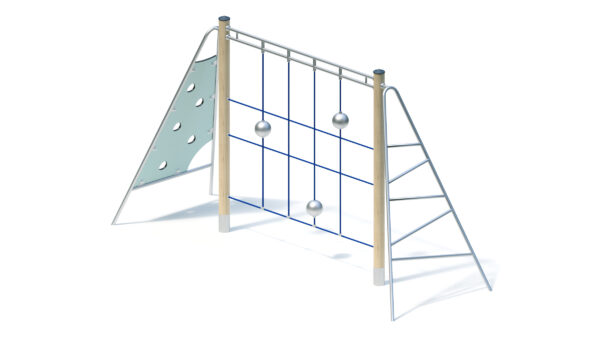

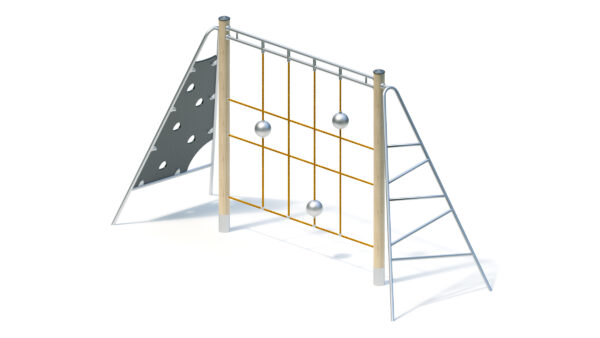

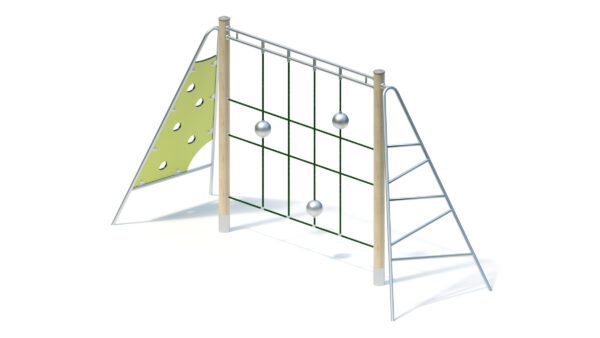

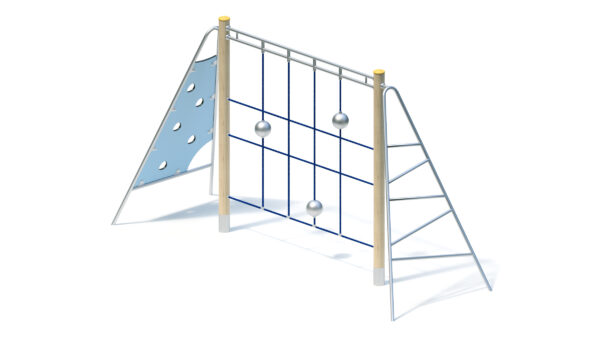

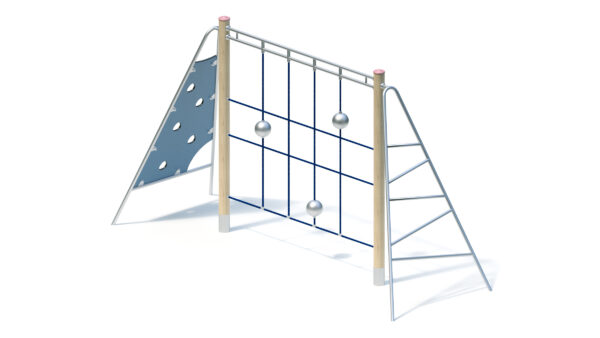

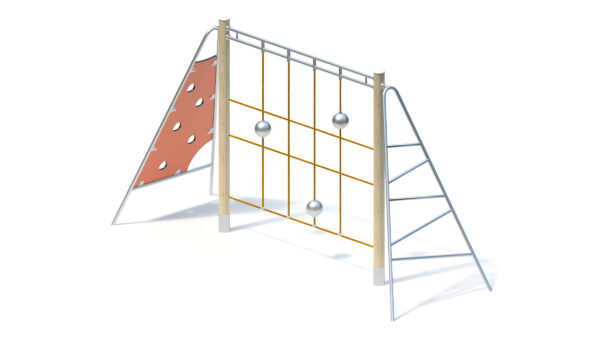

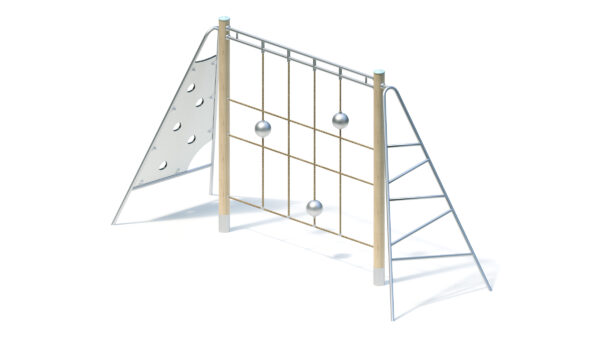

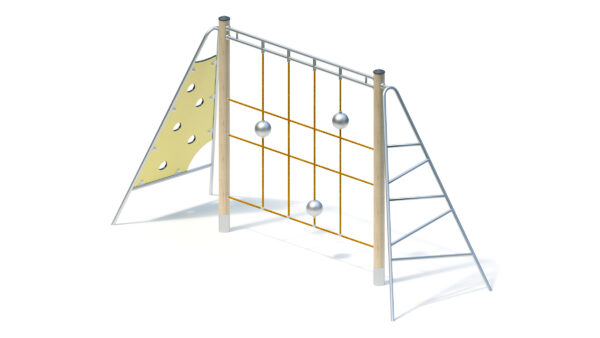

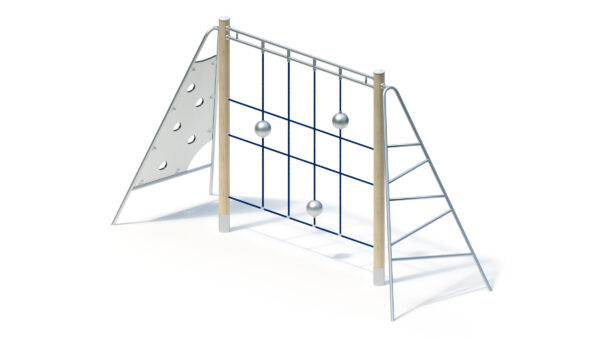

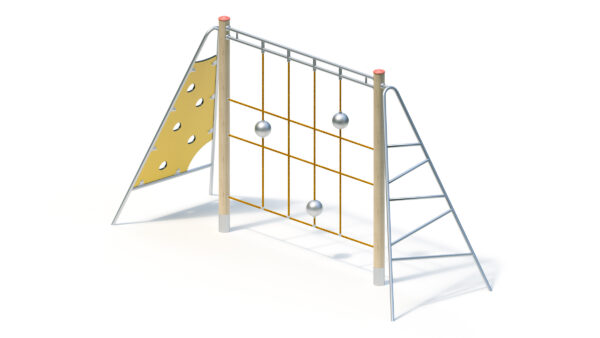

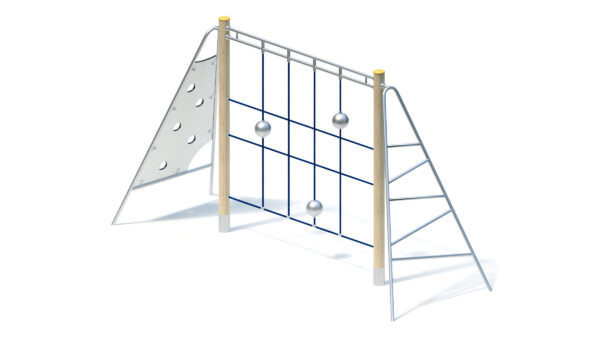

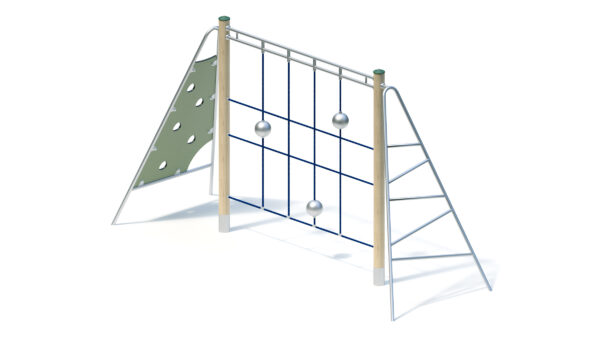

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 10 people |
| Activities ? | Climbing, Physical activity |
Technical data
| Minimum space length ? | 7,40 m |
|---|---|
| Minimum space width ? | 4,50 m |
| Minimum space height ? | 2,45 m |
| Equipment length ? | 4,40 m |
| Equipment width ? | 1,50 m |
| Equipment height ? | 2,45 m |
| Free-fall height ? | 2,35 m |
| Platform heights | - |
| Total weight ? | 150.00 kg |
| Heaviest single part ? | 55.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (0.4m x 0.4m x 0.6m) Quantity: 4 (0.3m x 0.3m x 0.4m) |
Product Downloads
Product description
Technical data

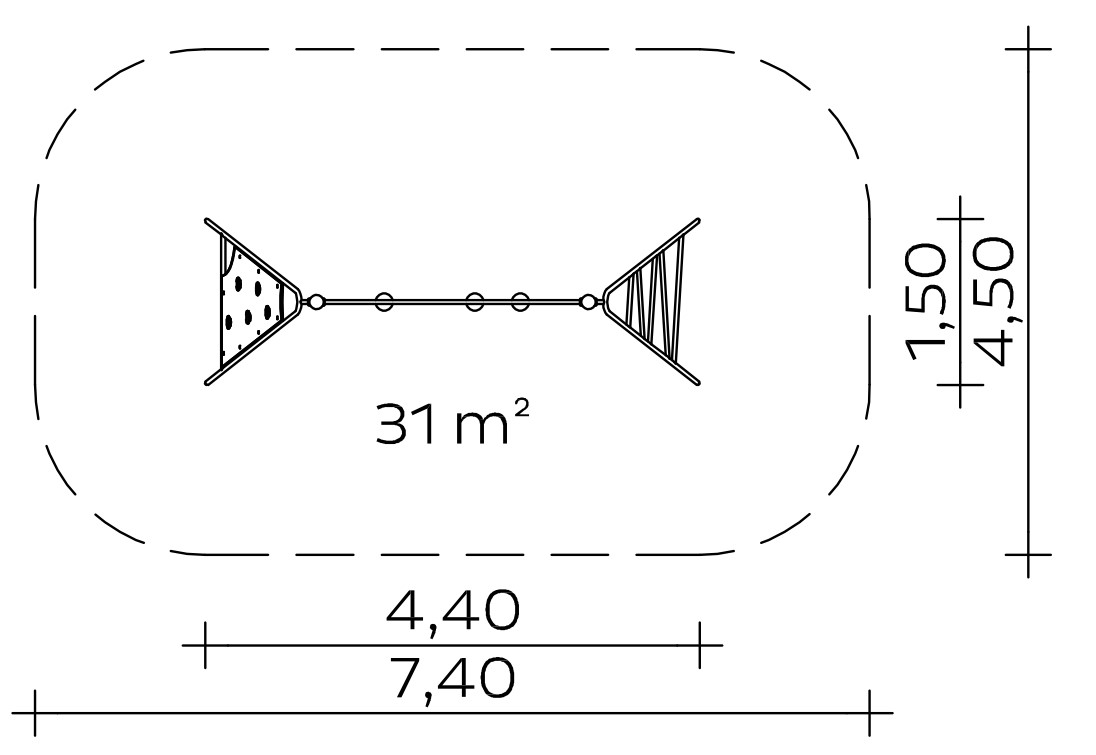

Floor area: 1.50 x 4.40 m
Minimum space: 4.50 x 7.40 m (31 m²)
Total height: 2.45 m
Weight: 55 kg heaviest individual part
150 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Climbing net made of Hercules rope with stainless steel balls Ø 15 cm on stainless steel crossbar
- Triangular rung wall made of stainless steel tube, Ø 38 mm
- Triangular climbing wall made of highly weather-resistant HPL laminate, 20 mm. Frame made of stainless steel tube, climbing openings.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
2 units 0.40 x 0.40 x 0.60 m
4 units 0.30 x 0.30 x 0.40 m
Concrete volume: 0.34 m³
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
2,35 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Physical activities
Item number: 055400700
This Kaiser & Kühne product enables:
