Climbing combination

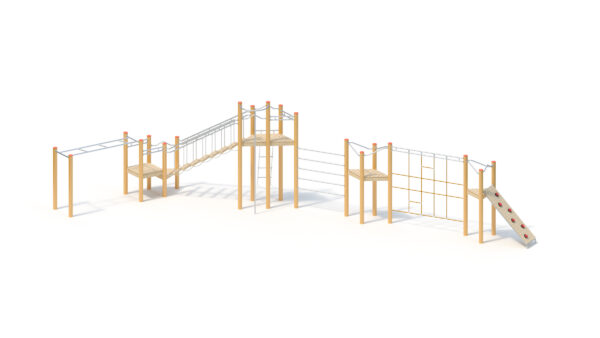

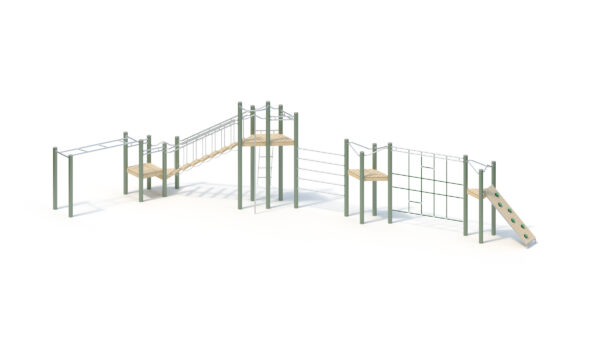

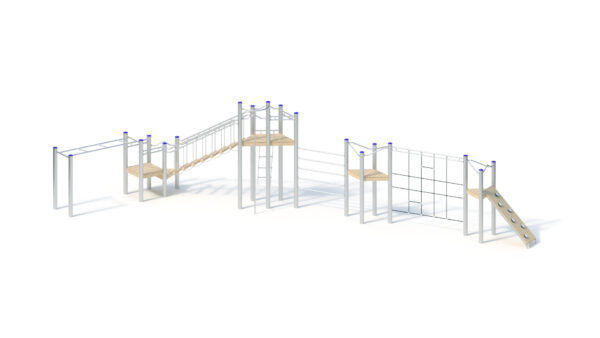

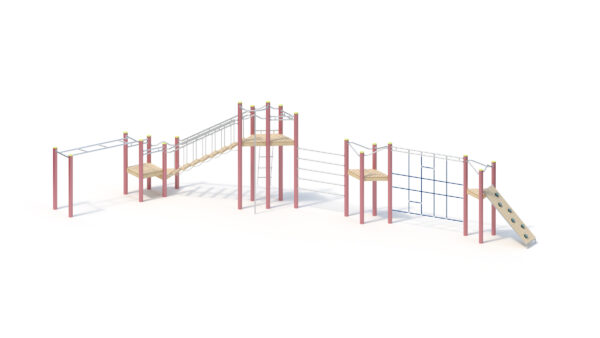

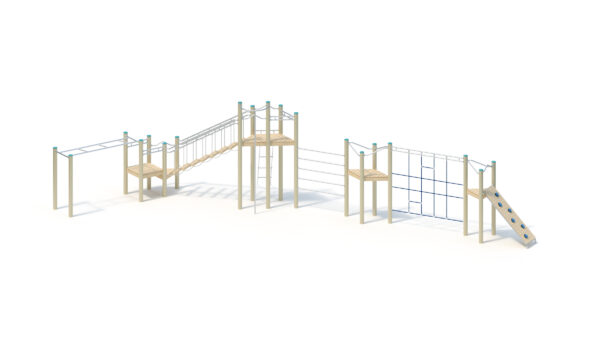

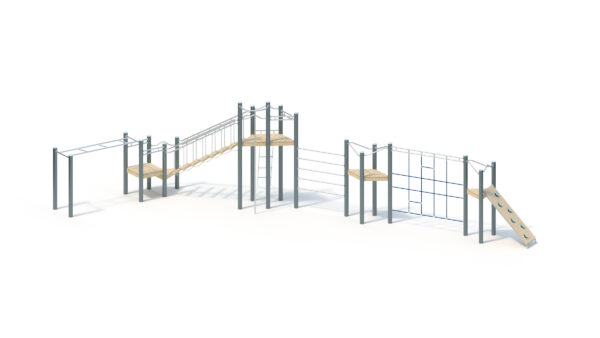

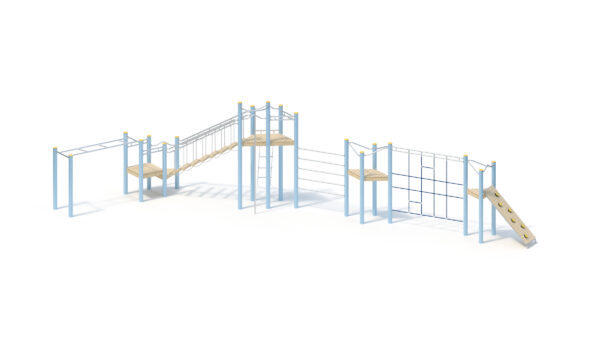

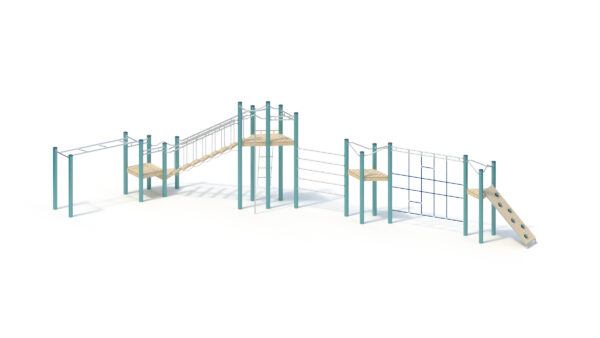

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 26 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Gerätelänge ? | 13,65 m |
|---|---|
| Gerätebreite ? | 5,15 m |
| Gerätehöhe ? | 3,25 m |
| Freie Fallhöhe ? | 2,35 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 925.00 kg |
| Schwerstes Einzelteil ? | 70.00 kg |
| Mindestraumlänge ? | 16,95 m |
| Mindestraumbreite ? | 8,35 m |
| Mindestraumhöhe ? | 3,25 m |
Assembly & Foundations
| Montagezeit ? | 8,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 3 (0.3m x 0.3m x 0.4m) Quantity: 19 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 3.25 m

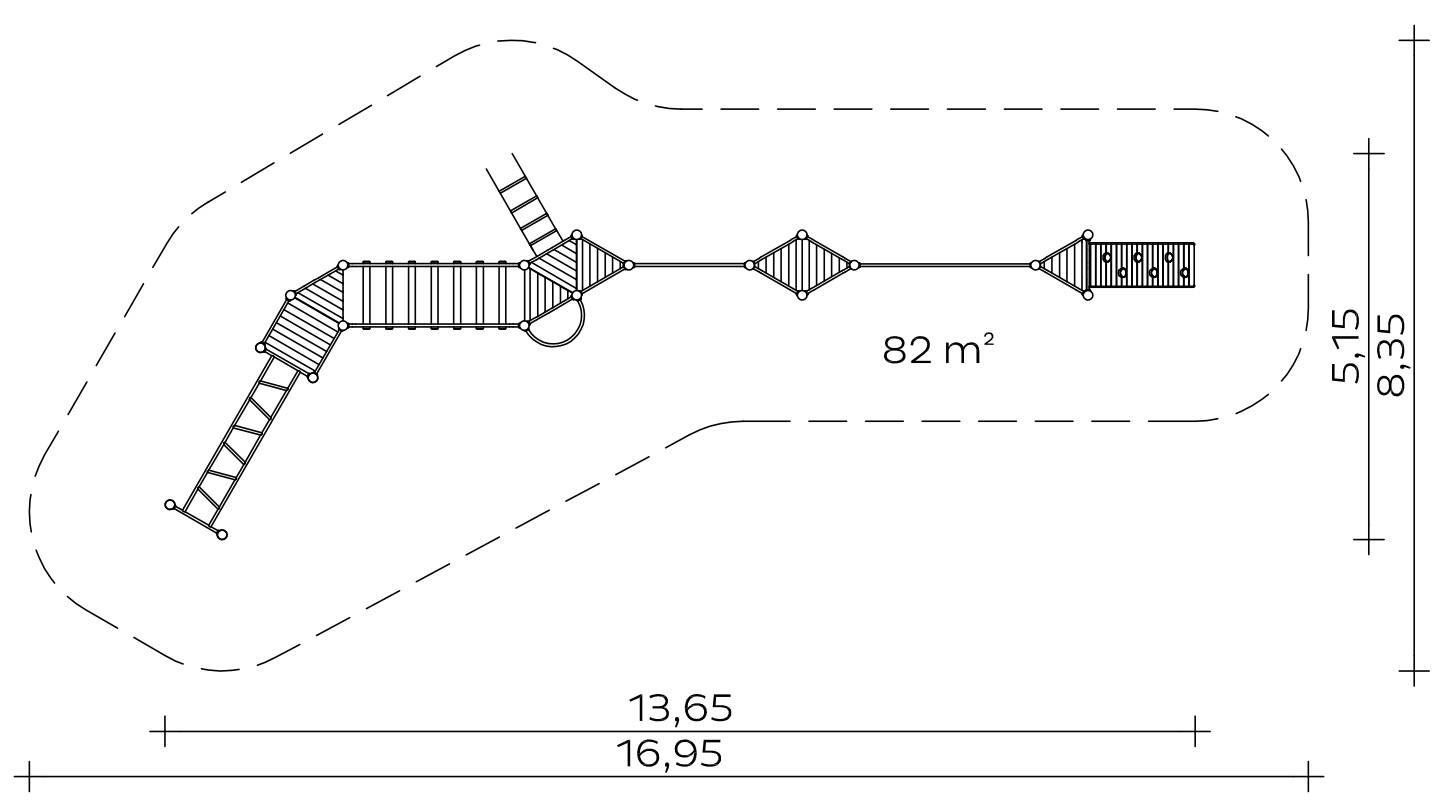

Floor area: 5.15 x 13.65 m
Minimum space: 8.35 x 16.95 m (82 m²)
Platform heights: 0.60 to 2.00 m
Weight: 70 kg heaviest individual part
925 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets and a continuous bolt connection.
Attachments
- Railing bracket, roll-preventing, made of stainless steel tube
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wobbly staircase on tandem crossbeam, walkway posts made of robinia Ø 100 mm, fine-linked stainless steel railing chains
- Chain ladder with stainless steel rungs
- Climbing net made of Forta-Herkules rope on stainless steel traverse
- Climbing rungs made of stainless steel tube, Ø 38 x 2.5 mm, torsion-resistant
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Climbing pole made of stainless steel tube
- Shaft ladder, 0.80 m x 2.40 m, horizontal, made of stainless steel tube, 38 x 2.5/33.7 x 2 mm
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
Foundations (client-provided)
3 pcs. 0.30 x 0.30 x 0.40 m
19 units 0.40 x 0.40 x 0.40 m
Concrete volume: 1.32 m³
Assembly time
2 fitters 8 hours each
(without foundation)
Free fall height
2,32 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
sporting activities.
Item number: 055595503
