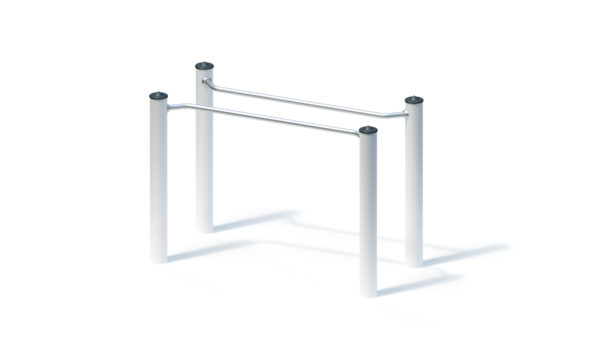

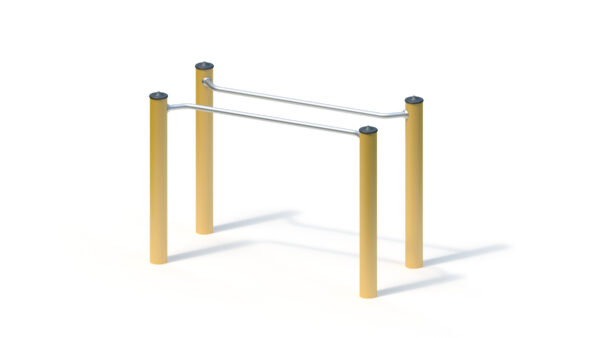

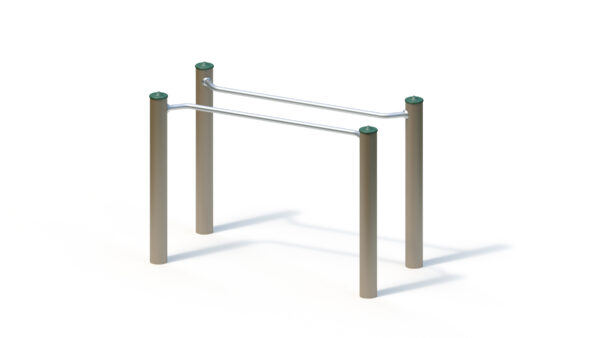

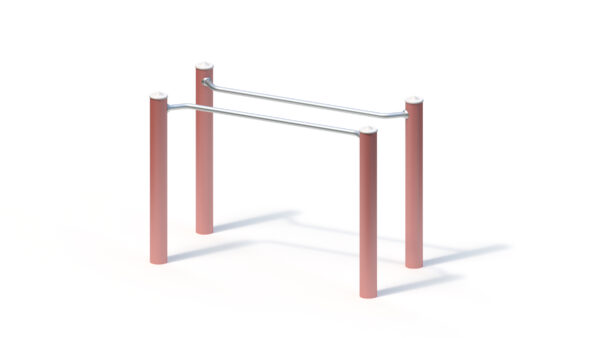

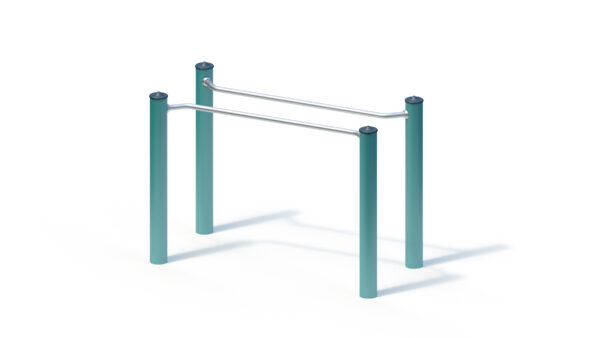

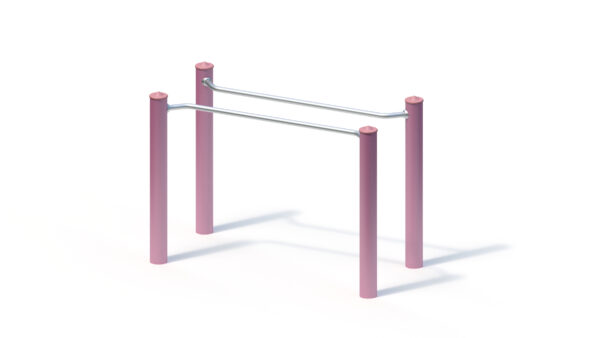

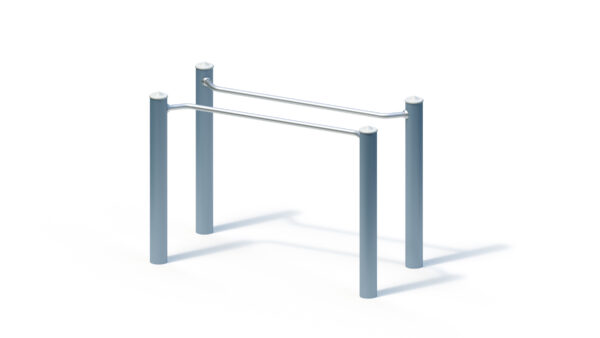

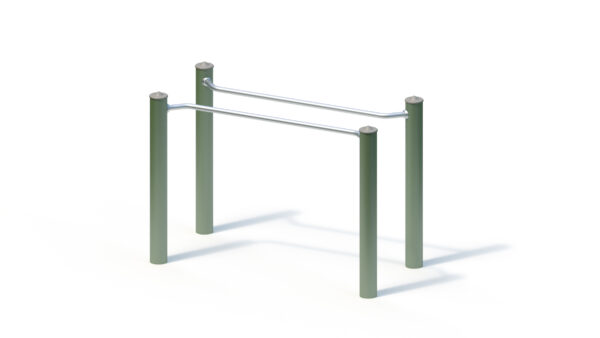

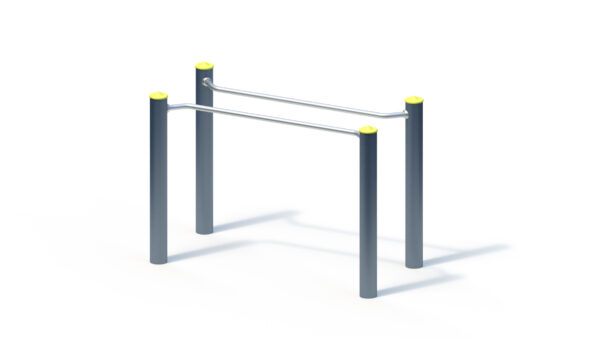

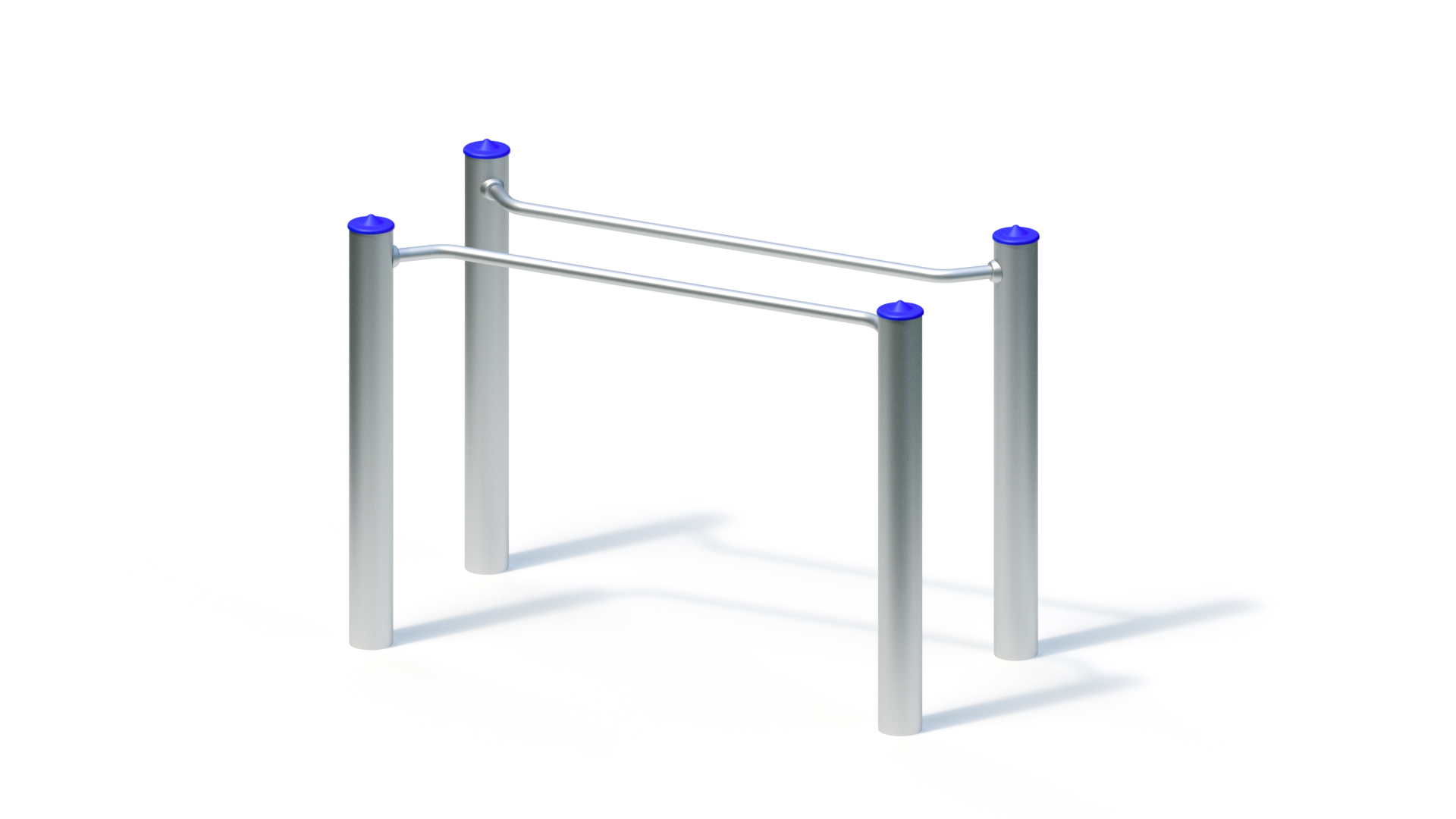

Parallel bars (1,10)
Variante wählen:
The most important information
| Altersgruppe ? | 8+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 1 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Gerätelänge ? | 1,75 m |
|---|---|
| Gerätebreite ? | 0,85 m |
| Gerätehöhe ? | 1,25 m |
| Freie Fallhöhe ? | 1,12 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 75.00 kg |
| Schwerstes Einzelteil ? | 20.00 kg |
| Mindestraumlänge ? | 4,75 m |
| Mindestraumbreite ? | 3,85 m |
| Mindestraumhöhe ? | 1,25 m |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 1 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 4 (0.5m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data
Base area: 1.75 x 0.85 m

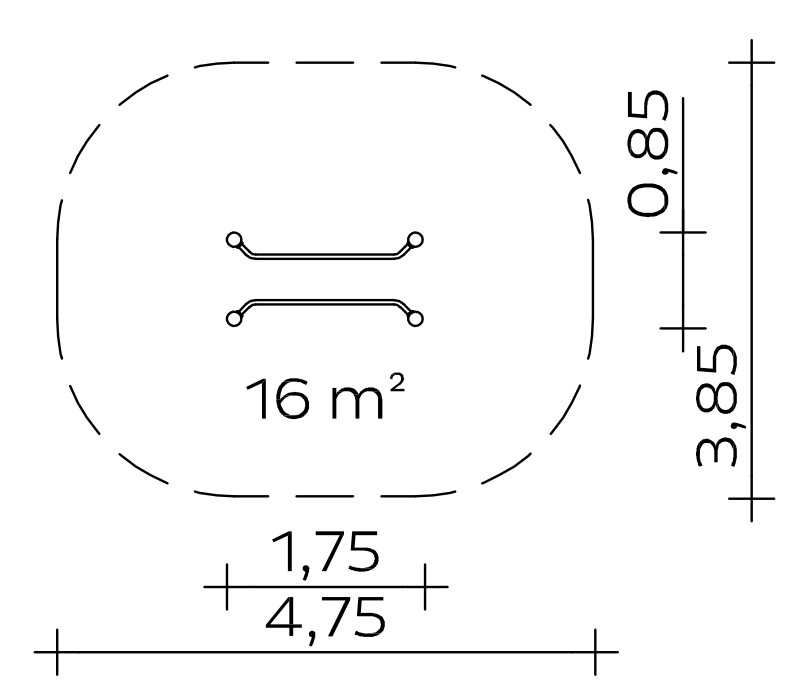

Minimum space: 4.75 x 3.85 m (16 m²)
Total height: 1.25 m
Bar height: 1.10 m
Weight: 20 kg heaviest individual part
75 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps.
Attachments
Bar uprights made of stainless steel tube, Ø 38 x 2.5 mm, torsion-resistant.
Clear width between the bars: 0.36 m
Metal components: Stainless steel 1.4301
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
4 pcs. 0.50 x 0.50 x 0.50 m
Concrete quantity: 0.50 m³
Assembly time
1 fitter per 1 hour
(without foundation)
Free fall height
1,12 m
Suitable for
Children aged 8 and over,
public playgrounds etc.,
sporting activities
Item number: 053164500
