Climbing combination

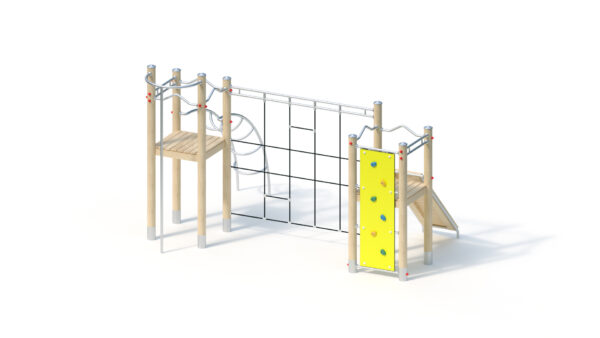

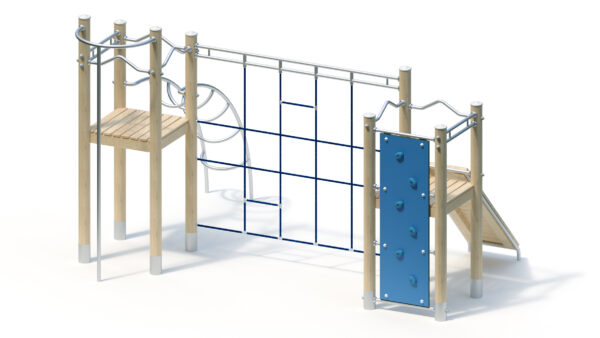

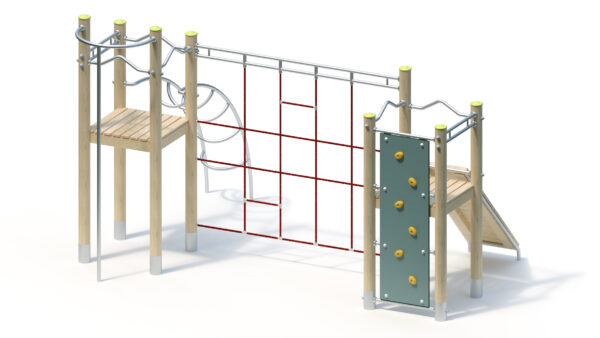

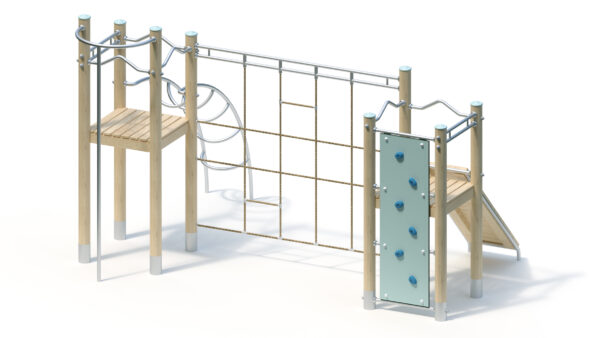

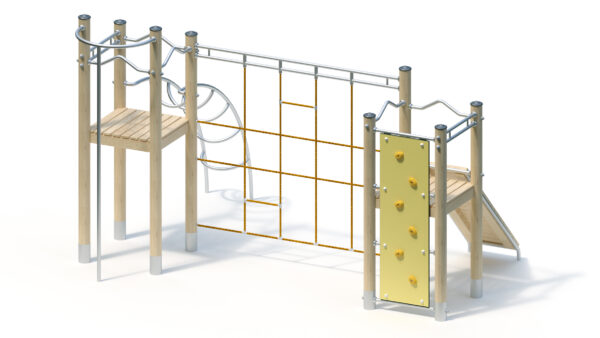

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 13 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Mindestraumlänge ? | 7,45 m |
|---|---|
| Mindestraumbreite ? | 6,00 m |
| Mindestraumhöhe ? | 2,65 m |
| Gerätelänge ? | 4,15 m |
| Gerätebreite ? | 3,00 m |
| Gerätehöhe ? | 2,65 m |
| Freie Fallhöhe ? | 2,20 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 460.00 kg |
| Schwerstes Einzelteil ? | 60.00 kg |
Assembly & Foundations
| Montagezeit ? | 6,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 8 (0.4m x 0.4m x 0.4m) Quantity: 5 (0.3m x 0.3m x 0.4m) |
Product Downloads
Product description
Technical data

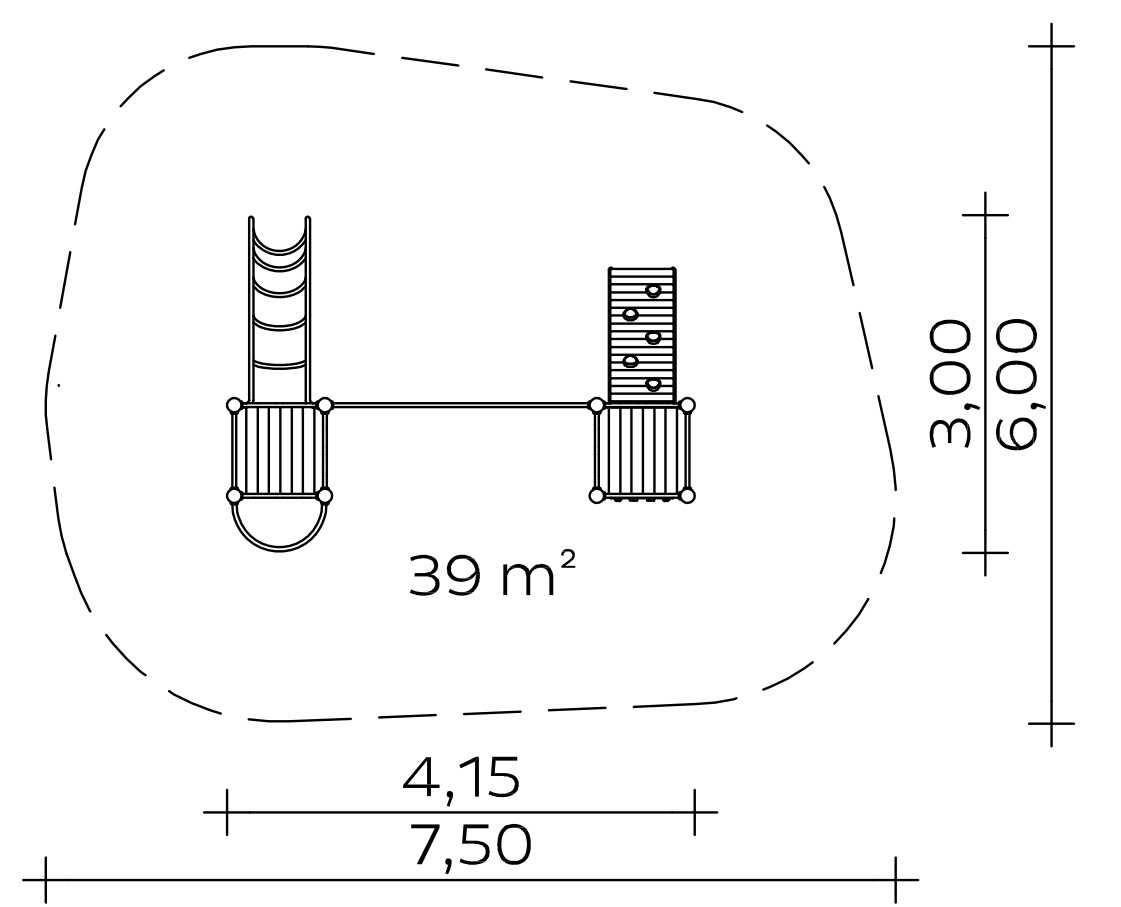

Floor area: 3.00 x 4.15 m
Minimum space: 6.00 x 7.45 m (39 m²)
Total height: 2.65 m
Platform heights: 1.20/1.40 m
Weight: 60 kg heaviest individual part
460 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical climbing pole made of stainless steel tube, Ø 38 x 2 mm
- Curved ladder made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing net made of Hercules rope on stainless steel crossbar
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Climbing wall made of highly weather-resistant coloured HPL laminate, 20 mm, frame made of stainless steel tubing, with free climbing elements attached on one side
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
8 pcs. 0.40 x 0.40 x 0.40 m
5 pcs. 0.30 x 0.30 x 0.40 m
Concrete volume: 0.69 m³
Assembly time
2 fitters 6 hours each
(without foundation)
Free fall height
2,20 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
sporting activities
Item number: 055420700
