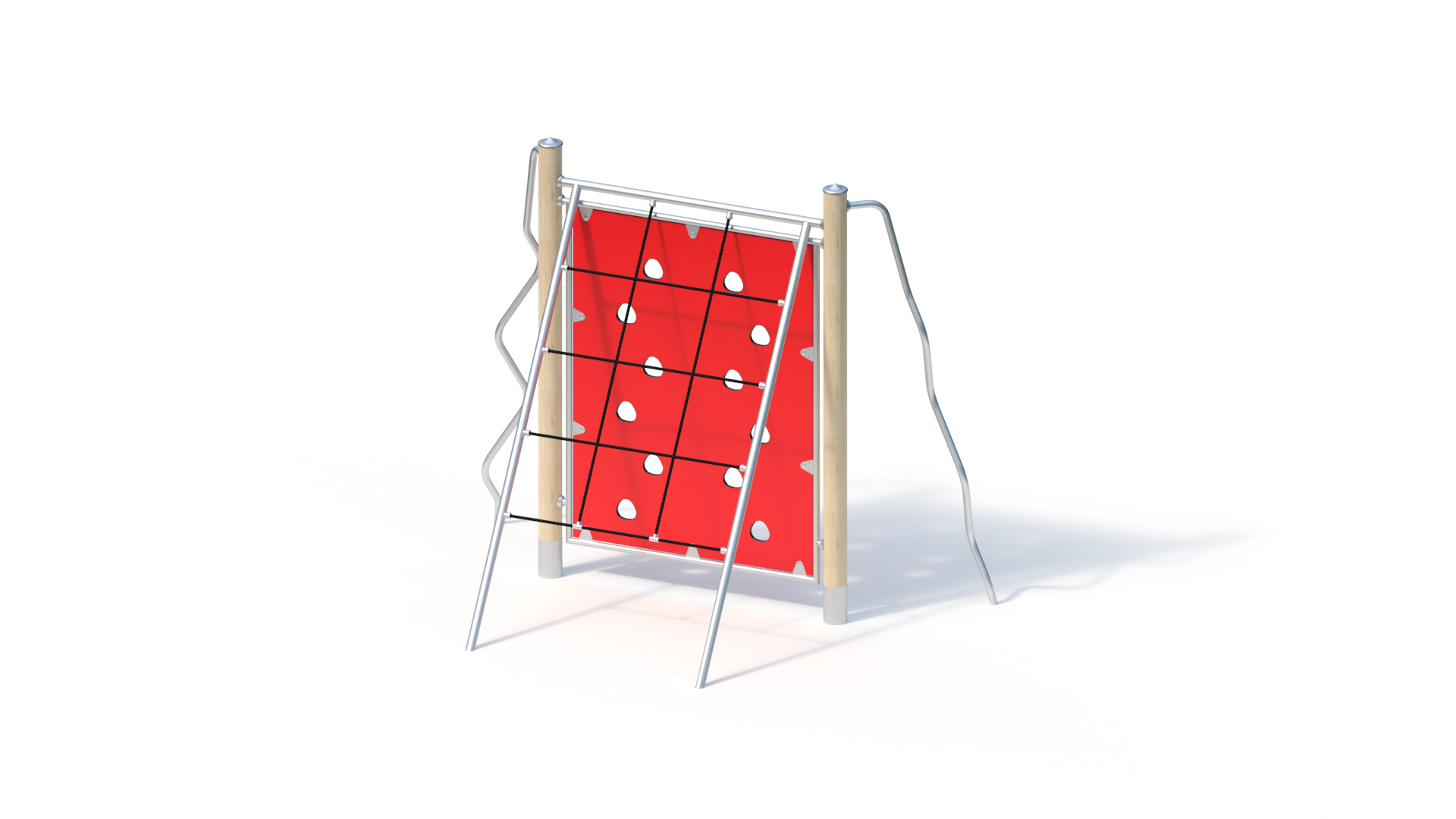

Climbing combination

Climbing combination

SKU 055390701 Category:

Select variant:

Classic
Classic
Sweden
Sweden
Aloha
Aloha
Beach
Beach
City
City
Coral
Coral

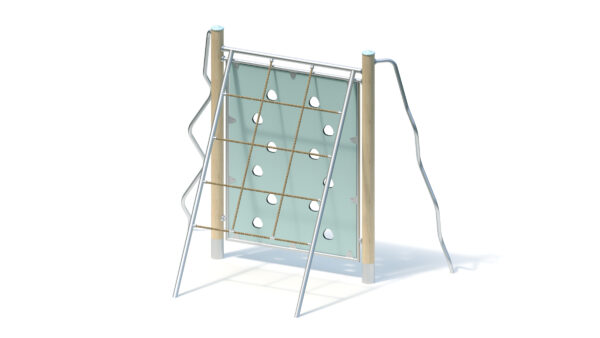

Ice Palace
Ice Palace
Jungle
Jungle
Mermaid
Mermaid

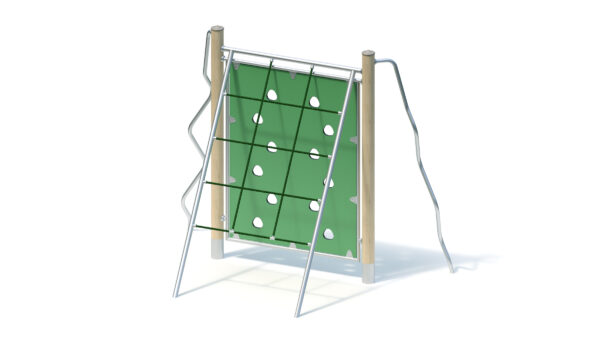

Climbing Rock midi
Climbing Rock midi

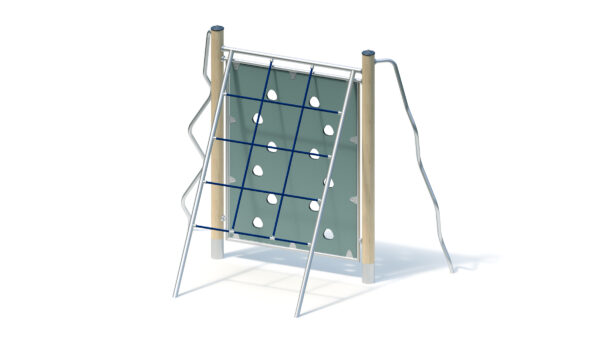

Ocean
Ocean

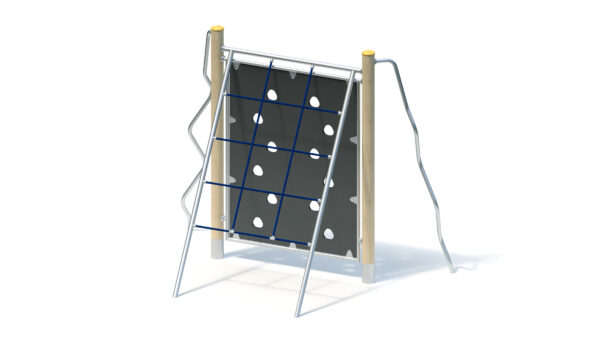

Pirate
Pirate

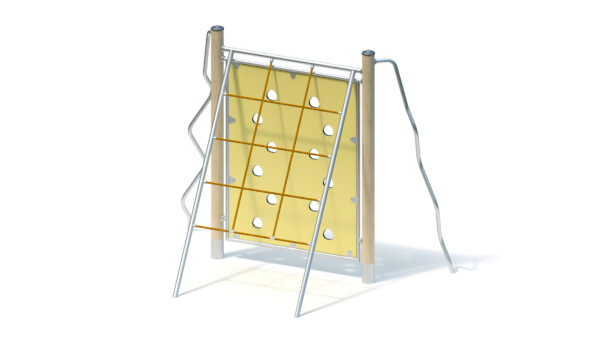

Safari
Safari
Sunny Day
Sunny Day
When making your product enquiry, please pay attention to the article number shown above, which changes when you select a specific product variant (e.g. different colour scheme). The last selected variant is automatically transmitted with the enquiry.
SKU 055390701 Category:

The most important information

:
;

Age group ?4+
Areas of application ?Public playgrounds
Number of users ?7 persons
Activities ?Climbing, Physical activity

Technical data

:
;

Device length ?2,85 m
Device width ?1,85 m
Device height ?2,35 m
Free fall height ?2,15 m
Platform heights-
Total weight ?160.00 kg
Heaviest single item ?60.00 kg
Minimum room length ?5,85 m
Minimum room width ?4,85 m
Minimum room height ?2,35 m

Assembly & Foundations

:
;

Assembly time ?1,0 h
Number of fitters ?2 persons
Lifting gear required ?-
Foundations030x030x040

Product Downloads

:
;

Product description

:
;

Technical data

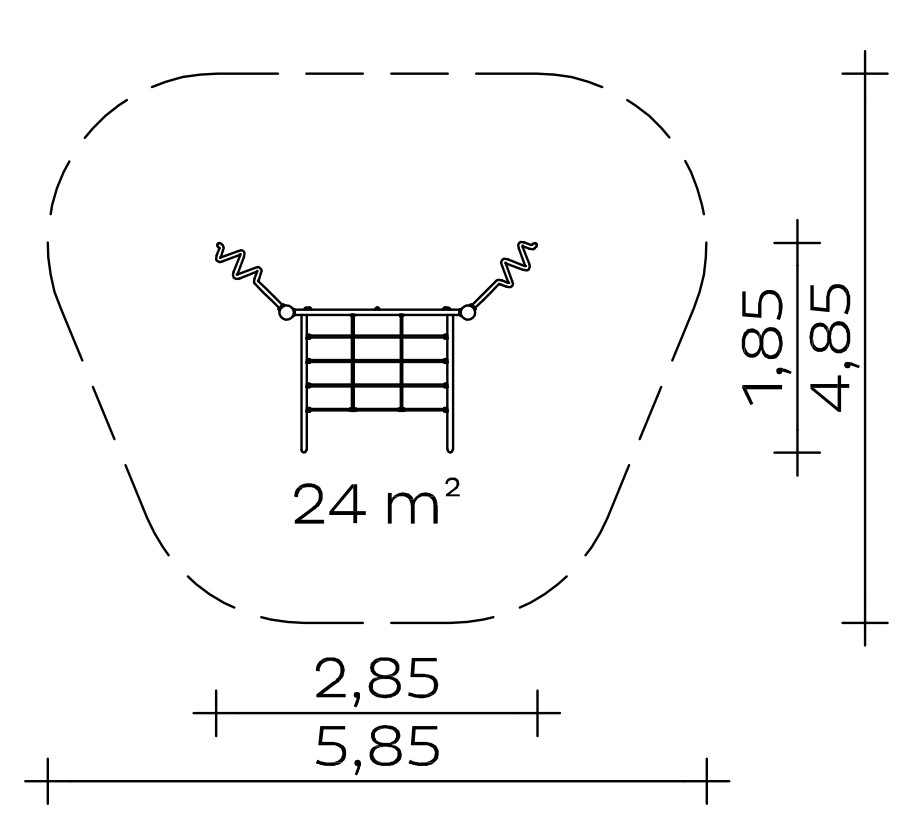

Floor area: 1.85 x 2.85 m
Minimum space: 4.85 x 5.85 m (24 m²)
Total height: 2.35 m
Weight: 60 kg heaviest individual part
160 kg in total

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.

Attachments
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, stainless steel tube frame, 12 climbing openings
- Boarding net made of Hercules rope on stainless steel crossbar
- Inclined climbing pole, corrugated, inclination 15°, made of stainless steel

Metal components: Stainless steel.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
2 pcs. 0.30 x 0.30 x 0.40 m
2 units 0.40 x 0.40 x 0.60 m
Concrete volume: 0.26 m³

Assembly time
2 fitters 1 hour each
(without foundation)

Free fall height
2,22 m

Suitable for
Children aged 5 and over,
public playgrounds etc.
sporting activities

Item number: 055390701

This Kaiser & Kühne product enables:
