Climbing combination

SKU: 055414501 Category:

Select variant:

Classic
Classic

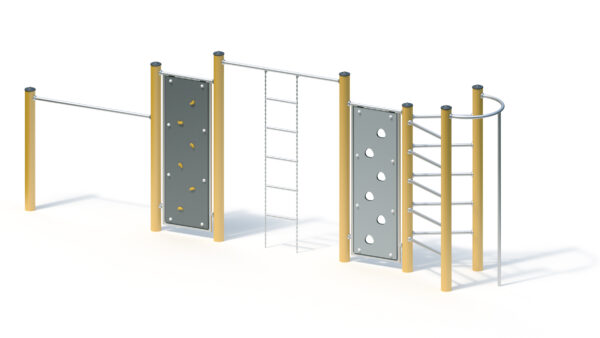

City
City
Aloha
Aloha

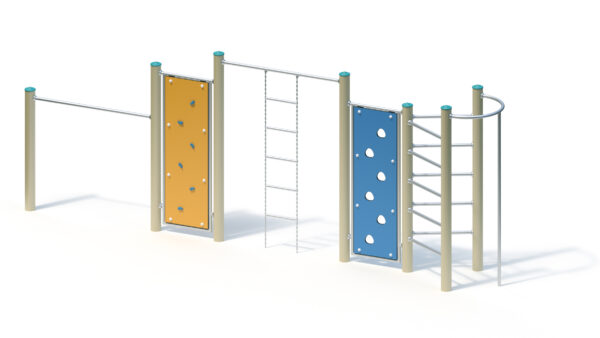

Beach
Beach
Coral
Coral

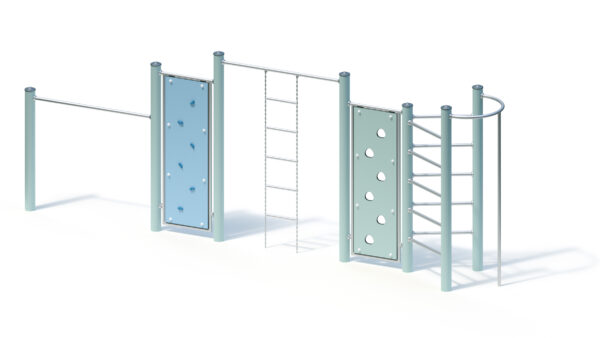

Ice Palace
Ice Palace

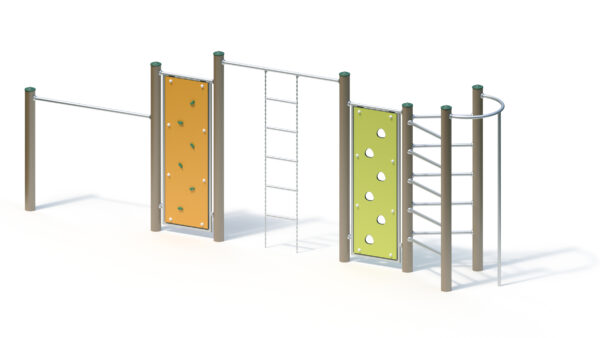

Jungle
Jungle

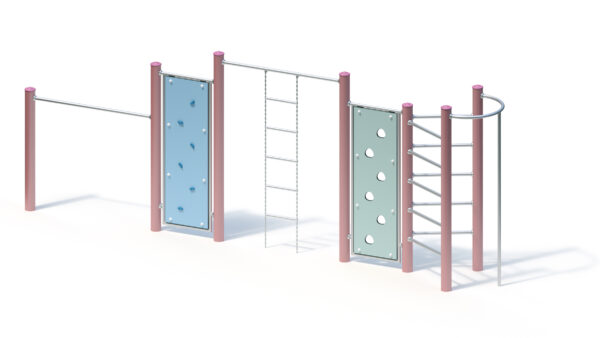

Mermaid
Mermaid

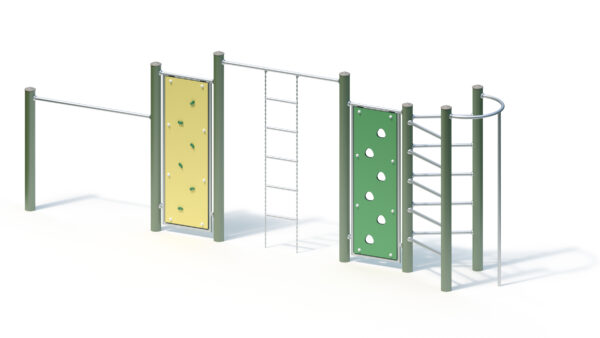

Climbing Rock midi
Climbing Rock midi

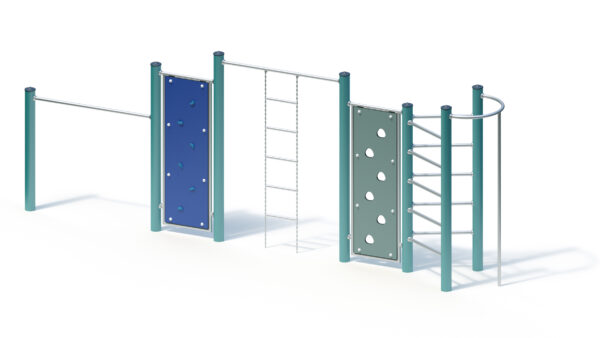

Ocean
Ocean
Pirate
Pirate
Safari
Safari

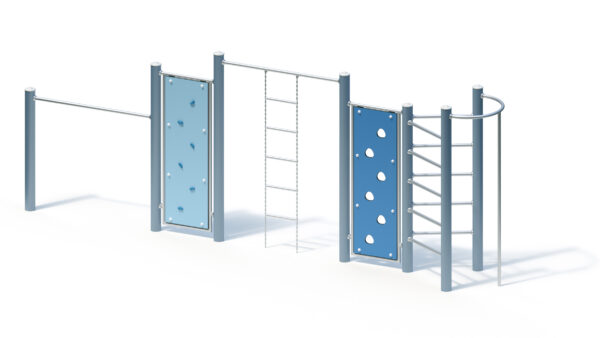

Sky
Sky

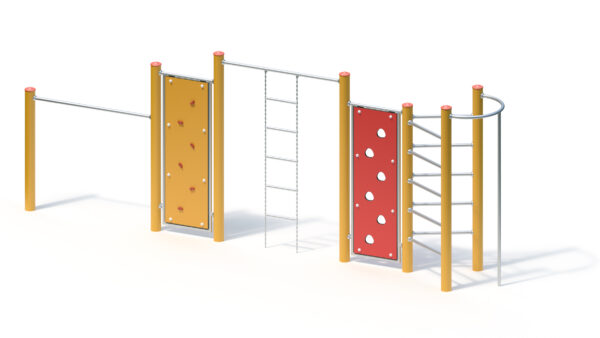

Sun
Sun

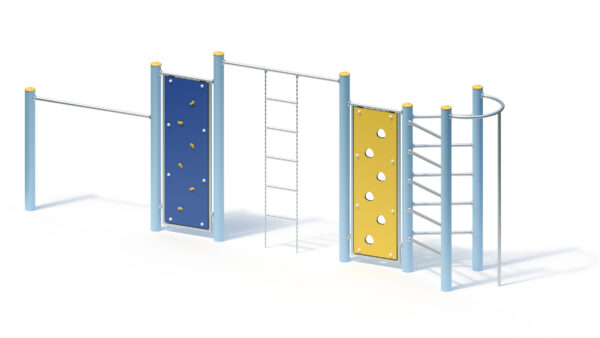

Sunny Day
Sunny Day
Sweden
Sweden
Please note the item number shown above when making your product enquiry, as it changes when you select a specific product variant (e.g. a different colour scheme). The last variant selected is automatically included in your enquiry.
SKU: 055414501 Category:

The most important information

:
;

Age group ?4+
Areas of use ?Public playgrounds
Number of users ?12 people
Activities ?Climbing, Physical activity

Technical data

:
;

Minimum space length ?9,45 m
Minimum space width ?4,75 m
Minimum space height ?2,30 m
Equipment length ?6,05 m
Equipment width ?0,93 m
Equipment height ?2,30 m
Free-fall height ?2,17 m
Platform heights-
Total weight ?350.00 kg
Heaviest single part ?60.00 kg

Assembly & Foundations

:
;

Assembly time ?5,0 h
Number of fitters ?2 people
Lifting equipment required-
FoundationsQuantity: 1x (0.3m x 0.3m x 0.4m)
Quantity: 3 (0.4m x 0.4m x 0.6m)
Quantity: 4 (1m x 0.4m x 0.4m)

Product description

:
;

Technical data
Total height: 2.30 m
Floor area: 0.93 x 6.05 m

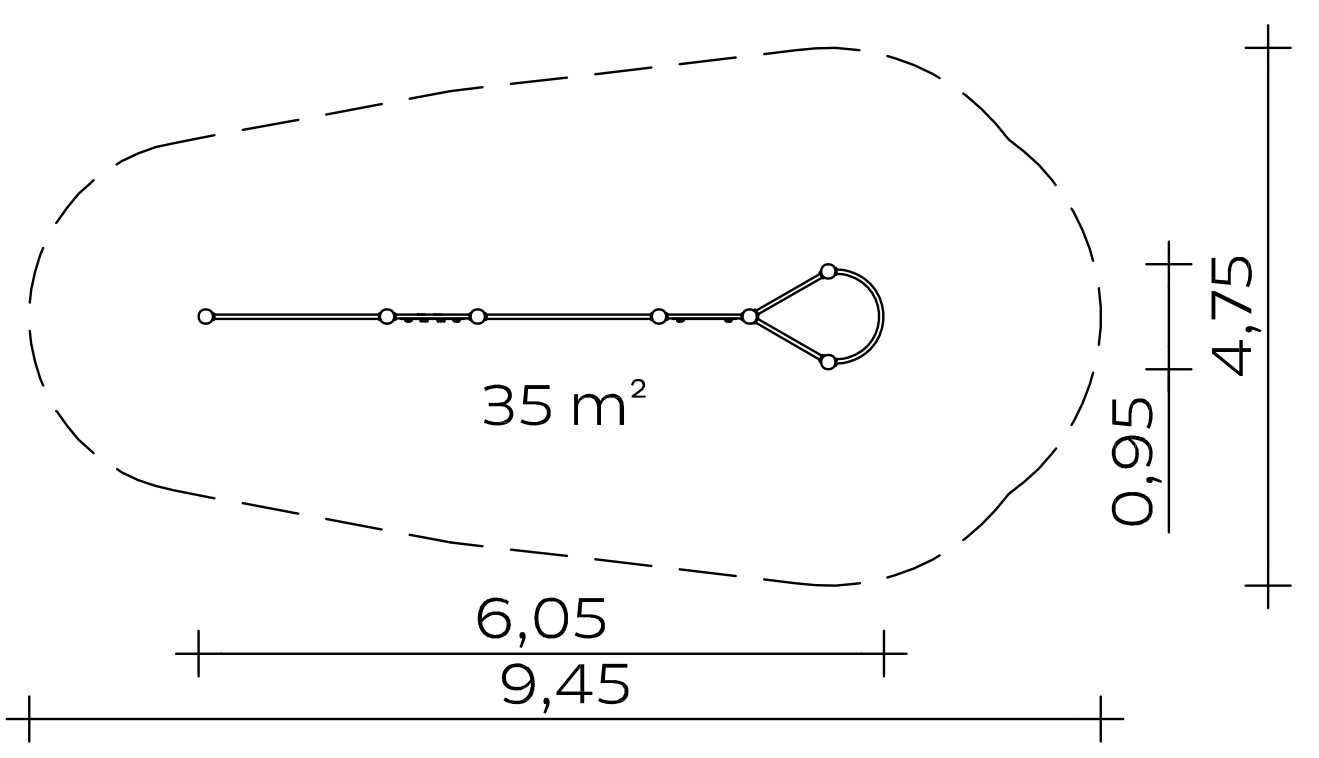

Minimum space: 4.75 x 9.45 m (35 m²)
High bar height: 1.35 m

Support post
Support posts made of stainless steel tube Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.

Attachments
- Stainless steel tube horizontal bar, Ø 38 x 2.5 mm, non-rotating
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, with free climbing elements attached on both sides
- Chain ladder with stainless steel rungs
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, 6 climbing openings
- Climbing rungs made of stainless steel tube, Ø 38 x 2.5 mm, torsion-resistant
- Vertical climbing pole made of stainless steel tube, Ø 38 x 2.5 mm

Metal components: Stainless steel.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.

Foundations (client-provided)
1 piece 0.30 x 0.30 x 0.40 m
3 pcs. 0.40 x 0.40 x 0.60 m
4 pcs. 0.40 x 1.00 x 0.40 m
Concrete volume: 0.96 m³

Assembly time
2 fitters 5 hours each
(without foundation)

Free fall height
2,17 m

Suitable for
Children aged 5 and over,
public playgrounds etc.,
sporting activities

Item number: 055414501
