Hexagonal combination

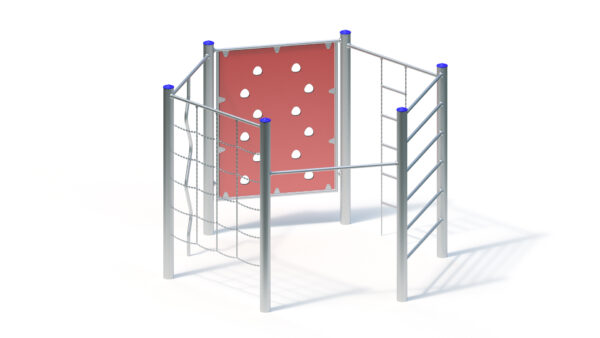

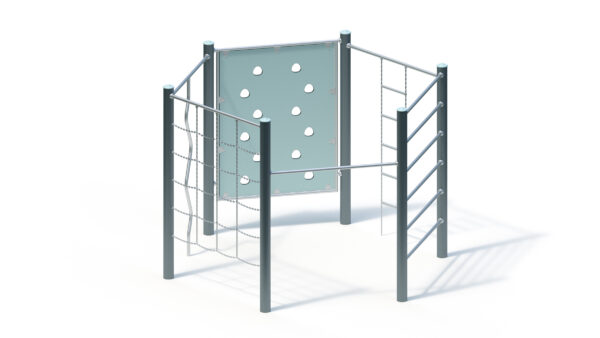

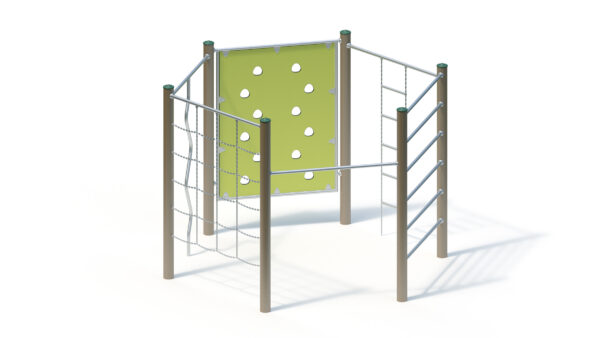

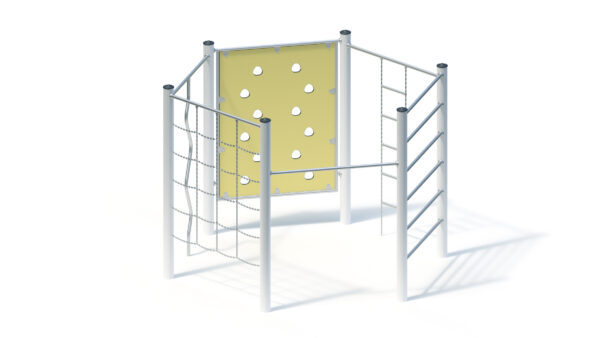

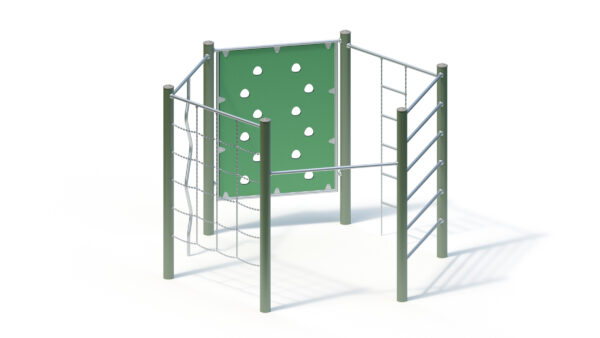

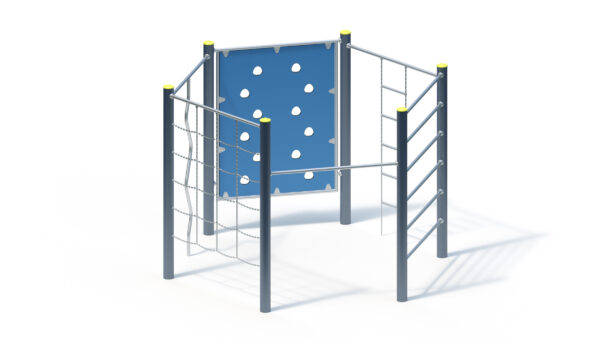

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 14 people |
| Activities ? | Climbing, Physical activity |
Technical data
| Minimum space length ? | 7,35 m |
|---|---|
| Minimum space width ? | 7,35 m |
| Minimum space height ? | 2,33 m |
| Equipment length ? | 3,33 m |
| Equipment width ? | 2,90 m |
| Equipment height ? | 2,33 m |
| Free-fall height ? | 2,22 m |
| Platform heights | - |
| Total weight ? | 280.00 kg |
| Heaviest single part ? | 55.00 kg |
Assembly & Foundations
| Assembly time ? | 4,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1x (0.3m x 0.3m x 0.4m) Quantity: 6 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

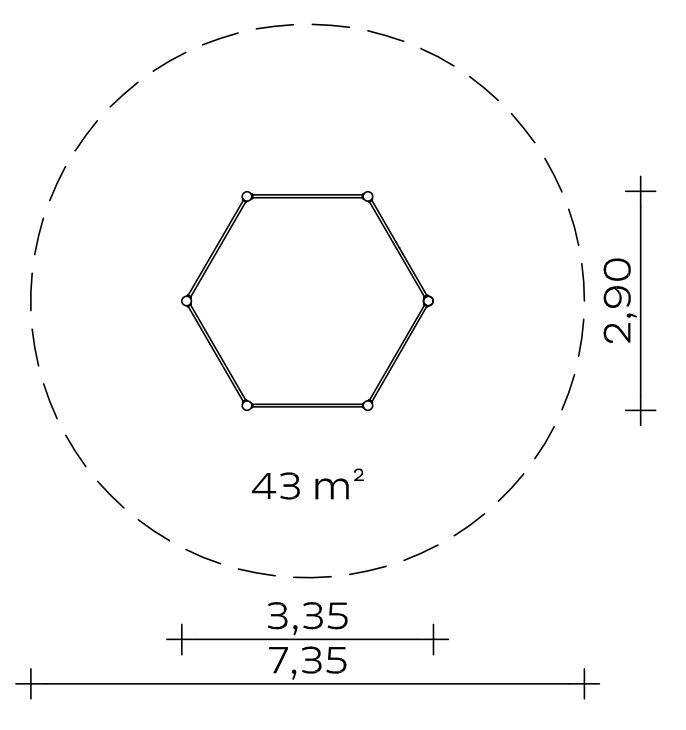

Floor area: 2.90 x 3.33 m
Minimum space: Ø 7.35 m (43 m²)
Total height: 2.33 m
Fall protection area: approx. 43 m²
High bar height: 1.65 m
Wall bar height: 2.20 m
Weight: 55 kg heaviest individual part
280 kg in total
Support post
Posts made of stainless steel tube Ø 120 x 3 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Stainless steel tube horizontal bar, Ø 38 x 2.5 mm, torsion-resistant
- Climbing pole and climbing rungs made of stainless steel tube, Ø 38 x 2.5 mm
- Chain ladder with stainless steel rungs
- Climbing net made of stainless steel chains on stainless steel crossbeam
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm (Atlantic), frame made of stainless steel tube, 12 climbing openings
Metal components: Stainless steel.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
1 piece 0.30 x 0.30 x 0.40 m
6 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.42 m³
Assembly time
2 fitters 4 hours each
(without foundation)
Free fall height
2,22 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
sporting activities
Item number: 055365502
