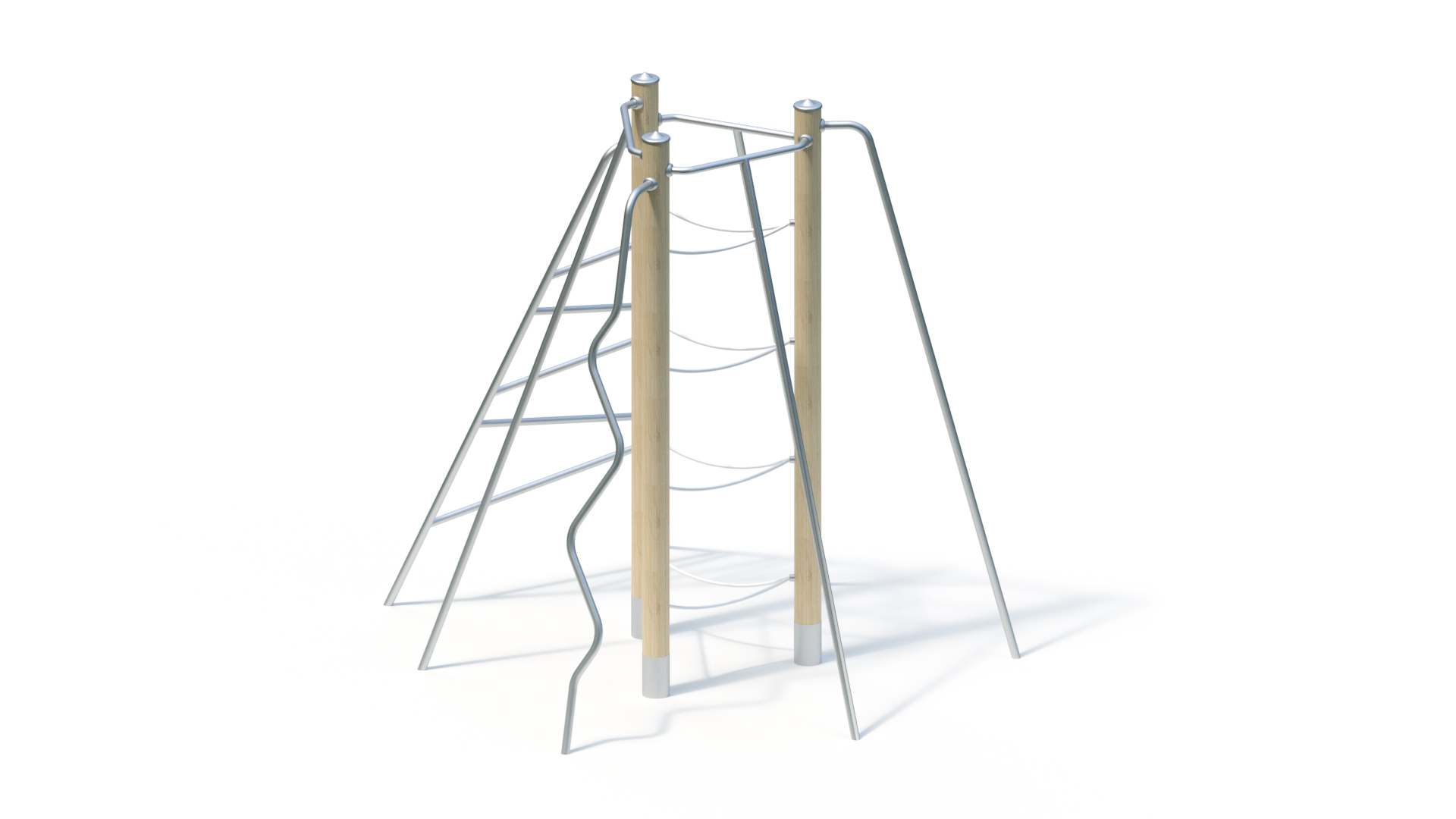

Climbing combination

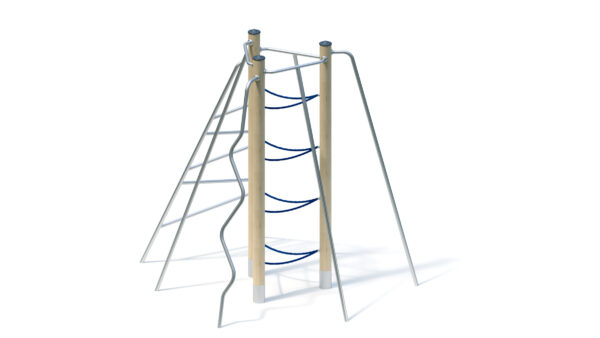

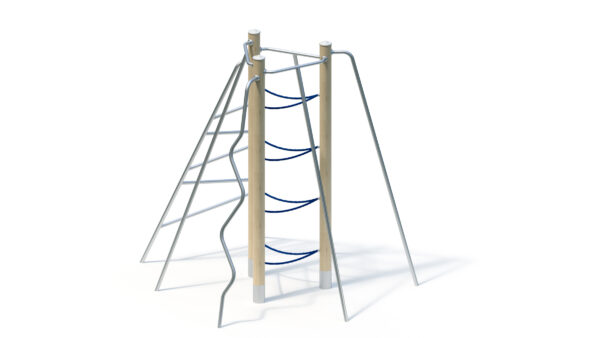

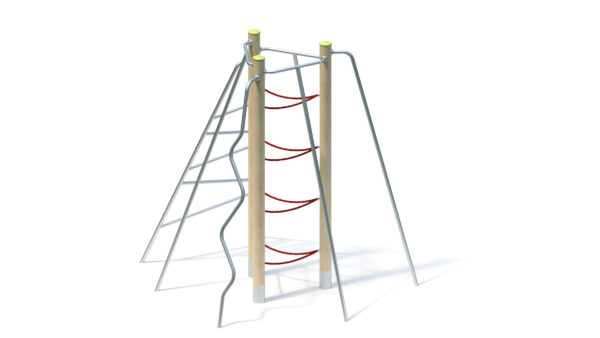

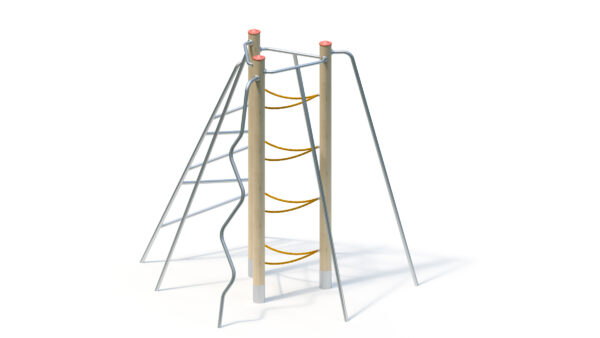

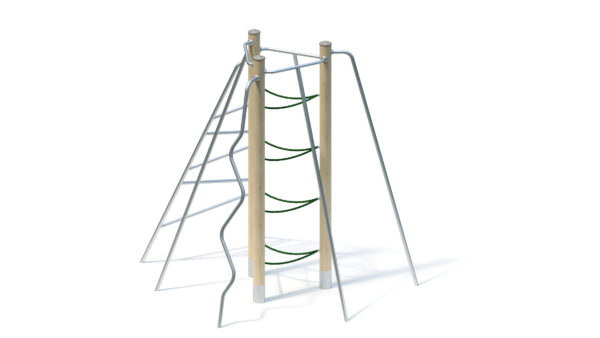

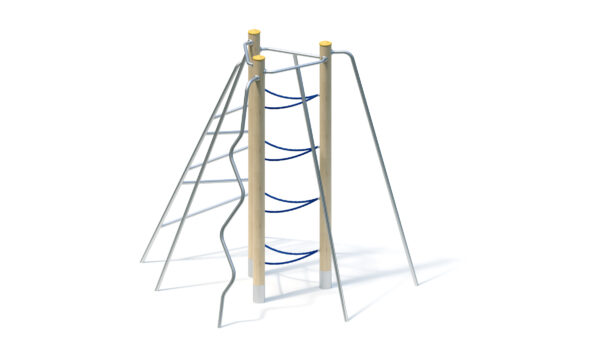

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 9 people |
| Activities ? | Climbing, Physical activity |
Technical data
| Minimum space length ? | 6,25 m |
|---|---|
| Minimum space width ? | 2,80 m |
| Minimum space height ? | 2,65 m |
| Equipment length ? | 2,85 m |
| Equipment width ? | 2,80 m |
| Equipment height ? | 2,65 m |
| Free-fall height ? | 2,52 m |
| Platform heights | - |
| Total weight ? | 160.00 kg |
| Heaviest single part ? | 30.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 7 (0.3m x 0.3m x 0.4m) Quantity: 3 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 2.65 m
Floor area: 2.80 x 2.85 m
Minimum space: Ø 6.25 m (31 m²)
Fall protection area: approx. 31 m²
Weight: 30 kg heaviest individual part
160 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Climbing pole made of stainless steel tube, Ø 38 mm
- Climbing net made from Hercules rope Ø 16 mm
- Triangular rung wall made of stainless steel tube, Ø 38 mm
Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
7 units 0.30 x 0.30 x 0.40 m
3 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.44 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
2,52 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
sporting activities
Item number: 055210703
