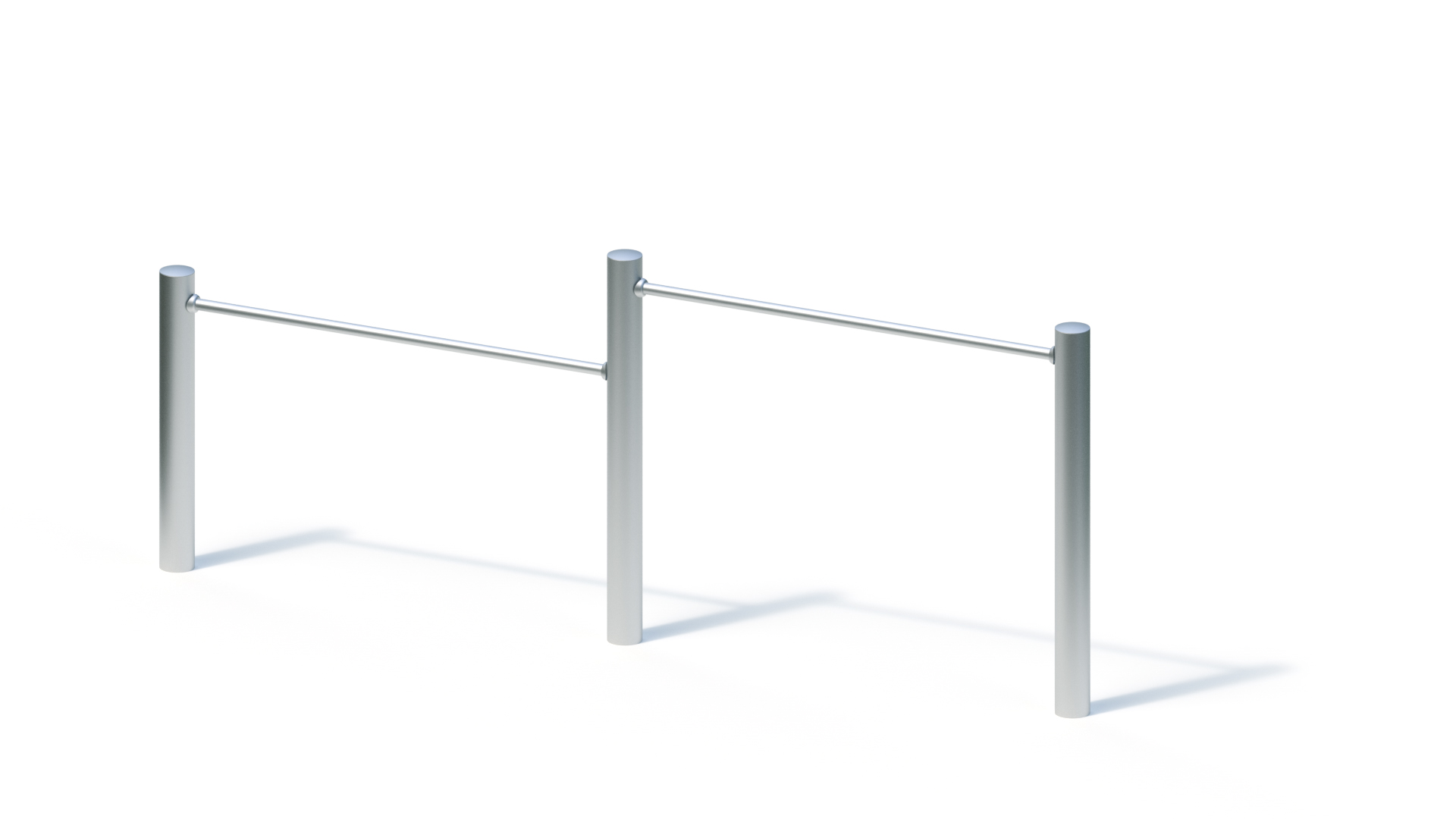

Chin-up-Bars (0,90/1,20)
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 4 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 3,35 m |
|---|---|
| Device width ? | 3,55 m |
| Device height ? | 1,35 m |
| Free fall height ? | 1,22 m |
| Platform heights | - |
| Total weight ? | 57.00 kg |
| Heaviest single item ? | 18.00 kg |
| Minimum room length ? | 6,35 m |
| Minimum room width ? | 3,15 m |
| Minimum room height ? | 1,35 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 persons |
| Lifting gear required | - |
| Foundations | 050x050x050 |
Product Downloads
Product description
Technical data
Length: 3.35 m

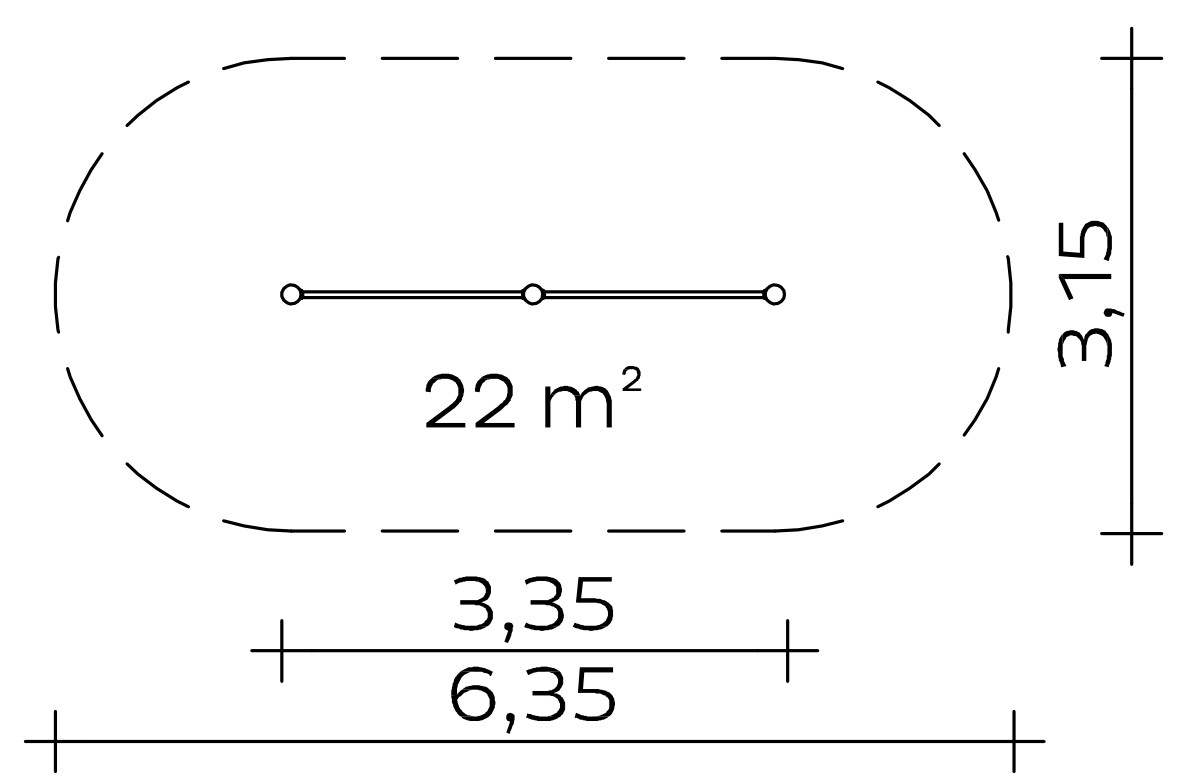

Minimum space: 6.35 x 3.15 m (22 m²)
Total height: 1.35 m
Horizontal bar height: 0.90 / 1.20 m
Weight: 18 kg heaviest individual part
57 kg in total
Support post
Support post made of stainless steel tube Ø 114 mm, wall thickness 3 mm, covered with welded stainless steel caps.
Attachments
Horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, torsion-resistant
Metal components: Stainless steel
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
3 pcs. 0.50 x 0.50 x 0.50 m
Concrete volume: 0.45 m³
Assembly time
1 fitter per 1 hour
(without foundation)
Free fall height
1,22 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
sporting activities
Item number: 053212900
