Chin-up-Bars (0,90/1,20)

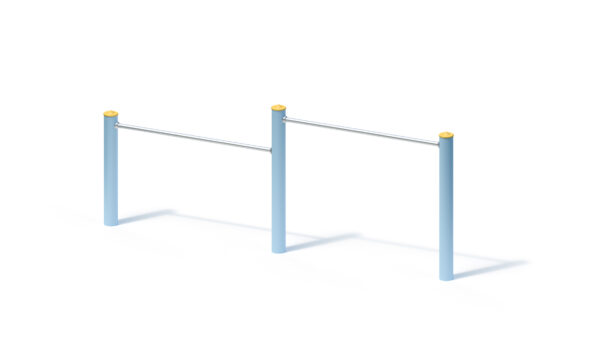

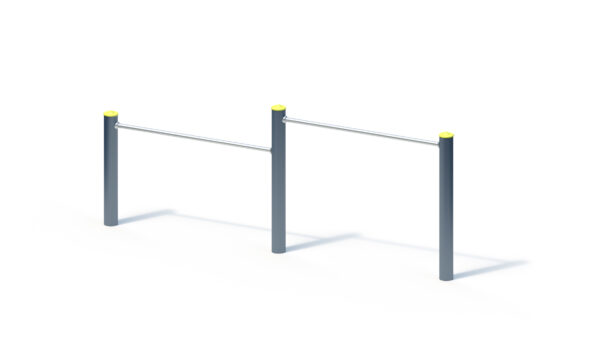

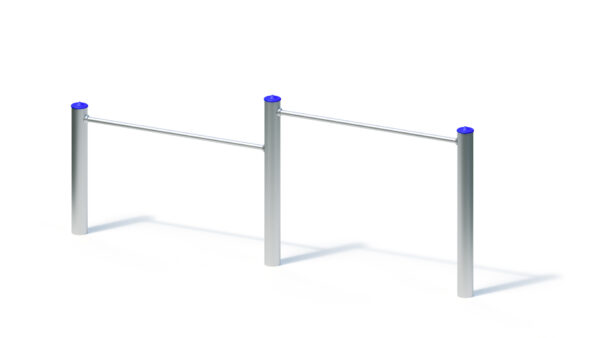

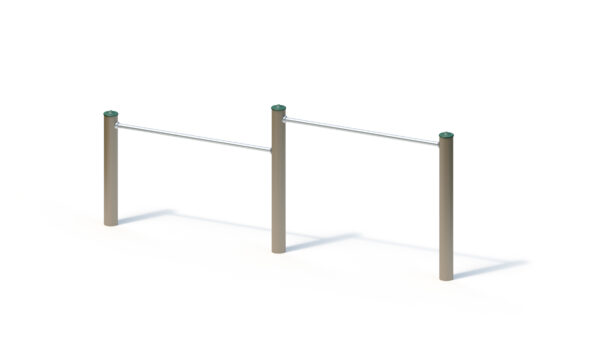

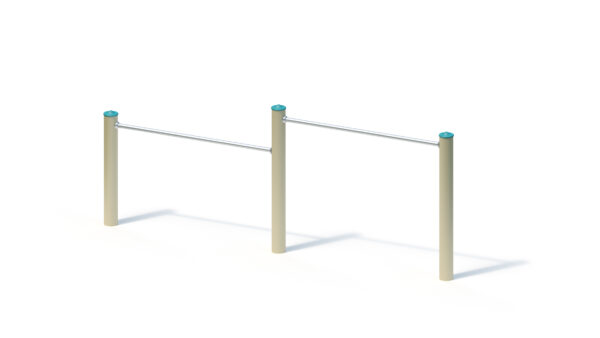

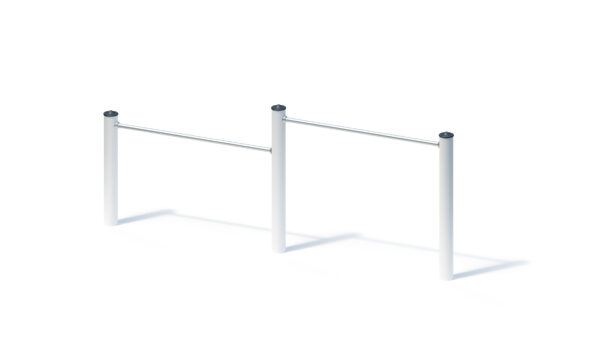

Variante wählen:
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 4 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Mindestraumlänge ? | 6,35 m |
|---|---|
| Mindestraumbreite ? | 3,15 m |
| Mindestraumhöhe ? | 1,35 m |
| Gerätelänge ? | 3,35 m |
| Gerätebreite ? | 3,55 m |
| Gerätehöhe ? | 1,35 m |
| Freie Fallhöhe ? | 1,22 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 57.00 kg |
| Schwerstes Einzelteil ? | 18.00 kg |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 1 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 3 (0.5m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data
Length: 3.35 m

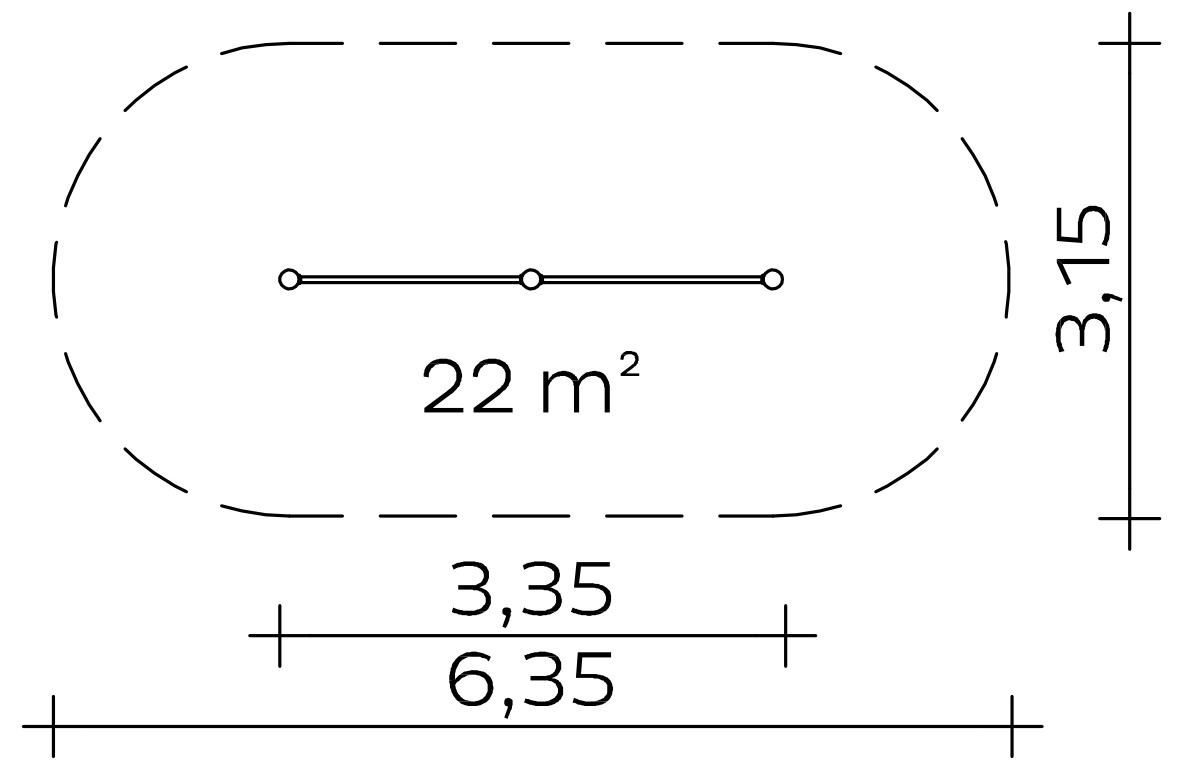

Minimum space: 6.35 x 3.15 m (22 m²)
Total height: 1.35 m
Horizontal bar height: 0.90 / 1.20 m
Weight: 18 kg heaviest individual part
57 kg in total
Support post
Support post made of stainless steel tube Ø 120 mm, wall thickness 3 mm, covered with non-detachable stainless steel post caps
Attachments
Horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, torsion-resistant
Metal components: Stainless steel
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
3 pcs. 0.50 x 0.50 x 0.50 m
Concrete volume: 0.38 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
1,22 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
sporting activities
Item number: 053212500
