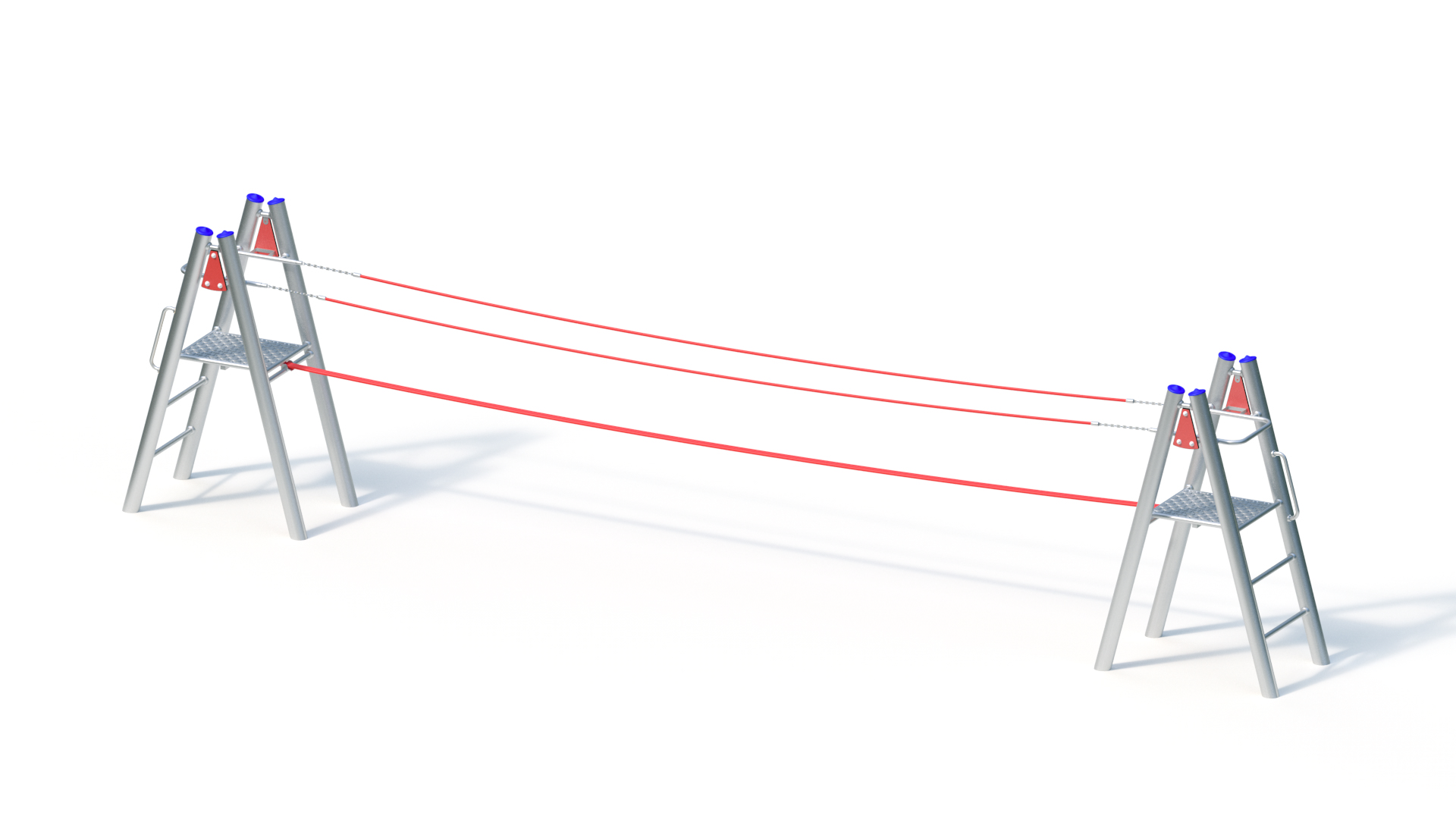

Tightrope

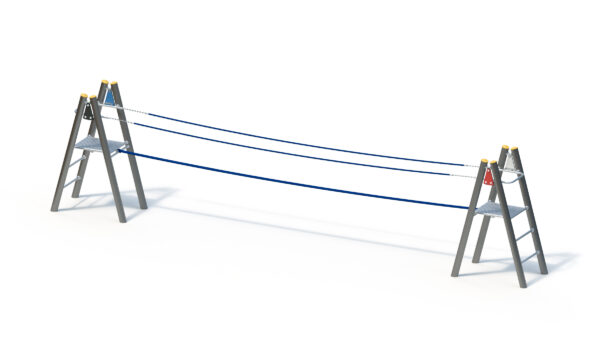

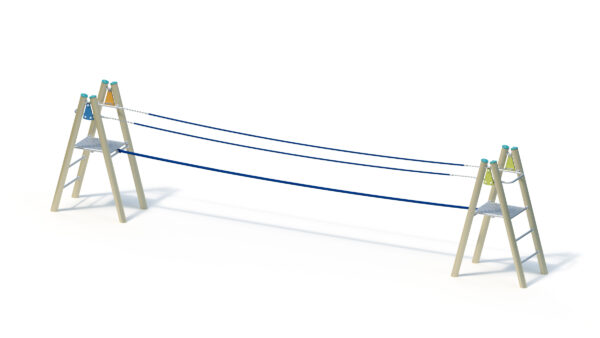

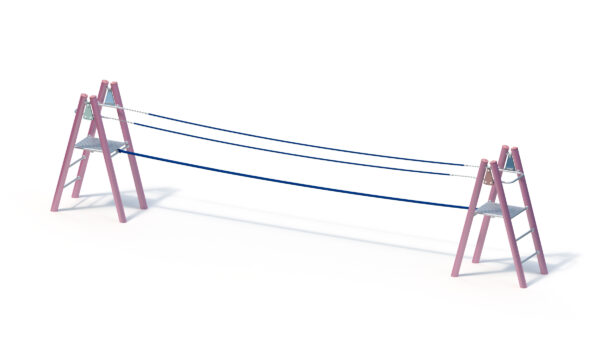

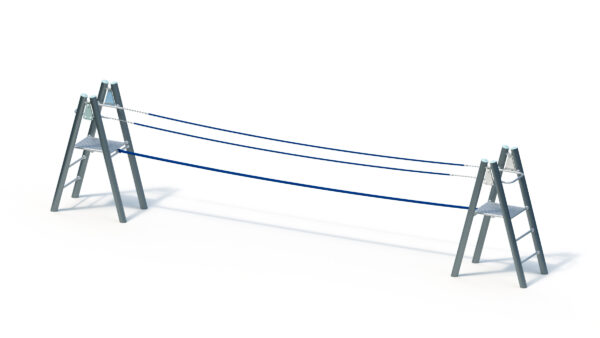

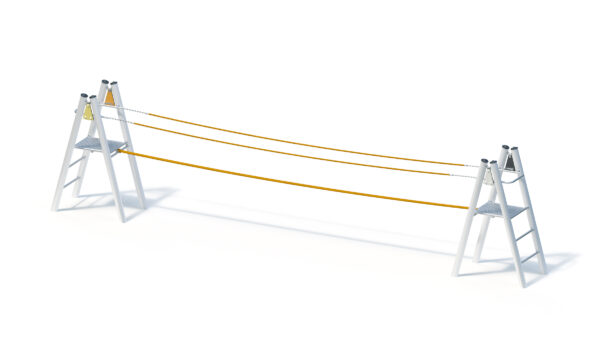

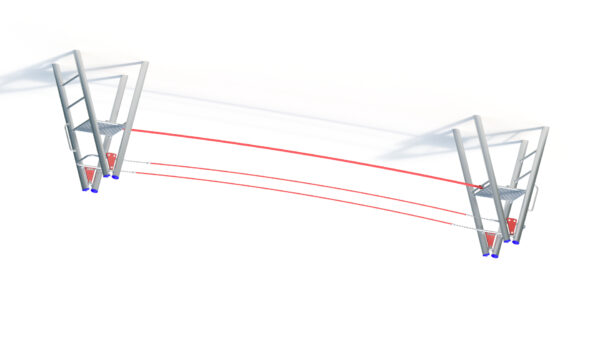

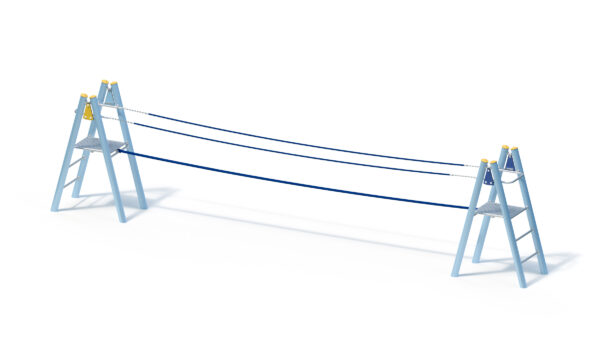

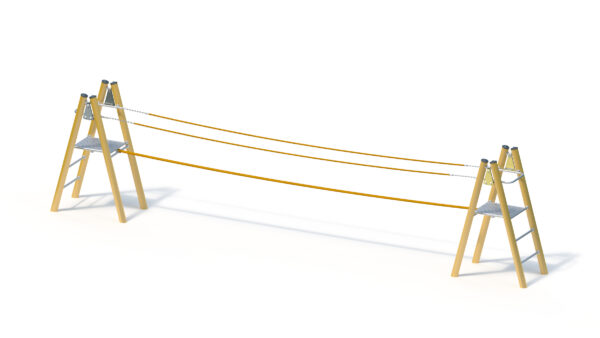

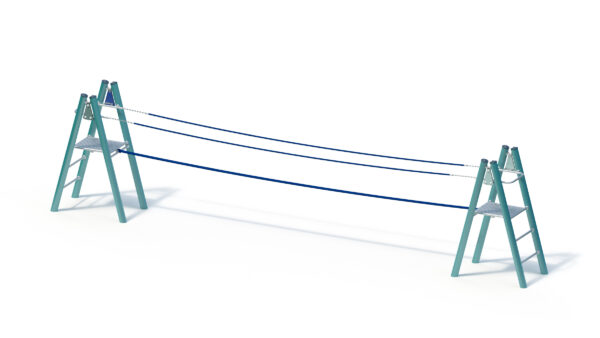

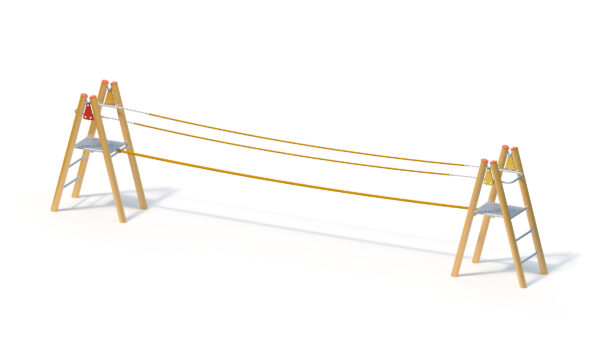

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 3 people |
| Activities ? | Balance, Physical activity |
Technical data
| Minimum space length ? | 11,80 m |
|---|---|
| Minimum space width ? | 3,60 m |
| Minimum space height ? | 2,20 m |
| Equipment length ? | 9,10 m |
| Equipment width ? | 0,95 m |
| Equipment height ? | 2,20 m |
| Free-fall height ? | 1,20 m |
| Platform heights | - |
| Total weight ? | 330.00 kg |
| Heaviest single part ? | 30.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.6m x 0.6m x 0.6m) |
Product Downloads
Product description
Technical data
Floor area: 0.95 x 9.10 m
Minimum space: 3.60 x 11.80 m (41 m²)
Impact area: 41 m²
Total height: 2.20 m
Platform height: 1.20 m
Weight: 30 kg heaviest individual part
330 kg in total
- Scaffolding beams made of stainless steel tube, Ø 120 x 3 mm, covered with non-detachable post caps
- smb floating belt made of 3 Hercules cables running side by side and firmly connected, approx. 90 mm wide
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Platform made of profiled stainless steel sheet
- Tensioning device for floating belt, handrail made of Hercules rope Ø 22 mm
- Metal components: Stainless steel
Foundations (client-provided)
4 units 0.60 x 1.40 x 0.60 m
Concrete volume: 2.02 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
1,20 m
Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities
Item number: 052150501
