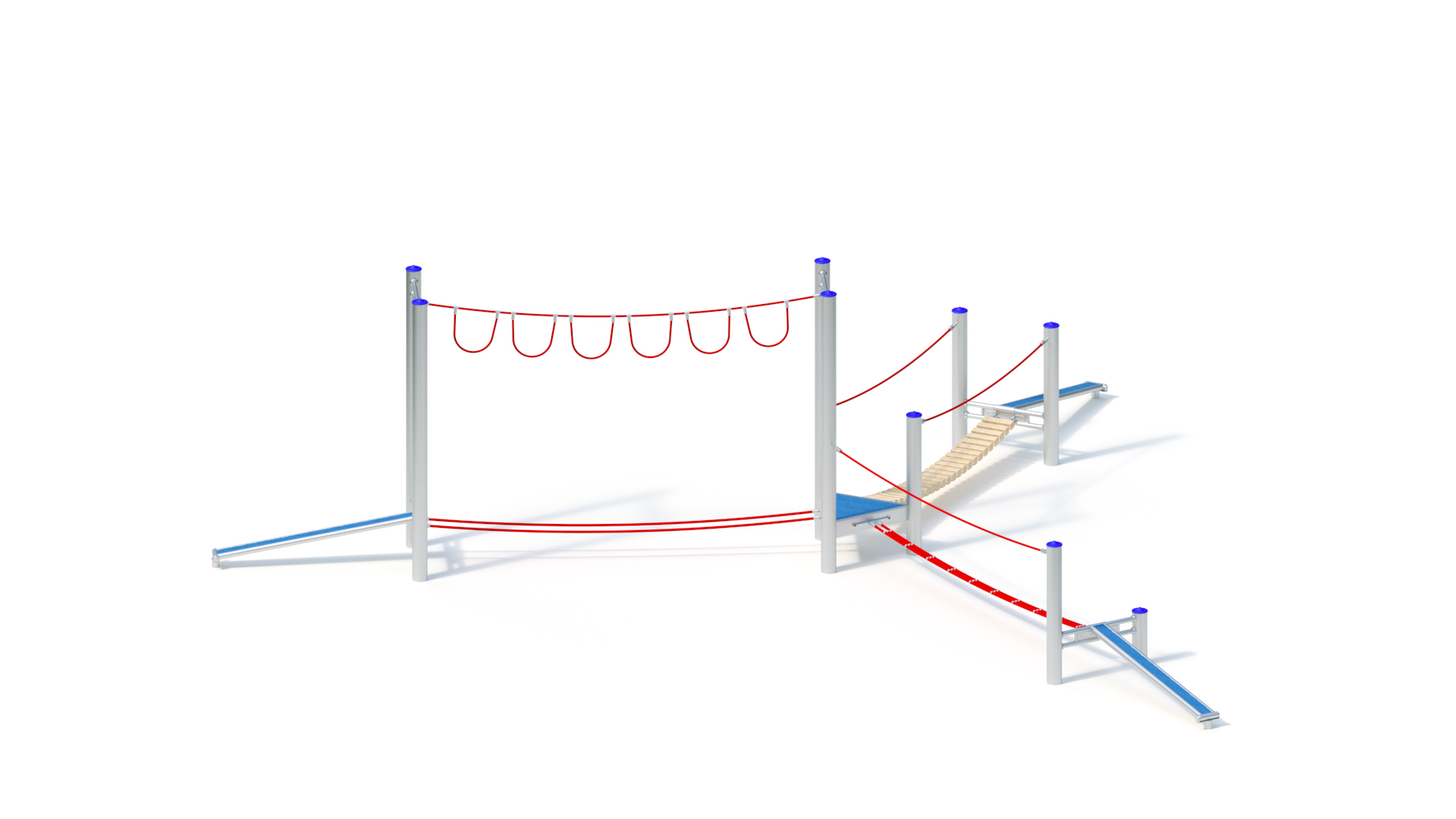

Rope combination

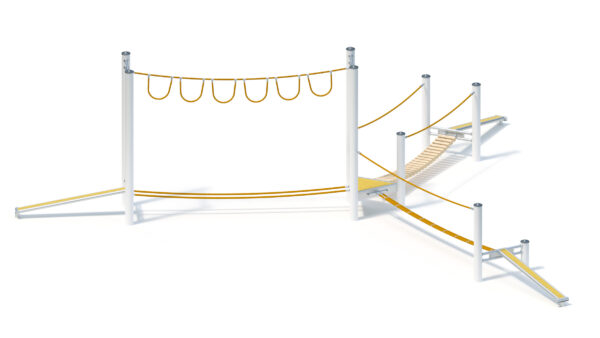

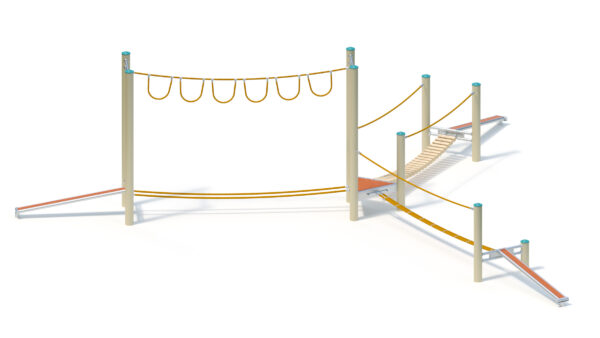

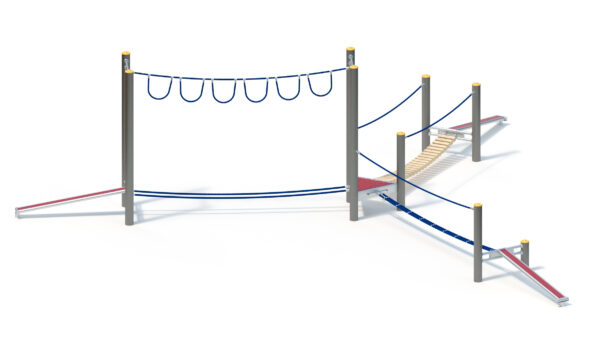

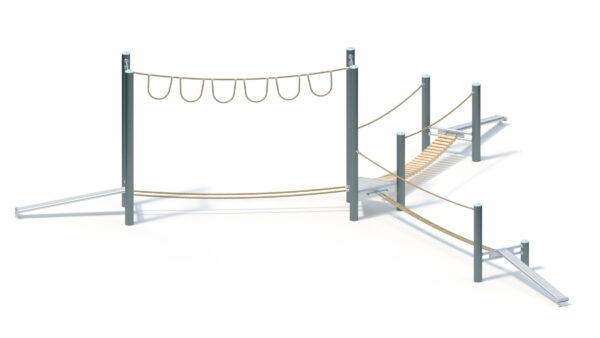

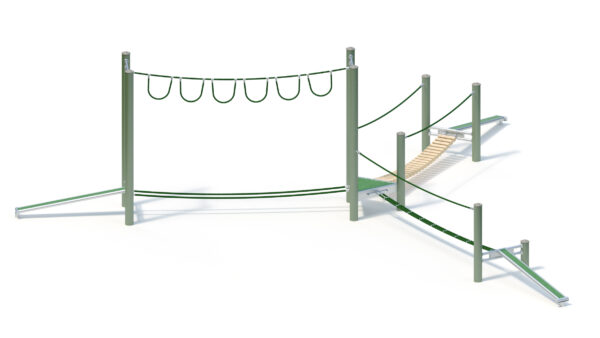

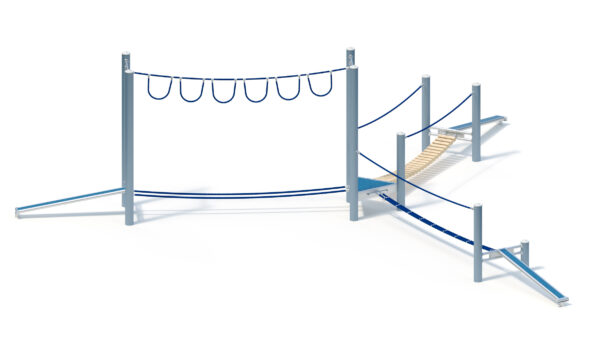

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 14 people |
| Activities ? | Balance, Physical activity |
Technical data
| Minimum space length ? | 11,80 m |
|---|---|
| Minimum space width ? | 9,85 m |
| Minimum space height ? | 2,35 m |
| Equipment length ? | 8,80 m |
| Equipment width ? | 6,85 m |
| Equipment height ? | 2,35 m |
| Free-fall height ? | 0,40 m |
| Platform heights | - |
| Total weight ? | 420.00 kg |
| Heaviest single part ? | 30.00 kg |
Assembly & Foundations
| Assembly time ? | 4,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.4m x 0.4m x 0.4m) Quantity: 1 (1.4m x 1.4m x 0.4m) Quantity: 1 (1.4m x 1m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 2.35 m
Floor area: 6.85 x 8.80 m
Minimum space: 9.85 x 11.80 m (60 m²)
Platform height: 0.40 m
Weight: 30 kg heaviest individual part
420 kg in total
Support post
Support posts made of stainless steel tube Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Pedestal
Triangular steel floor made of stainless steel with tensioning devices for floating belt and web bridge; with EPDM rubber granulate covering, glass bead blasted, friction-locked attachment to the stand post with a continuous bolt connection.
Attachments
- Balancing walkway 1.60 m: welded stainless steel construction with tandem railing and foundation anchors, balancing surface covered with EPDM rubber granules
- smb suspension belt made of 3 fixed Hercules ropes running side by side, approx. 90 mm wide, with a handrail rope made of Hercules rope Ø 18 mm
- Footbridge: Walkway made of wooden rungs with approx. 40 mm clear rung spacing, with two handrail ropes made of Hercules rope Ø 18 mm
- two parallel balancing ropes: smb rope construction made of Hercules rope Ø 22 mm
- Hanging loop rope on tandem traverse made of Hercules rope Ø 18 mm
Metal components: Stainless steel
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
This appliance is only available with stainless steel posts.
Foundations (client-provided)
3 pcs. 0.30 x 0.30 x 0.40 m
4 pcs. 0.40 x 0.40 x 0.40 m
1 piece 1.40 x 1.00 x 0.40 m
1 piece 1.40 x 1.40 x 0.40 m
Concrete volume: 1.71 m³
Assembly time
2 fitters 4 hours each
(without foundation)
Free fall height
0,40 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Physical activities
Item number: 052170501
