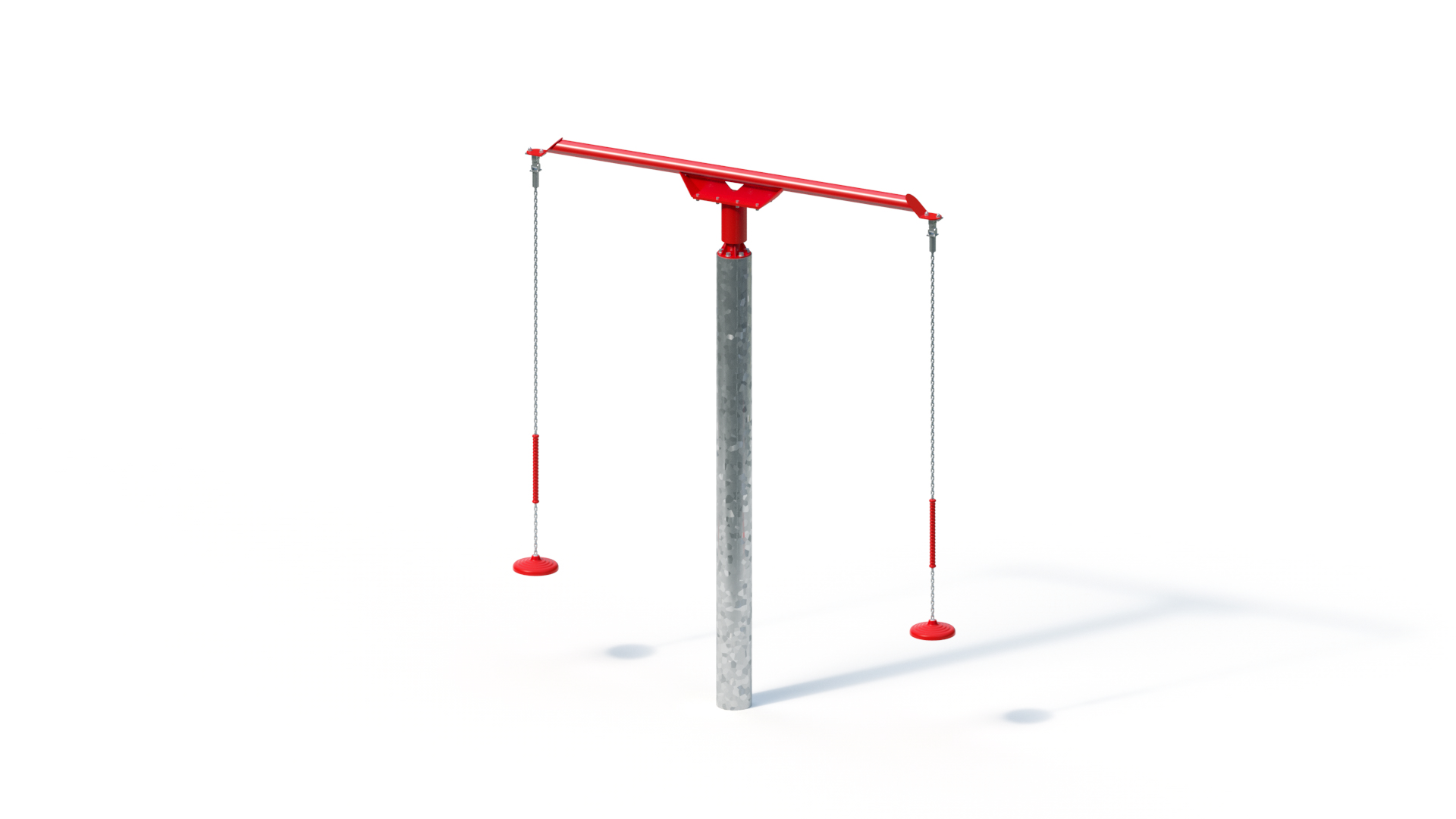

Rotating swing with pendulum seats
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 3 people |
| Activities ? | Physical activity, Swinging |
Technical data
| Minimum space length ? | 11,00 m |
|---|---|
| Minimum space width ? | 11,00 m |
| Minimum space height ? | 3,09 m |
| Equipment length ? | 2,65 m |
| Equipment width ? | 0,20 m |
| Equipment height ? | 3,09 m |
| Free-fall height ? | 1,00 m |
| Platform heights | - |
| Total weight ? | 215.00 kg |
| Heaviest single part ? | 150.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1x (1m x 1m x 0.8m) |
Product Downloads
Product description
Technical data

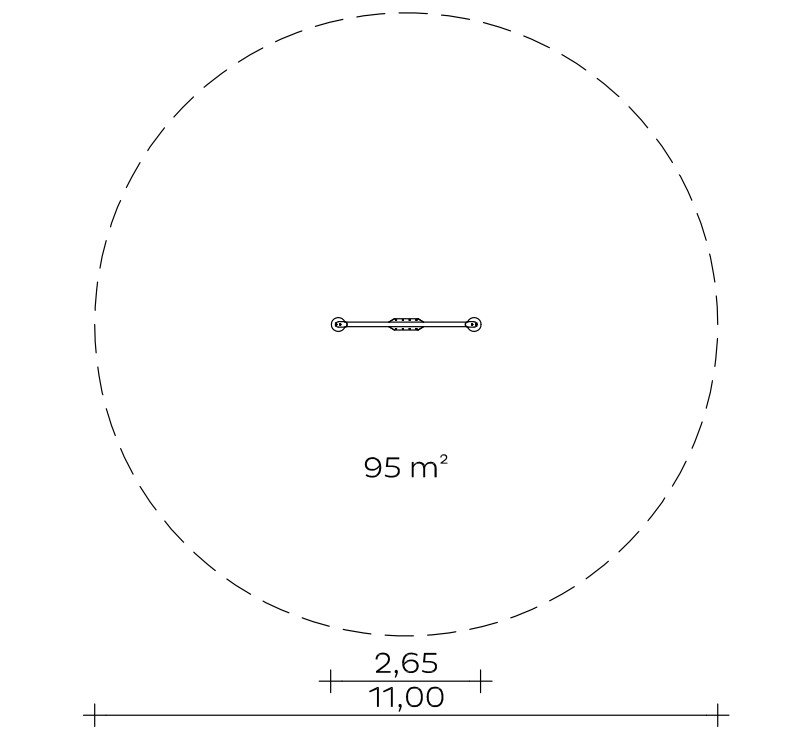

Base area: 0.20 x 2.65 m
Minimum space: Ø 11.00 m (95 m²)
Total height: 3.09 m
Weight: 150 kg heaviest individual part
215 kg in total
- Tubular steel upright, hot-dip galvanised, with base plate
- Circular support, hot-dip galvanised steel, additionally powder-coated and stove-enamelled
- Rotary mechanism: Axle with multiple roller bearings in a dirt-protected, tamper-proof bearing housing
- Stainless steel universal joints with ball-bearing swivels
- Safety pendulum seats with thermally moulded, flexible rubber handle on stainless steel chains
Foundation (on site)
1 piece 1.00 x 1.00 x 0.80 m
Concrete volume: 0.80 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,00 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Movement activities.
Item number: 044522001
