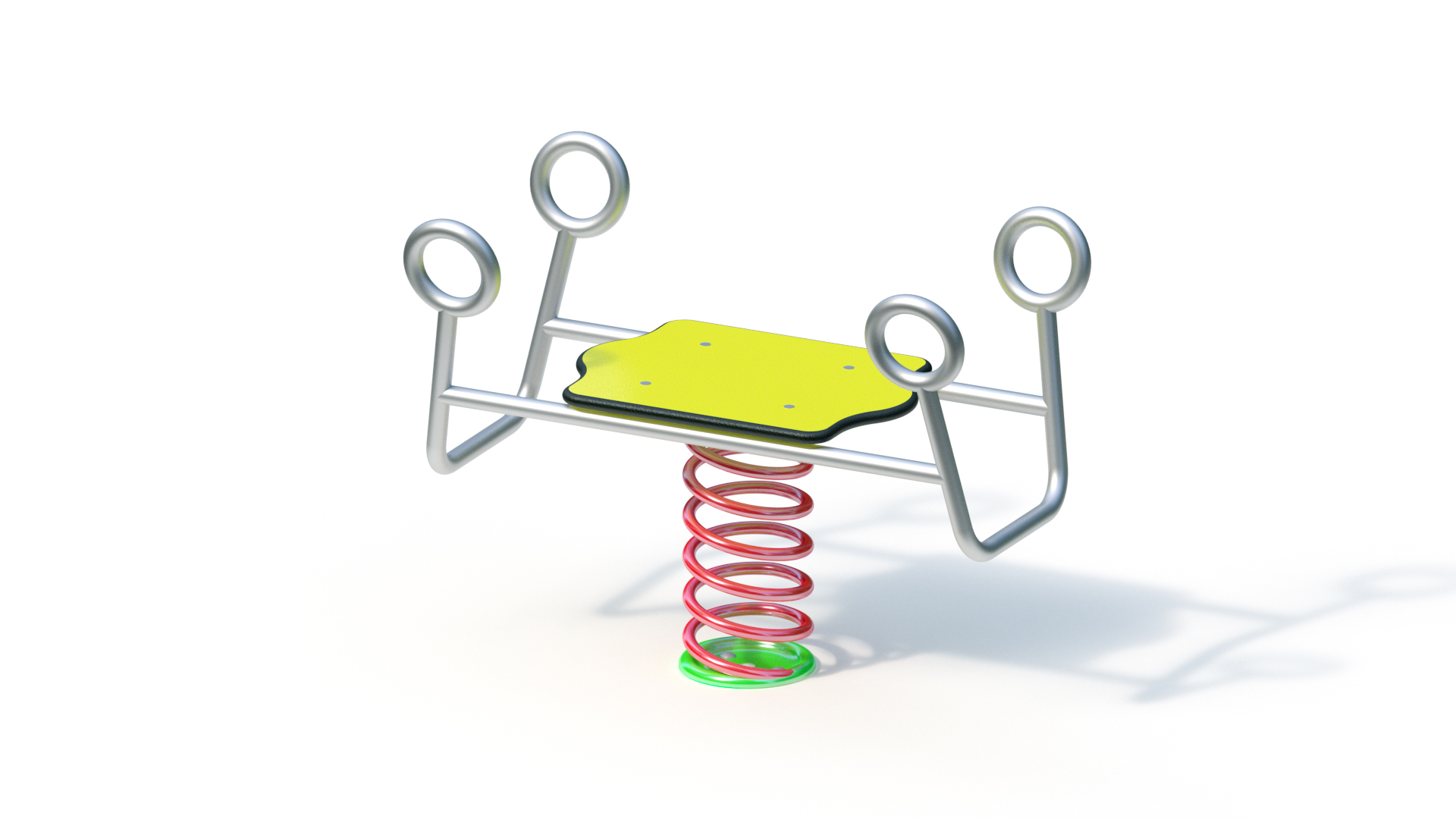

Spring see-saw

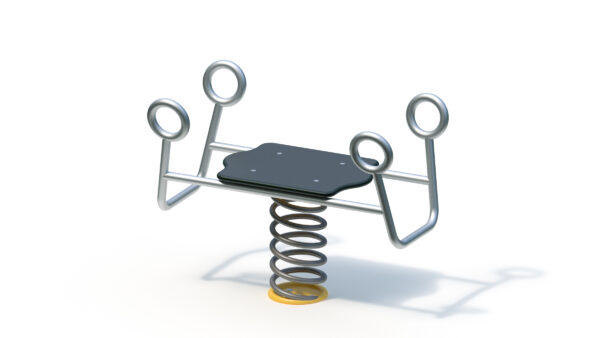

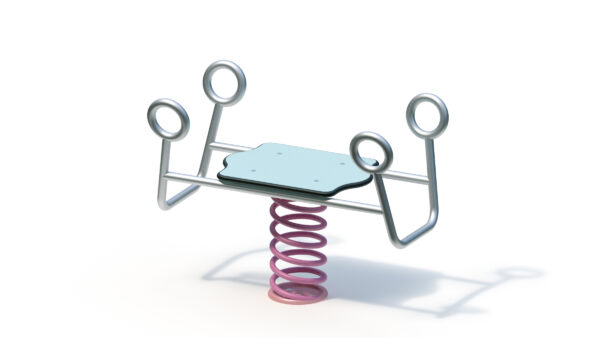

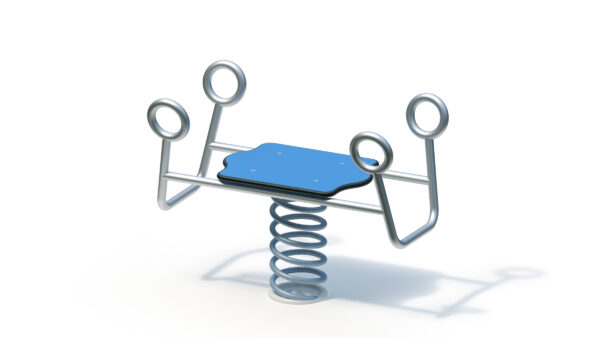

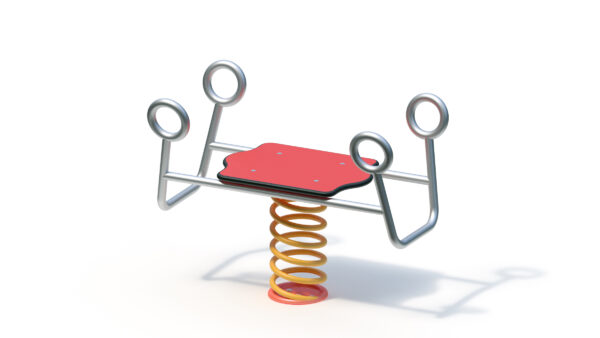

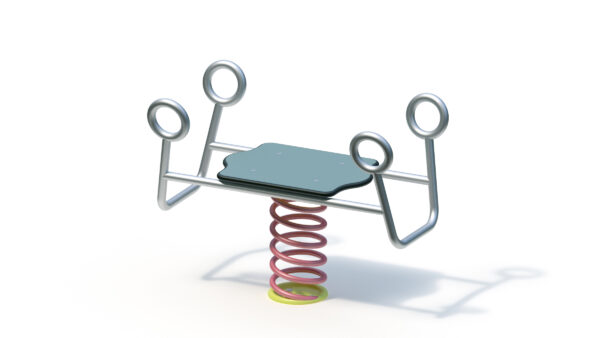

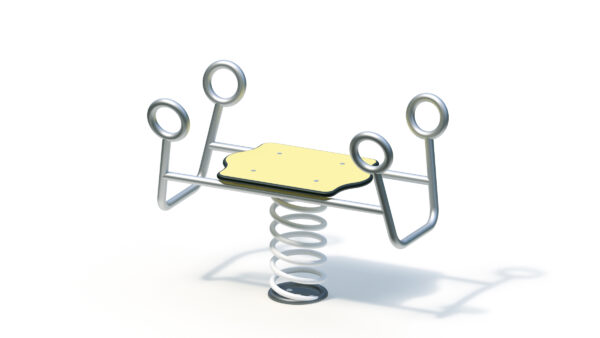

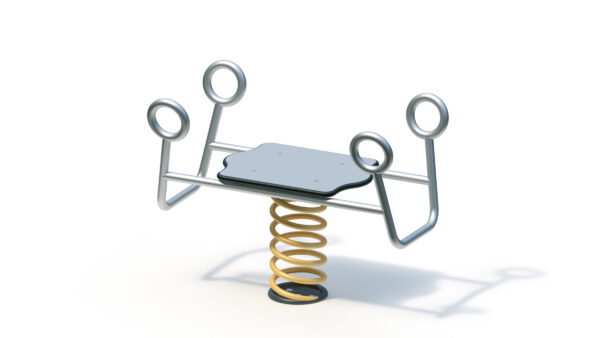

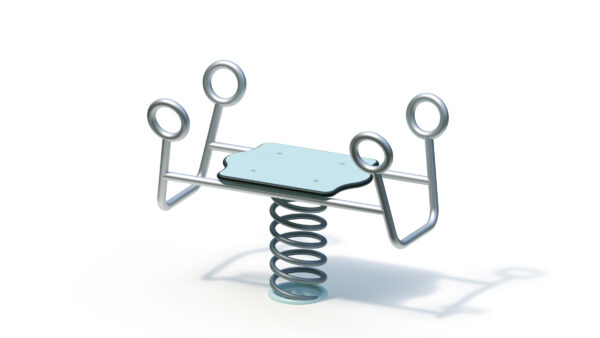

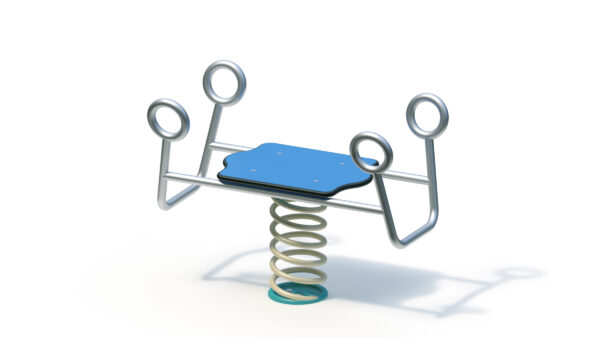

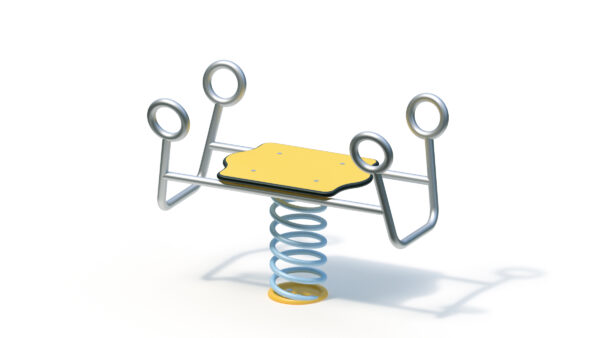

Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 3 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Gerätelänge ? | 0,95 m |
|---|---|
| Gerätebreite ? | 0,50 m |
| Gerätehöhe ? | 0,72 m |
| Freie Fallhöhe ? | 0,46 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 40.00 kg |
| Schwerstes Einzelteil ? | 0.00 kg |
| Mindestraumlänge ? | 3,30 m |
| Mindestraumbreite ? | 2,50 m |
| Mindestraumhöhe ? | 0,72 m |
Assembly & Foundations
| Montagezeit ? | 0,0 h |
|---|---|
| Monteuranzahl ? | 0 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1x (0.8m x 0.5m x 0.1m) |
Product Downloads
Product description
Technical data
Base area: 0.50 x 0.95 m

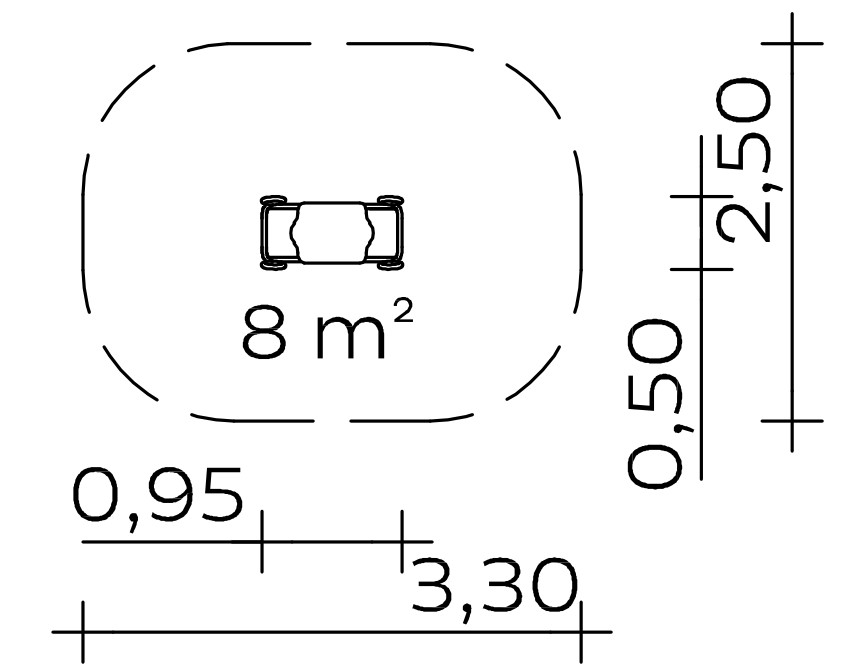

Minimum space: 2.50 x 3.30 m (8 m²)
Seat height: 0.46 m
Rocking frame: Stainless steel
Rocker spring: special spring wire Ø 20 mm
Seat plate: made of coloured, highly weather-resistant HPL laminate, 20 mm; theft-proof screw connection
Weight: 40 kg in total
Incl. ground anchor
Assembly time
Delivered pre-assembled in one piece
Foundation
If the ground is light (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.80 x 0.50 x 0.10 m).
Concrete quantity: 0.04 m³
Free fall height
0,46 m
Please note:
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-6).
Suitable for
Children from 2 years,
public playgrounds etc.,
Movement activities.
A foundation anchor (item no. 1090219) is available at an extra charge for level installation in synthetic fall protection. If the play equipment is temporarily dismantled, the floor opening is closed at the same height with a suitable HPL panel.
Item number: 044242000
