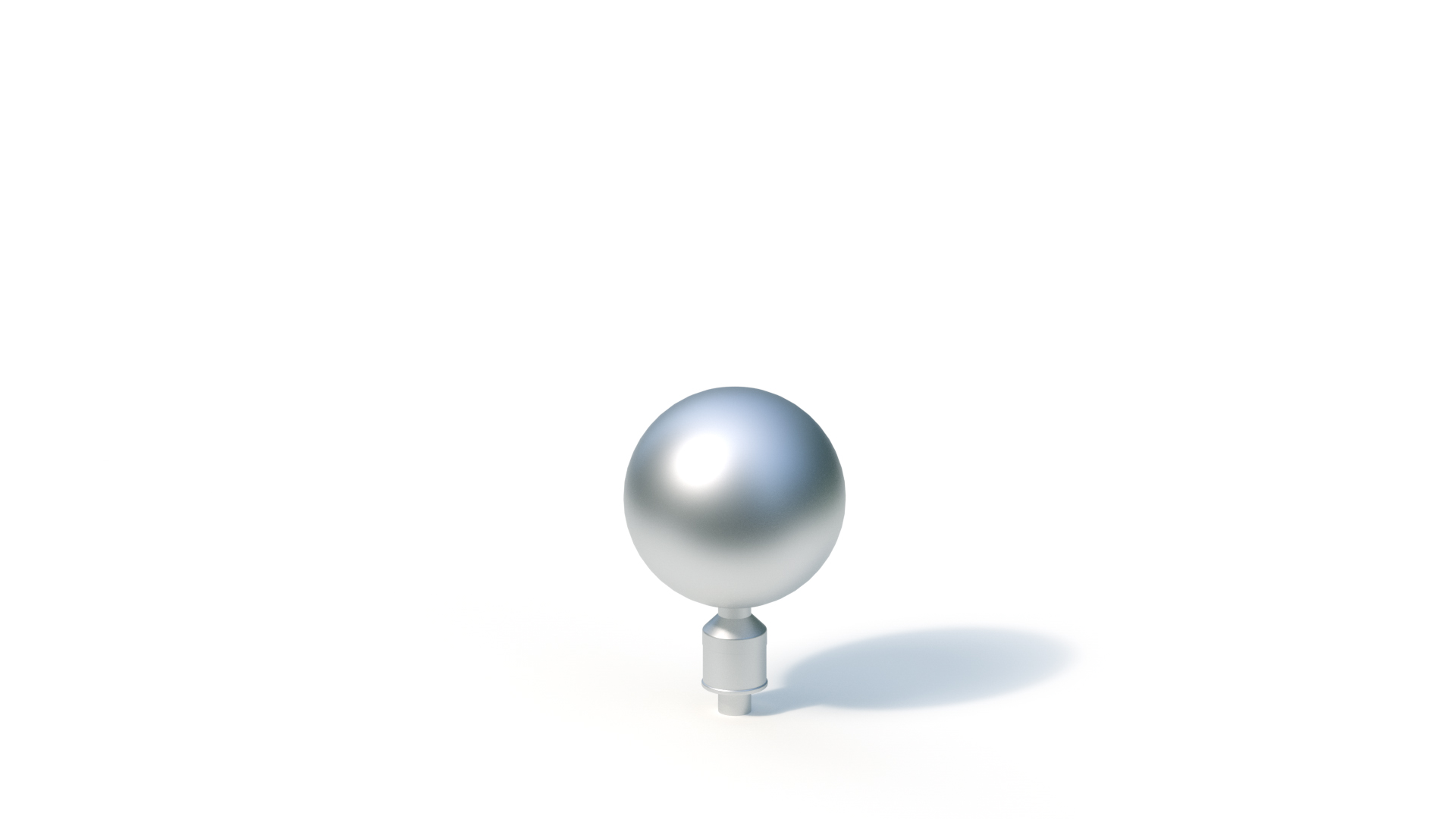

Turning globe (0,40)
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 1 person |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 3,40 m |
|---|---|
| Minimum space width ? | 3,40 m |
| Minimum space height ? | 0,59 m |
| Equipment length ? | 0,40 m |
| Equipment width ? | 0,40 m |
| Equipment height ? | 0,60 m |
| Free-fall height ? | 0,60 m |
| Platform heights | - |
| Total weight ? | 40.00 kg |
| Heaviest single part ? | 35.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 person |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (0.5m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data
Total height: 0.59 m
Base area: Ø 0.40 m

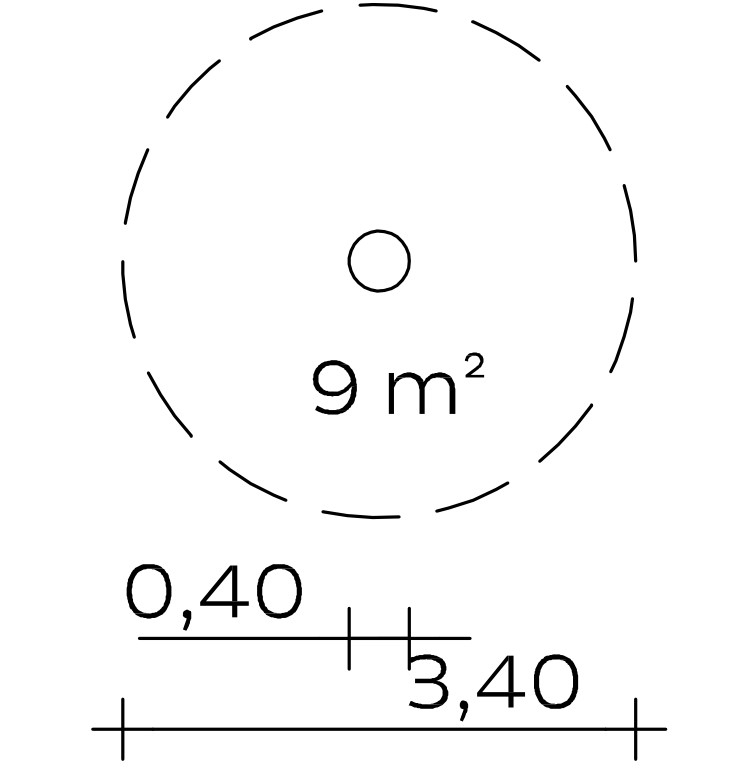

Minimum space: Ø 3.40 m (9 m²)
Weight: 35 kg heaviest individual part
40 kg in total
Swivel ball: stainless steel hollow ball Ø 400 x 2 mm on standpipe 60.3 x 3.65 mm
Anti-friction bearing: protected against dirt and interference.
Anchoring with flange ring.
Foundation (on site)
1 piece 0.50 x 0.50 x 0.50 m
Concrete volume: 0.13 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
0,60 m
Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-5).
Suitable for
Children from 3 years,
public playgrounds etc.
Movement activities.
A foundation anchor (item no. 1090219) is available at an extra charge for level and easy installation in synthetic fall protection. If the turntable is temporarily dismantled, the floor opening is closed with a suitable HPL panel.
Item number: 043175000
