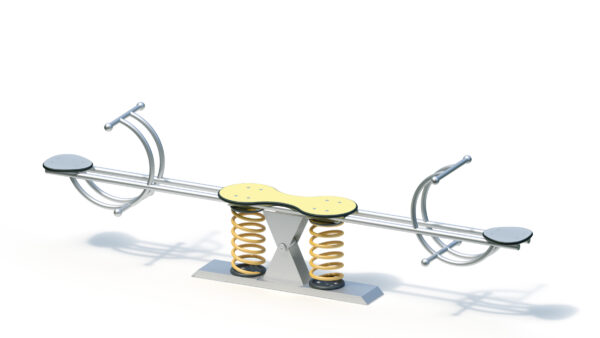

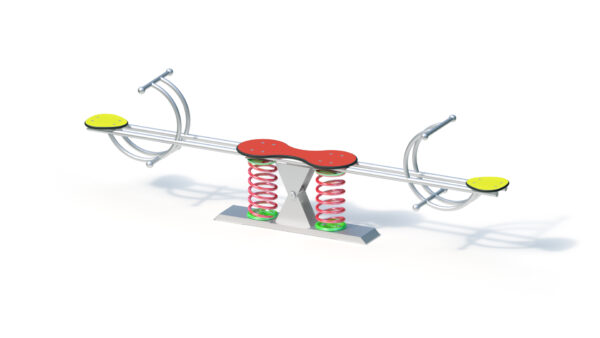

Spring see-saw

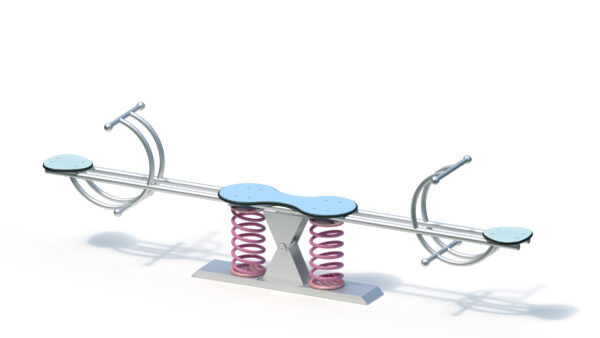

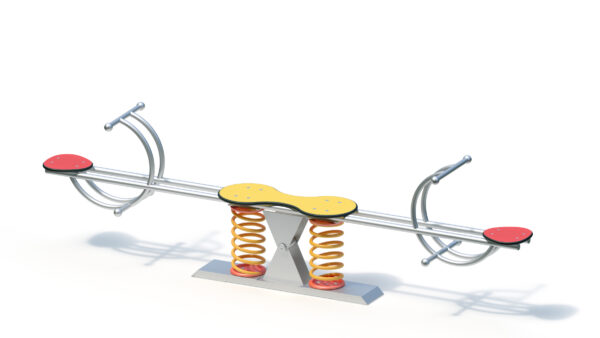

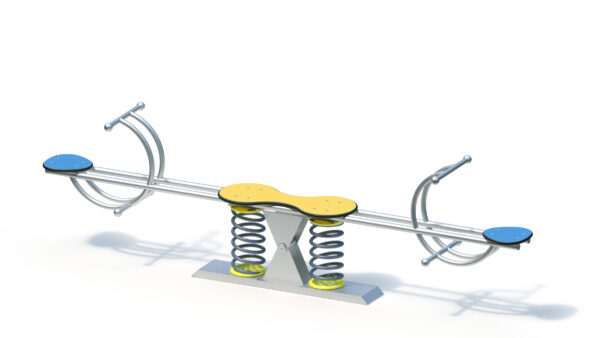

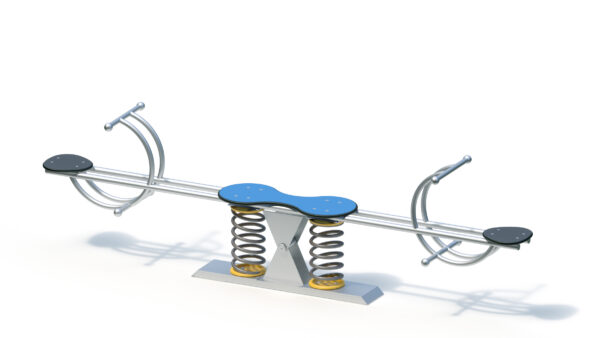

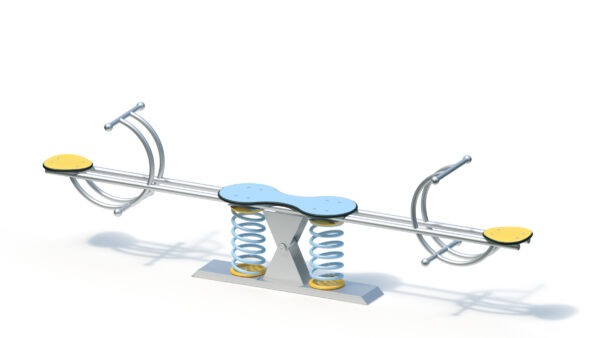

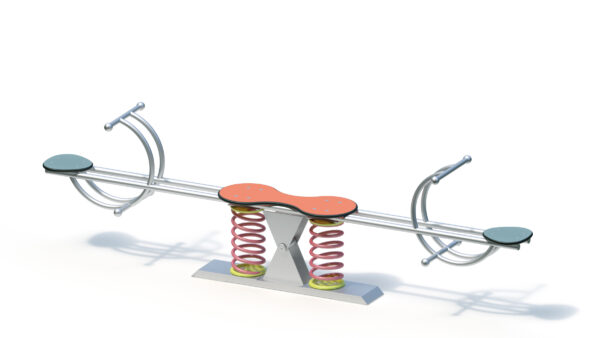

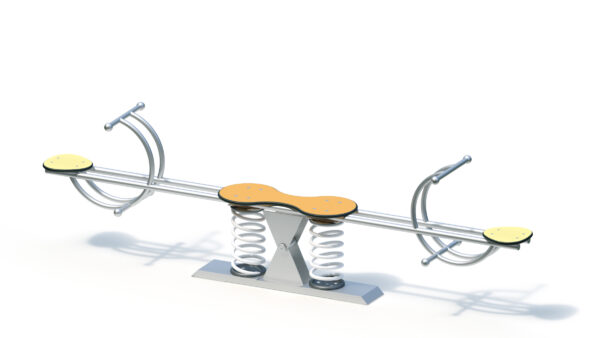

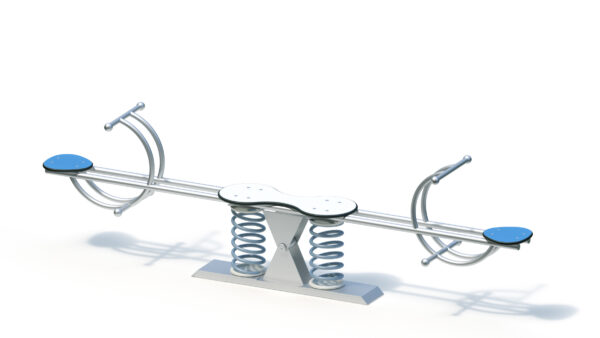

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 4 people |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 5,15 m |
|---|---|
| Minimum space width ? | 2,50 m |
| Minimum space height ? | 0,88 m |
| Equipment length ? | 3,10 m |
| Equipment width ? | 0,50 m |
| Equipment height ? | 0,88 m |
| Free-fall height ? | 0,95 m |
| Platform heights | - |
| Total weight ? | 100.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (1.7m x 0.5m x 0.1m) |
Product Downloads
Product description
Technical data

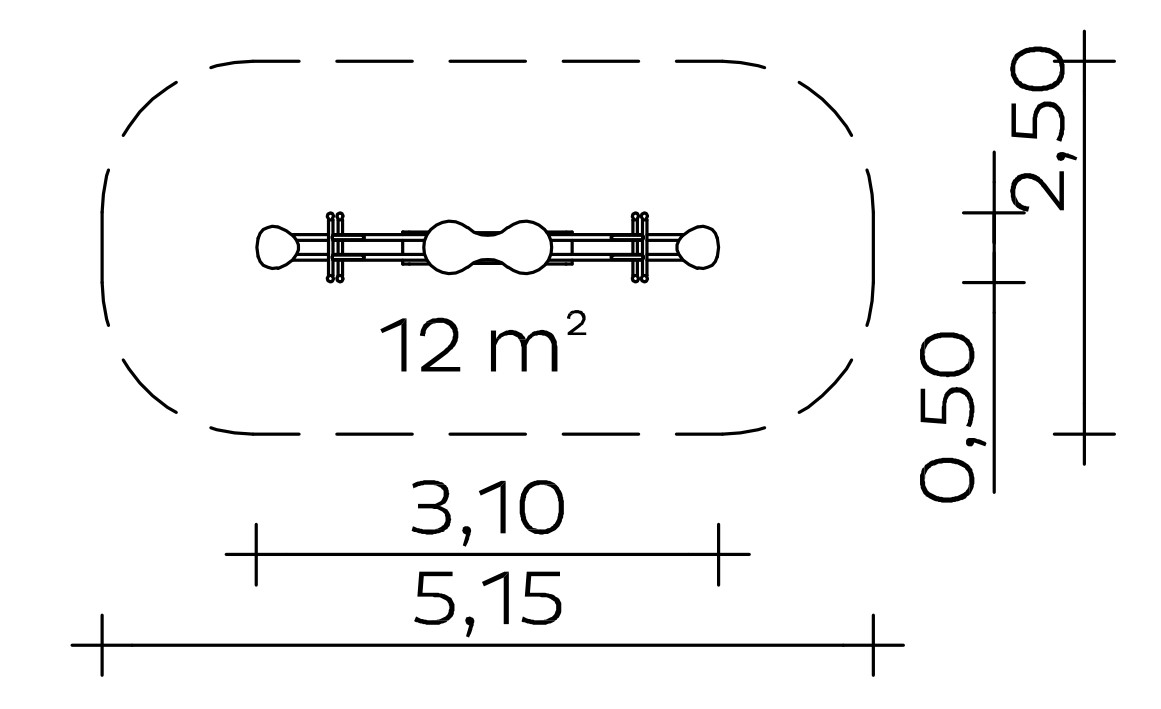

Base area: 0.50 x 3.10 m
Minimum space: 2.50 x 5.15 m (12 m²)
Seat height: 0.52 m
Rocking frame: Stainless steel
Rocker spring: special spring wire Ø 20 mm
Seat panels: made of coloured, highly weather-resistant HPL laminate, 20 mm; theft-proof screw connection
Weight: 100 kg in total
Including ground anchor.
Assembly time
Delivered pre-assembled in one piece
Foundation
If the ground is light (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (1.70 x 0.50 x 0.10 m).
Concrete quantity: 0.09 m³
Free fall height
0,95 m
Please note:
The impact surface around the play equipment must have an appropriate level of shock absorption that is at least equal to the free fall height, but always at least 600 mm (see EN 1176-6).
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Movement activities.
Item number: 044272001
