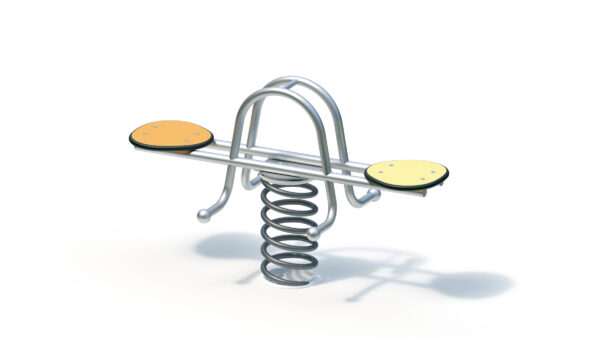

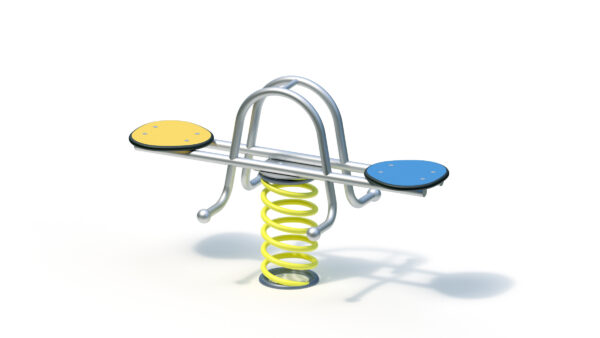

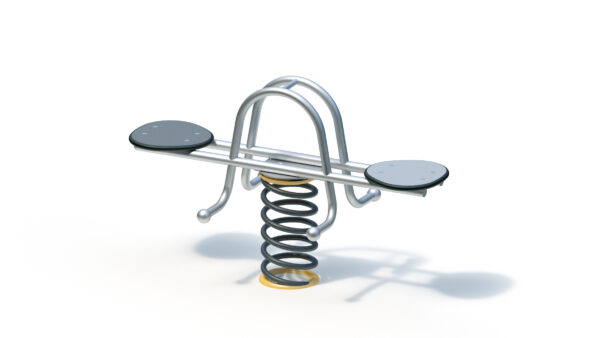

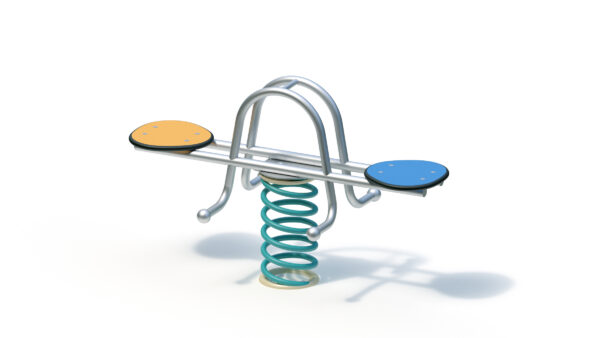

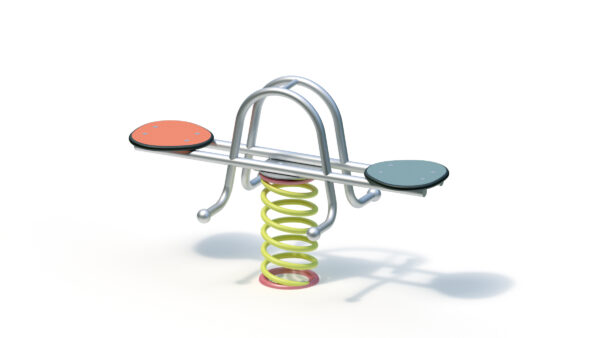

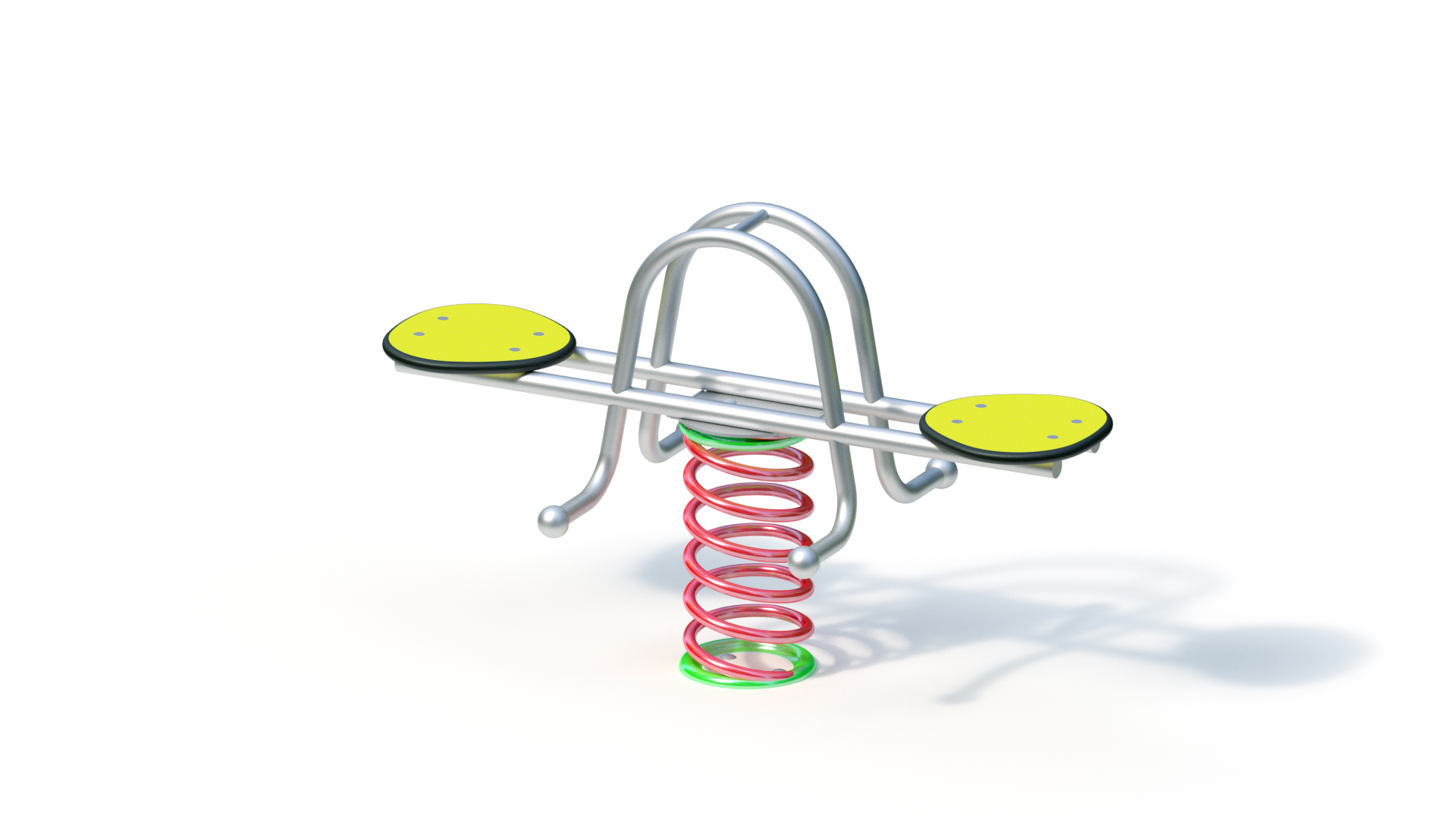

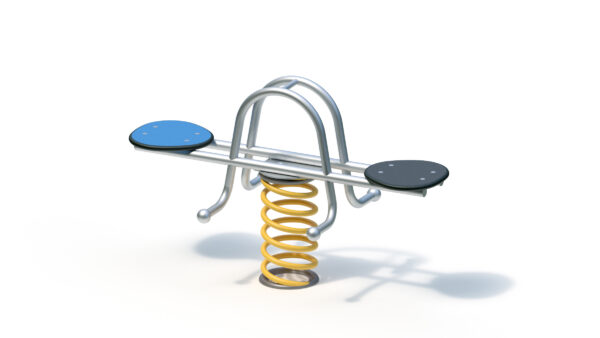

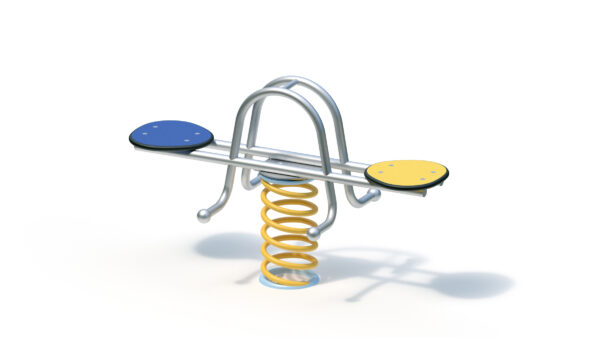

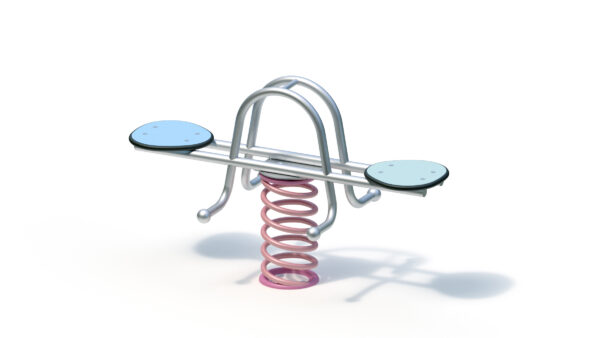

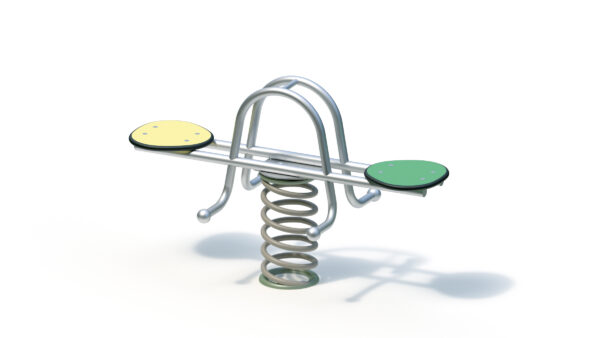

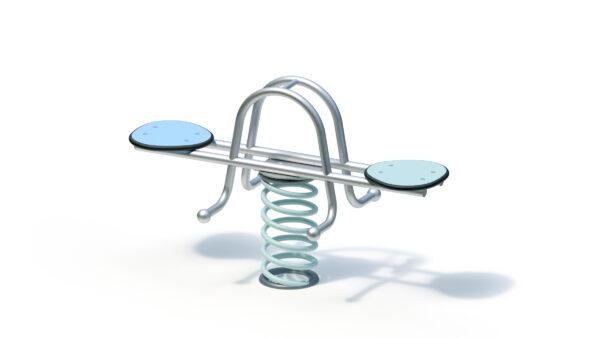

Spring see-saw
Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 3 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Gerätelänge ? | 1,20 m |
|---|---|
| Gerätebreite ? | 0,55 m |
| Gerätehöhe ? | 0,72 m |
| Freie Fallhöhe ? | 0,64 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 40.00 kg |
| Schwerstes Einzelteil ? | 0.00 kg |
| Mindestraumlänge ? | 3,30 m |
| Mindestraumbreite ? | 2,55 m |
| Mindestraumhöhe ? | 0,72 m |
Assembly & Foundations
| Montagezeit ? | 0,0 h |
|---|---|
| Monteuranzahl ? | 0 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1x (0.8m x 0.5m x 0.1m) |
Product Downloads
Product description
Technical data

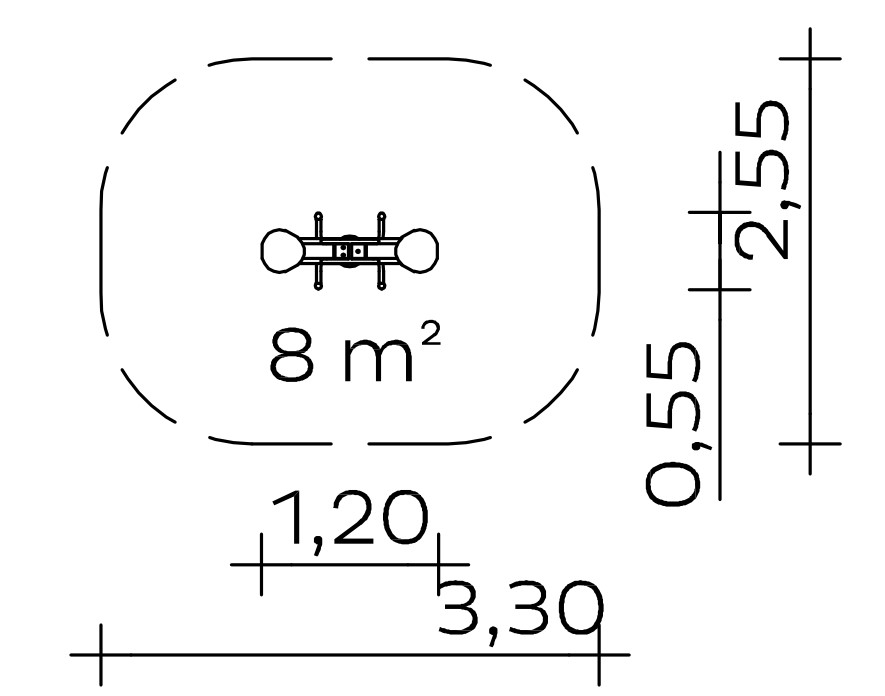

Base area: 0.55 x 1.20 m
Minimum space: 2.55 x 3.30 m (8 m²)
Total height: 0.72 m
Seat height: 0.46 m
Weight: 40 kg in total
Rocking frame: Stainless steel
Rocker spring: special spring wire Ø 20 mm
Seat plate: made of highly weather-resistant HPL laminate, 20 mm; theft-proof screw connection
Floor anchor included
Assembly time
is delivered pre-assembled in one piece.
Foundation
If the ground is light (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.80 x 0.50 x 0.10 m).
Concrete quantity: 0.04 m³
Free fall height
0,64 m
Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-6).
Suitable for
Children from 2 years,
public playgrounds etc.,
Movement activities.
A foundation anchor (item no. 1090219) is available at an extra charge for level installation in synthetic fall protection. If the play equipment is temporarily dismantled, the floor opening is closed at the same height with a suitable HPL panel.
Item number: 044248000
