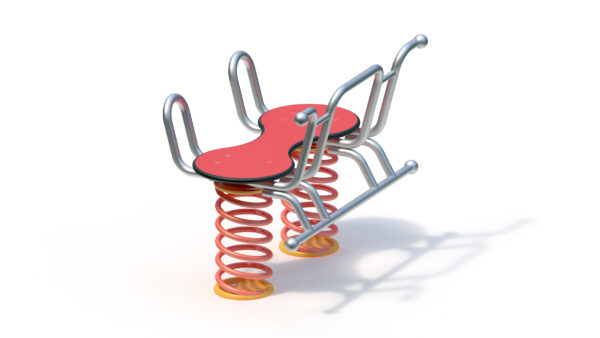

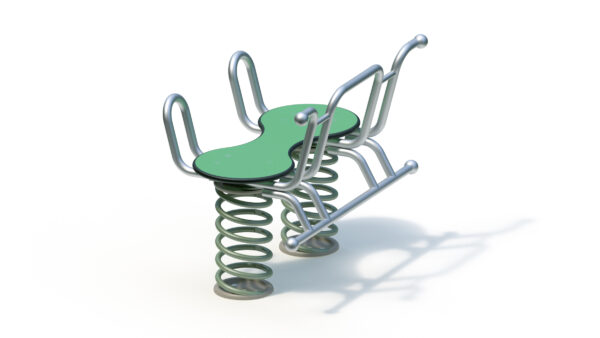

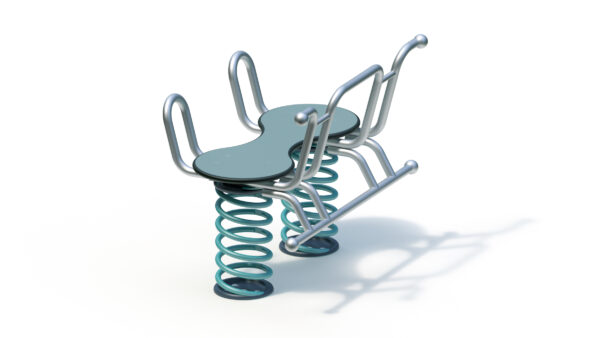

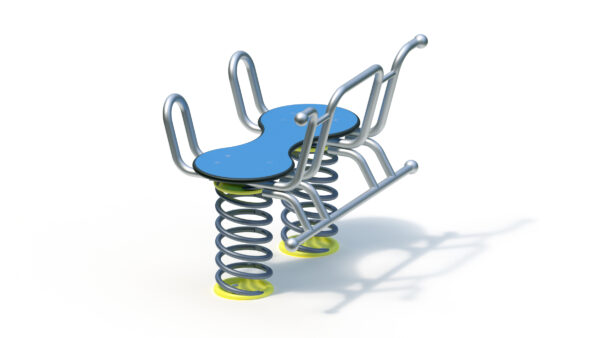

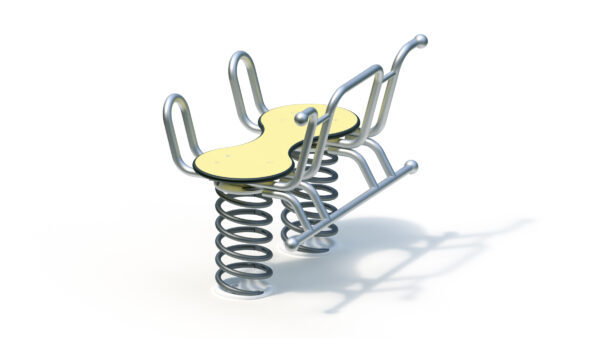

Spring see-saw

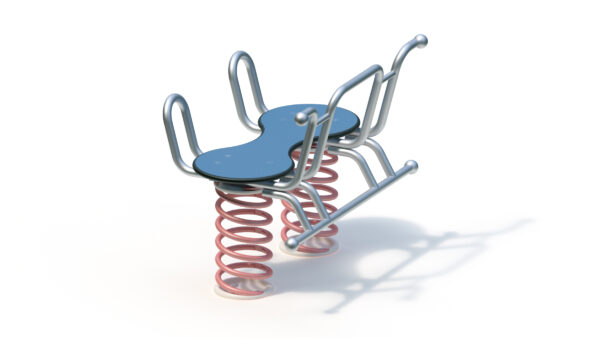

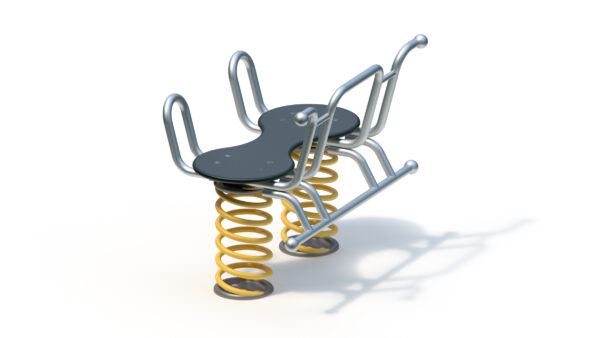

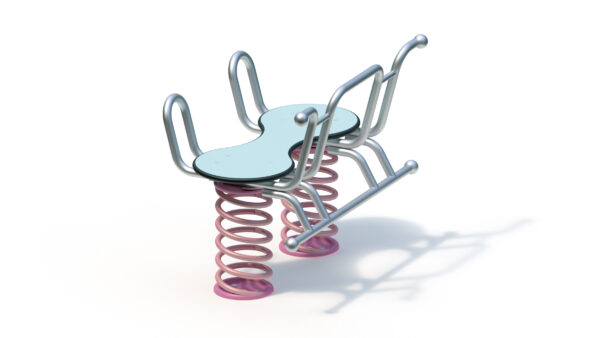

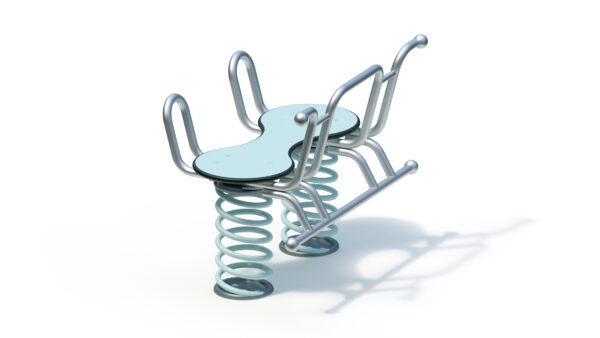

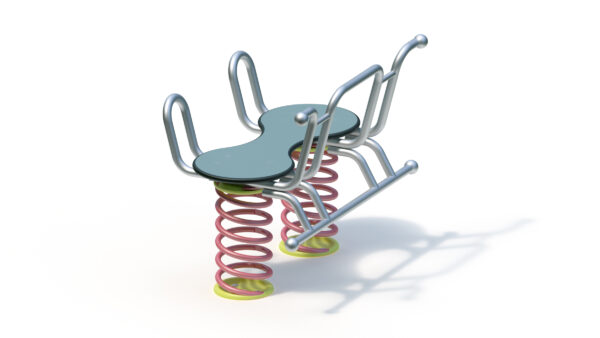

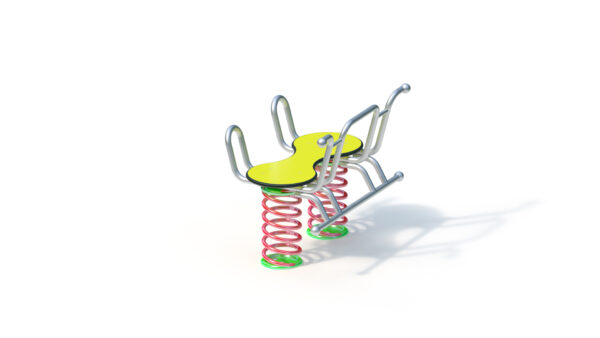

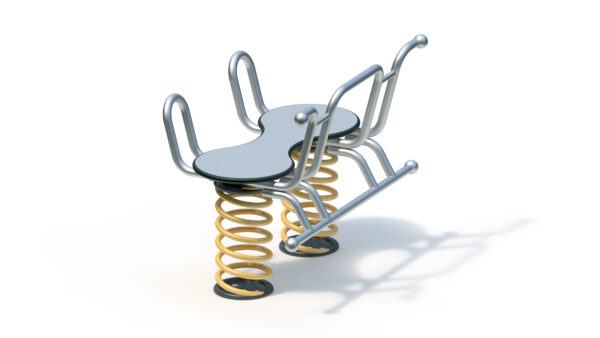

Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 3 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Gerätelänge ? | 1,00 m |
|---|---|
| Gerätebreite ? | 0,65 m |
| Gerätehöhe ? | 0,75 m |
| Freie Fallhöhe ? | 0,50 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 55.00 kg |
| Schwerstes Einzelteil ? | 0.00 kg |
| Mindestraumlänge ? | 3,05 m |
| Mindestraumbreite ? | 3,00 m |
| Mindestraumhöhe ? | 0,75 m |
Assembly & Foundations
| Montagezeit ? | 0,0 h |
|---|---|
| Monteuranzahl ? | 0 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1x (1.3m x 0.8m x 0.1m) |
Product Downloads
Product description
Technical data
Base area: 0.65 x 1.00 m

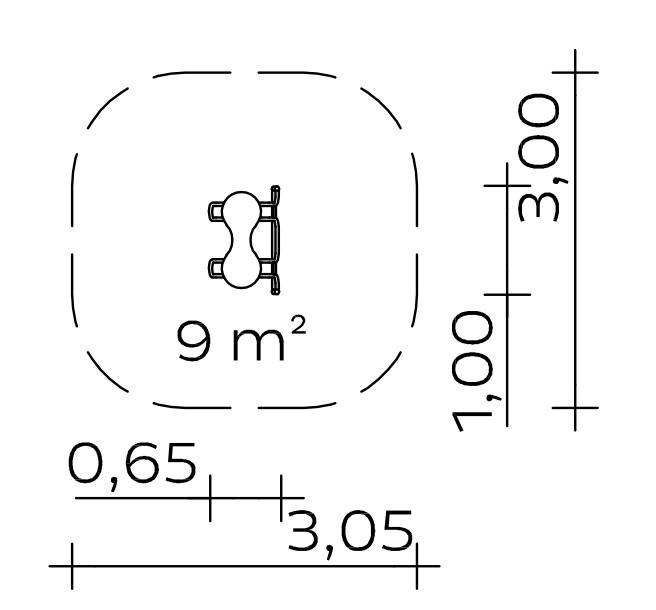

Minimum space: 3.05 x 3.00 m (9 m²)
Seat height: 0.46 m
Rocking frame: Stainless steel
Rocker spring: special spring wire Ø 20 mm
Seat plate: made of coloured, highly weather-resistant HPL laminate, 20 mm; theft-proof screw connection
Weight: 55 kg in total
Incl. ground anchor
Assembly time
is delivered pre-assembled in one piece.
Foundation
In the case of light soil (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (1.30 x 0.80 x 0.10 m).
Concrete quantity: 0.10 m³
Free fall height
0,50 m
Please note:
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-6).
Suitable for
Children from 2 years,
public playgrounds etc.,
Movement activities.
Foundation anchors (item no. 1090219) are available at an extra charge for level and simple installation in synthetic fall protection. Even if the spring rocker is only temporarily dismantled, the floor opening is closed at the same height by a corresponding stainless steel plate or HPL plate.
Item number: 044251000
