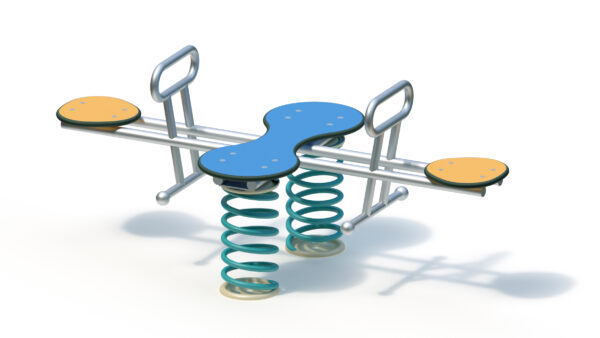

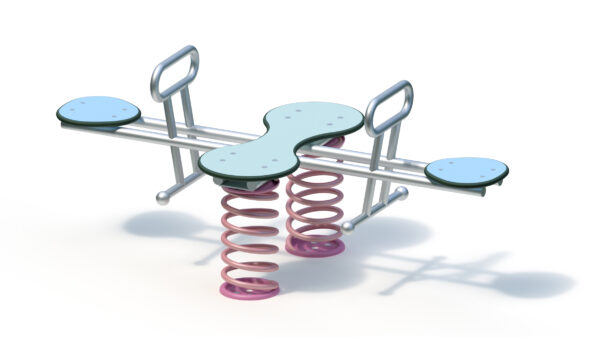

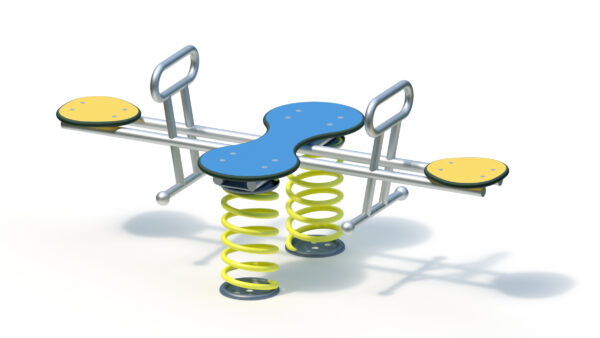

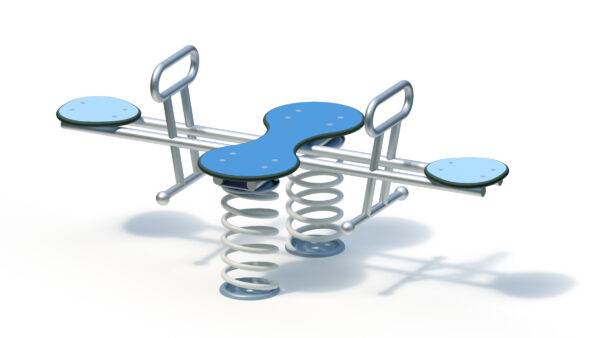

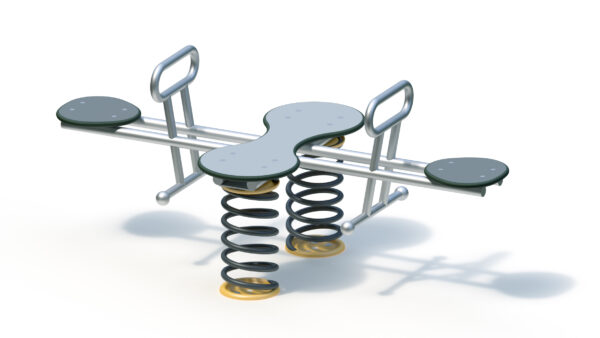

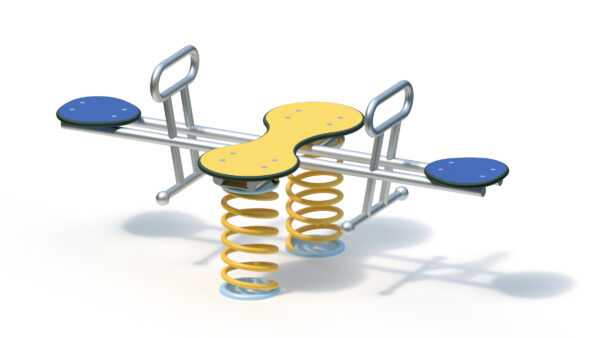

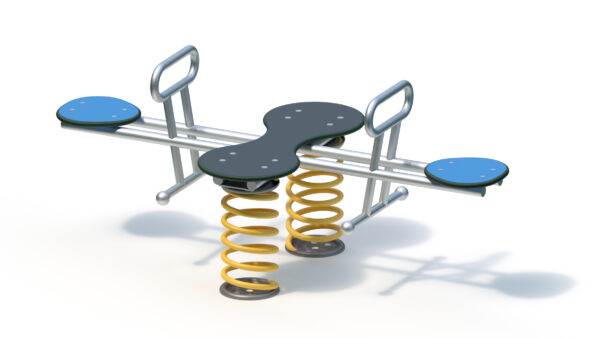

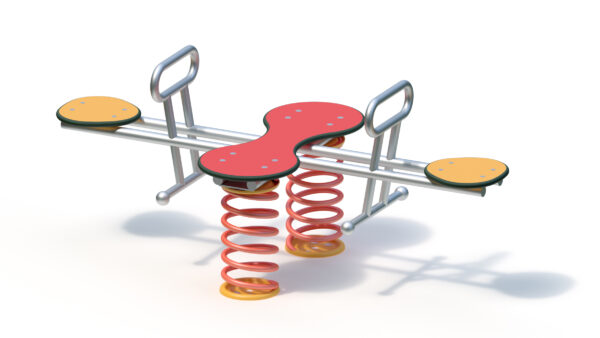

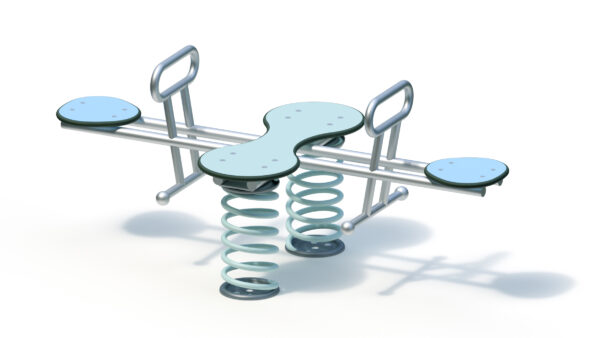

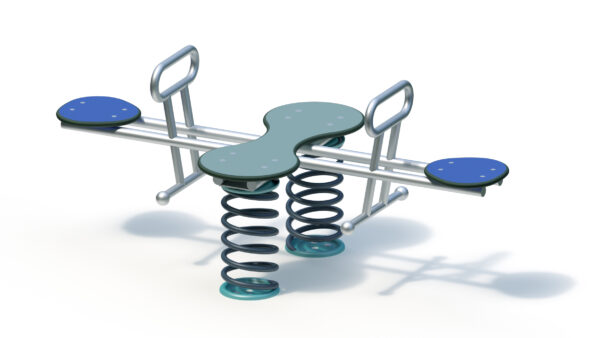

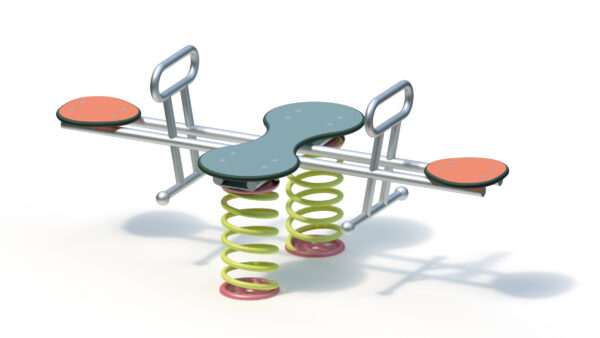

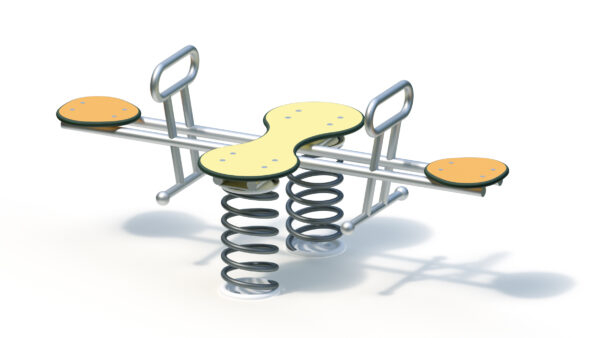

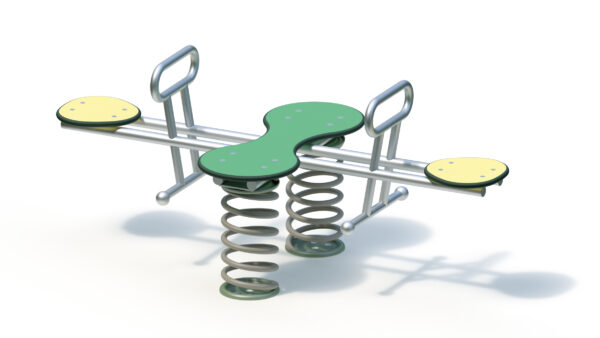

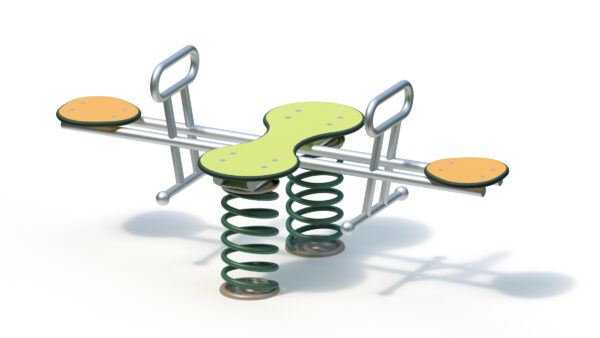

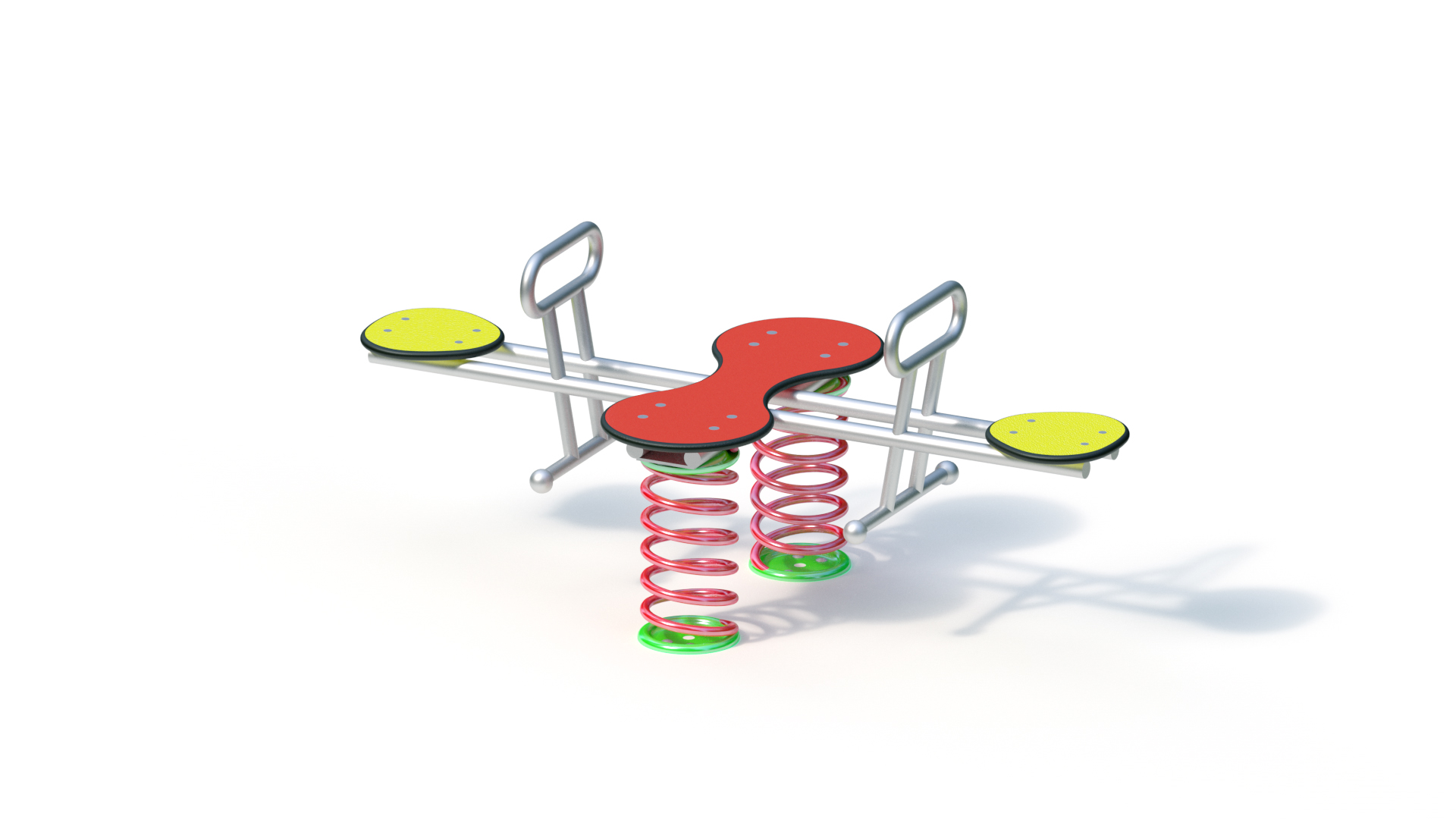

Spring see-saw
Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 4 people |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 3,80 m |
|---|---|
| Minimum space width ? | 2,85 m |
| Minimum space height ? | 0,71 m |
| Equipment length ? | 1,70 m |
| Equipment width ? | 0,85 m |
| Equipment height ? | 0,71 m |
| Free-fall height ? | 0,75 m |
| Platform heights | - |
| Total weight ? | 60.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1x (1.3m x 0.8m x 0.1m) |
Product Downloads
Product description
Technical data

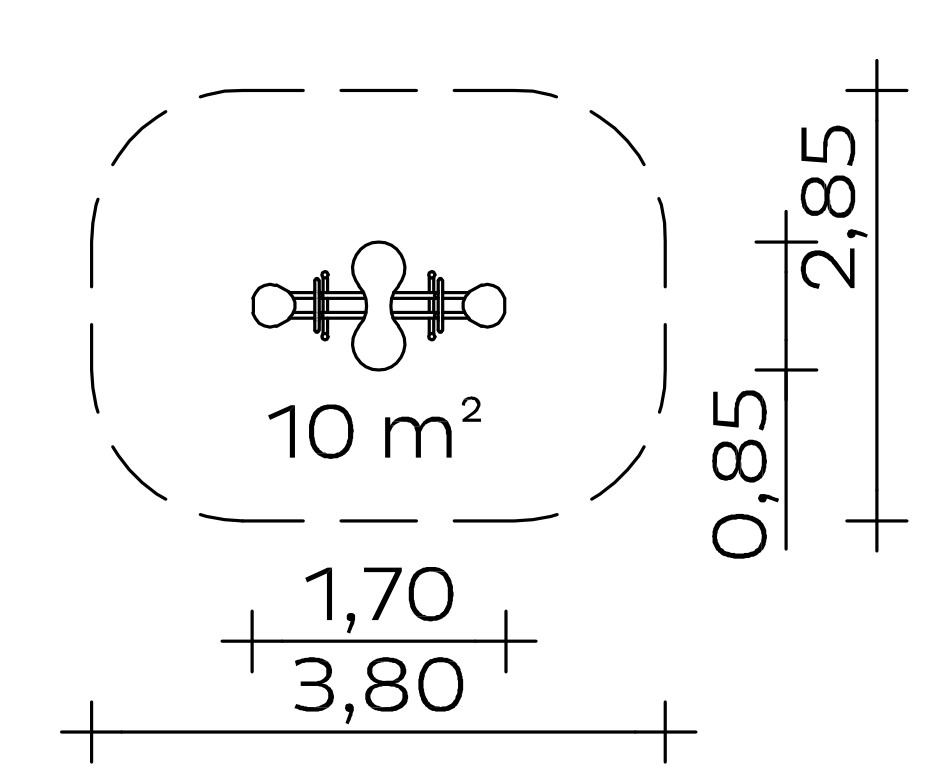

Base area: 0.85 x 1.70 m
Minimum space: 2.85 x 3.80 m (10 m²)
Seat height: 0.47 m
Rocking frame: Stainless steel
Rocker spring: special spring wire Ø 20 mm
Seat top: made of coloured, highly weather-resistant HPL laminate, 20 mm; theft-proof screw connection.
Weight: 60 kg in total
Incl. ground anchor
Assembly time
Delivered pre-assembled in one piece
Foundation
If the ground is light (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.80 x 1.30 x 0.10 m).
Concrete quantity: 0.10 m³
Free fall height
0,75 m
Please note:
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-6).
Suitable for
Children from 2 years,
public playgrounds etc.,
Movement activities.
Foundation anchors (item no. 1090219) are available at an extra charge for level installation in synthetic fall protection. If the play equipment is temporarily dismantled, the floor opening is closed at the same height using suitable HPL panels.
Item number: 044262000
