Merry-go-round (1,50)

SKU: 043340000 Category: Tag:

Select variant:

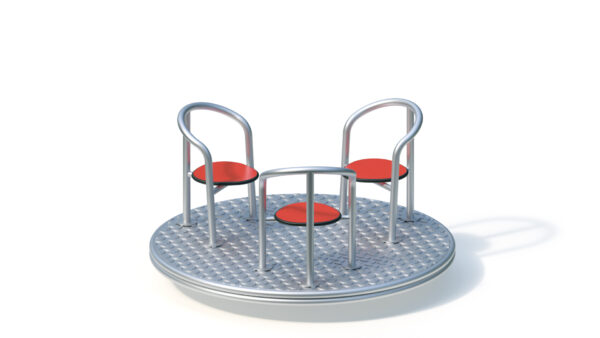

Classic
Classic
City
City

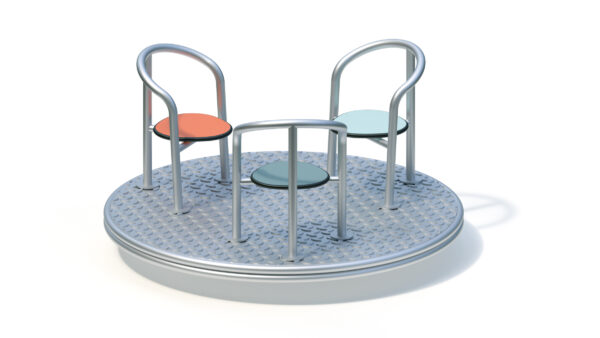

Aloha
Aloha
Beach
Beach

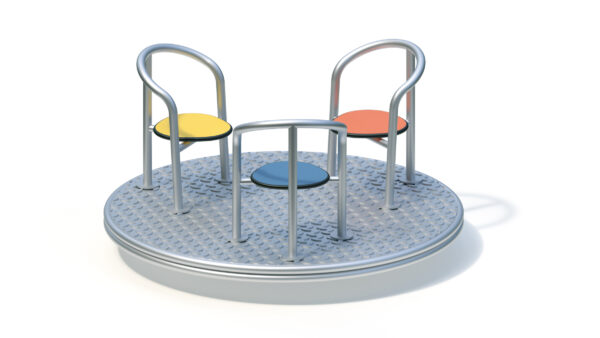

Coral
Coral

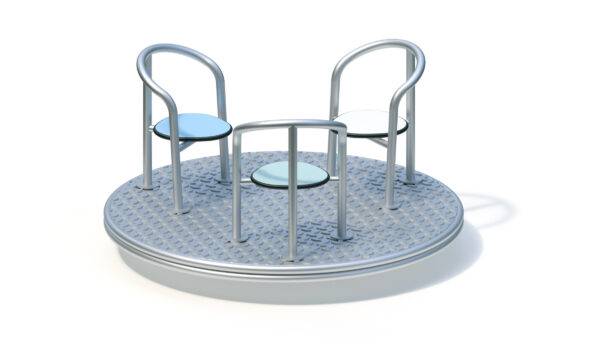

Ice Palace
Ice Palace

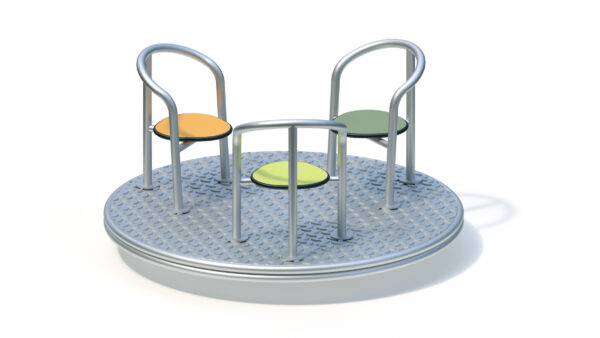

Jungle
Jungle

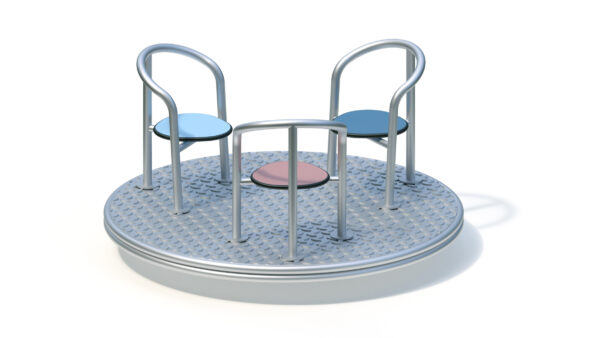

Mermaid
Mermaid

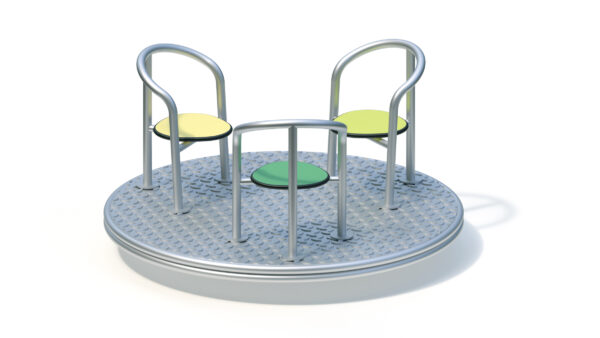

Climbing Rock midi
Climbing Rock midi
Ocean
Ocean

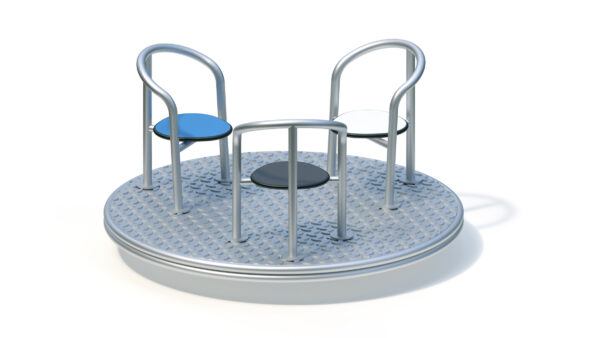

Pirate
Pirate

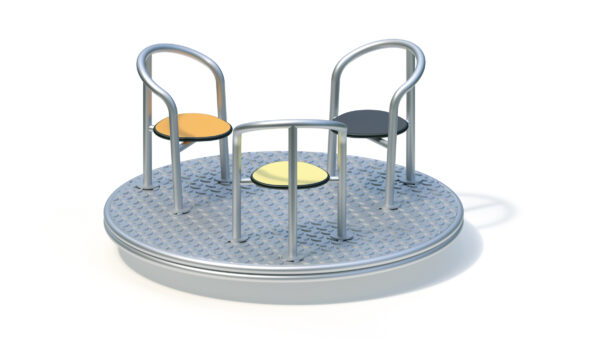

Safari
Safari

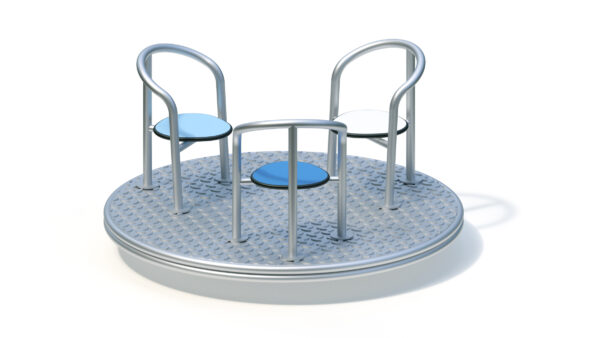

Sky
Sky

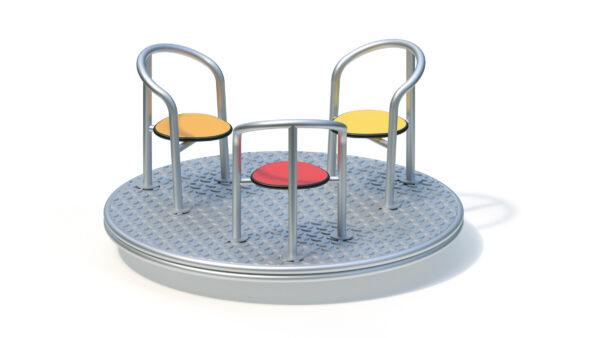

Sun
Sun

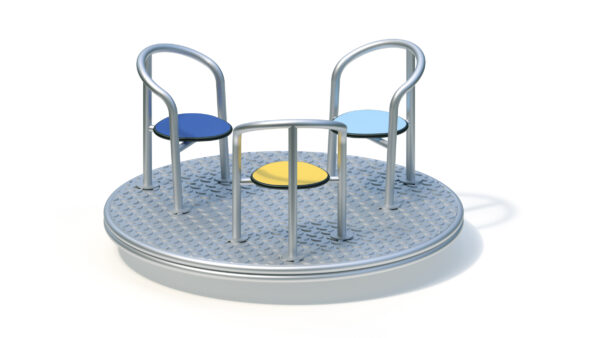

Sunny Day
Sunny Day

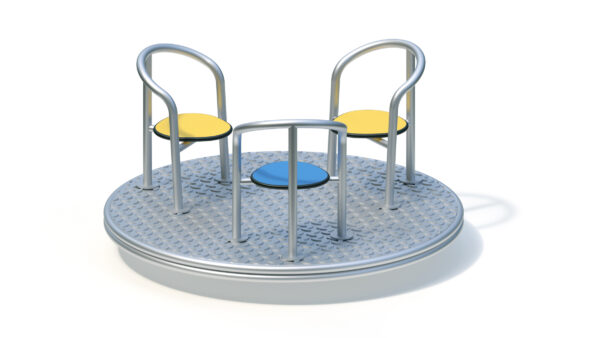

Sweden
Sweden
Please note the item number shown above when making your product enquiry, as it changes when you select a specific product variant (e.g. a different colour scheme). The last variant selected is automatically included in your enquiry.
SKU: 043340000 Category: Tag:

The most important information

:
;

Age group ?3+
Areas of use ?Public playgrounds
Number of users ?8 people
Activities ?Physical activity

Technical data

:
;

Minimum space length ?5,55 m
Minimum space width ?5,55 m
Minimum space height ?0,85 m
Equipment length ?1,55 m
Equipment width ?1,55 m
Equipment height ?0,85 m
Free-fall height ?0,50 m
Platform heights-
Total weight ?190.00 kg
Heaviest single part ?185.00 kg

Assembly & Foundations

:
;

Assembly time ?1,0 h
Number of fitters ?2 people
Lifting equipment required-
FoundationsQuantity: 1 (0.6m x 0.6m x 0.4m)

Product description

:
;

Technical data

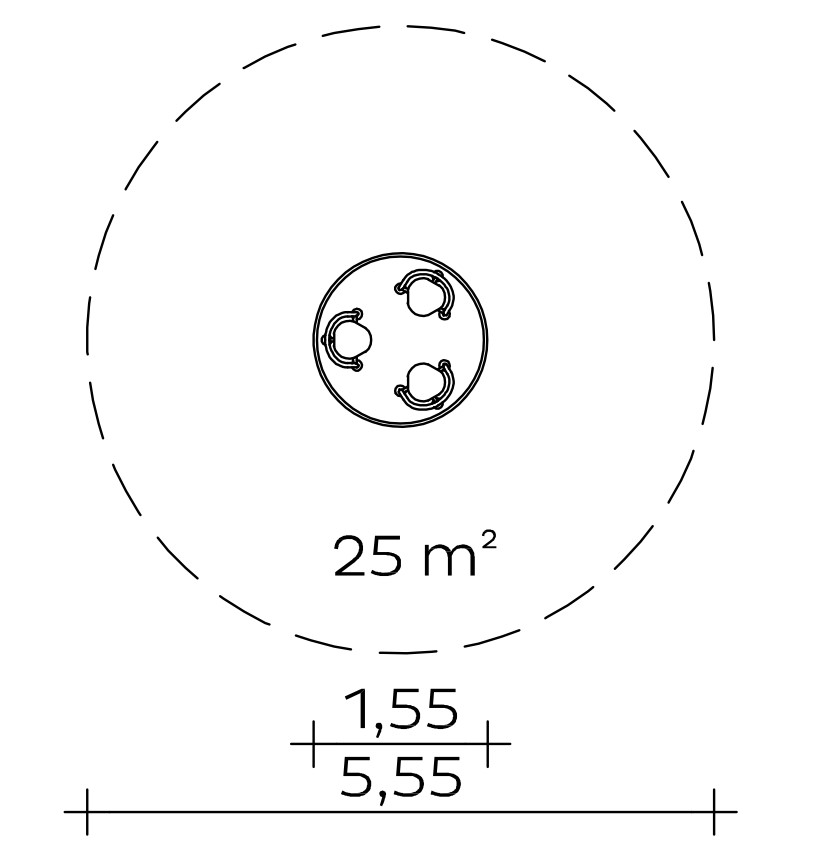

Base area: Ø 1.55 m
Minimum space: Ø 5.55 m (25 m²)
Total height: 0.85 m
Weight: 185 kg heaviest individual part
190 kg in total

Rotating base and superstructure: profiled stainless steel/stainless steel/high-pressure laminate 20 mm.
Anti-friction bearing: protected against dirt and interference.
Carousel anchoring takes place via a flange ring to be set in concrete separately.

Foundation (on site)
1 piece 0.60 x 0.60 x 0.40 m
Concrete volume: 0.14 m³

Assembly time
2 fitters 1 hour each
(without foundation)

Free fall height
0,50 m

Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-5).

Suitable for
Children aged 4 and over,
public playgrounds etc.
Movement activities.

Item number: 043340000
