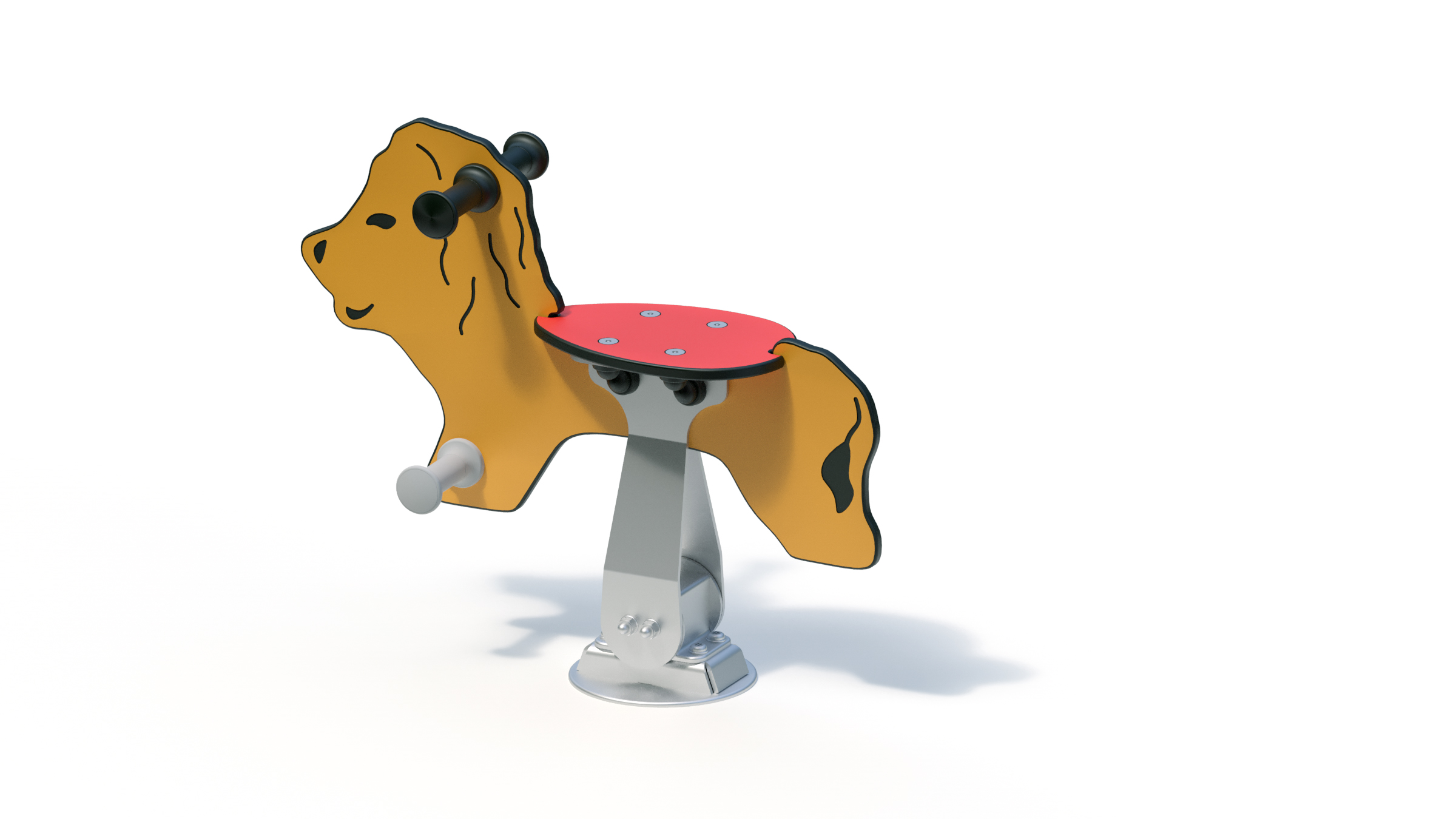

Rocker lion

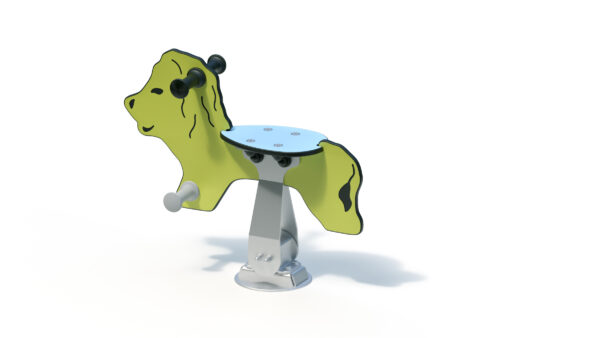

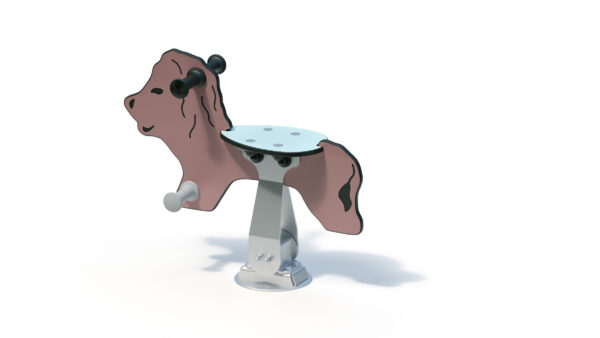

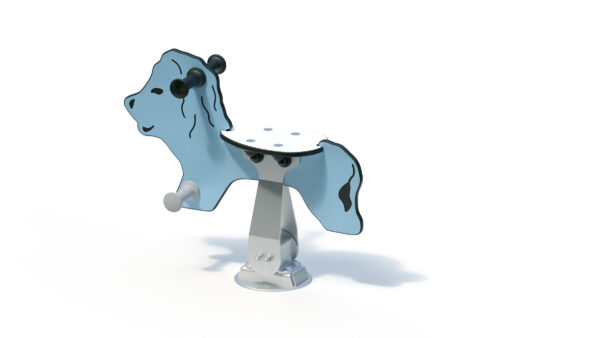

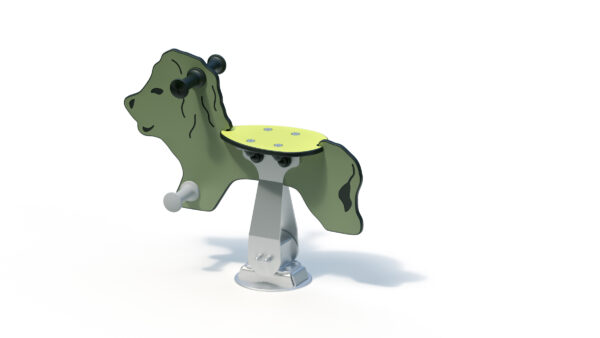

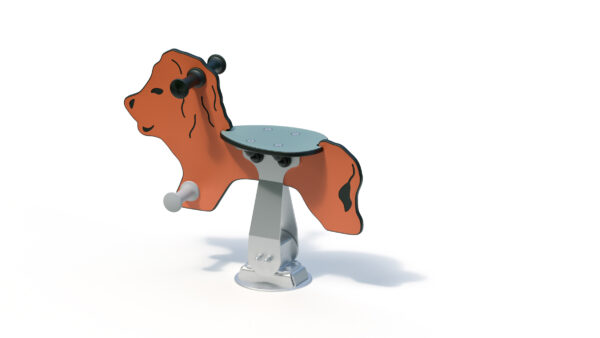

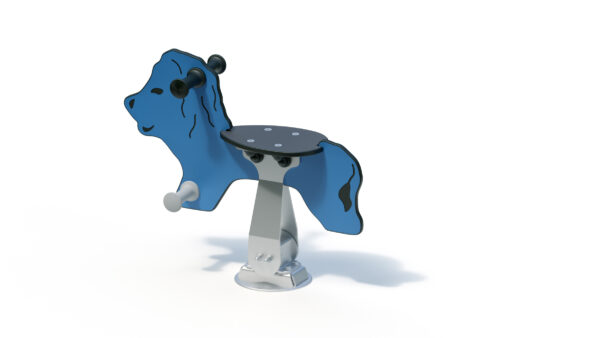

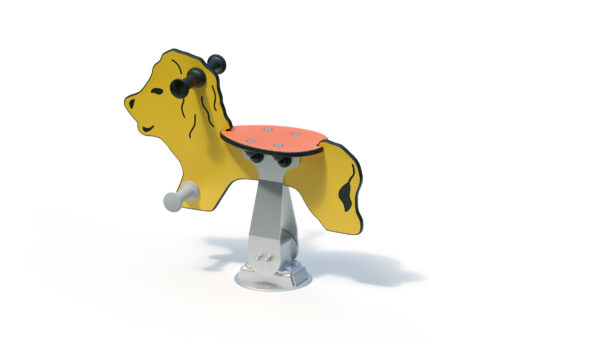

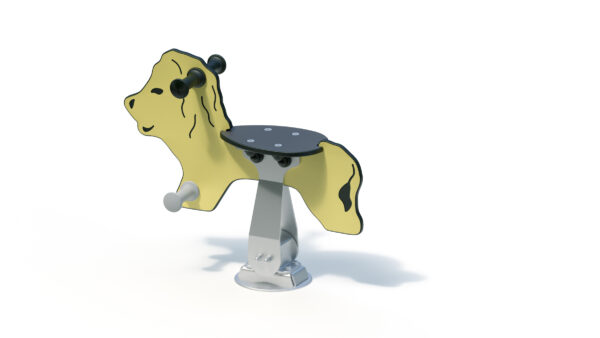

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | supervised playgrounds |
| Number of users ? | 1 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 0,65 m |
|---|---|
| Device width ? | 0,22 m |
| Device height ? | 0,55 m |
| Free fall height ? | 0,37 m |
| Platform heights | - |
| Total weight ? | 22.20 kg |
| Heaviest single item ? | 0.00 kg |

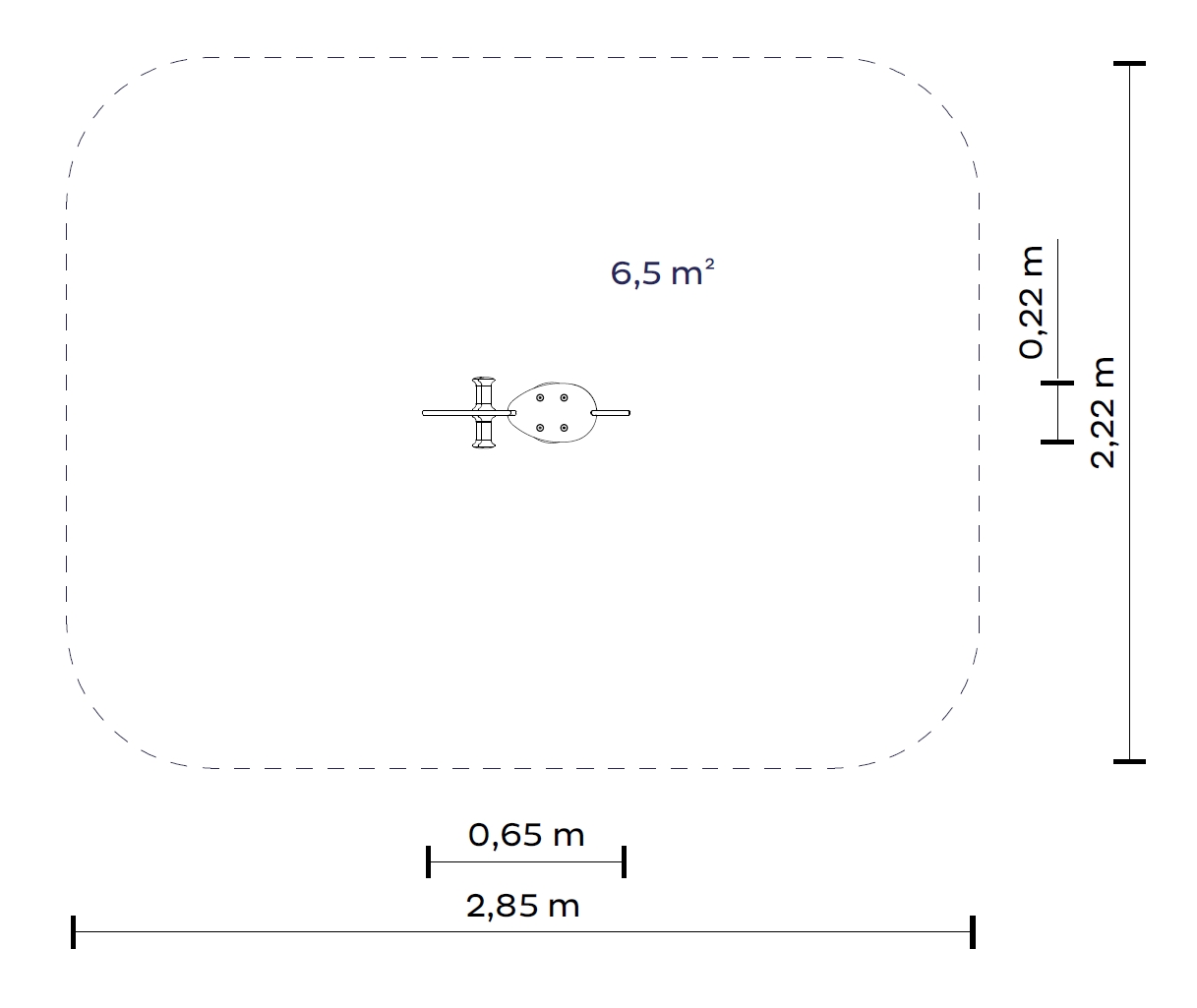

| Minimum room length ? | 2,85 m |
| Minimum room width ? | 2,22 m |
| Minimum room height ? | 0,62 m |
Assembly & Foundations
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 1 persons |
| Lifting gear required | - |
| Foundations | 080x050x010 |
Product Downloads
Product description
Technical data
Total height: 0.55 m
Base area: 0.22 x 0.65 m
Minimum space: 2.22 x 2.85 m
Seat height: 0.37 m
Weight: 22.2 kg in total
Rocking frame: Stainless steel with Rosta rubber spring element
Carcass made of highly weather-resistant HPL laminate, 13 mm
Seat plate made of highly weather-resistant HPL laminate, 13 mm, theft-proof screw connection
Handles/footrests: polyamide Ø 51 mm, with cover caps
Including ground anchor.
Assembly time
Delivered pre-assembled in one piece
Foundations (client-provided)
If the ground is light (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.80 x 0.50 x 0.10 m).
Concrete quantity: 0.04 m³
Free fall height
0,37 m
Please note:
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-6).
Suitable for
Children from 1 - 6 years,
supervised playgrounds,
Physical activities
Item number: 044207000
