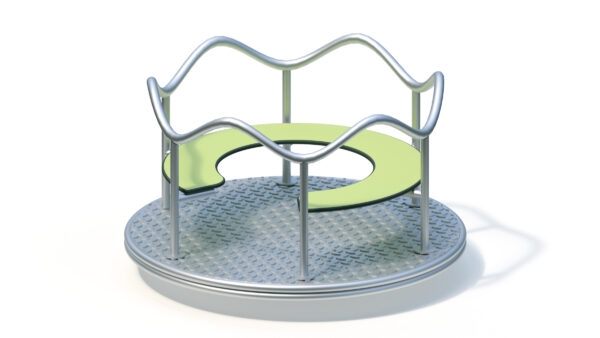

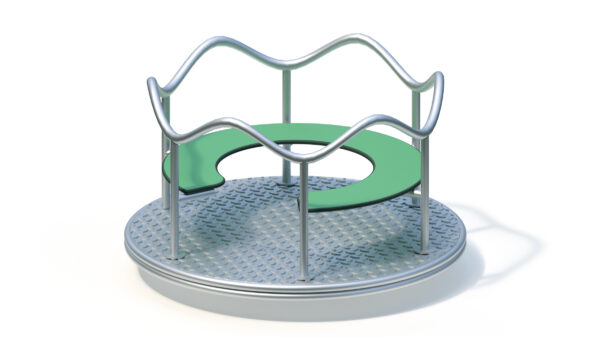

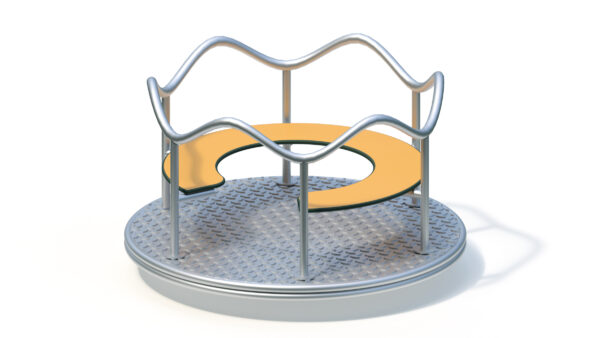

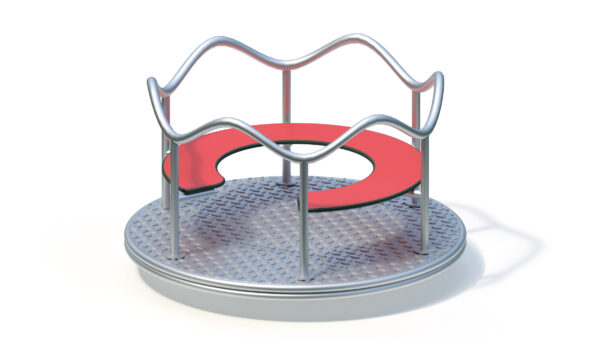

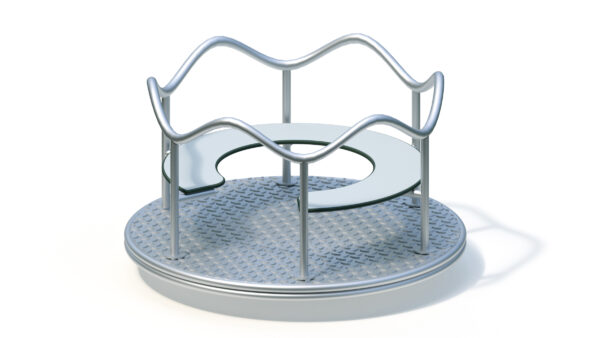

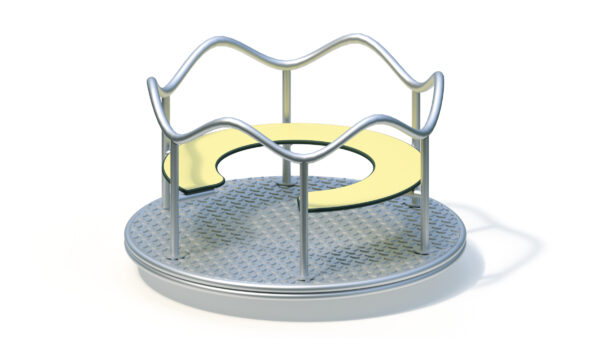

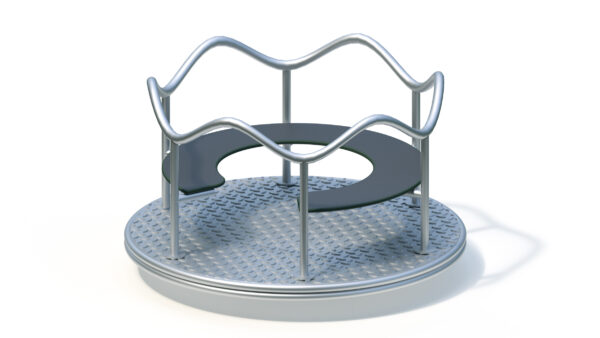

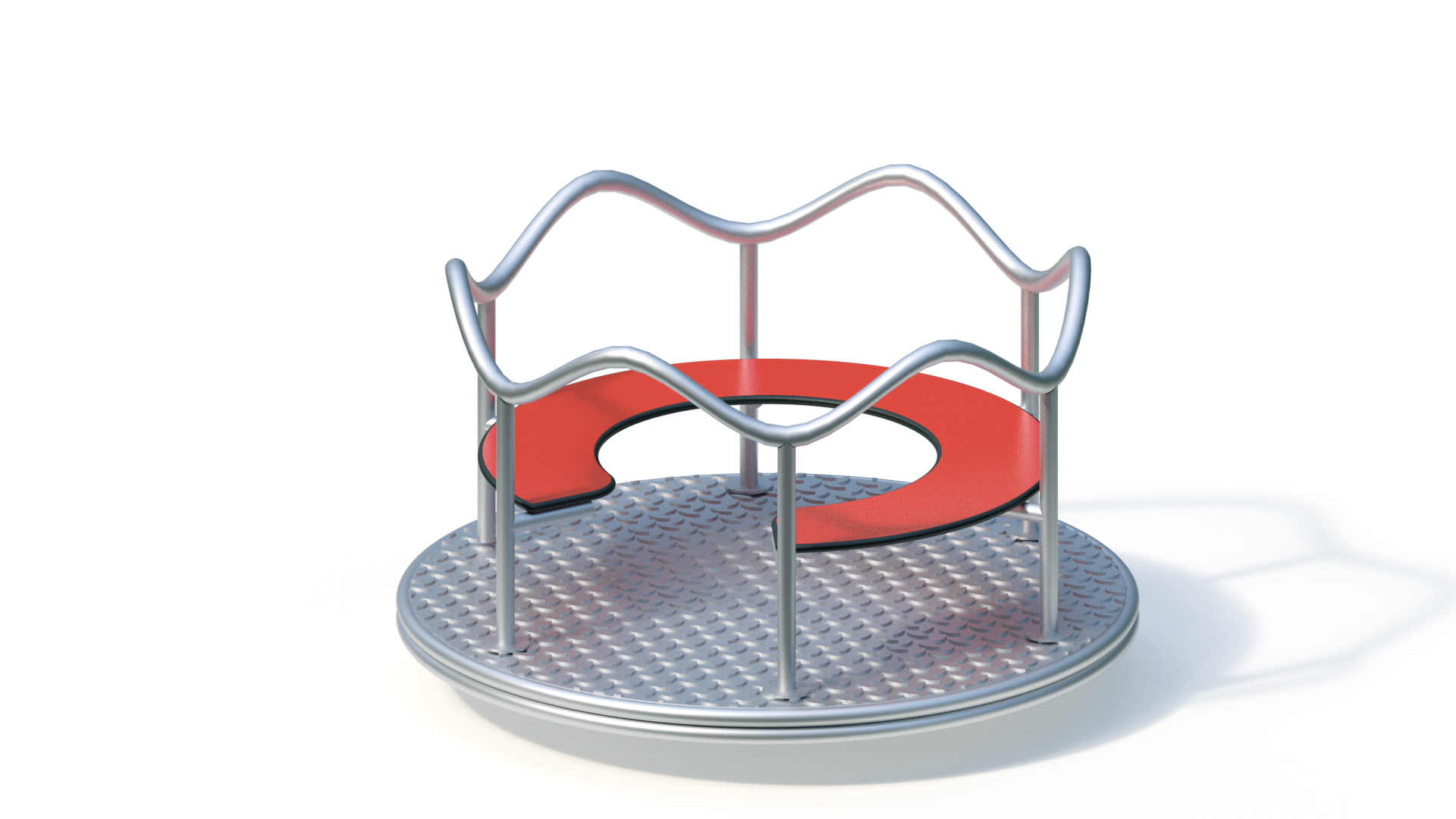

Merry-go-round (1,50)

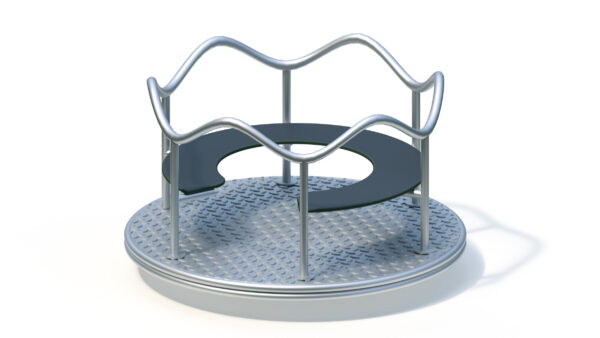

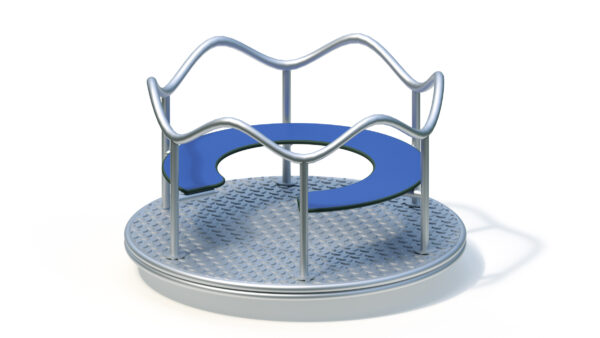

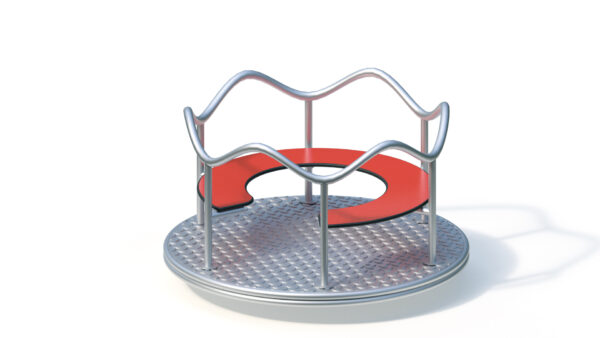

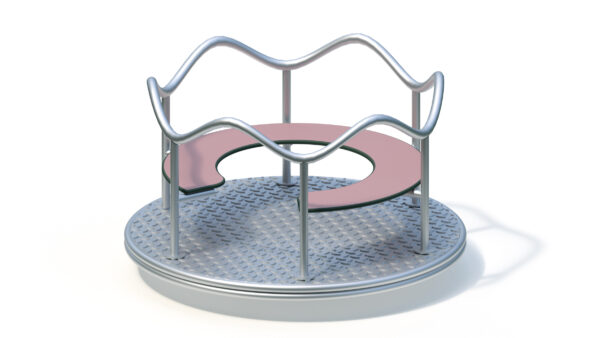

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 8 people |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 5,55 m |
|---|---|
| Minimum space width ? | 5,55 m |
| Minimum space height ? | 0,90 m |
| Equipment length ? | 1,55 m |
| Equipment width ? | 1,55 m |
| Equipment height ? | 0,90 m |
| Free-fall height ? | 0,50 m |
| Platform heights | - |
| Total weight ? | 200.00 kg |
| Heaviest single part ? | 195.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (0.6m x 0.6m x 0.4m) |
Product Downloads
Product description
Technical data

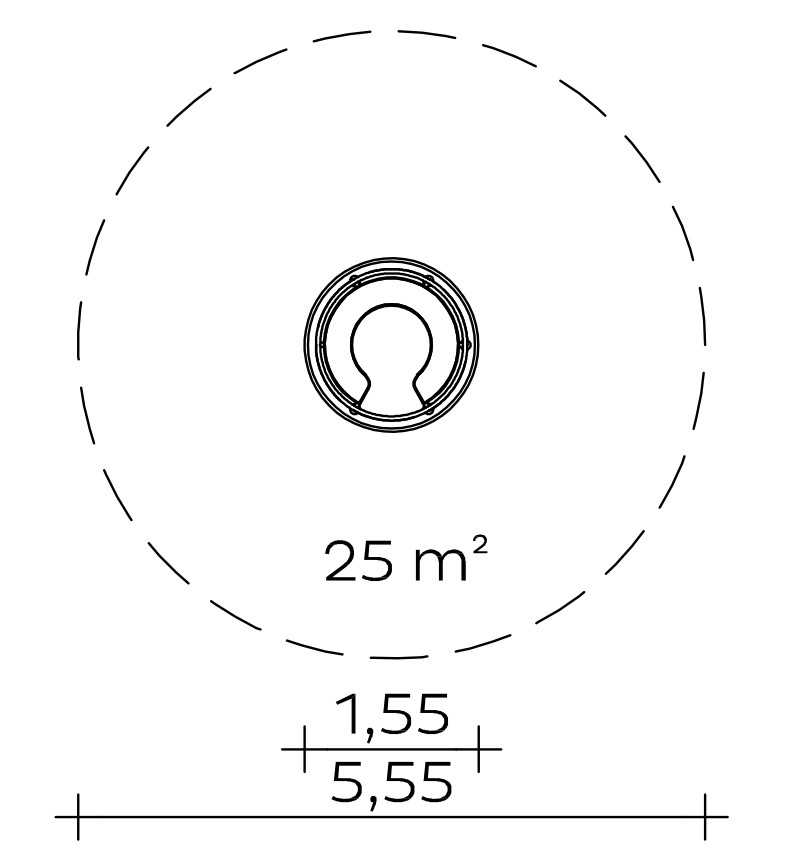

Base area: Ø 1.55 m
Minimum space: Ø 5.55 m (25 m²)
Total height: 0.90 m
Weight: 195 kg heaviest individual part
200 kg in total
Rotating base and superstructure: profiled stainless steel/stainless steel/high-pressure laminate 20 mm.
Anti-friction bearing: protected against dirt and interference.
Carousel anchoring takes place via a flange ring to be set in concrete separately.
Foundation (on site)
1 piece 0.60 x 0.60 x 0.40 m
Concrete volume: 0.14 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
0,50 m
Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-5).
Suitable for
Children aged 4 and over,
public playgrounds etc.
Movement activities.
Item number: 043360000
