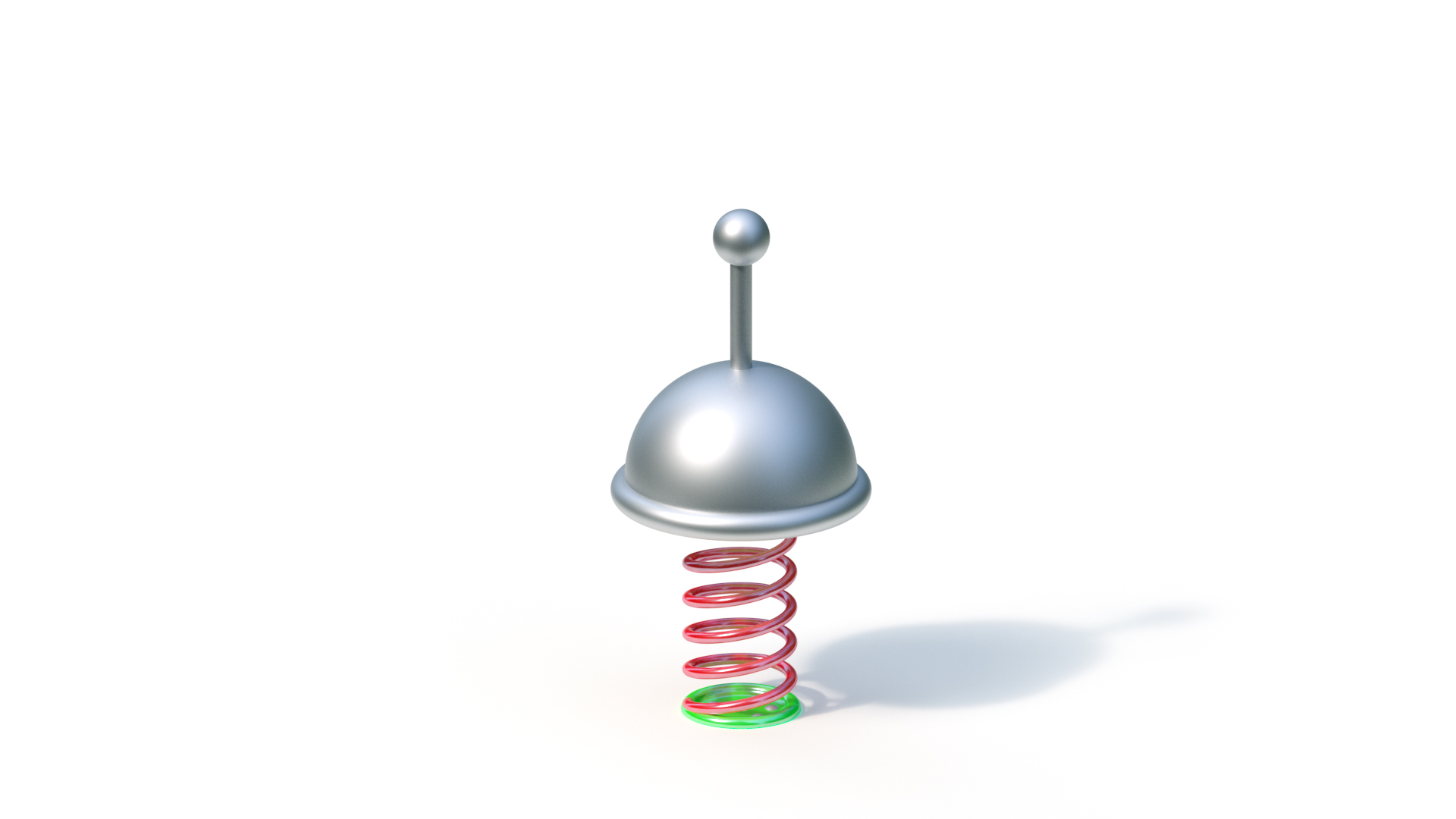

Spring see-saw
Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 1 person |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 2,80 m |
|---|---|
| Minimum space width ? | 2,80 m |
| Minimum space height ? | 0,92 m |
| Equipment length ? | 0,45 m |
| Equipment width ? | 0,45 m |
| Equipment height ? | 0,92 m |
| Free-fall height ? | 0,62 m |
| Platform heights | - |
| Total weight ? | 25.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1x (0.8m x 0.5m x 0.1m) |
Product Downloads
Product description
Technical data
Base area: Ø 0.45 m

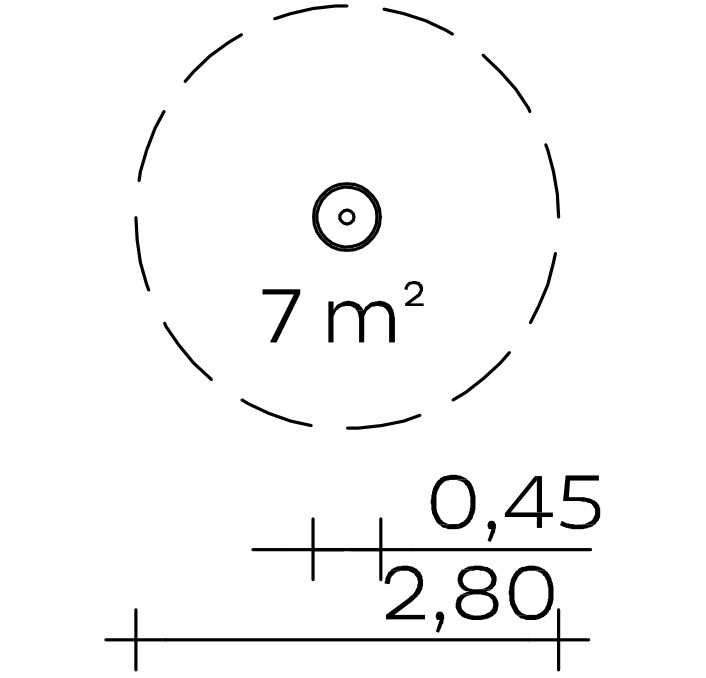

Minimum space: Ø 2.80 m (7 m²)
Total height: 0.95 m
Seat height: 0.63 m
Rocker spring: special spring wire Ø 20 mm
Seat: stainless steel dome with handle / weatherproof
Weight: 25 kg in total
Floor anchor included
Assembly time
Delivered pre-assembled in one piece
Foundation
If the ground is light (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.80 x 0.50 x 0.10 m).
Concrete quantity: 0.04 m³
Free fall height
0,62 m
Please note:
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-6).
Suitable for
Children from 2 years,
public playgrounds etc.,
Physical activities
Foundation anchors (item no. 1090219) are available at an extra charge for level and easy installation in synthetic fall protection. If the spring rocker is temporarily dismantled, the floor opening is closed at the same height with a suitable HPL panel.
Item number: 044204000
