Dutch disc (3,00)
The most important information
| Age group ? | 8+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 13 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 3,05 m |
|---|---|
| Device width ? | 3,05 m |
| Device height ? | 0,80 m |
| Free fall height ? | 0,80 m |
| Platform heights | - |
| Total weight ? | 740.00 kg |
| Heaviest single item ? | 450.00 kg |
| Minimum room length ? | 9,05 m |
| Minimum room width ? | 9,05 m |
| Minimum room height ? | 0,80 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | Yes |
| Foundations | 110x110x080 |
Product Downloads
Product description
Technical data

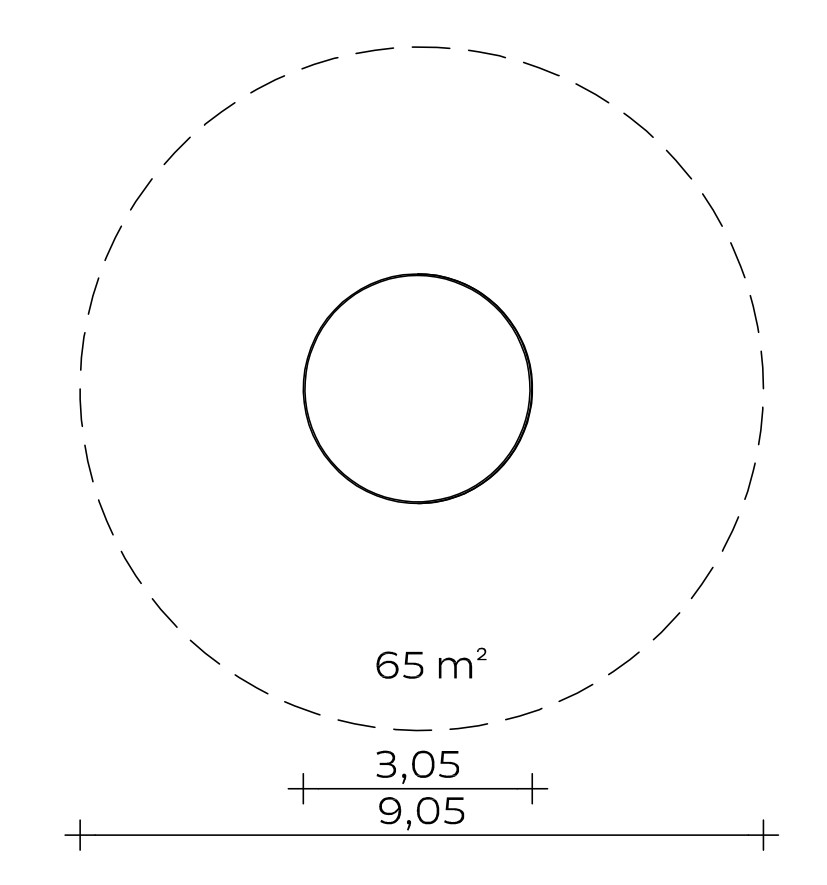

Base area: Ø 3.05 m
Minimum space: Ø 9.05 m (65 m²)
Total height: 0.80 m
Ground clearance: 0.40-0.65 m
Weight: 450 kg heaviest individual part
740 kg in total
Rotating base: stainless steel/EPDM coating (colour: black/green), smooth underside.
Anti-friction bearing: protected against dirt and interference.
Disc anchoring takes place via a flange ring to be set in concrete separately
Please note that shock-absorbing materials as defined in EN 1176-1 and „synthetic fall protection“ are permitted. In the case of these materials, care must be taken during maintenance to ensure that their fall protection properties are not lost due to compaction, play effect or wear and tear; in the case of synthetic fall protection, risks to ligaments and tendons due to reduced sliding properties should be considered.
Foundation (on site)
1 piece 1.10 x 1.10 x 0.80 m
Concrete volume: 0.97 m³
Assembly time
2 fitters 1 hour each
(without foundations) + lifting gear
Free fall height
0,80 m
Suitable for
Children aged 8 and over,
public playgrounds etc.
Movement activities.
Please note:
We will send you the foundation ring for this unit in advance so that you can carry out the foundation work in good time and ensure that the foundation is set before the bearing and disc are installed.
A steel transport device is required for the safe transport of the 3.05 m diameter carousel disc.
We will charge a price of 1,020.00 euros for this device when the order is placed; once the device has been returned, the amount will be credited back immediately so that you will not incur any additional costs. If the device is returned to the delivering lorry, there are no costs for the return transport of the device; however, if you prefer a later return, you will have to bear the costs for the return transport by freight amounting to approx. 100-120 euros.
Item number: 043530000
