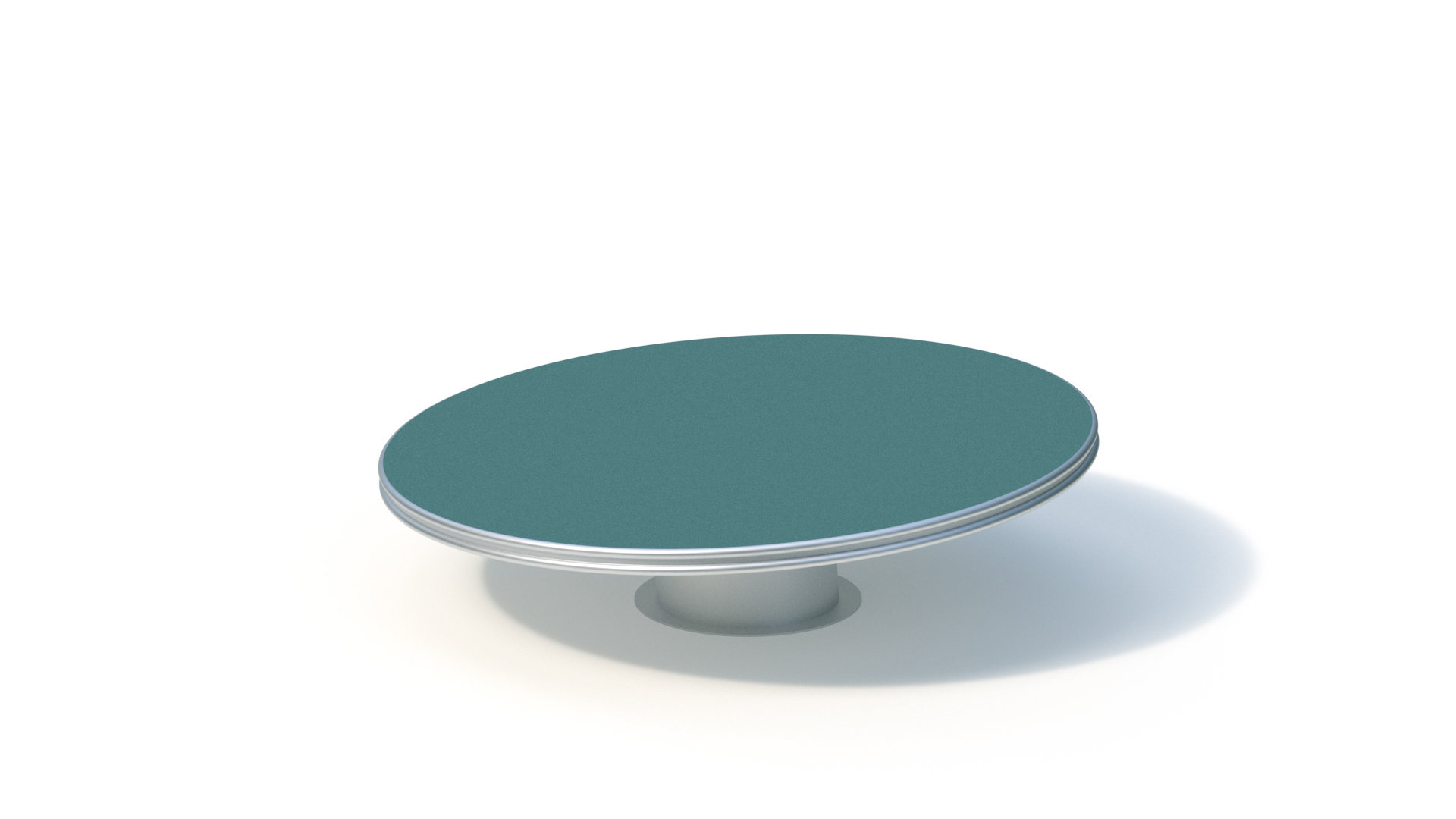

Dutch disc (2,50)
The most important information
| Altersgruppe ? | 8+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 9 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Gerätelänge ? | 2,55 m |
|---|---|
| Gerätebreite ? | 2,55 m |
| Gerätehöhe ? | 0,70 m |
| Freie Fallhöhe ? | 0,70 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 590.00 kg |
| Schwerstes Einzelteil ? | 410.00 kg |
| Mindestraumlänge ? | 8,55 m |
| Mindestraumbreite ? | 8,55 m |
| Mindestraumhöhe ? | 0,70 m |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 1 (0.9m x 0.9m x 0.8m) |
Product Downloads
Product description
Technical data

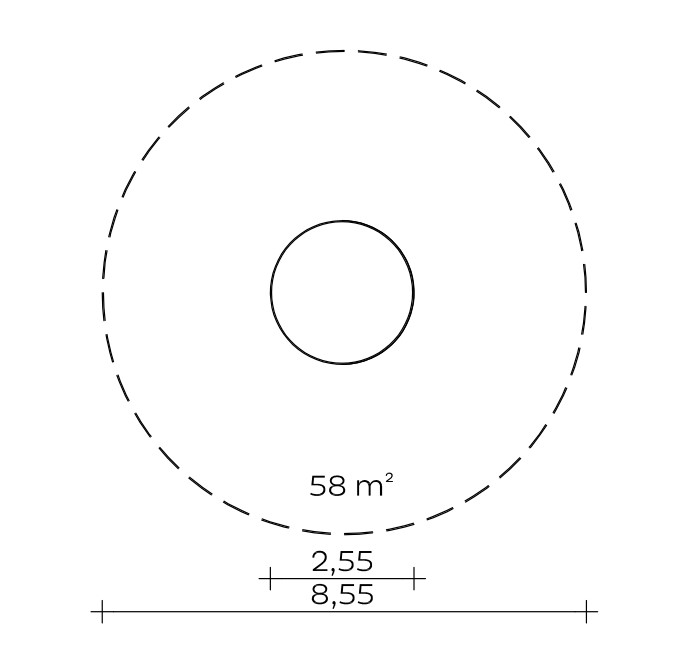

Base area: Ø 2.55 m
Minimum space: Ø 8.55 m (58 m²)
Total height: 0.70 m
Ground clearance: 0.40 - 0.55 m
Weight: 410 kg heaviest individual part
590 kg in total
Rotating base: stainless steel/EPDM coating, smooth underside
Anti-friction bearing: protected against interference and dirt
Disc anchoring takes place via a flange ring to be set in concrete separately
Please note that shock-absorbing materials as defined in EN 1176-1 and „synthetic fall protection“ are permitted. In the case of these materials, care must be taken during maintenance to ensure that their fall protection properties are not lost due to compaction, play effect or wear and tear; in the case of synthetic fall protection, risks to ligaments and tendons due to reduced sliding properties should be considered.
Foundation (on site)
1 piece 0.90 x 0.90 x 0.80 m
Concrete volume: 0.65 m³
Assembly time
2 fitters 1 hour each
(without foundations) + lifting gear
Free fall height
0,70 m
Suitable for
Children aged 8 and over,
public playgrounds etc.
Movement activities.
Please note:
If required, the foundation ring for this unit can be sent to you in advance so that you can carry out the foundation work in good time and ensure that the foundation is set before the bearing and disc are installed.
If an advance delivery is desired, we ask for feedback and the delivery address when placing the order.
Item number: 043525000
