The 3D model serves as a spatial view. The colours do not correspond to the selected variant.

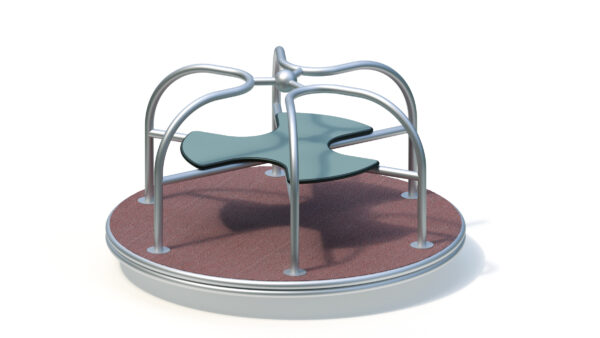

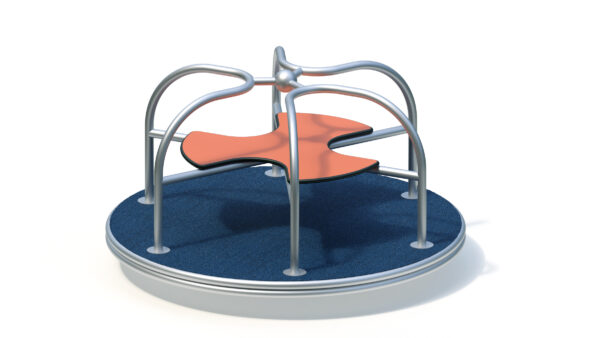

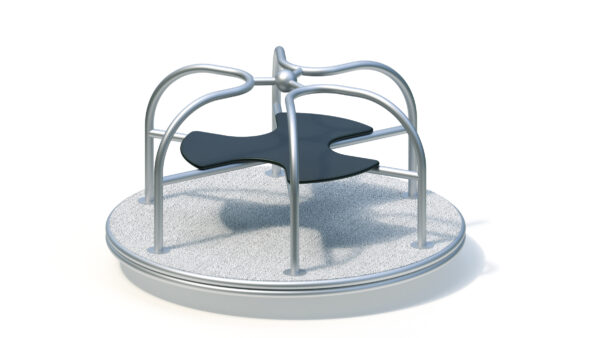

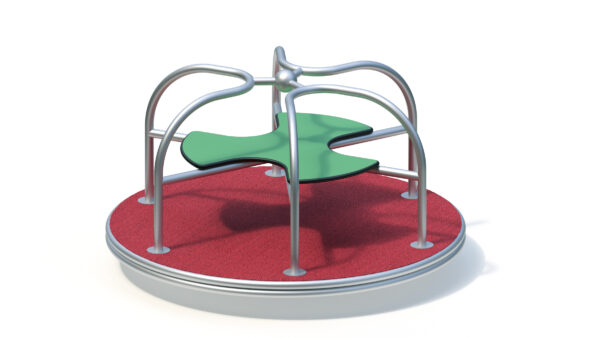

Merry-go-round (1,50)

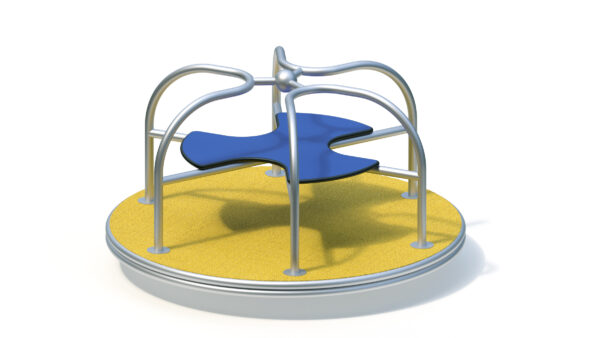

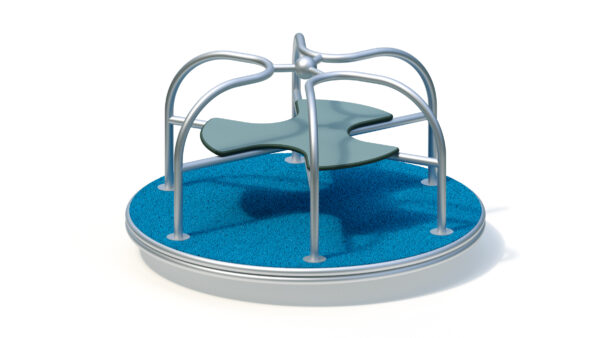

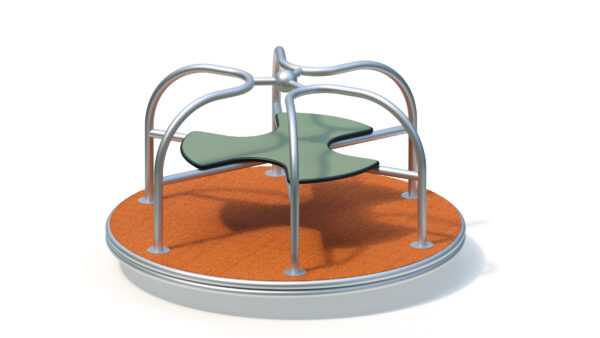

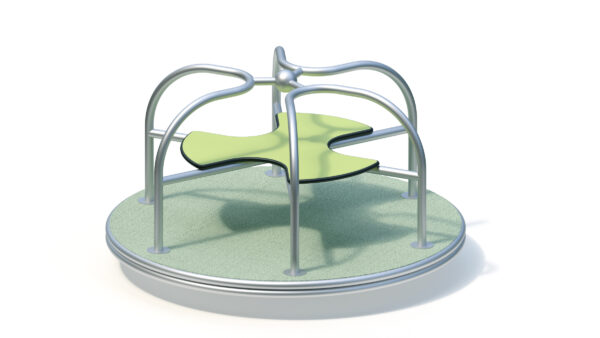

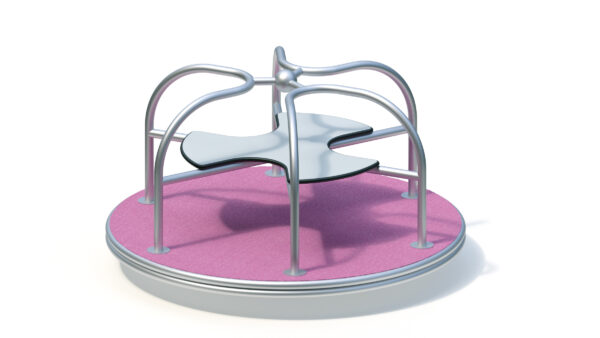

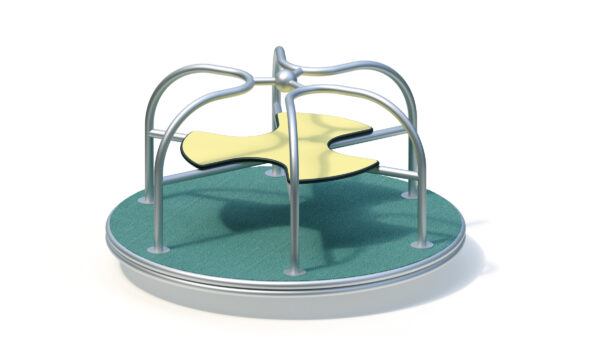

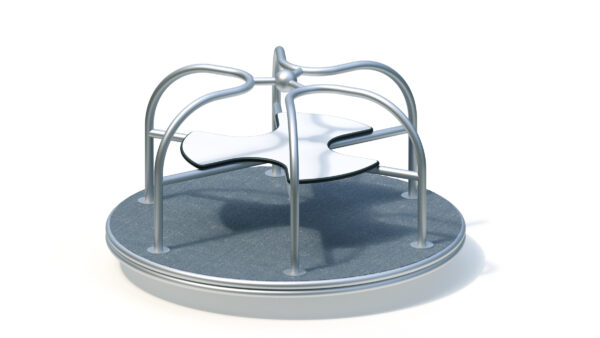

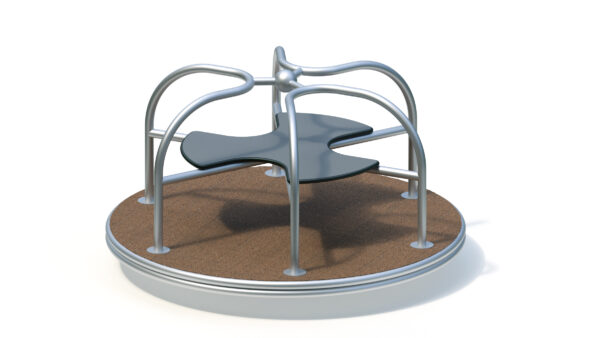

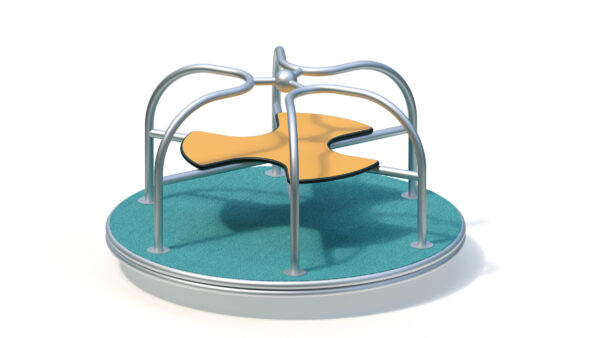

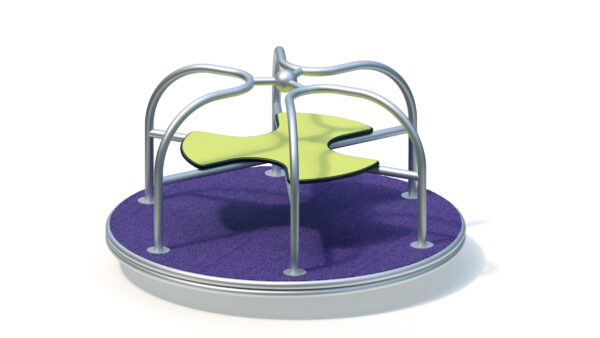

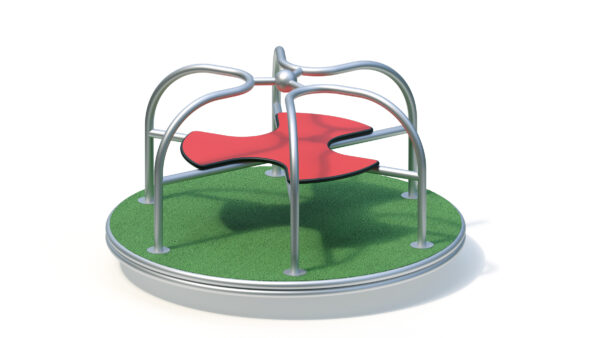

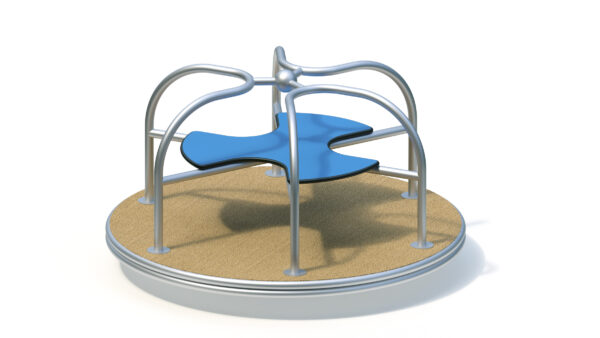

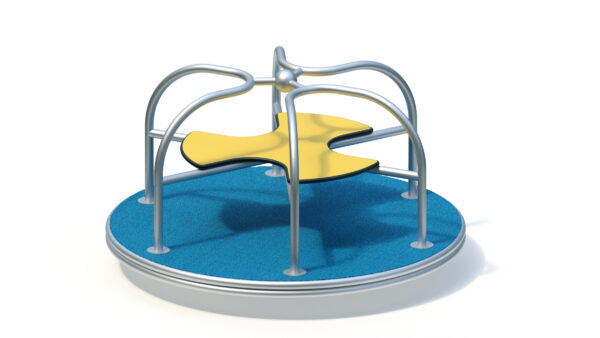

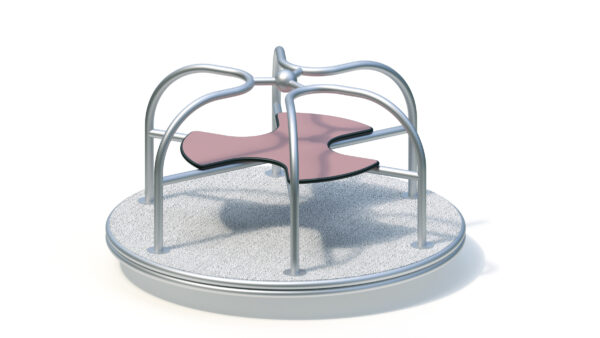

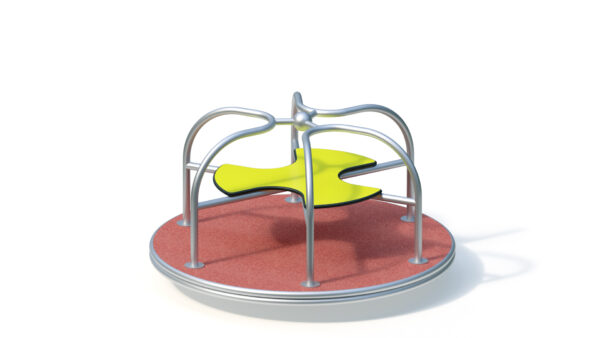

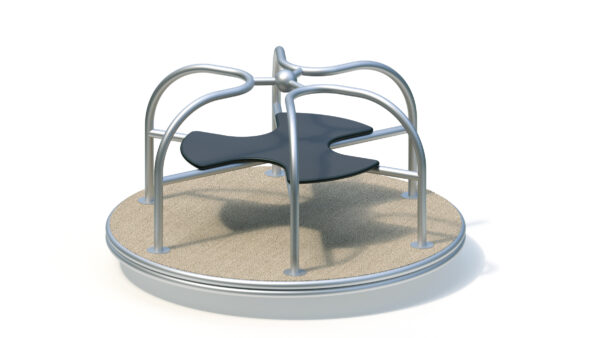

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 8 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 1,55 m |
|---|---|
| Device width ? | 1,55 m |
| Device height ? | 0,90 m |
| Free fall height ? | 0,55 m |
| Platform heights | - |
| Total weight ? | 210.00 kg |
| Heaviest single item ? | 205.00 kg |
| Minimum room length ? | 5,55 m |
| Minimum room width ? | 5,55 m |
| Minimum room height ? | 0,90 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 060x060x040 |
Product Downloads
Product description
Technical data
Base area: Ø 1.55 m
Minimum space: Ø 5.55 m (25 m²)
Total height: 0.90 m
Weight: 205 kg heaviest individual part
210 kg in total
Rotating base and superstructure: rubber granulate/stainless steel/high-pressure laminate
Surface of the rotating floor equipped with rubber granulate. Choice of granulate colour: red, green, blue or yellow.
Seat plate made of yellow, highly weather-resistant HPL laminate, 20 mm
Anti-friction bearing: protected against interference and dirt
Carousel anchoring takes place via a flange ring to be set in concrete separately.
Foundation (on site)
1 piece 0.60 x 0.60 x 0.40 m
Concrete volume: 0.14 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
0,55 m
Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-5).
Suitable for
Children from 4 years
public playgrounds etc.,
Physical activities
Item number: 043322000
This Kaiser & Kühne product enables:
