Products
Roundabout (1,00)
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 5 people |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 5,05 m |
|---|---|
| Minimum space width ? | 5,05 m |
| Minimum space height ? | 0,80 m |
| Equipment length ? | 1,05 m |
| Equipment width ? | 1,05 m |
| Equipment height ? | 0,80 m |
| Free-fall height ? | 0,20 m |
| Platform heights | - |
| Total weight ? | 105.00 kg |
| Heaviest single part ? | 10.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 person |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (0.5m x 0.5m x 0.3m) |
Product Downloads
Product description
Technical data

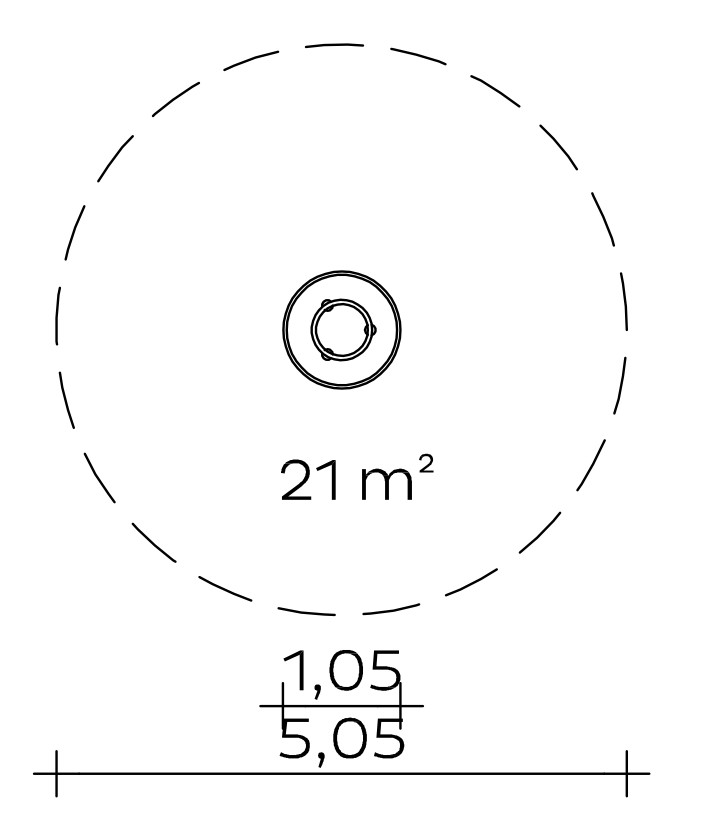

Base area: Ø 1.05 m
Minimum space: Ø 5.05 m (21 m²)
Total height: 0.80 m
Weight: 100 kg heaviest individual part
105 kg in total
Rotating base and superstructure: profiled stainless steel sheet/stainless steel.
Anti-friction bearing: protected against dirt and interference.
Anchoring with flange ring.
Foundation (on site)
1 piece 0.50 x 0.50 x 0.30 m
Concrete quantity: 0.08 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
0,20 m
Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-5).
Suitable for
Children aged 3 and over,
public playgrounds etc.
Physical activities
Item number: 043225000
This Kaiser & Kühne product enables:
