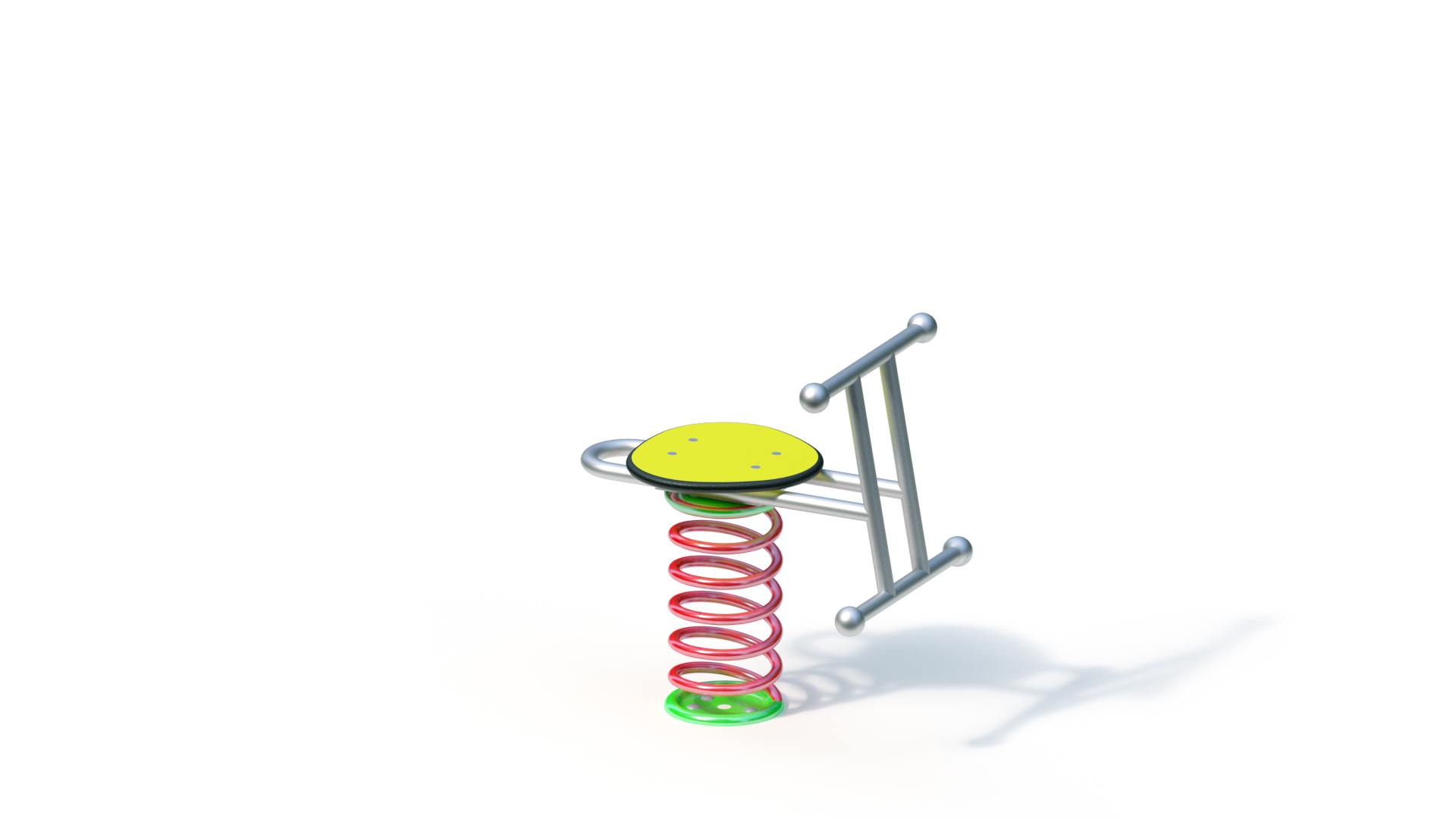

Spring see-saw

The 3D model serves as a spatial view. The colours do not correspond to the selected variant.

Spring see-saw

SKU 044206000 Category:

Select variant:

Classic
Classic

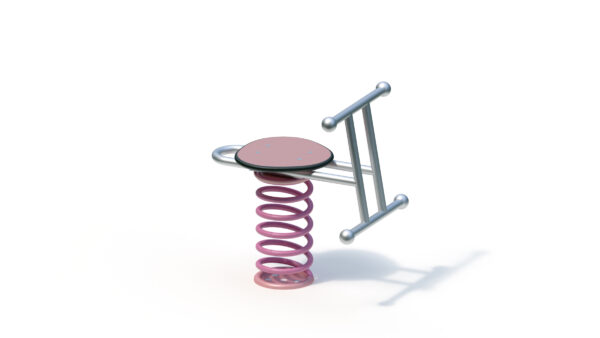

Mermaid
Mermaid
Aloha
Aloha
Beach
Beach

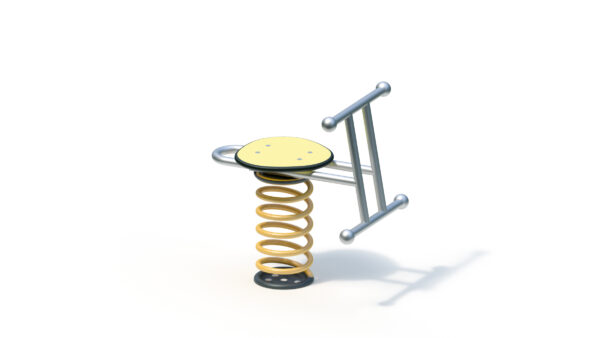

City
City

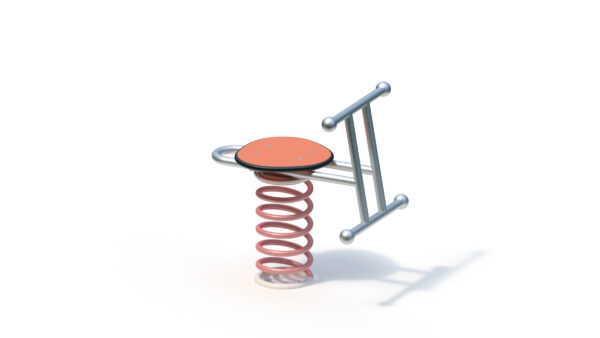

Coral
Coral

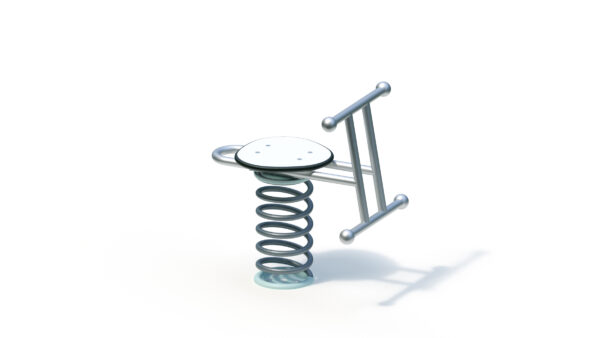

Ice Palace
Ice Palace

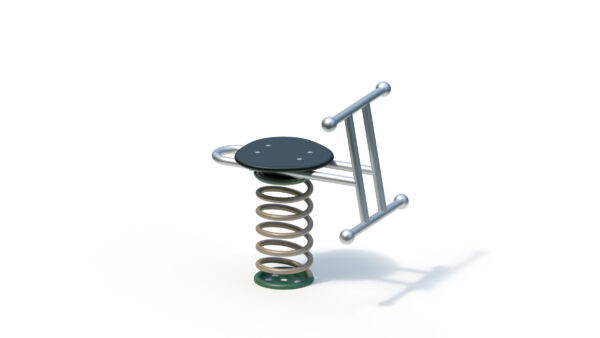

Jungle
Jungle
Mermaid
Mermaid

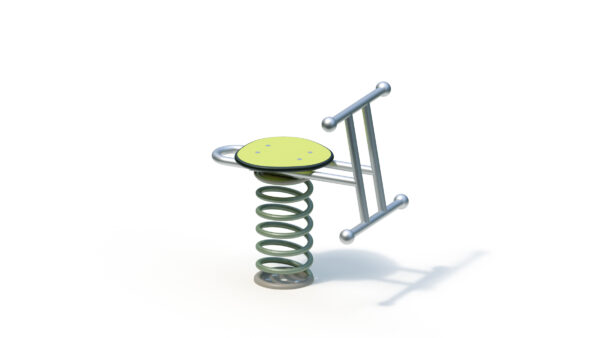

Climbing Rock midi
Climbing Rock midi

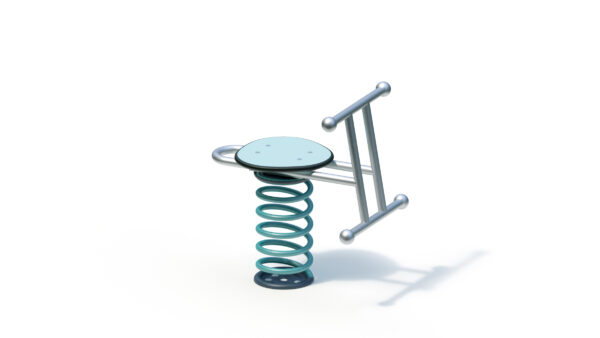

Ocean
Ocean

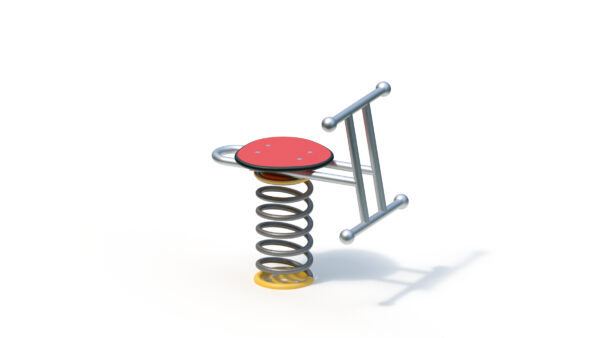

Pirate
Pirate
Safari
Safari
Sky
Sky

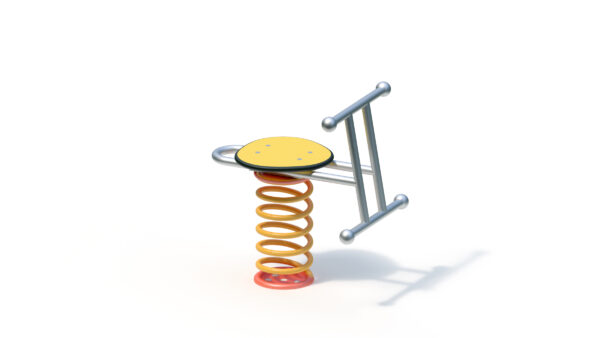

Sun
Sun

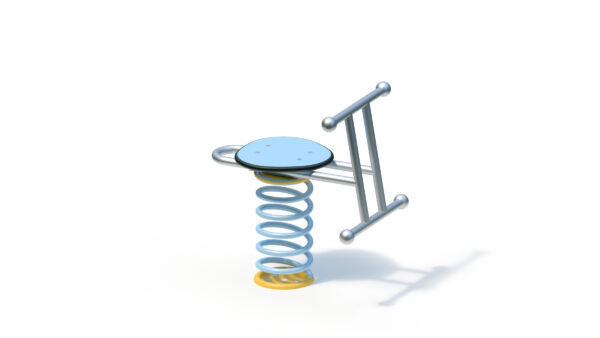

Sunny Day
Sunny Day
Sweden
Sweden
When making your product enquiry, please pay attention to the article number shown above, which changes when you select a specific product variant (e.g. different colour scheme). The last selected variant is automatically transmitted with the enquiry.
SKU 044206000 Category:

The most important information

:
;

Age group ?2+
Areas of application ?Public playgrounds
Number of users ?1 persons
Activities ?Physical activity

Technical data

:
;

Device length ?0,65 m
Device width ?0,45 m
Device height ?0,69 m
Free fall height ?0,46 m
Platform heights-
Total weight ?35.00 kg
Heaviest single item ?0.00 kg
Minimum room length ?2,85 m
Minimum room width ?2,45 m
Minimum room height ?0,69 m

Assembly & Foundations

:
;

Assembly time ?0,0 h
Number of fitters ?0 persons
Lifting gear required ?-
Foundations080x050x010

Product Downloads

:
;

Product description

:
;

0554147
Technical data
Base area: 0.45 x 0.65 m

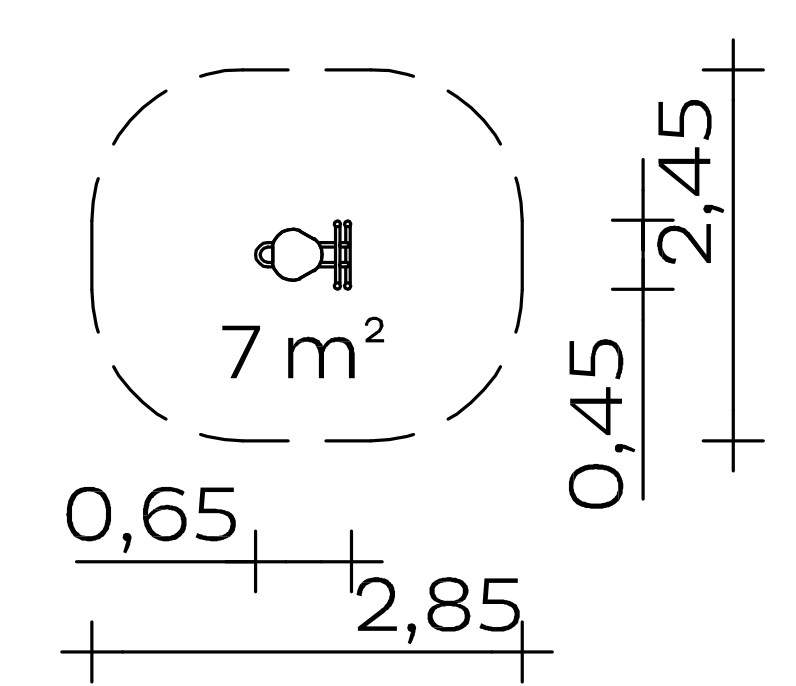

Minimum space: 2.45 x 2.85 x 0.69 m (7 m²)
Seat height: 0.46 m
Weight: 35 kg in total

Rocking frame: Stainless steel
Rocker spring: special spring wire Ø 20 mm
Seat plate: made of coloured, highly weather-resistant HPL laminate, 20 mm; theft-proof screw connection
Incl. ground anchor

Assembly time
is delivered pre-assembled in one piece.

Foundation
If the ground is light (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.80 x 0.50 x 0.10 m).
Concrete quantity: 0.04 m³

Free fall height
0,46 m

Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-6).

Suitable for
Children from 2 years,
public playgrounds etc.,
Movement activities.

A foundation anchor (item no. 1090219) is available at an extra charge for level installation in synthetic fall protection. If the play equipment is temporarily dismantled, the floor opening is closed at the same height with a suitable HPL panel.

Item number: 044206000

This Kaiser & Kühne product enables:
