Mini Hurricane
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 1 person |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 4,00 m |
|---|---|
| Minimum space width ? | 4,00 m |
| Minimum space height ? | 1,29 m |
| Equipment length ? | 0,60 m |
| Equipment width ? | 0,49 m |
| Equipment height ? | 1,29 m |
| Free-fall height ? | 0,42 m |
| Platform heights | - |
| Total weight ? | 36.00 kg |
| Heaviest single part ? | 31.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 person |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

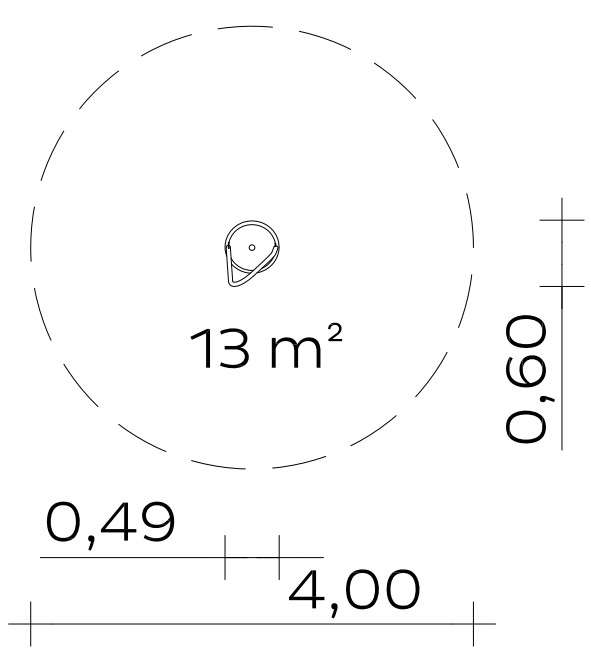

Base area: 0.60 m x 0.49 m
Minimum space: Ø 4.00 m (13 m²)
Total height: 1.29 m
Weight: 31 kg heaviest individual part
36 kg in total
- Rotating base and superstructure: profiled stainless steel sheet/stainless steel
- Anti-friction bearing: protected against interference and dirt
- Preset inclination of the pivot axis due to hot-dip galvanised steel standpipe
- Anchoring with hot-dip galvanised steel foundation ring set in concrete
Foundation (on site)
1 piece 0.60 x 0.60 x 0.50 m
Concrete volume: 0.18 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
0,42 m
Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-5).
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 043080001
