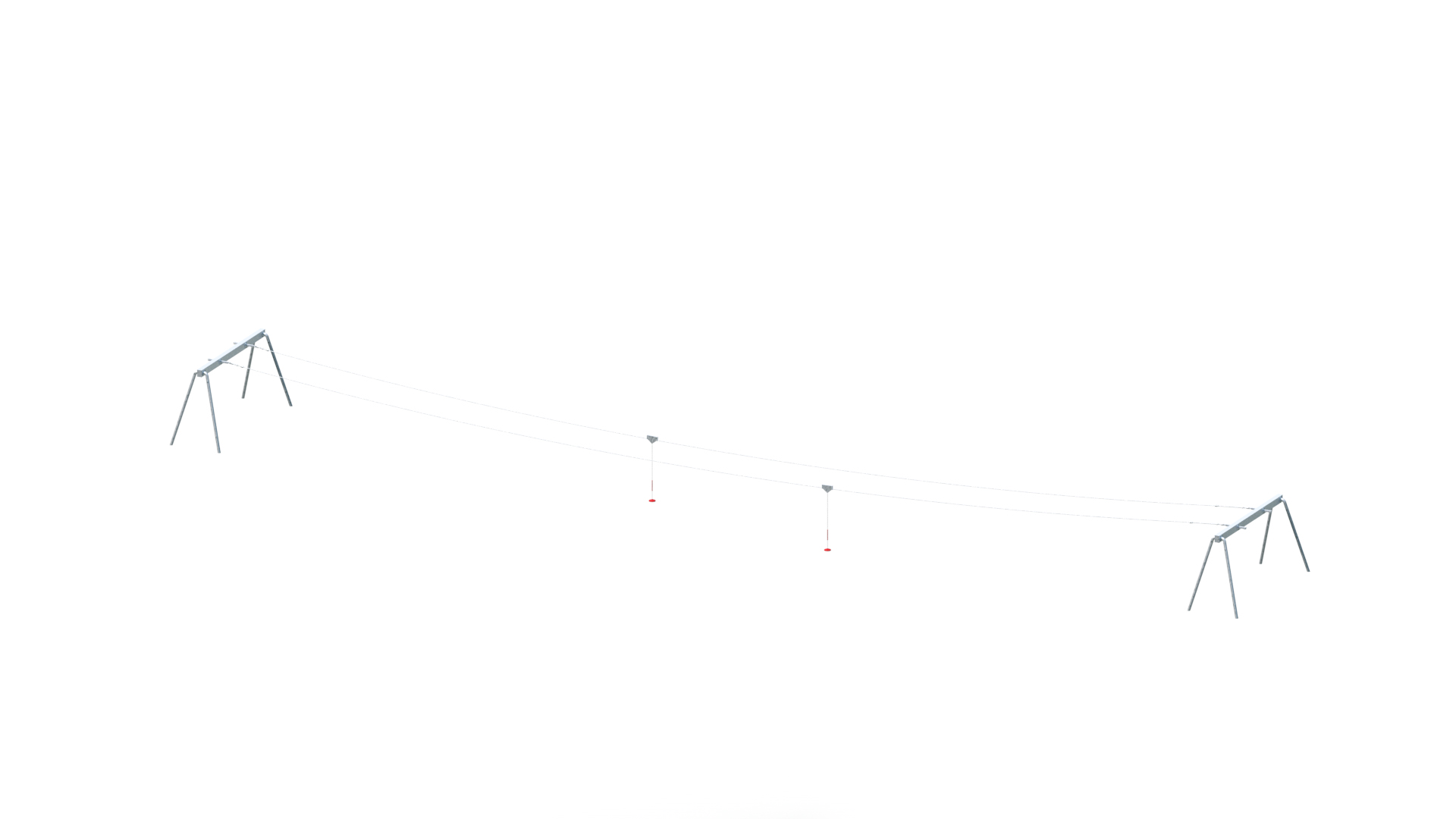

Double Cable ride (40,00 m)
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 10 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Gerätelänge ? | 42,00 m |
|---|---|
| Gerätebreite ? | 5,85 m |
| Gerätehöhe ? | 2,70 m |
| Freie Fallhöhe ? | 1,00 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 1170.00 kg |
| Schwerstes Einzelteil ? | 245.00 kg |
| Mindestraumlänge ? | 43,10 m |
| Mindestraumbreite ? | 6,00 m |
| Mindestraumhöhe ? | 2,70 m |
Assembly & Foundations
| Montagezeit ? | 5,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 8 (1m x 1m x 1m) |
Product Downloads
Product description
Technical data

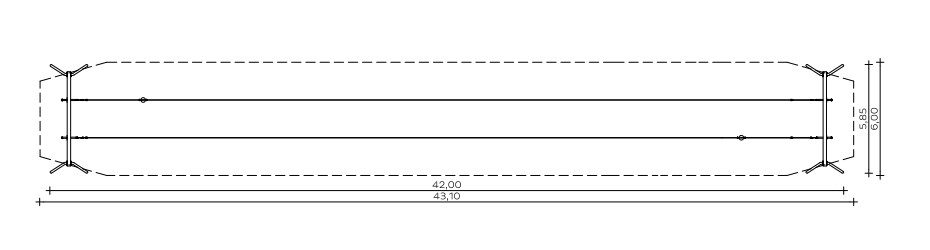

Floor area: 5.85 x 42.00 m
Minimum space: 6.00 x 43.10 m (252 m²)
Cable car length: 40.00 m
Start station height: 2.70 m (without hill)
End station height: 2.70 m (without hill)
Weight: 245 kg heaviest individual part
1350 kg in total
- Cable car girder made of hot-dip galvanised steel
- Cableway support made of hot-dip galvanised tubular steel, with dowel disc fastening Ø 240 mm
- Rope attachments with tensioning devices for easy, linear rope tensioning using self-locking trapezoidal threaded rods
- Strand compacted suspension ropes Ø 10 mm made of galvanised steel wire. 35 x 7 in rotation-free design (16 outer strands, 19 inner strands). Incl. damping stops
- Ropeway trolley made of stainless steel sheet with 3 polyamide rollers on roller bearings
When selecting the suspension cable construction, particular attention was paid to minimising the noise generated by the Kaiser & Kühne cable car running on the cable.
- Stainless steel chains with thermally moulded, flexible rubber handle and safety pendulum seats
- Universal joint to minimise wear at the chain adapter-chain connection point
The hill modelling for the start station must be carried out in accordance with the installation instructions once the cable car stations have been installed. The cable tension required for the functionality of the cable car is only possible if the terrain is adapted according to our specifications.
The cableway ropes including cableway trolleys, pendulum seats and handle chains are delivered after the cableway has been assembled and the most accurate possible measurements have been taken (a description of how to take the measurements is enclosed with the delivery).
Foundations (client-provided)
8 pcs. 1.00 x 1.00 x 1.00 m
Concrete volume: 8 m³
Assembly time
2 fitters 5 hours each
(without foundations) + lifting gear
Free fall height
1,00 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 042242000
