Cable ride (20,00 m)
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 5 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 22,20 m |
|---|---|
| Device width ? | 3,65 m |
| Device height ? | 3,90 m |
| Free fall height ? | 1,00 m |
| Platform heights | - |
| Total weight ? | 565.00 kg |
| Heaviest single item ? | 60.00 kg |
| Minimum room length ? | 24,40 m |
| Minimum room width ? | 4,00 m |
| Minimum room height ? | 3,90 m |
Assembly & Foundations
| Assembly time ? | 4,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 080x080x080 |
Product Downloads
Product description
Technical data

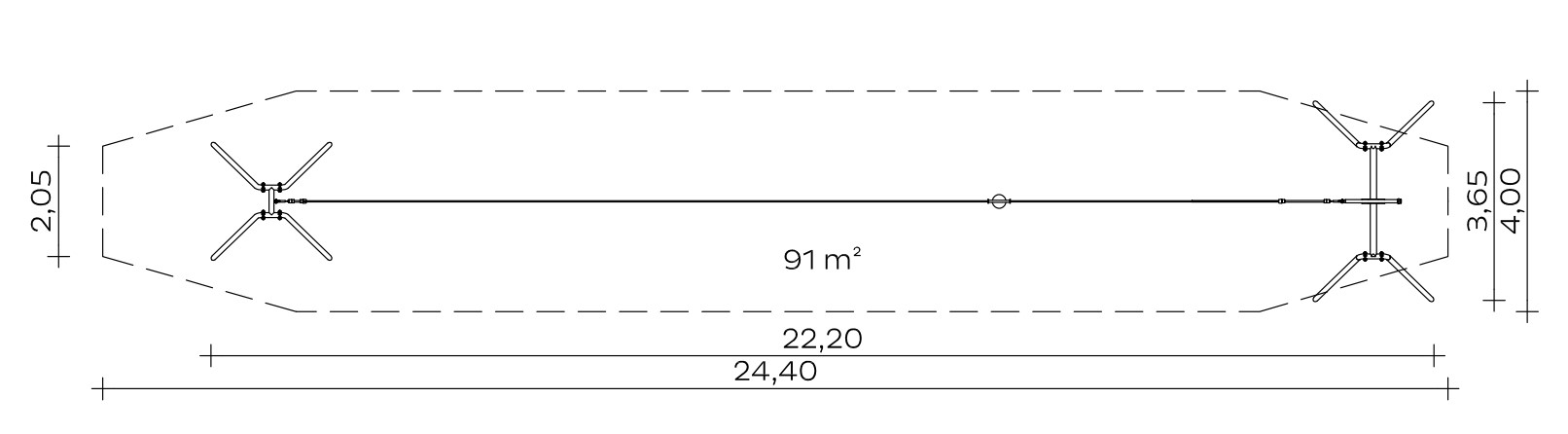

Floor area: 3.65 x 22.20 m
Minimum space: 4.00 x 24.40 m (91 m²)
Cable car length: 20.00 m
Start station height: 2.90 m (above hill = play level)
End station height: 2.90 m (above play level)
Weight: 60 kg heaviest individual part
565 kg in total
- Cable car girder made of steel, hot-dip galvanised, powder-coated
- Cableway support made of hot-dip galvanised steel tube Ø 88.9 x 5.6 mm
- Cable fastening with tensioning device for easy, linear cable tensioning using self-locking trapezoidal threaded rod
- strand compacted suspension rope Ø 10 mm made of galvanised steel wire. 35 x 7 in rotation-free design (16 outer strands, 19 inner strands) incl. damping stops
- Ropeway trolley made of stainless steel sheet with 3 polyamide rollers on roller bearings
When selecting the suspension cable construction, particular attention was paid to minimising the noise generated by the Kaiser & Kühne cable car running on the cable
- Stainless steel chain with thermally moulded, flexible rubber handle and safety pendulum seat
- Universal joint to minimise wear at the chain adapter-chain connection point
The hill modelling for the start station must be carried out after the installation of the cable car stations in accordance with the installation instructions. The cable tension required for the functionality of the cable car is only possible if the terrain is adapted according to our specifications.
The cableway rope including cableway trolley, pendulum seat and handle chain is delivered after the cableway has been assembled and the most accurate measurements possible have been taken (a description of how to take the measurements is enclosed with the delivery).
Foundations (client-provided)
4 units 0.80 x 0.80 x 0.80 m
4 pcs. 1.00 x 1.00 x 0.80 m
(Reinforcement mesh cages are supplied)
Concrete volume: 5.25 m³
Assembly time
2 fitters 4 hours each
(without foundations) + lifting gear
Free fall height
1,00 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 042220002
