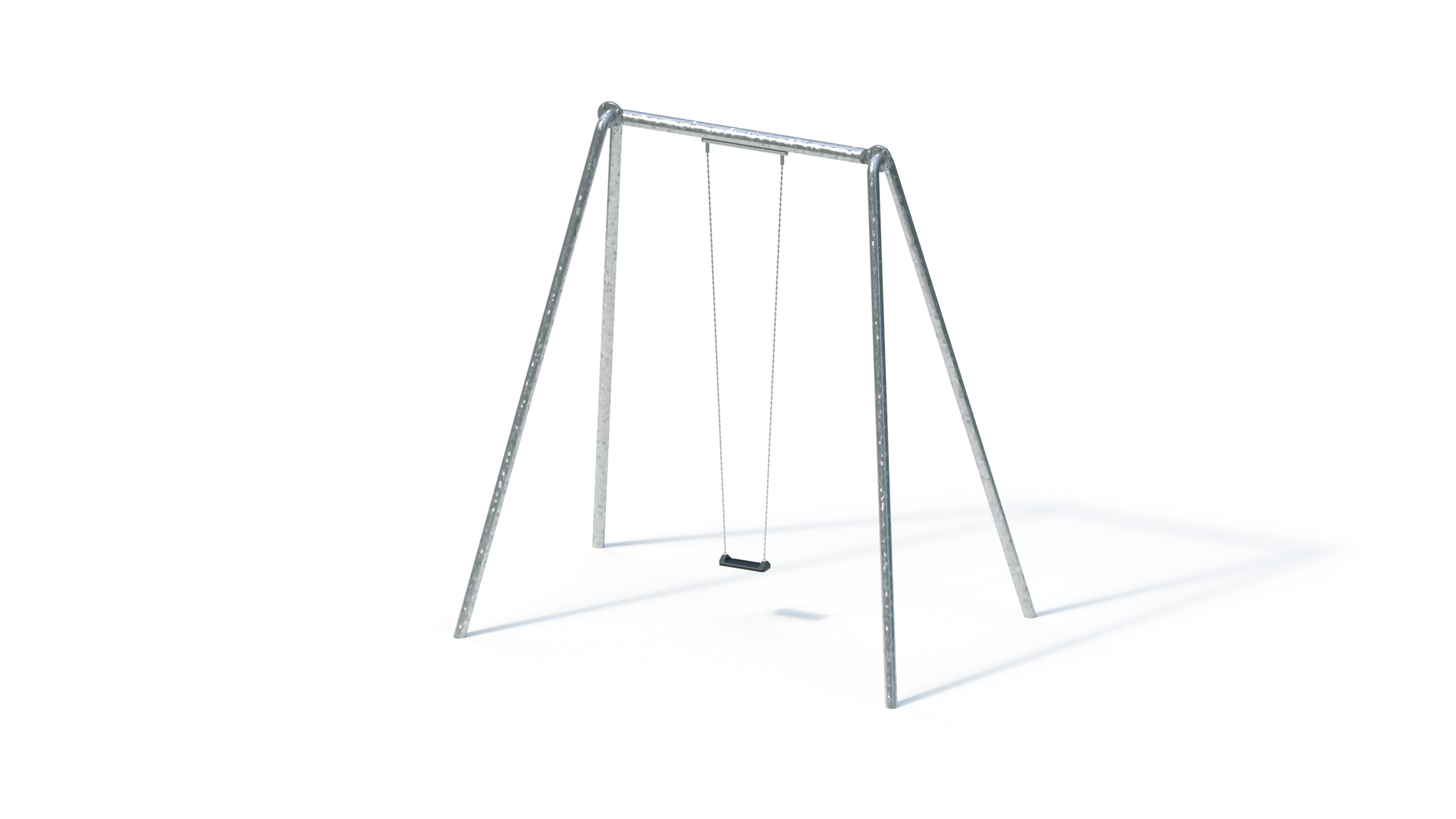

Single Maxi swing (4,50)

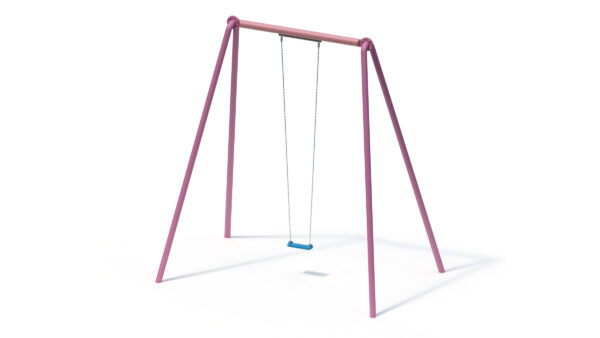

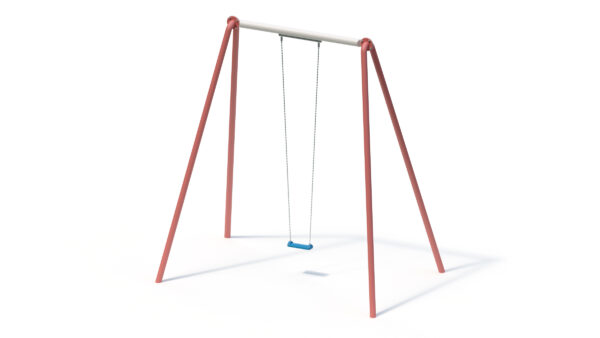

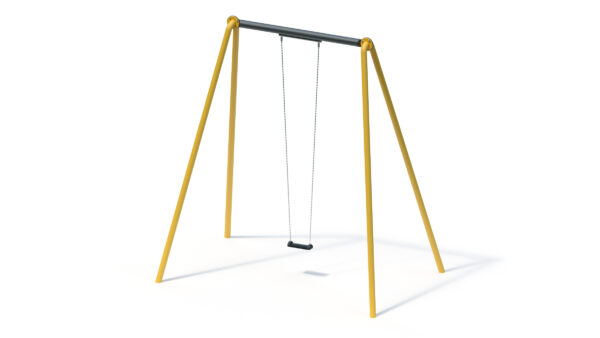

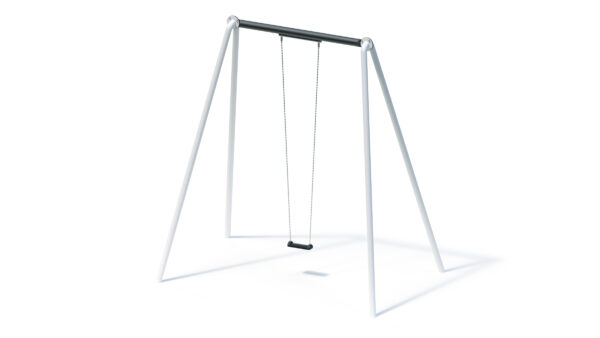

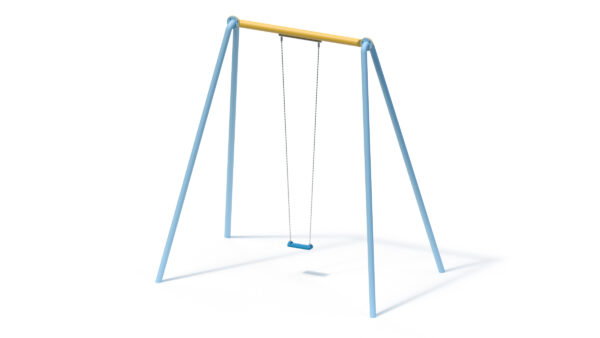

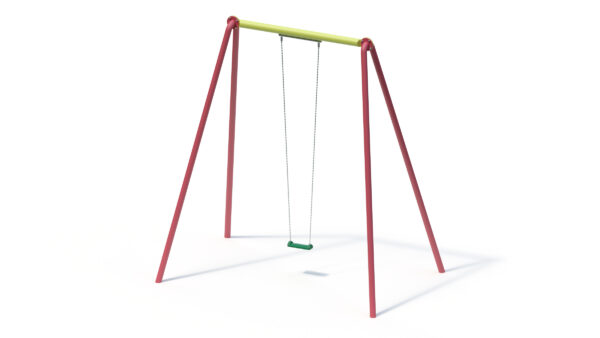

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 1 person |
| Activities ? | Physical activity, Swinging |
Technical data
| Minimum space length ? | 11,30 m |
|---|---|
| Minimum space width ? | 4,40 m |
| Minimum space height ? | 4,72 m |
| Equipment length ? | 4,40 m |
| Equipment width ? | 2,85 m |
| Equipment height ? | 4,72 m |
| Free-fall height ? | 2,60 m |
| Platform heights | - |
| Total weight ? | 505.00 kg |
| Heaviest single part ? | 95.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.8m x 0.8m x 0.6m) |
Product Downloads
Product description
Technical data

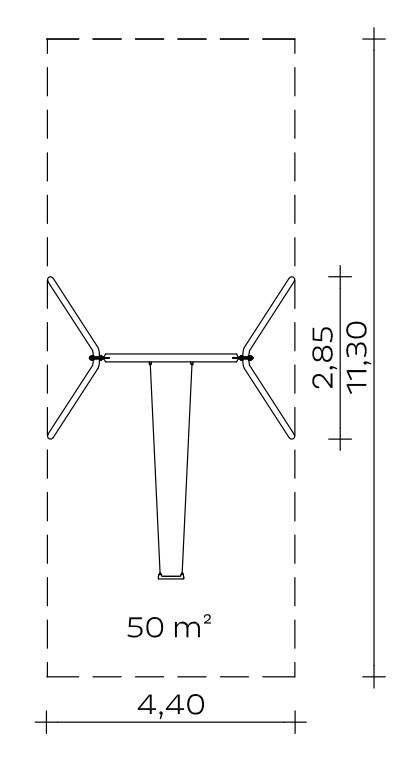

Floor area: 2.85 x 4.40 m
Minimum space: 4.40 x 11.30 m (50 m²)
Swing height: 4.50 m
Weight: 95 kg heaviest individual part
505 kg in total
- Swing supports made of hot-dip galvanised steel, Ø 108 mm, wall thickness 6.3 mm; connection to swing support via dowel plates
- Swing beam made of hot-dip galvanised steel, Ø 139.7 mm, wall thickness 6.3 mm;
- Swing axle made of stainless steel, consisting of internal bearing axle Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and plain bearings
- Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- on swing axle and swing seat: chain attachment with stainless steel clamping adapter
Foundations (client-provided)
4 units 0.80 x 0.80 x 0.60 m
Concrete volume: 1.54 m³
Assembly time
2 fitters 3 hours each, plus lifting gear
(without foundation)
Free fall height
2,60 m
Suitable for
Children aged 8 and over,
public playgrounds etc.,
Physical activities
Item number: 040451000
