Fivefold Post swing (2,00)

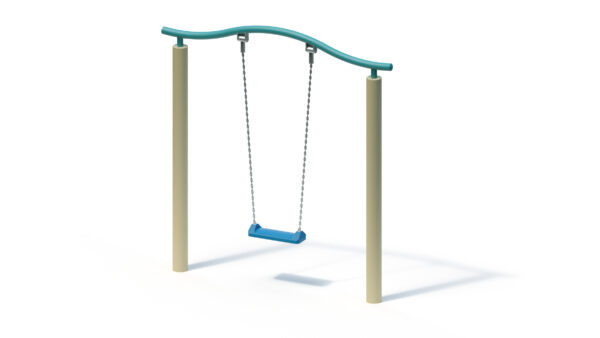

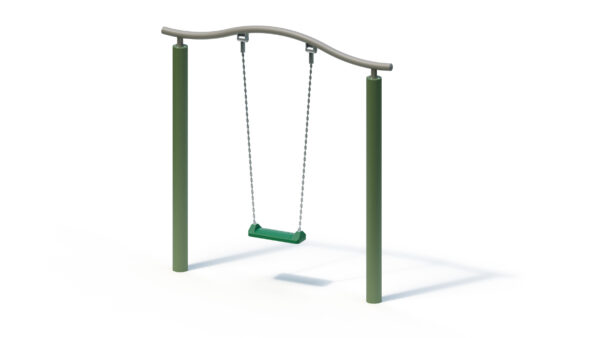

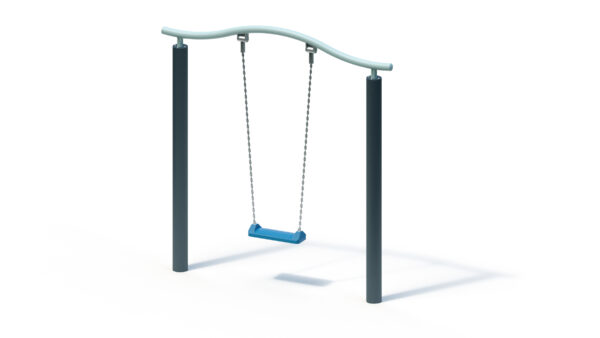

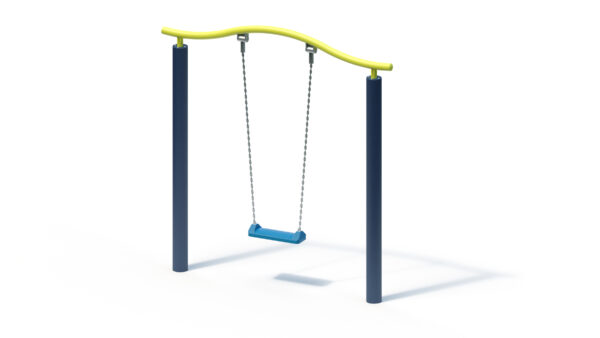

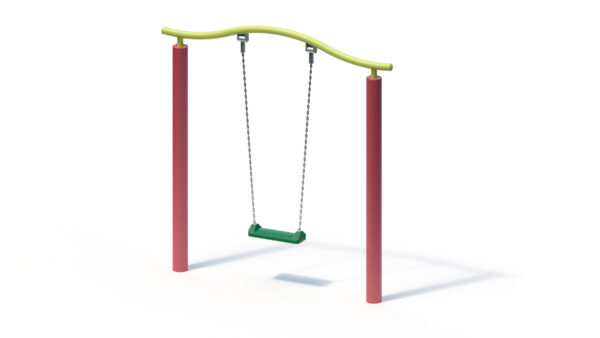

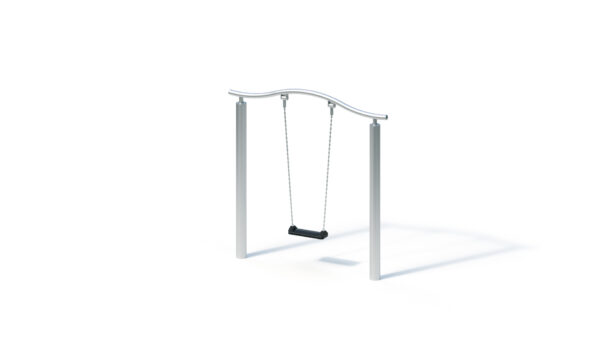

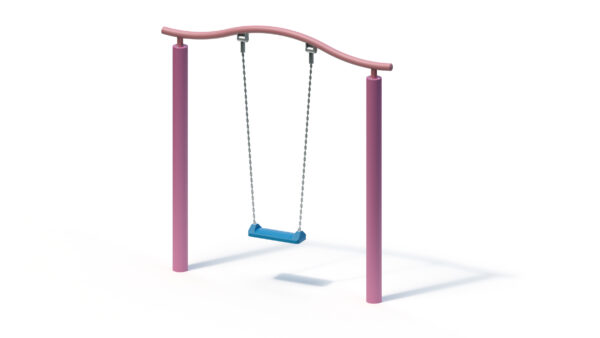

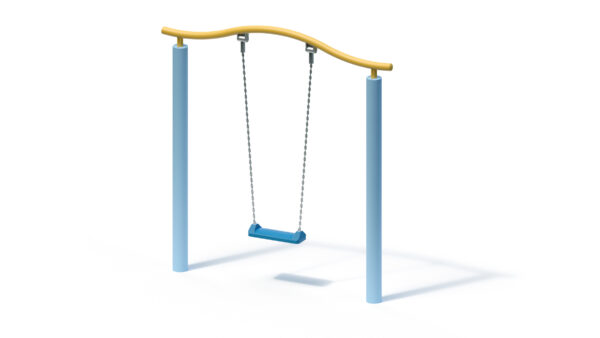

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 1 persons |
| Activities ? | Physical activity, Swinging |
Technical data
| Device length ? | 0,12 m |
|---|---|
| Device width ? | 2,05 m |
| Device height ? | 2,14 m |
| Free fall height ? | 1,25 m |
| Platform heights | - |
| Total weight ? | 85.00 kg |
| Heaviest single item ? | 27.00 kg |
| Minimum room length ? | 7,30 m |
| Minimum room width ? | 2,05 m |
| Minimum room height ? | 2,14 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required ? | - |
| Foundations | 100x080x050 |
Product Downloads
Product description
Technical data

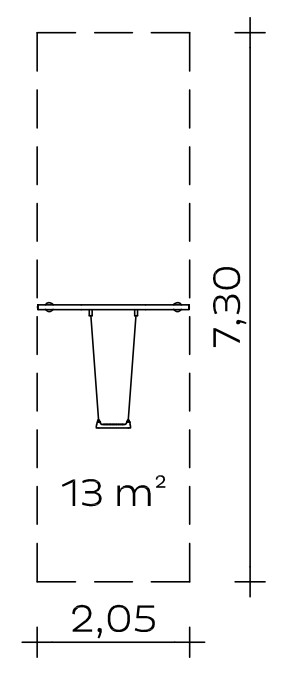

Minimum space: 2.05 x 7.30 m (13 m²)
Swing height: 2.00 m
Weight: 27 kg heaviest individual part
85 kg in total
- Support post made of stainless steel tube, Ø 120 x 3 mm
- Swing support made of stainless steel tube, Ø 60.3 x 2.9 mm
- Stainless steel swing axle with plain bearings, including swivel
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- Matching infant seat (item no. 15818) can be supplied at an extra charge
Foundations (client-provided)
2 pcs. 1.00 x 0.80 x 0.50 m
Assembly time
2 fitters 2 hours each
(without foundation)
Concrete volume: 0.80 m³
Free fall height
1,25 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 040212002
This Kaiser & Kühne product enables:
