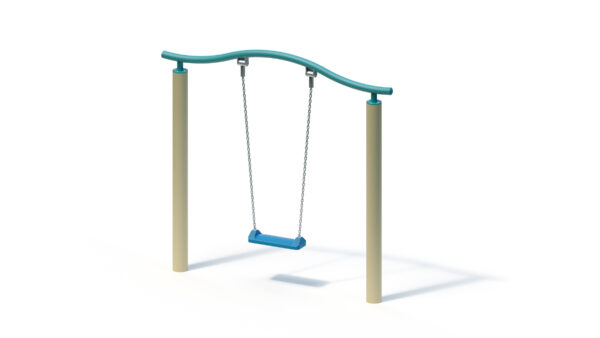

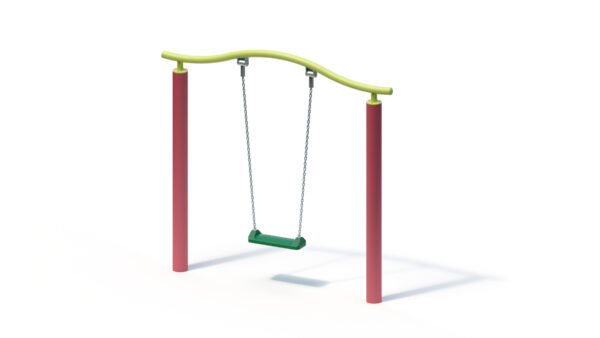

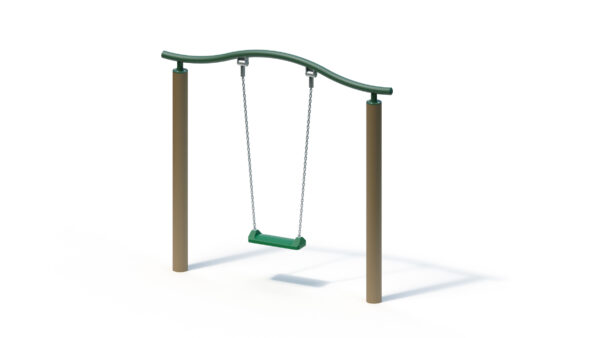

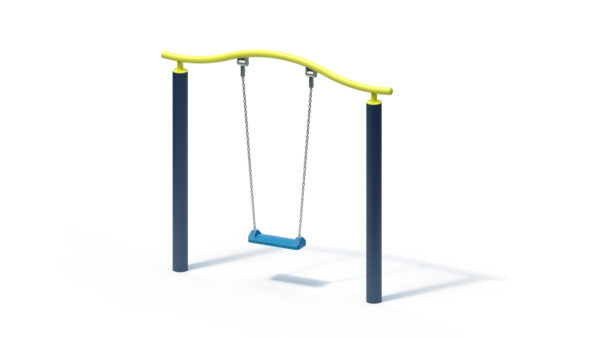

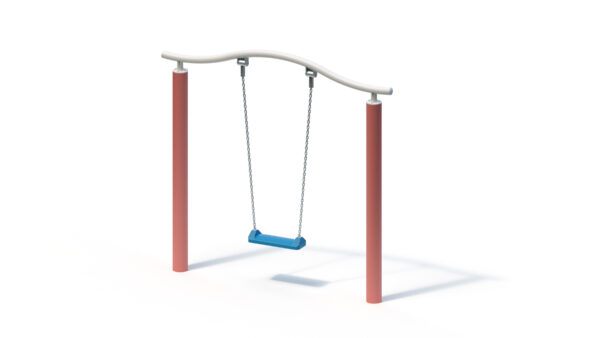

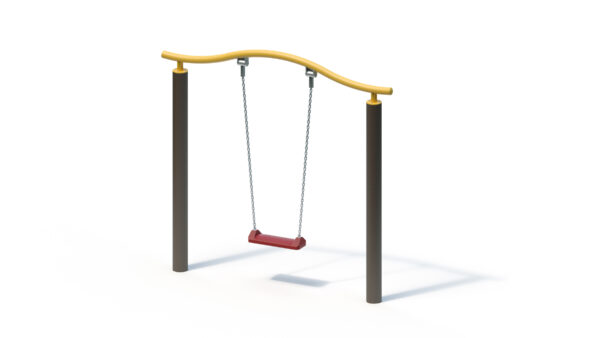

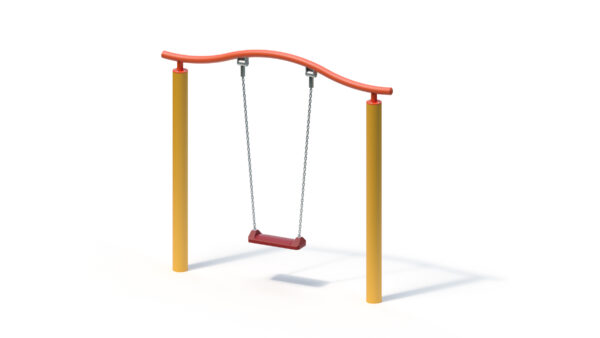

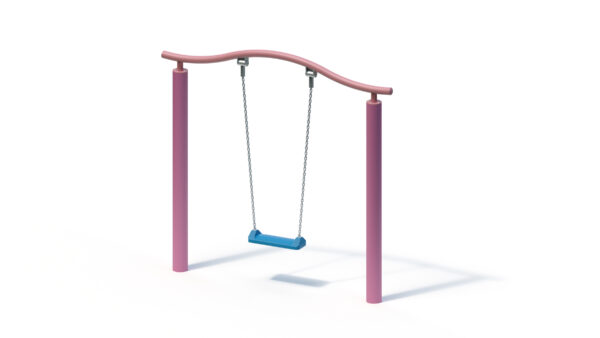

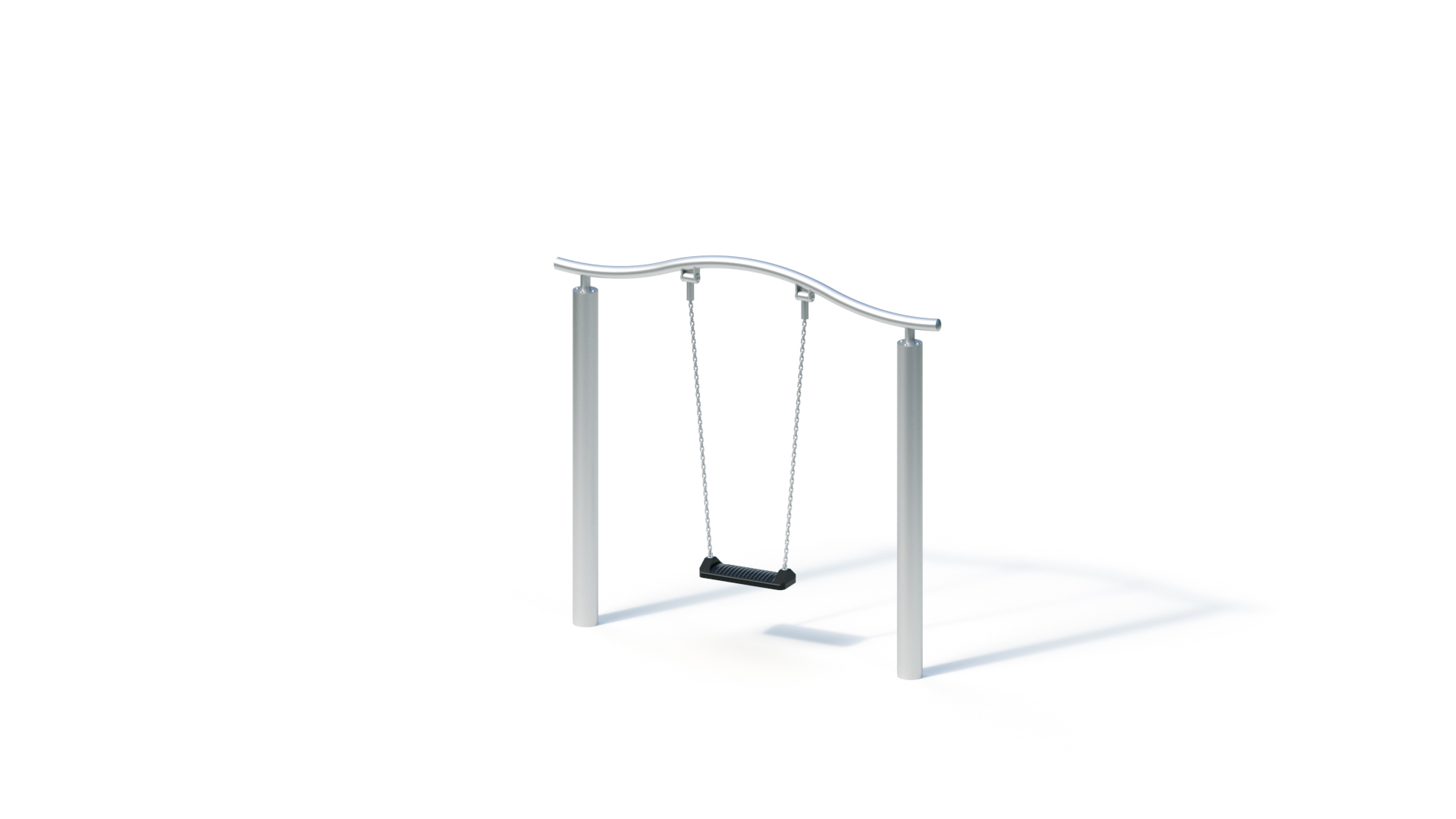

Fivefold Post swing (1,80)

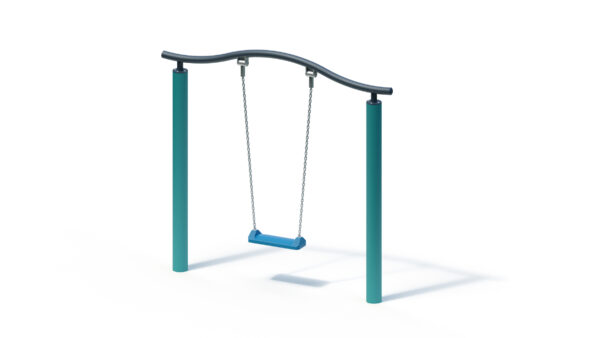

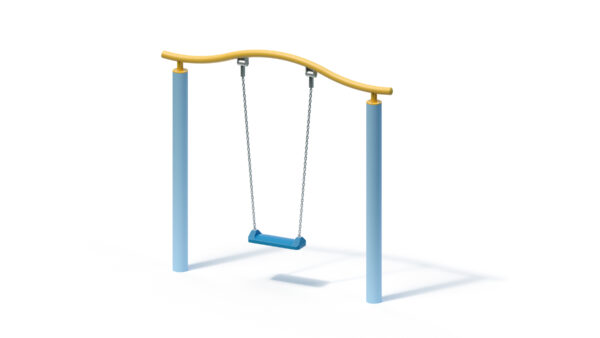

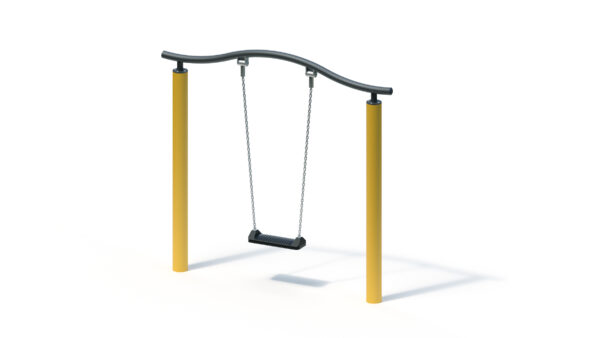

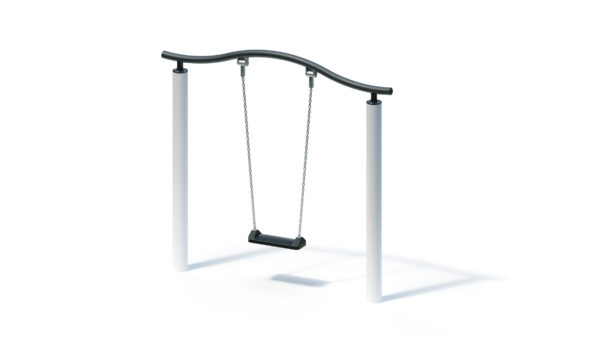

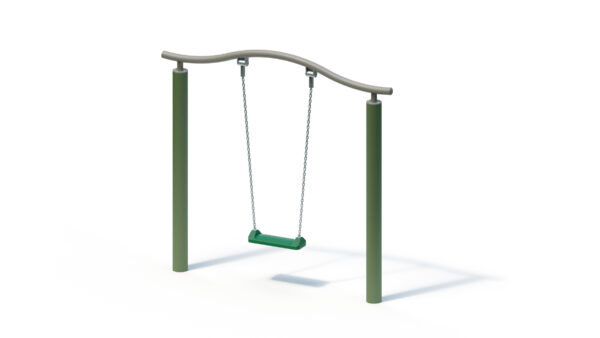

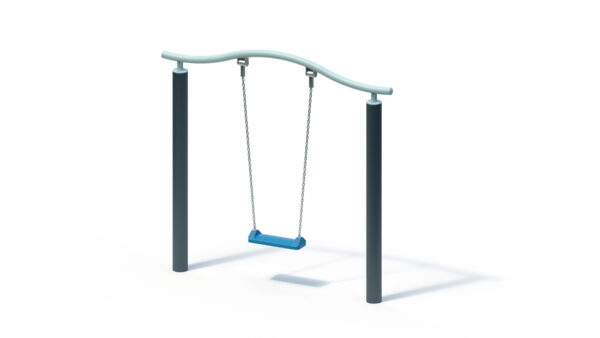

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 1 person |
| Activities ? | Physical activity, Swinging |
Technical data
| Minimum space length ? | 7,00 m |
|---|---|
| Minimum space width ? | 2,05 m |
| Minimum space height ? | 1,94 m |
| Equipment length ? | 0,12 m |
| Equipment width ? | 2,05 m |
| Equipment height ? | 1,94 m |
| Free-fall height ? | 1,10 m |
| Platform heights | - |
| Total weight ? | 80.00 kg |
| Heaviest single part ? | 25.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (1m x 0.8m x 0.5m) |
Product Downloads
Product description
Technical data

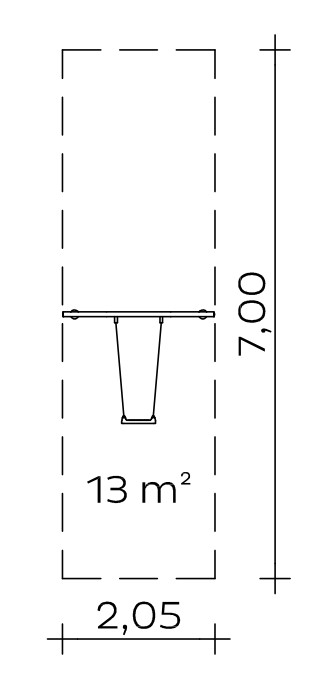

Minimum space: 2.05 x 7.00 m (13 m²)
Swing height: 1.80 m
Weight: 25 kg heaviest individual part
80 kg in total
- Support post made of stainless steel tube, Ø 120 x 3 mm
- Swing support made of stainless steel tube, Ø 60.3 x 2.9 mm
- Stainless steel swing axle with plain bearings, including swivel
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- Matching infant seat (item no. 15818) can be supplied at an extra charge
Foundations (client-provided)
2 pcs. 1.00 x 0.80 x 0.50 m
Assembly time
2 fitters 2 hours each
(without foundation)
Concrete volume: 0.80 m³
Free fall height
1,10 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 040204001
