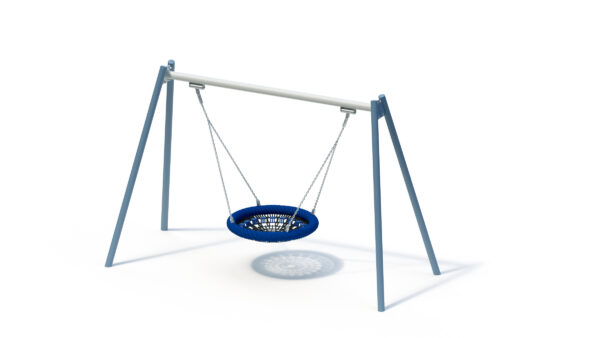

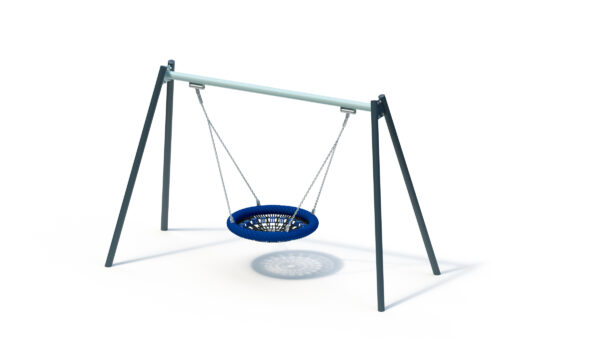

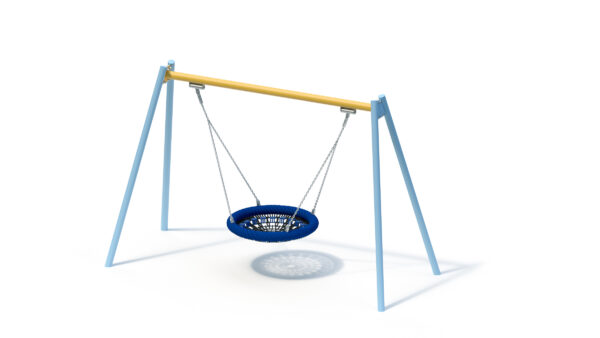

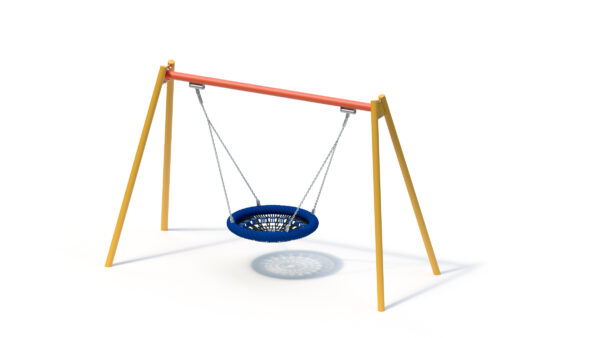

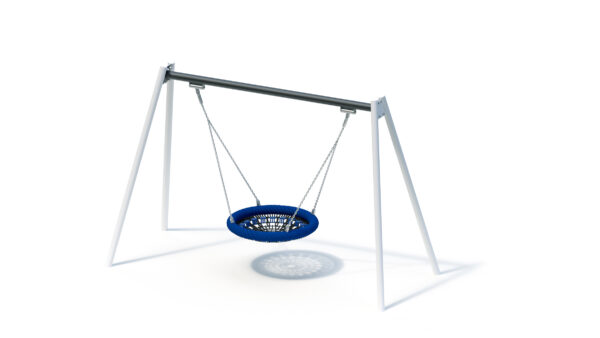

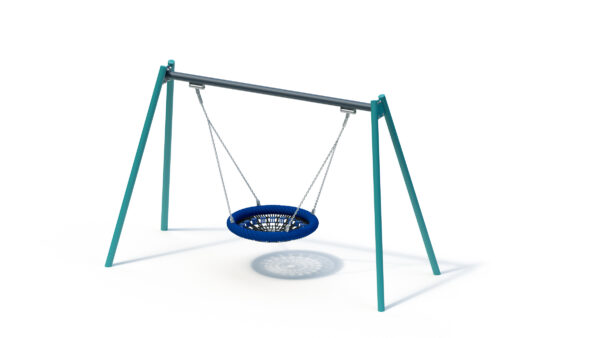

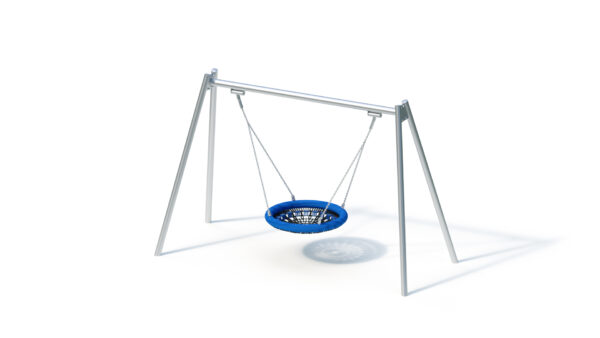

Basket swing (2,00) stainless steel
Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | - |
| Number of users ? | 6 persons |
| Activities ? | - |
Technical data
| Device length ? | 3,45 m |
|---|---|
| Device width ? | 1,50 m |
| Device height ? | 2,21 m |
| Free fall height ? | 1,30 m |
| Platform heights | - |
| Total weight ? | 160.00 kg |
| Heaviest single item ? | 50.00 kg |
| Minimum room length ? | 6,92 m |
| Minimum room width ? | 3,45 m |
| Minimum room height ? | 2,21 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 060x060x047 |
Product Downloads
Product description
Technical data

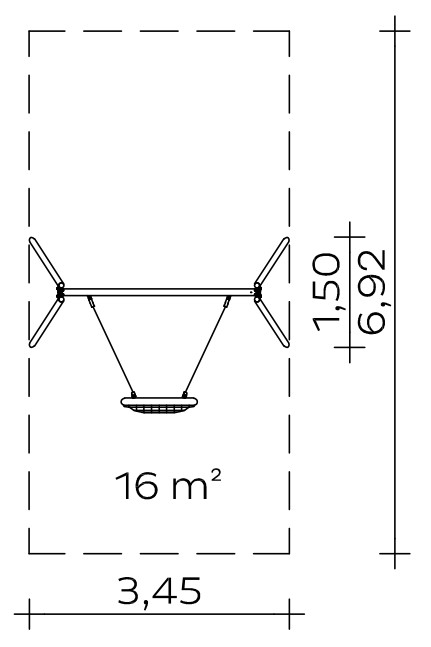

Floor area: 1.50 x 3.45 m
Minimum space: 6.92 x 3.45 m (16 m²)
Swing height: 2.00 m
Weight: 50 kg heaviest individual part
160 kg in total
- Swing supports made of stainless steel tube Ø 76.1 mm, wall thickness 2.9 mm; connection to swing support via connection plates
- Swing support made of stainless steel tube Ø 88.9 mm, wall thickness 3.2 mm; connection to swing supports via connection plates
- Two-part stainless steel swing axle with roller bearings, including a second device for securing the swing seat to prevent it from falling down if the main attachment fails. Specially designed swivel and universal joints, designed for the high dynamic requirements of this basket swing.
- Chain mount with plain bearing-mounted equalising transverse joint
- Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- on swing axles and on the swing basket: chain attachment with stainless steel clamping adapter
- Swinging basket with all-round cushioning made of PUR foam and PE rope sheathing blue Ø 20 mm; basket ring Ø 0.95 m made of stainless steel tube Ø 38 mm, wall thickness 2 mm; basket made of plastic links blue-black, connected with steel rope. The TÜV-tested maximum acceleration is 50g. The limit value according to DIN EN 1176-2 is 120g. The surface pressure after TV testing is 79.6 N/cm², the limit value is 90N/cm²
Max. Load: 300 kg.
Corresponds to approx. 5 children up to 14 years.
Foundations (client-provided)
4 units 0.60 x 0.60 x 0.47 m
Concrete volume: 0.68 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,30 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 040338001
