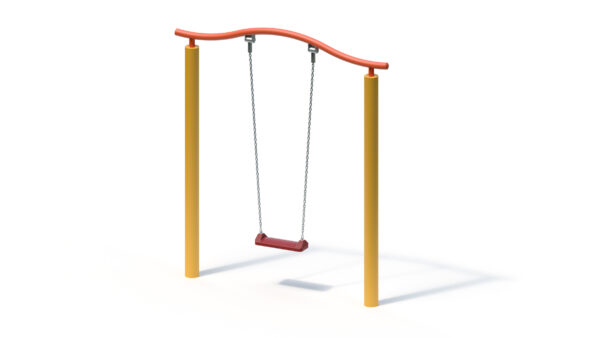

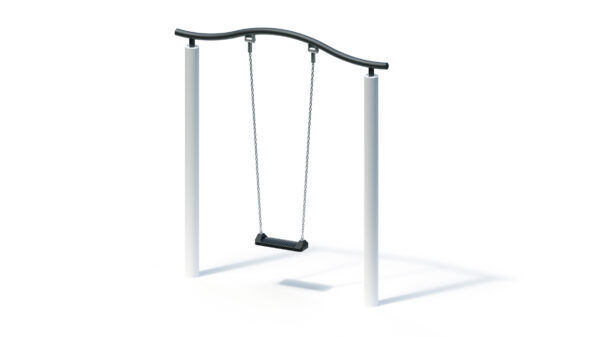

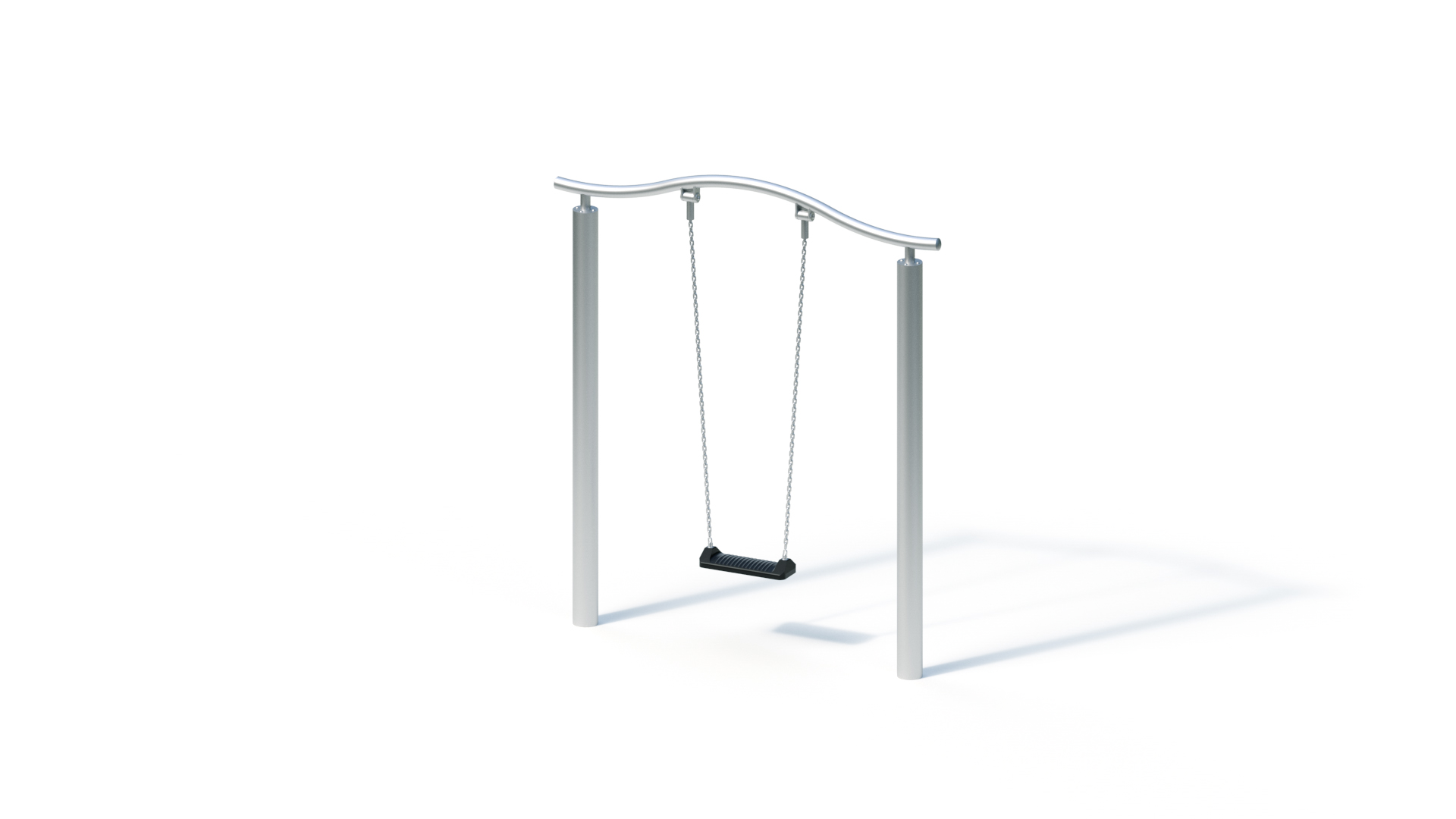

Fivefold Post swing (2,20)

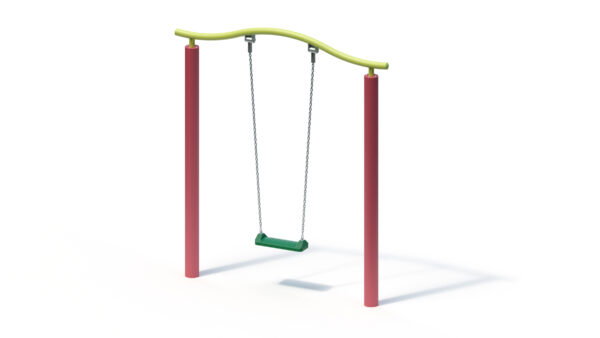

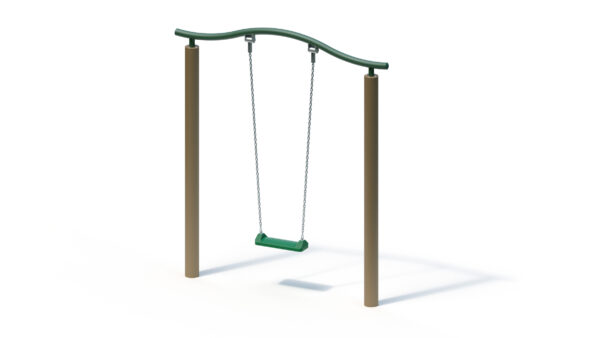

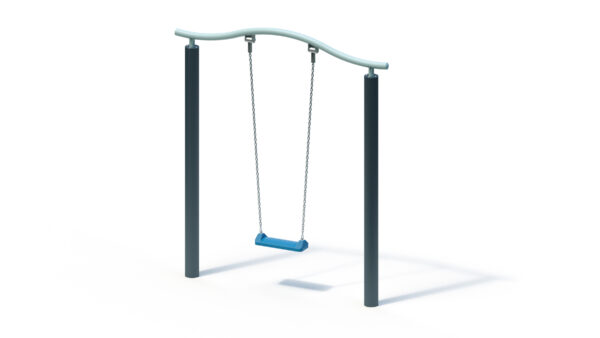

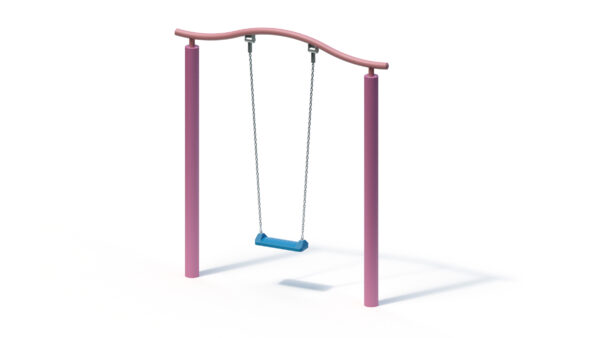

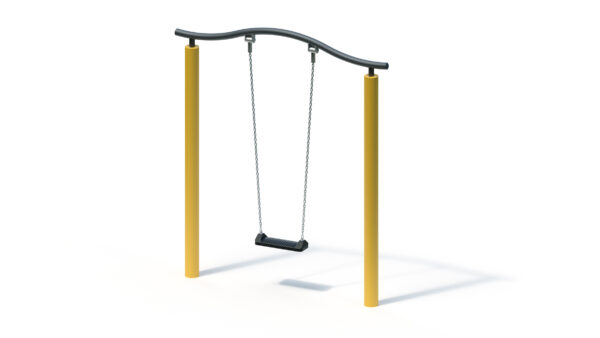

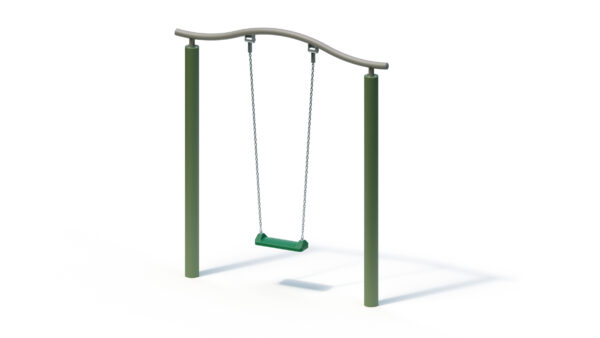

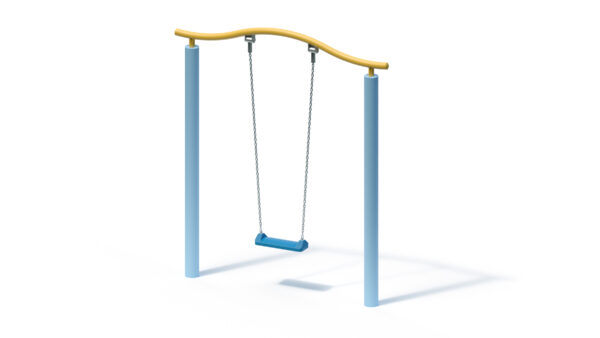

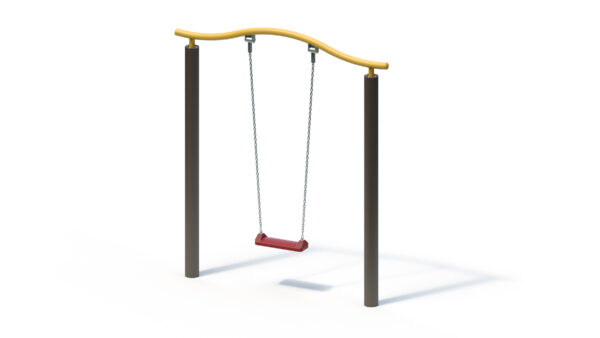

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 1 person |
| Activities ? | Physical activity, Swinging |
Technical data
| Minimum space length ? | 7,65 m |
|---|---|
| Minimum space width ? | 2,05 m |
| Minimum space height ? | 2,34 m |
| Equipment length ? | 0,12 m |
| Equipment width ? | 2,05 m |
| Equipment height ? | 2,34 m |
| Free-fall height ? | 1,35 m |
| Platform heights | - |
| Total weight ? | 110.00 kg |
| Heaviest single part ? | 32.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (1m x 0.8m x 0.5m) |
Product Downloads
Product description
Technical data

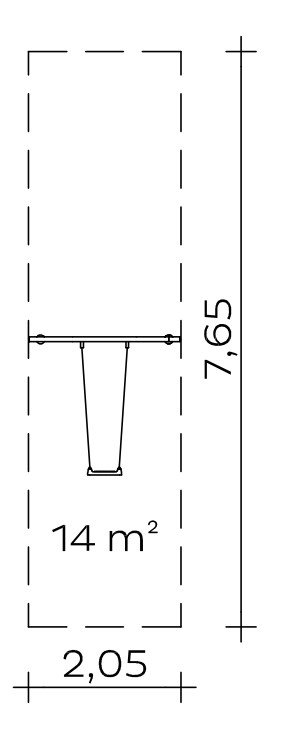

Minimum space: 2.05 x 7.65 m (14 m²)
Swing height: 2.20 m
Weight: 32 kg heaviest individual part
110 kg in total
- Support post made of stainless steel tube, Ø 120 mm
- Swing support: stainless steel tube, Ø 60 mm
- Stainless steel swing axle with plain bearings, including swivel
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- Matching infant seat (item no. 15818) can be supplied at an extra charge
Foundations (client-provided)
2 pcs. 1.00 x 0.80 x 0.50 m
Concrete volume: 0.80 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,35 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 040222000
This Kaiser & Kühne product enables:
