Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.

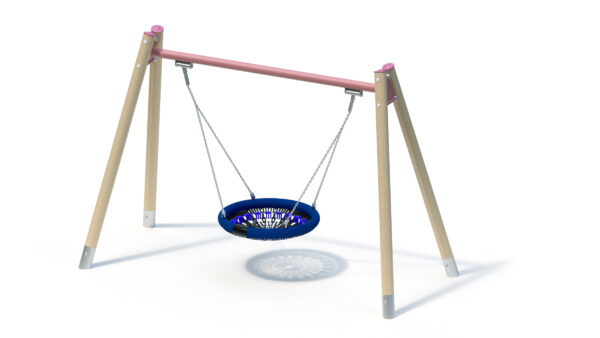

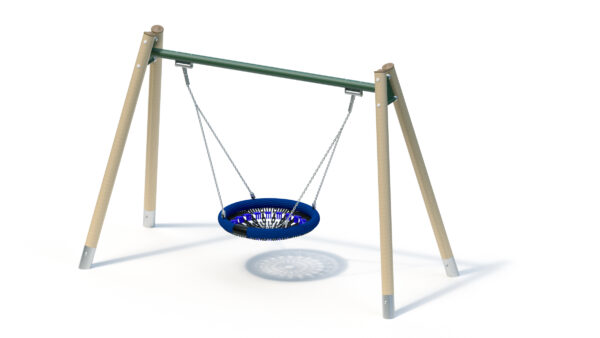

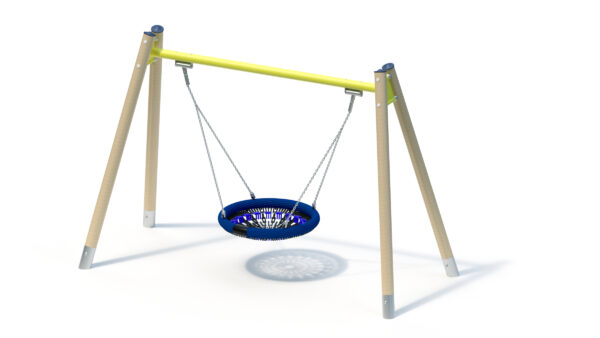

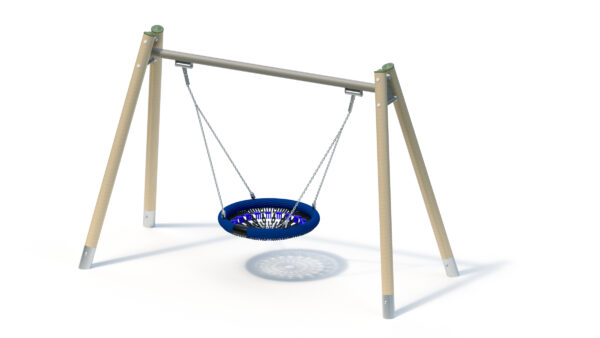

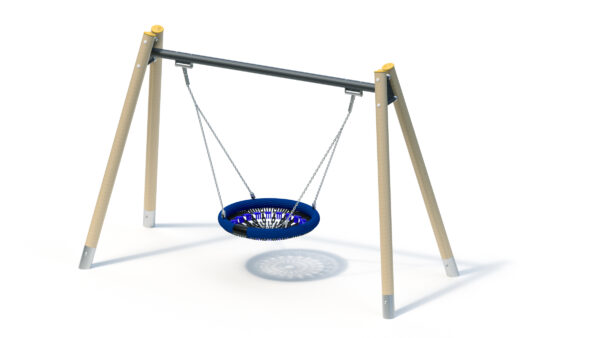

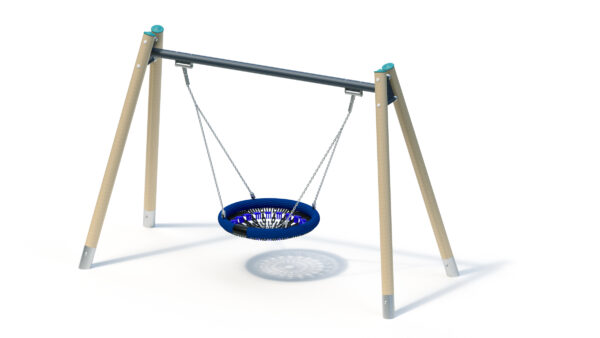

Basket swing KAROLAM® (2,00)
Variante wählen:
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 6 Personen |
| Aktivitäten ? | Swinging |
Technical data
| Mindestraumlänge ? | 6,94 m |
|---|---|
| Mindestraumbreite ? | 3,47 m |
| Mindestraumhöhe ? | 2,33 m |
| Gerätelänge ? | 1,54 m |
| Gerätebreite ? | 3,47 m |
| Gerätehöhe ? | 2,33 m |
| Freie Fallhöhe ? | 1,30 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 190.00 kg |
| Schwerstes Einzelteil ? | 40.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 4 (0.8m x 0.8m x 0.8m) |
Product Downloads
Product description
Technical data

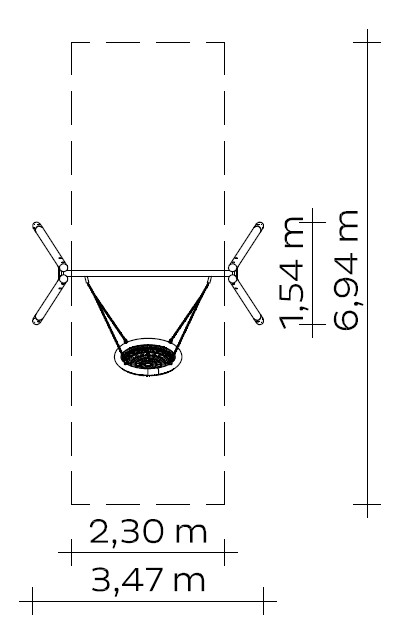

Floor area: 3.47 x 1.54 m
Minimum space: 3.47 x 6.94 m (25 m²)
Impact area: 2.30 x 6.94 m (16 m²)
Swing height: 2.00 m
Weight: 40 kg heaviest individual part
190 kg in total
- Swing supports made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end-grain surfaces are covered with non-detachable stainless steel post caps, stainless steel tubular base for foundation and elevation of robinia roundwood posts, Ø 120 mm, below the play level
- Swing support made of stainless steel tube Ø 88.9 mm, wall thickness 3.2 mm; connection to swing supports via connection plates
- Two-part swing axle made of stainless steel with roller bearings, including a second device for securing the swing seat to prevent it from falling if the main attachment fails. Specially designed swivel and universal joints, designed for the high dynamic requirements of this basket swing
- Chain mount with plain bearing-mounted equalising transverse joint
- Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- on swing axles and on the swing basket: chain attachment with stainless steel clamping adapter
- Swinging basket with all-round cushioning made of PUR foam and PE rope sheathing blue Ø 20 mm; basket ring Ø 0.95 m made of stainless steel tube Ø 38 mm, wall thickness 2 mm; basket made of plastic links blue-black, connected with steel rope. The TÜV-tested maximum acceleration is 50g. The limit value according to DIN EN 1176-2 is 120g. According to the TÜV test, the surface pressure is 79.6 N/cm², the limit value is 90N/cm²
max. load: 300 kg
corresponds to about 5 children up to 14 years
Foundations (client-provided)
4 units 0.80 x 0.80 x 0.40 m
Concrete volume: 1.1 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,30 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 040235000
