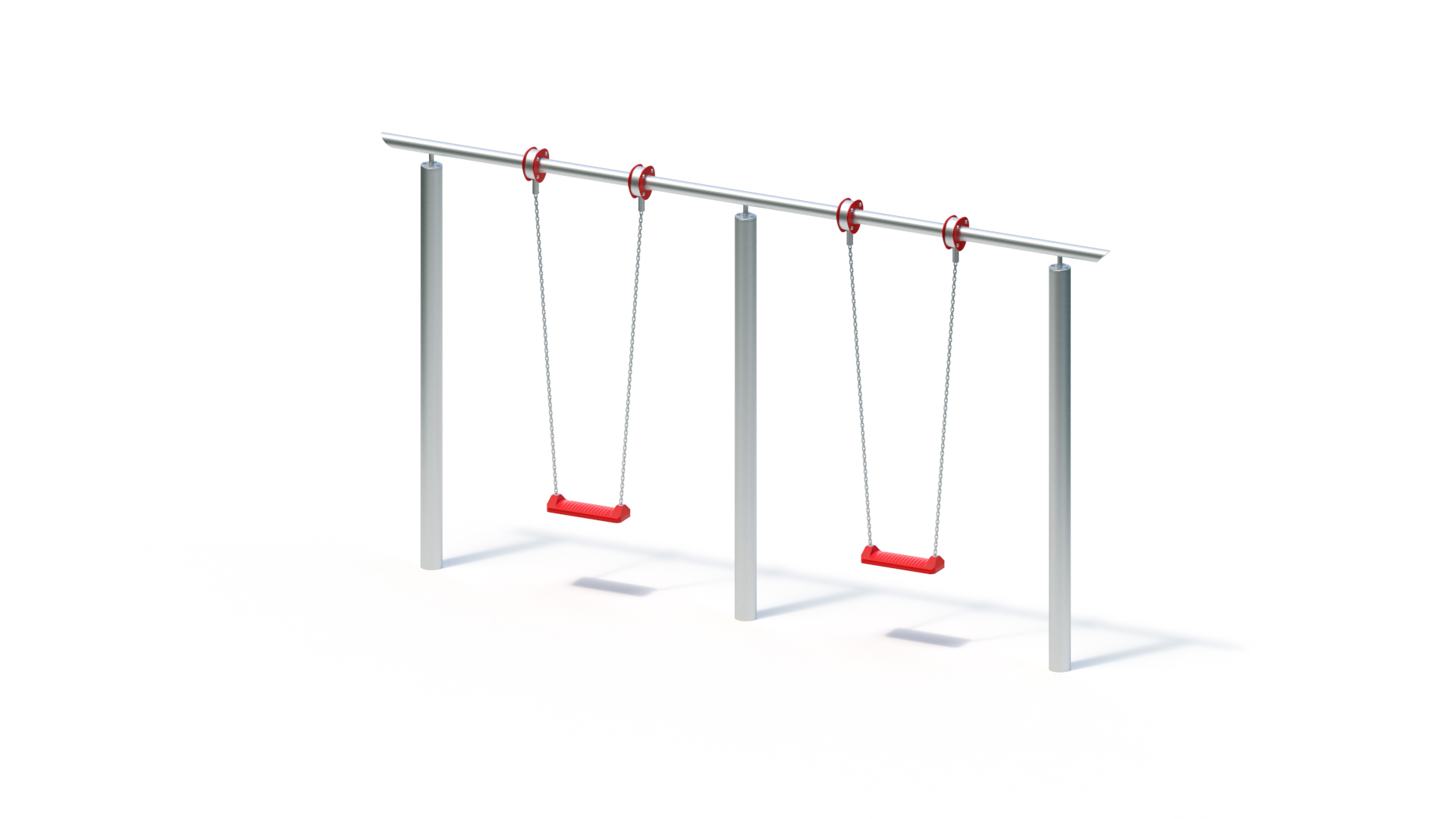

Non-Coil-Swing
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 2 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 4,40 m |
|---|---|
| Device width ? | 0,20 m |
| Device height ? | 2,54 m |
| Free fall height ? | 1,45 m |
| Platform heights | - |
| Total weight ? | 185.00 kg |
| Heaviest single item ? | 60.00 kg |
| Minimum room length ? | 7,85 m |
| Minimum room width ? | 4,40 m |
| Minimum room height ? | 2,54 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 100x080x050 |
Product Downloads
Product description
Technical data

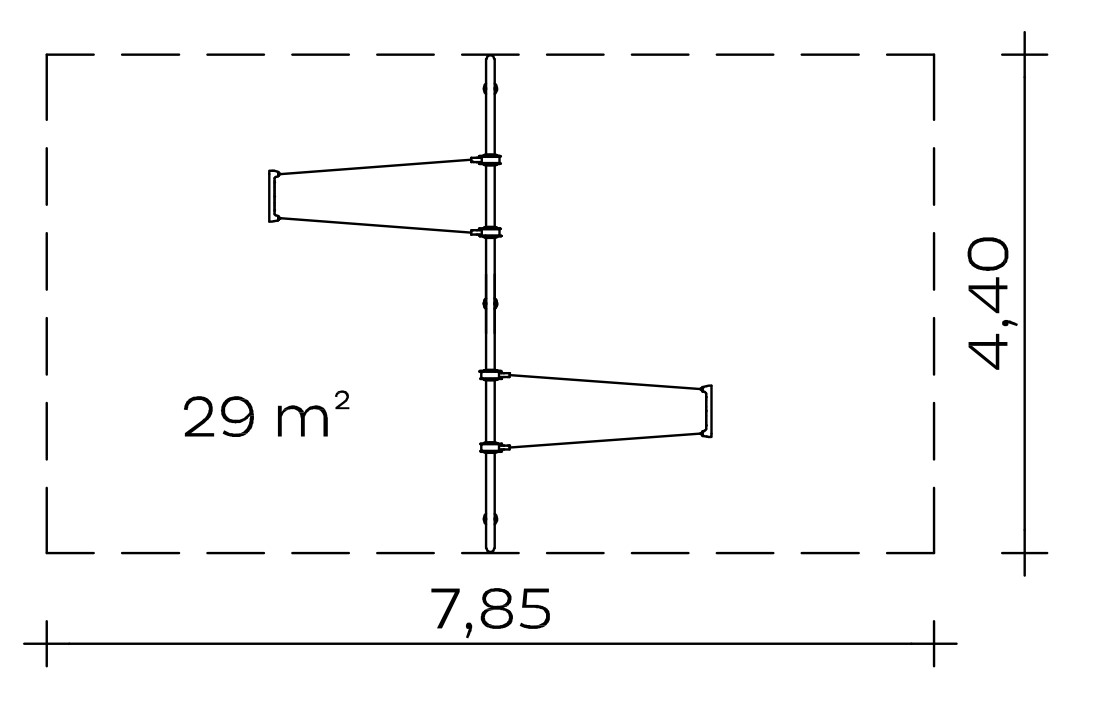

Minimum space: 4.40 x 7.85 m (29 m²)
Swing height: 2.40 m
Weight: 60 kg heaviest individual part
185 kg in total
- Support post made of stainless steel tube, Ø 120 mm, material 1.4301
- Swing support: stainless steel tube, Ø 76.1 mm, material 1.4301
- Swivel bearing: Roller bearing including swivel, bearing cover on the front made of stainless steel, additionally powder-coated and stove-enamelled. Colour: red/RAL 2002
- Swing chain Ø 7mm: stainless steel
- Safety swing seat, red, made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- on swing axle and swing seat: chain attachment with stainless steel clamping adapter
Foundations (client-provided)
3 pcs. 0.80 x 1.00 x 0.50 m
Concrete volume: 1.20 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,45 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 040232001
