Non-Coil-Swing
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 1 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Gerätelänge ? | 2,50 m |
|---|---|
| Gerätebreite ? | 0,20 m |
| Gerätehöhe ? | 2,54 m |
| Freie Fallhöhe ? | 1,45 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 100.00 kg |
| Schwerstes Einzelteil ? | 35.00 kg |
| Mindestraumlänge ? | 7,85 m |
| Mindestraumbreite ? | 2,50 m |
| Mindestraumhöhe ? | 2,54 m |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 2 (1m x 0.8m x 0.5m) |
Product Downloads
Product description
Technical data

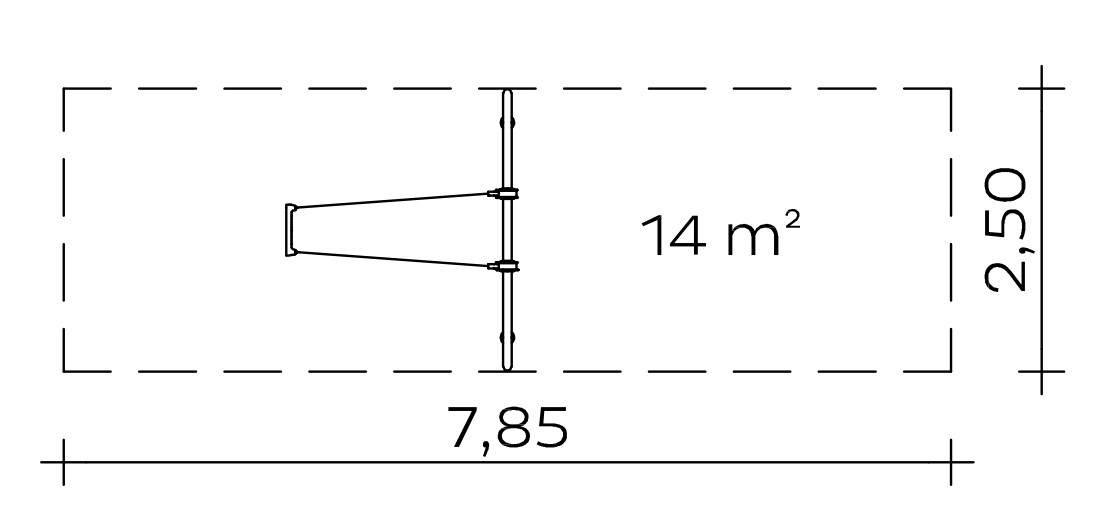

Minimum space: 2.50 x 7.85 m (14 m²)
Swing height: 2.40 m
Weight: 35 kg heaviest individual part
100 kg in total
- Support post made of stainless steel tube, Ø 120 mm, material 1.4301
- Swing support: stainless steel tube, Ø 76.1 mm, material 1.4301
- Swivel bearing: Roller bearing including swivel, bearing cover on the front made of stainless steel, additionally powder-coated and stove-enamelled. Colour: red/RAL 2002
- Swing chain Ø 7mm: stainless steel
- Safety swing seat, red, made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- on swing axle and swing seat: chain attachment with stainless steel clamping adapter
Foundations (client-provided)
2 pcs. 0.80 x 1.00 x 0.50 m
Concrete volume: 0.80 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,45 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Movement activities.
Item number: 040230001
