Double swing (2,00)
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 2 people |
| Activities ? | Physical activity, Swinging |
Technical data
| Minimum space length ? | 7,30 m |
|---|---|
| Minimum space width ? | 3,80 m |
| Minimum space height ? | 2,20 m |
| Equipment length ? | 0,00 m |
| Equipment width ? | 0,12 m |
| Equipment height ? | 2,20 m |
| Free-fall height ? | 1,25 m |
| Platform heights | - |
| Total weight ? | 150.00 kg |
| Heaviest single part ? | 80.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (1.2m x 1.2m x 0.6m) |
Product Downloads
Product description
Technical data
Base area: 3.00 x 0.12 m

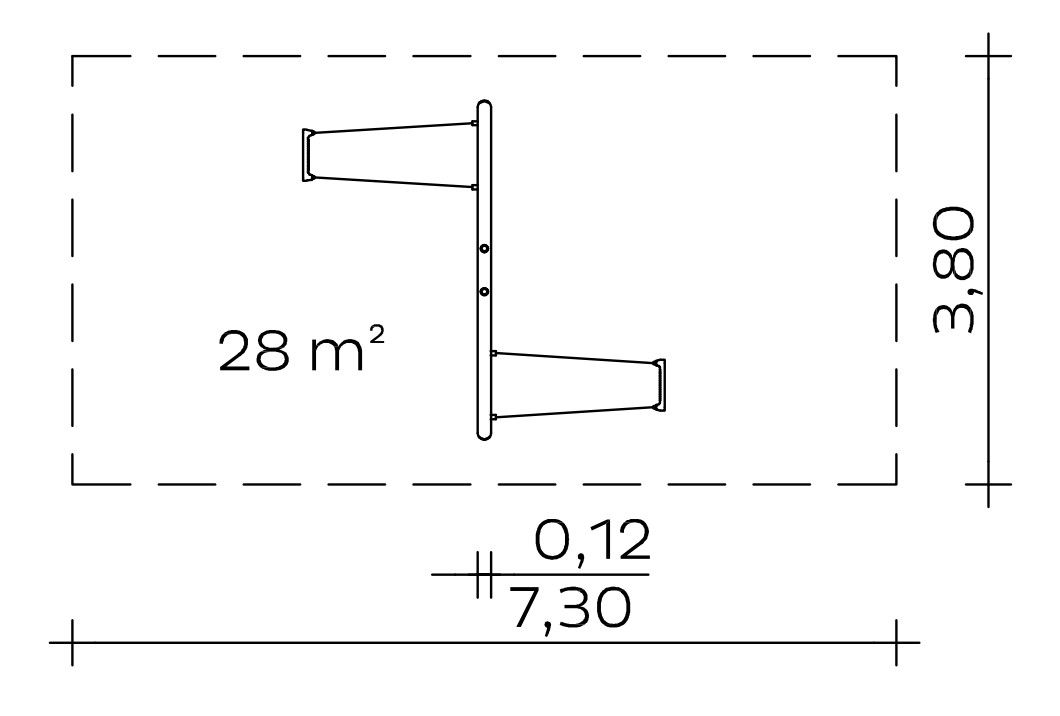

Minimum space: 3.80 x 7.30 m (28 m²)
Swing height: 2.00 m
Weight: 80 kg heaviest individual part
150 kg in total
- Support post: Stainless steel tube, Ø 120 x 3 mm
- Swing support: stainless steel tube, Ø 120 x 3 mm
- Stainless steel swing axle with plain bearings, incl. swivel
- Swing chain Ø 7mm: stainless steel
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- on swing axle and swing seat: chain attachment with stainless steel clamping adapter
Foundations (client-provided)
1 piece 1.20 x 1.20 x 0.60 m
Concrete volume: 0.87 m³
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
1,25 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 040190000
